Yoshida YR5-115 RADIAL ARM DRILLS

$9,950

Make:: Yoshida

Model:: YR5-115

Year:: 1970'S

Ref #:: 159974

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

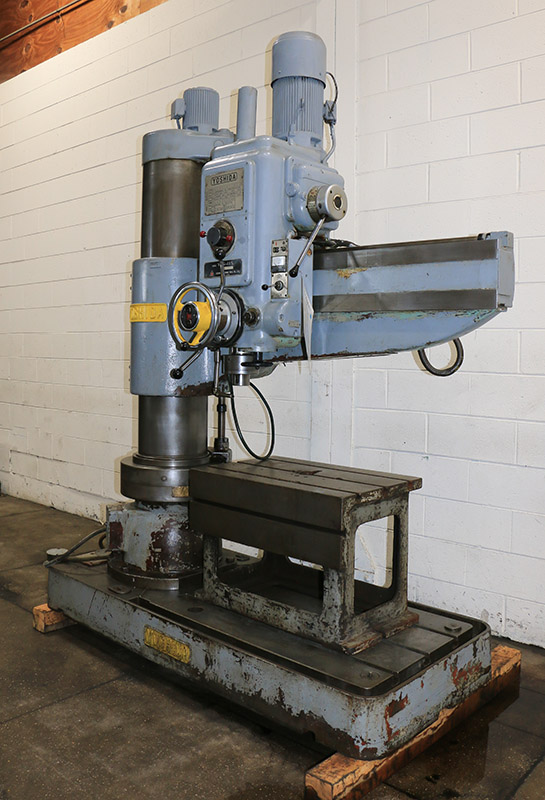

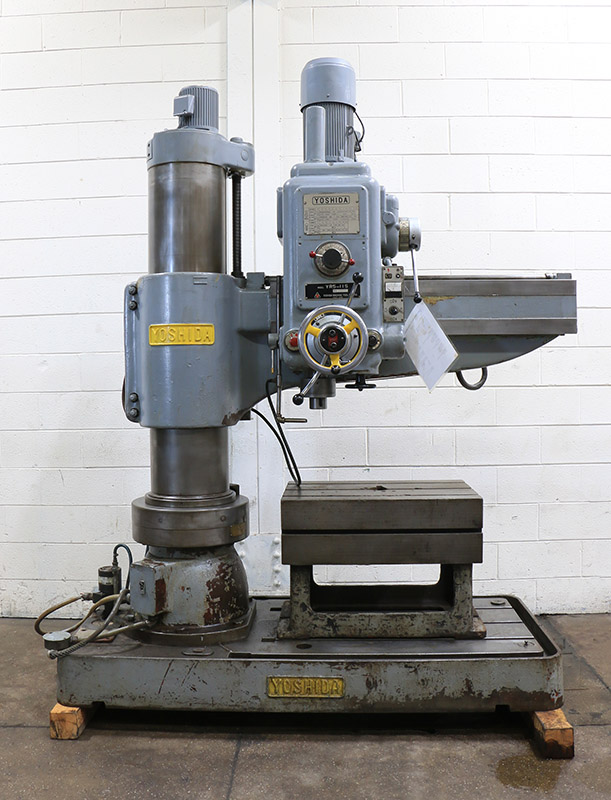

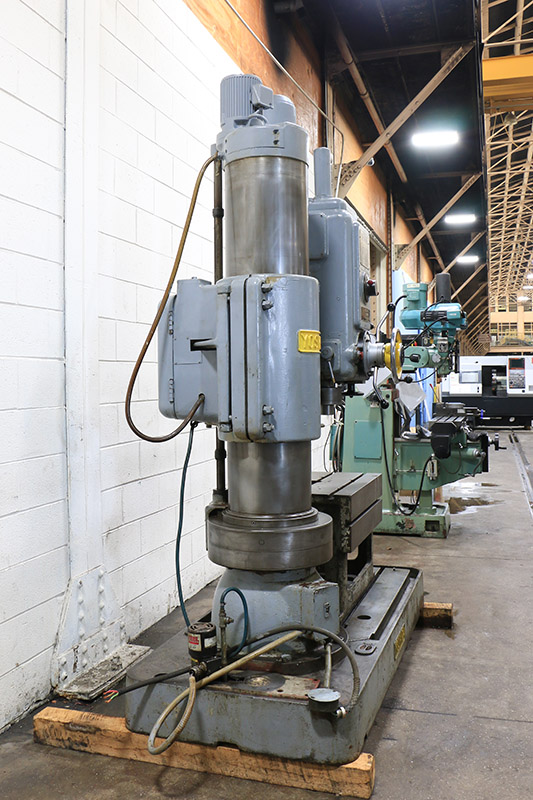

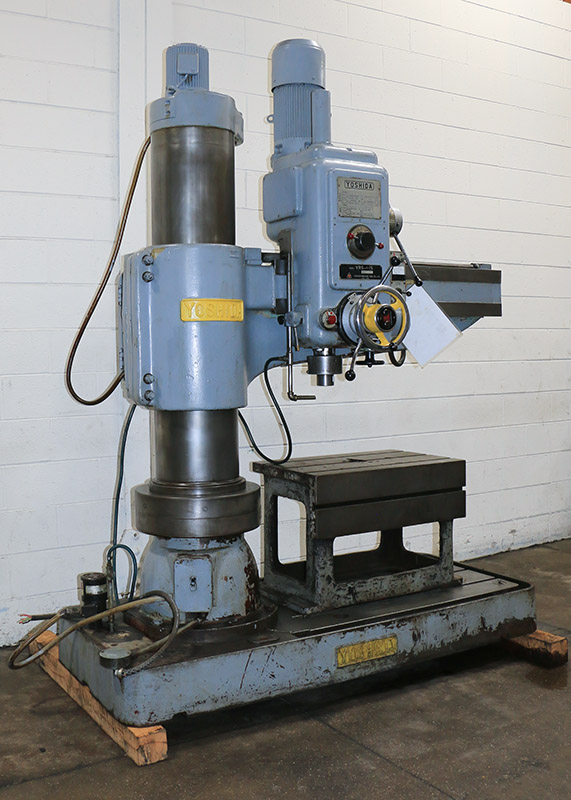

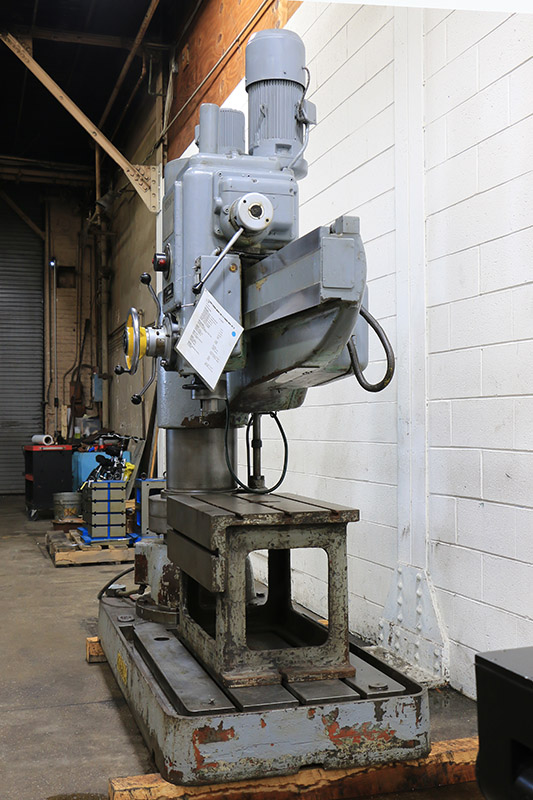

45” X 12” YOSHIDA RADIAL DRILL,

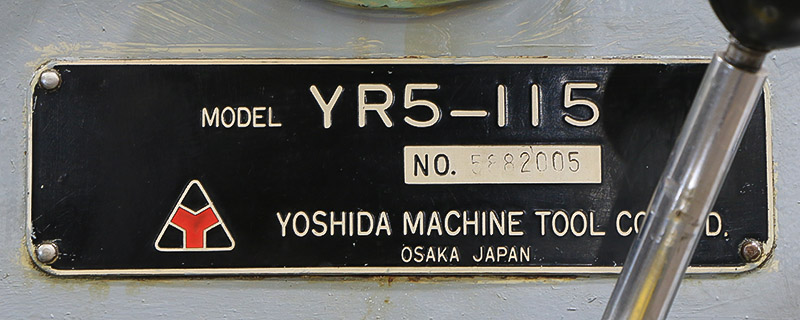

MODEL YR5-115, S/N  5882005

SPECIFICATIONS
CAPACITIES
MAXIMUM DISTANCE, COLUMN SURFACE
  TO SPINDLE END: ......................... 45-1/4”
MINIMUM DISTANCE, COLUMN SURFACE
  TO SPINDLE END: ......................... 11-1/16”
MAXIMUM DISTANCE, BASE TOP
  TO SPINDLE END: ......................... 50-13/16”
MINIMUM DISTANCE, BASE TOP
  TO SPINDLE END: ......................... 14-15/16”
DRILLING CAPACITY IN STEEL: ............... 2”
TAPPING CAPACITY IN STEEL: ................ 1-7/8”
BORING CAPACITY IN STEEL: ................. 2-3/4”
ARM & COLUMN
COLUMN DIAMETER: .......................... 12-5/8”
HORIZONTAL TRAVERSE OF SPINDLE END: ....... 33-7/8”
VERTICAL TRAVEL OF ARM:	................... 24-3/8”
SPINDLE
SPINDLE TAPER: ............................ NO. 5 MT
SPINDLE SPEEDS (12): ...................... 40 TO 1800 RPM
SPINDLE STROKE:	........................... 11-3/4”
SPINDLE FEEDS (9): ........................ 0.002 TO .040 IPR
BASE PLATE
SIZE: ..................................... 7-1/2” X 33-7/8” X 74-13/16”
SIZE OF WORKING SURFACE: .................. 27-3/4” X 43-5/16”

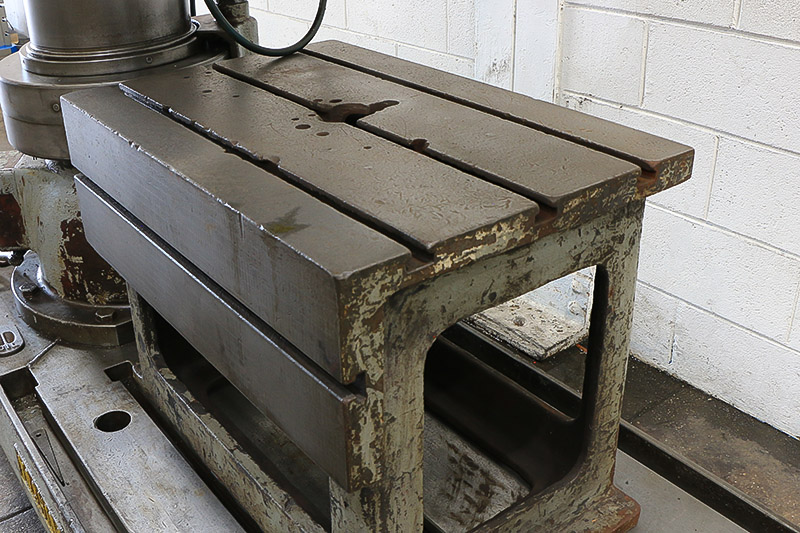

SIZE OF TABLE: ............................ 17-3/4” X 19-11/16” X 25-5/8”
MOTOR
SPINDLE DRIVE: ............................ 5 HP
ARM ELEVATING: ............................ 1.5 HP
CLAMPING: ................................. 0.5 HP
COOLANT PUMP: ............................. 1/6 HP
GENERAL
OVERALL DIMENSIONS, APPROX.: .............. 7’ L-R X 3’ F-B X 8’5” H
NET WEIGHT: ............................... 6,600 LBS
ELECTRICS: ................................ 220 VOLTS, 3 PH, 60 CYC
