Accurpress 725010 ADVANTAGE PRESS BRAKES w/CNC BACK GAUGES

Price on Request

Make:: Accurpress

Model:: 725010 ADVANTAGE

Year:: 2005

Ref #:: 179134

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

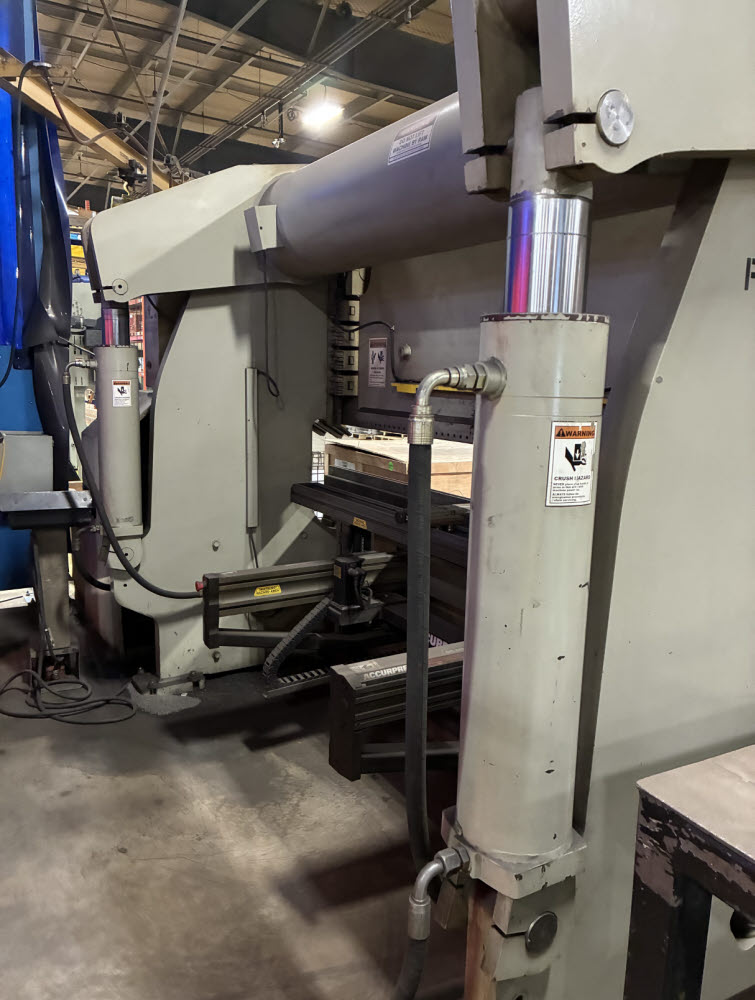

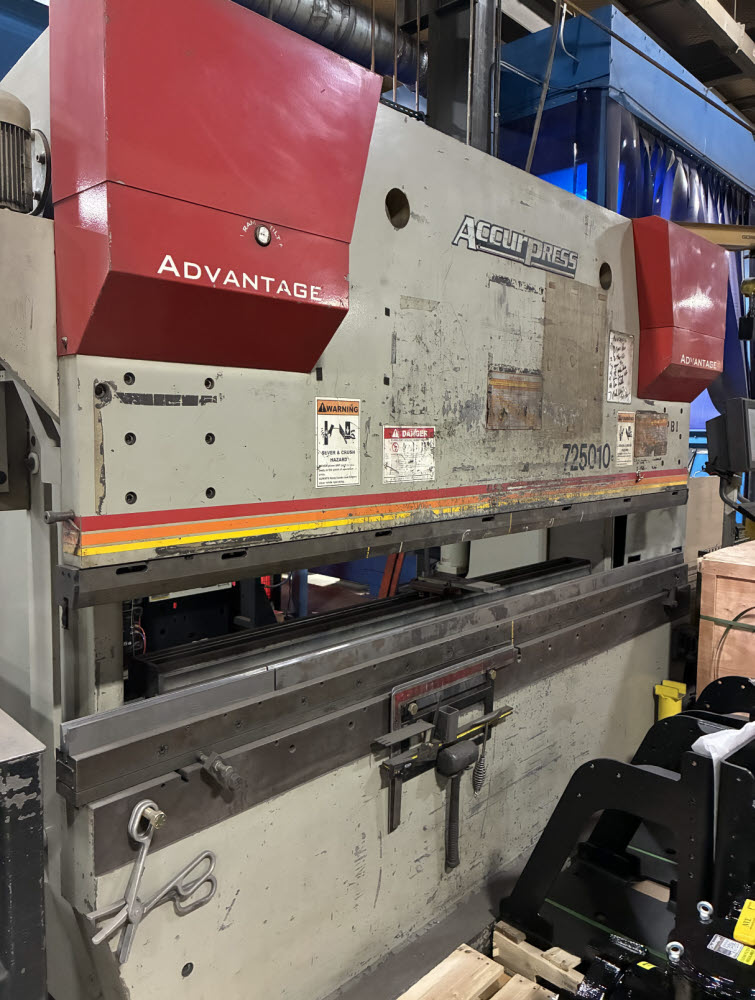

250 TON X 10' ACCURPRESS PRESS BRAKE
W/ETS 3000 CONTROL
MODEL ADVANTAGE 725010     NEW 2005

Capacity ....................... 250 Tons
Overall bending length ......... 120"
Distance between housing ....... 100"
Bed height ..................... 36"
Top bed width .................. 6"
Length of Ram Stroke ........... 8"
Open Height .................... 16"
Closed Height .................. 8"
Throat Depth ................... 10"
Approximate speeds Approach .... 65 IPM
                   Bend ........ 19 IPM
                   Return ...... 140 IPM
Cycles per minute Standard ..... 11
                  Hi-speed ..... 15
Approximate motor HP ........... 20

Overall dimensions: 144" x 60" x 98" High
Approximate Weight: 22,000 lbs

Equipped With:-
- Accurpress Advantage Package (Proportional Valve Hydraulic System & Dual Ram Encoder Feedback System)

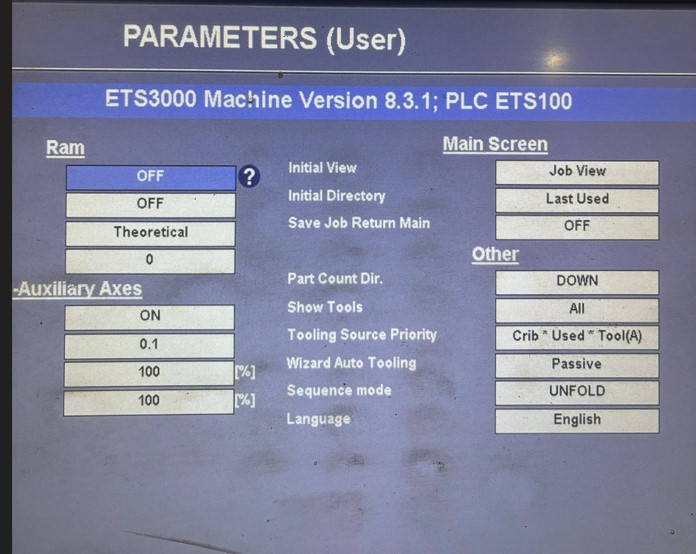

- ETS-3000 3-Axis CNC Back Gauge System (X, Y & R)
- ETS-100 Operators Console with Display and Palm Buttons
