Accurpress 7608 PRESS BRAKES w/CNC BACK GAUGES

$24,500

Make:: Accurpress

Model:: 7608

Year:: 1997

Ref #:: 164186

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

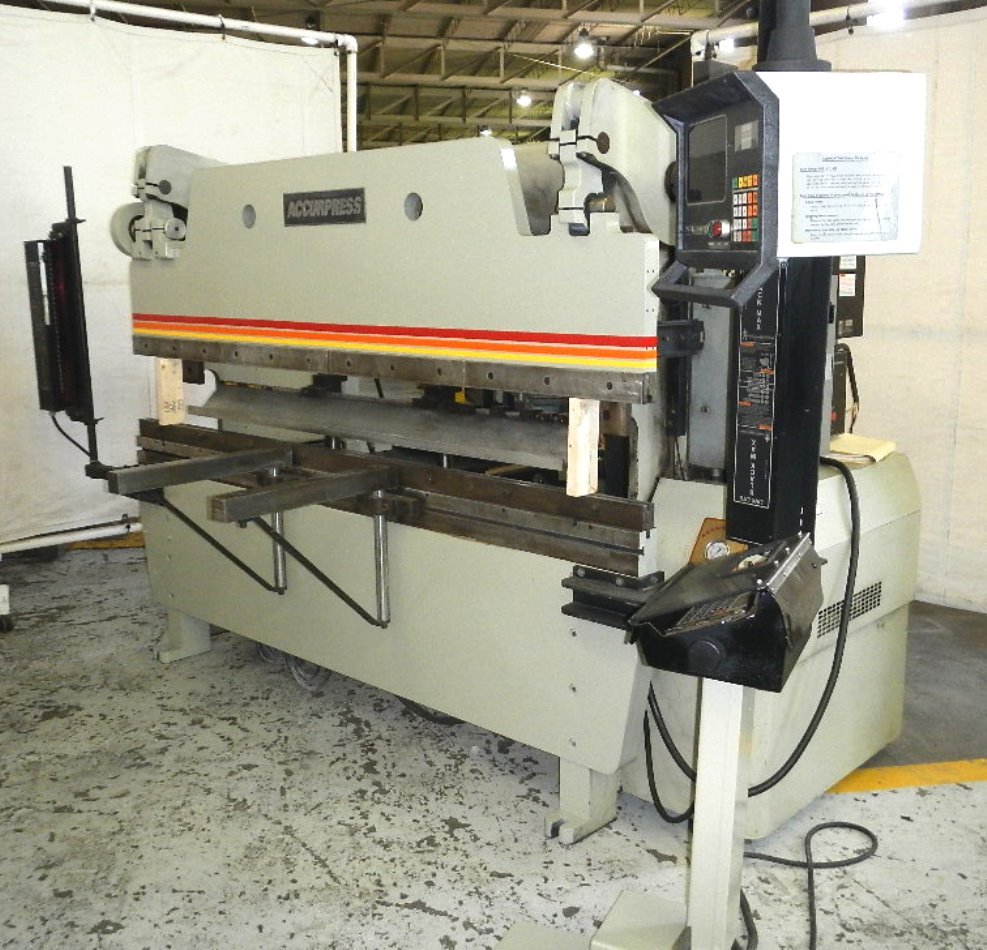

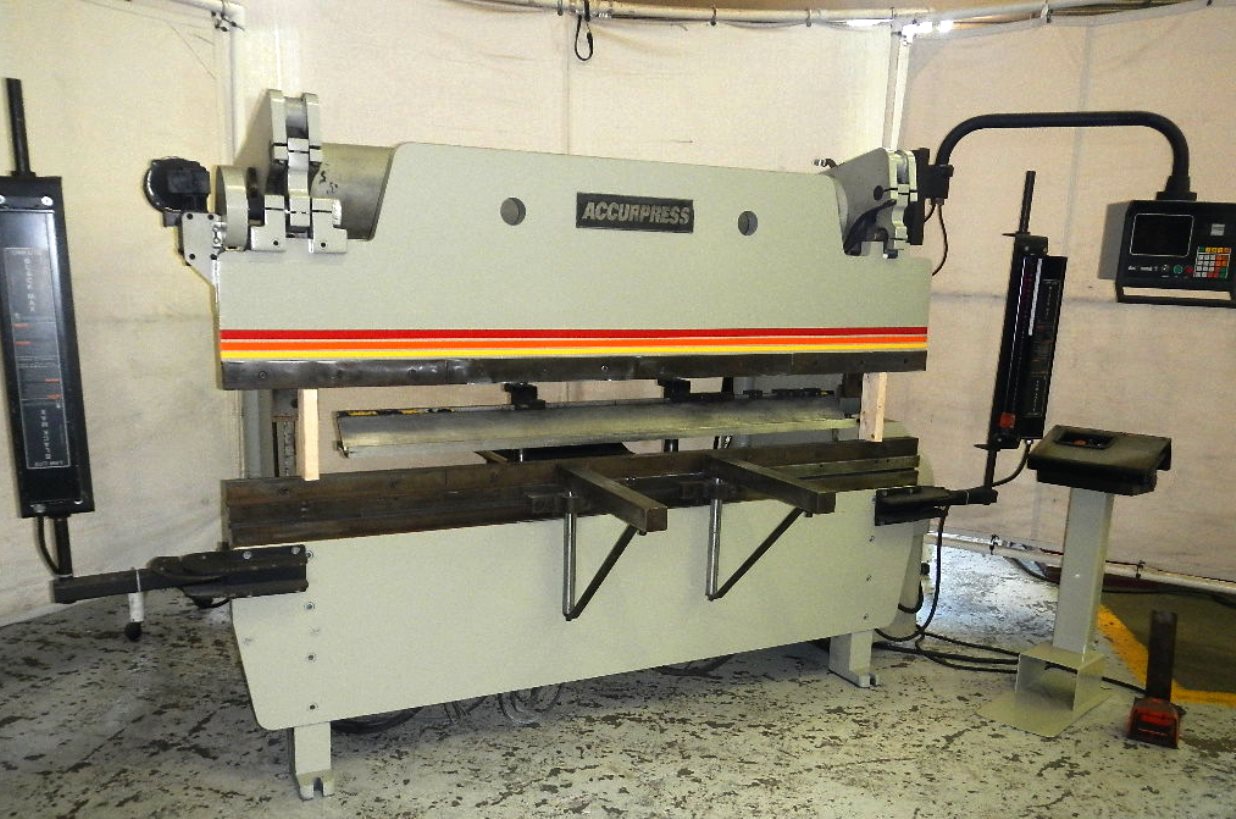

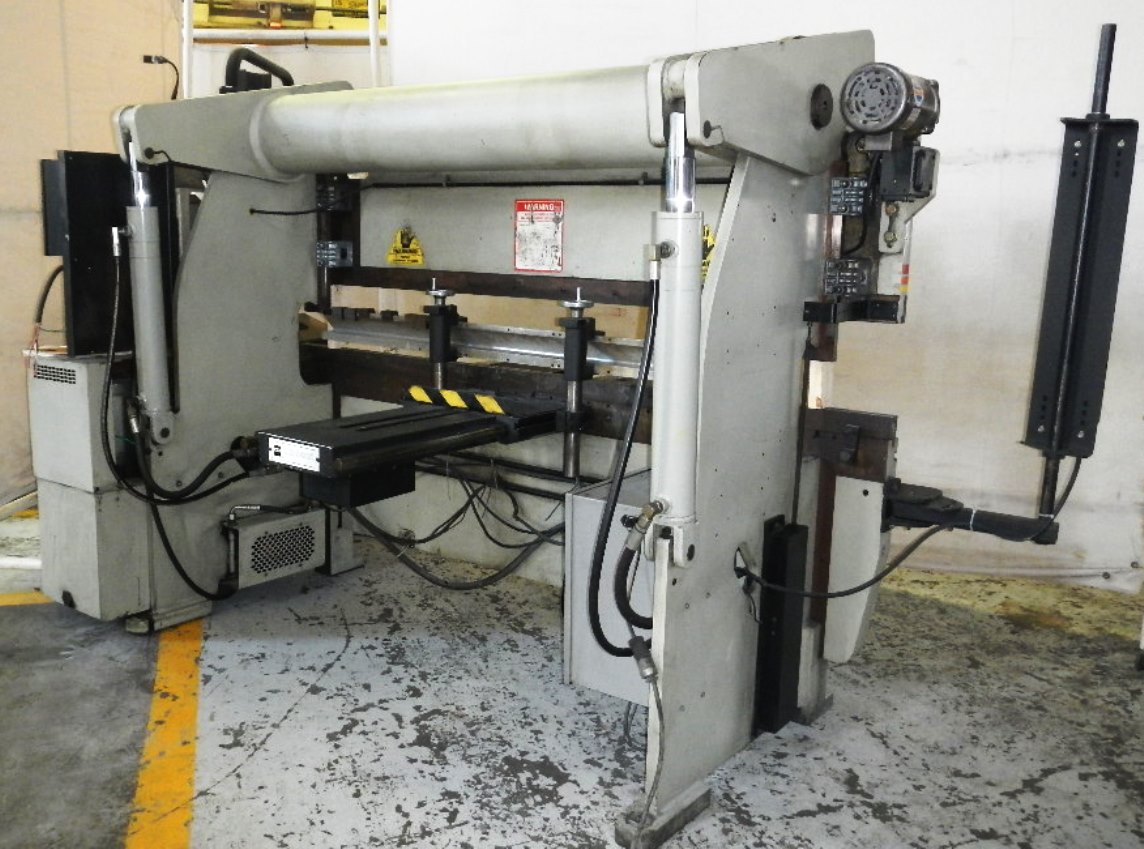

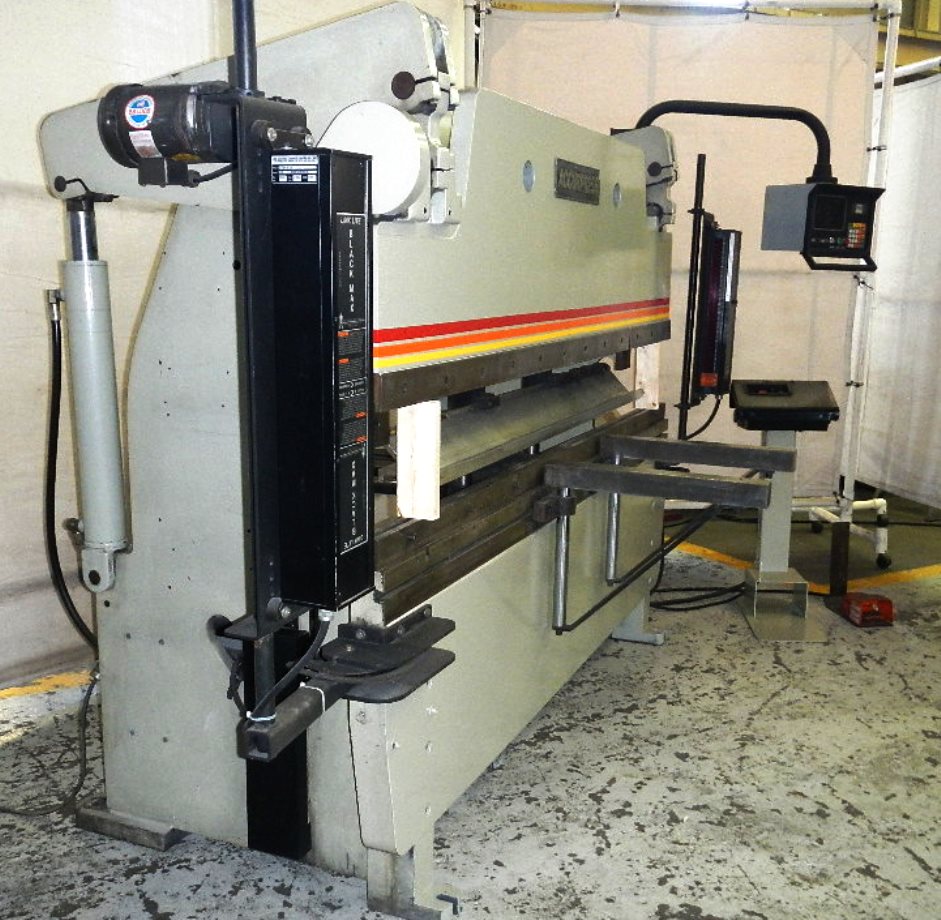

8' X 60 TON ACCURPRESS HYD. CNC PRESS BRAKE*

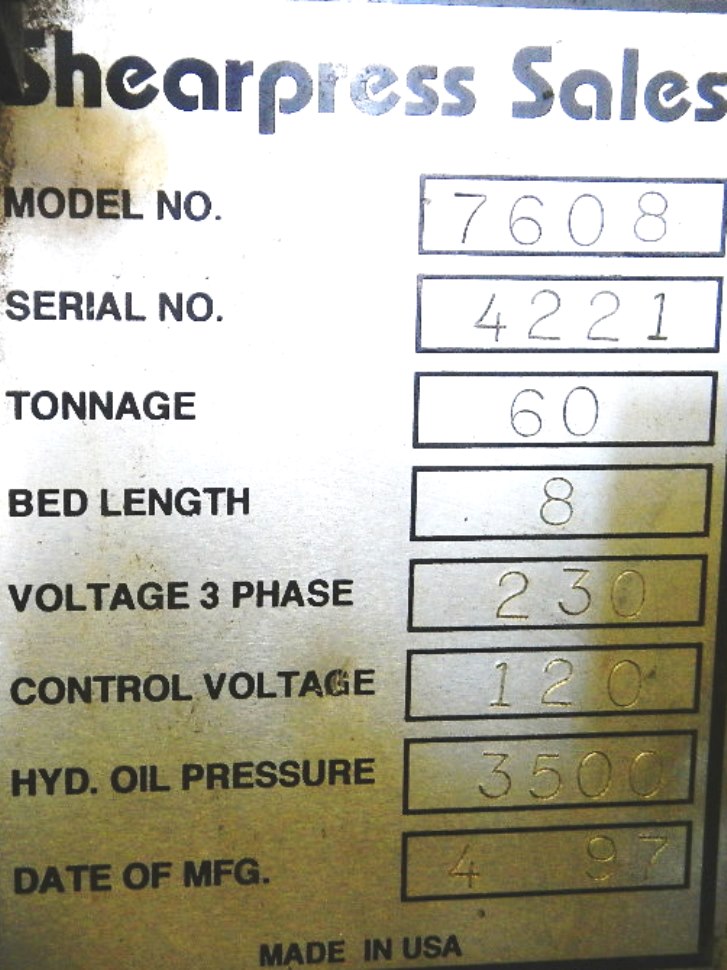

MODEL 7608          S/N 4221        Year 1997

Capacity .......................... 60 tons
Overall length of bed and ram ..... 96"
Distance between housings ......... 76"
Stroke ............................ 8"
Open height ....................... 14"
Throat depth ...................... 8"
Ram speeds (fast approach) ........ 130 IPM
           (slow bend) ............ 24 IPM
           (fast return) .......... 260 IPM
Speed ............................. 22 spm
Width of platen ................... 3"
Bed to floor distance ............. 34"
Drive motor ....................... 10 HP

Aproximate overall dimensions 108 x 50 x 78 high
Approximate weight 8,000 lbs.

Machine is equipped with:

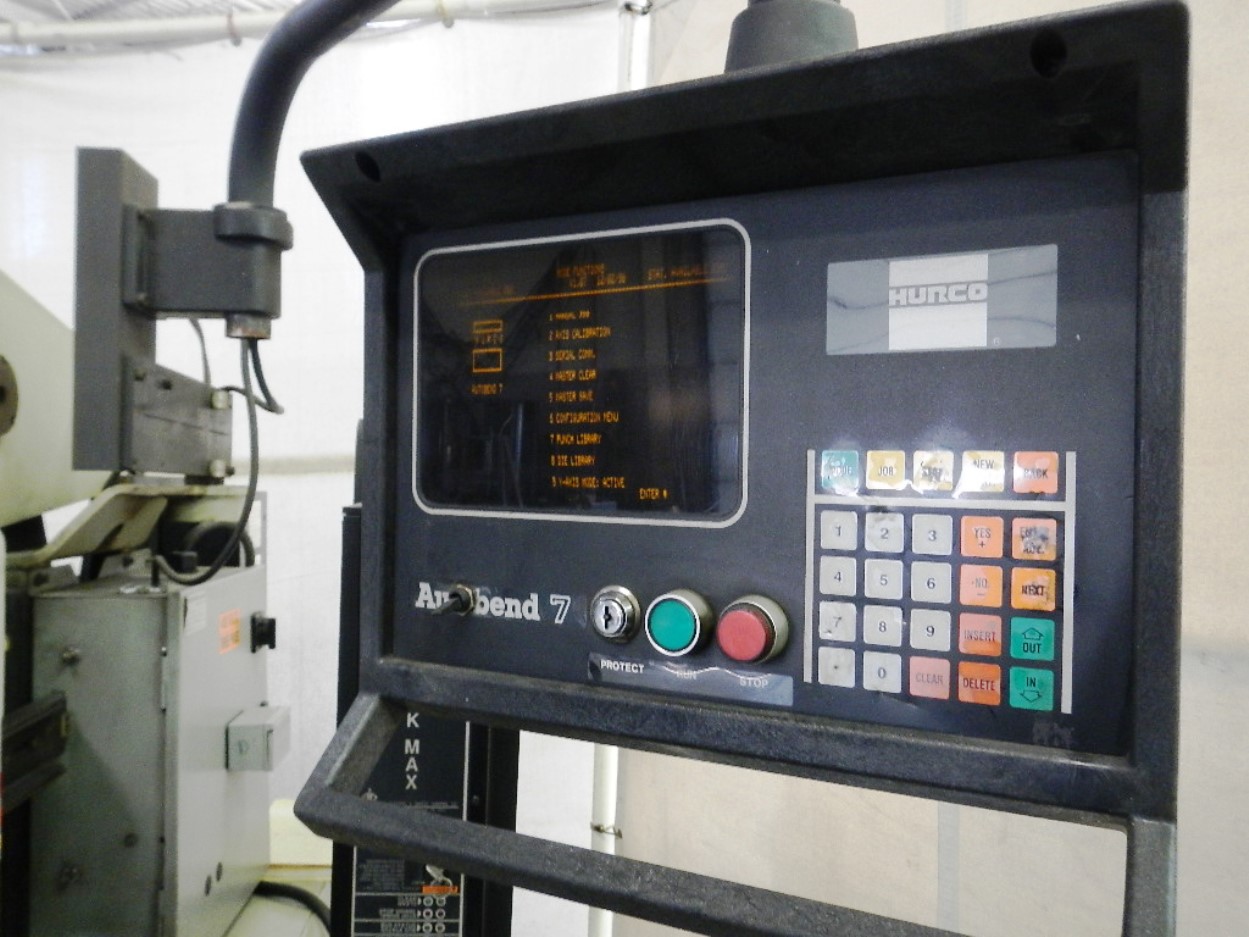

- 2-Axis CNC back gauge system (ETS & Hurco 7)

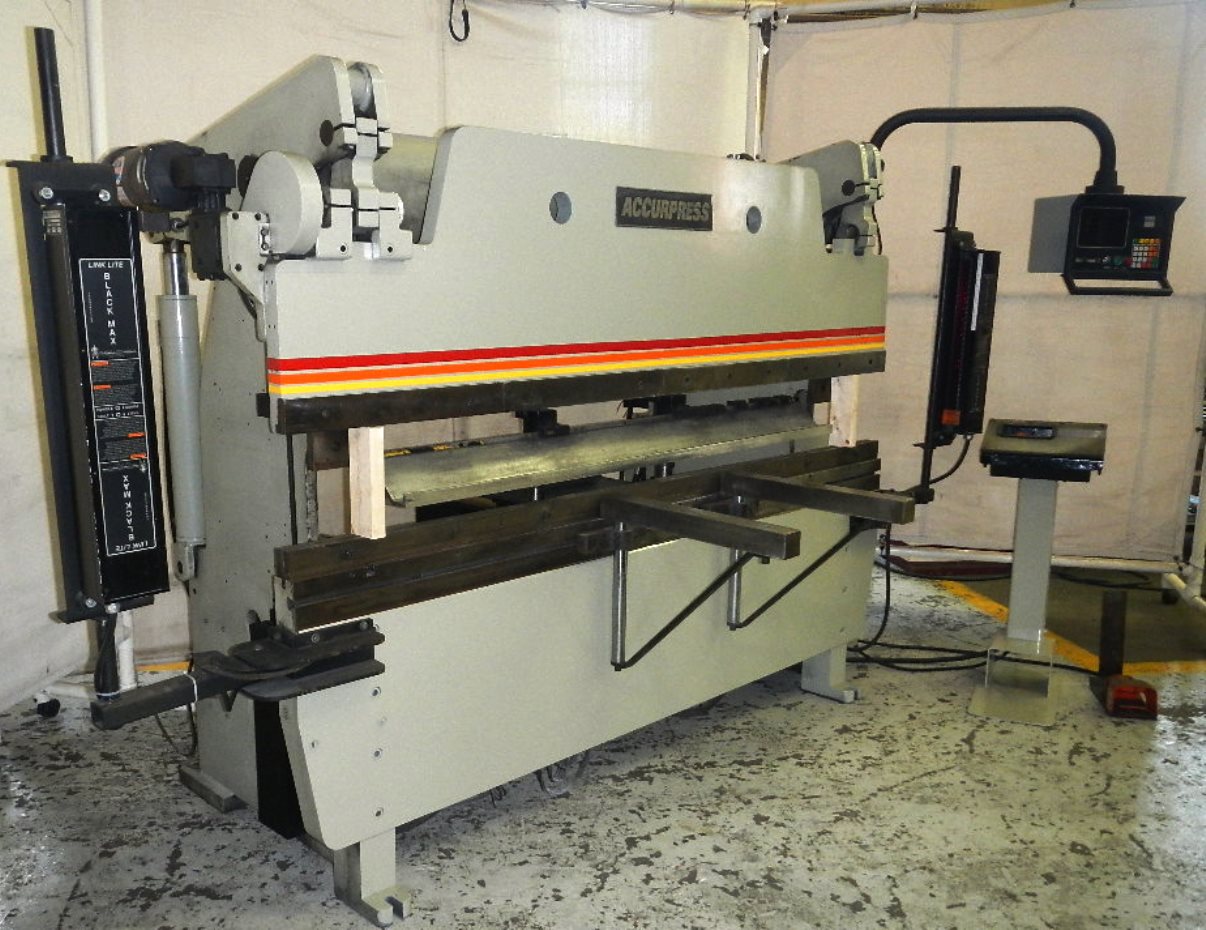

- Black Max light curtains
- Adjustable back gauge fingers
- Remote control pedestal w/ palms and foot pedal
- Lower die rail
- Adjustable speed control
- Adjustable front support arms
- Upper sectional ram clamps

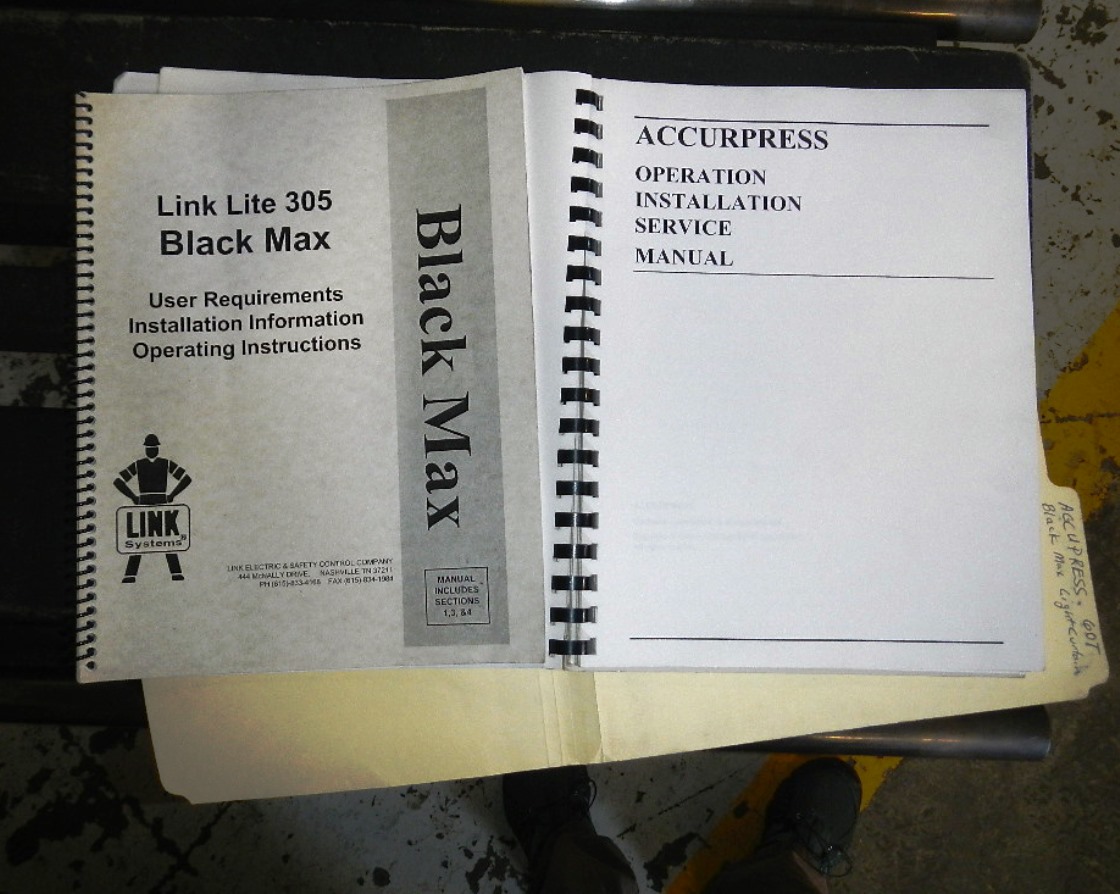

- Full set of manuals

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
