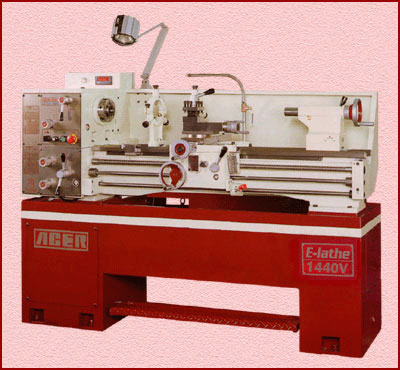

Acer E-Lathe 1440V NEW LATHES

Price on Request

Make:: Acer

Model:: E-Lathe 1440V

Year:: NEW

Ref #:: 125031

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

NEW ACER HIGH SPEED PRECISION LATHE
MODEL: E-LATHE 1440V

FEATURES:
1-1/2" Spindle Bore with  D1-4 Camlock Spindle Nose
3HP Spindle Inverter Motor
"TOSHIBA" Vector-Type or "FUJI" 5HP Fequency Inverter
Infinite Spindle Speed: 36 ~ 2,200 RPM
Power Supply: Accepts 220V/1-PH or 220V/3-PH
Precision Ground Gears and Spindle in Headstock
Spindle is equipped with Precision Taper Roller Bearings
Enclosed Gearbox and Feedscrew w/Built-In Safety Overload Friction Clutch
New and Enhance Design PC Board
9" Bed Width with Hardened and Ground Bedway

SPECIFICATIONS:
General Capacity:
Center Height: 7"
Swing over bed: 14"
Swing over gap (Gap type only): 20-3/4"
Swing over cross slide: 8-3/4"
Distance between centers: 40"

Main Spindle:
Spindle nose: D1-4
Spindle bore diameter: 1-1/2"
Type of spinde nose: MT#5
Taper of center: MT#3
Spindle speeds: 36~2,000 rpm (infinite)

Carriage:
Cross slide travel: 8"
Compound rest travel: 3-1/2"
Max. size cutting tool: 3/4" x 3/4"
Tailstock:
Spindle diameter: 1-7/16"
Spindle travel: 4"
Taper of center: MT#3

Bed:
Bed Lenth: 54"
Bed width: 9"
Width of gap: 8"

Threading & Feeding:
System: Inch
Pitch of leadscrew: 24 Ø, 4 TPI
Metric pitch threads: 0.4~7mm/pitch (32 kinds)
Inch pitch threads: 4~56 TPI (32 kinds)
Range of lonitudinal feeds: 0.0026"~0.0368"/rev.
Range of cross feeds: 0.0008"~0.0122"/rev.

Power:
Main drive motor: 3 HP
Coolant pump motor: 1/8 HP

Weights & Dimensions:
Floor Dimensions: 70" x 32"
Net Weight: 1,580 lbs.
Gross Weight: 1,800 lbs.
Packing Dimensions: 77" x 33" x 63"

Standard Accessories:
(1) 6" 3-Jaw Chuck
(1) 8" 4-Jaw Chuck
(1) Steady Rest (0.78" ~ 2.15")
(1) Follow Rest (0.78" ~ 1.97")
Halogen Work Light
Tool Box with Tools
Chuck Guard with Safety Switch
4-Way Tool Post
(1) 10" Face Plate
Built In Coolant System
Full Length Splash Guard
Foot Brake
Micrometer Stop

Optional Accessories:
"Aloris" Tool Post & 4-Holer Set (#2-BS)
"Aloris" Tool Post & 6-Holder Set (#2 Set)
"Dorian" Quick Change Tool Post & 4-Holder Set (SD30BXA-TS)
Four Position Carriage Stop
5C Collet Closer (Lever Type)
Taper Turning Attachment
"Newall" DP700 2-Axis D.R.O. (8" x 40" Travel)
"Newall" E70 2-Axis D.R.O. & C.S.S.
"Magnascale" 2-Axis D.R.O. (8" x 40" Travel)
Upgrade to 440V / 3-PH Inverter Drive

video: https://www.youtube.com/watch?v=FmHu6S-dToI
