Amada FBD1030NT PRESS BRAKES w/CNC BACK GAUGES

$44,500

Make:: Amada

Model:: FBD1030NT

Year:: 2000

Ref #:: 178391

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

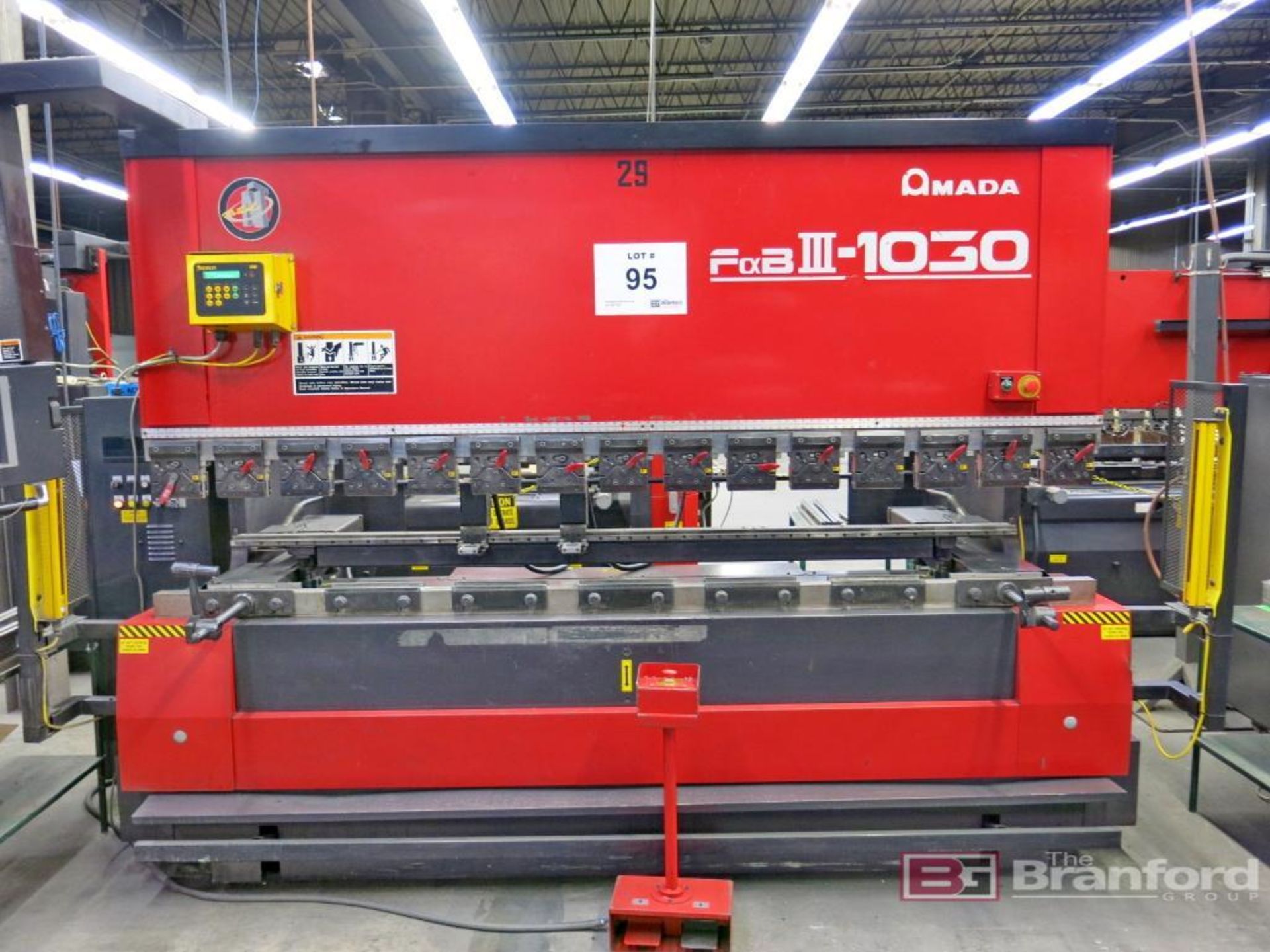

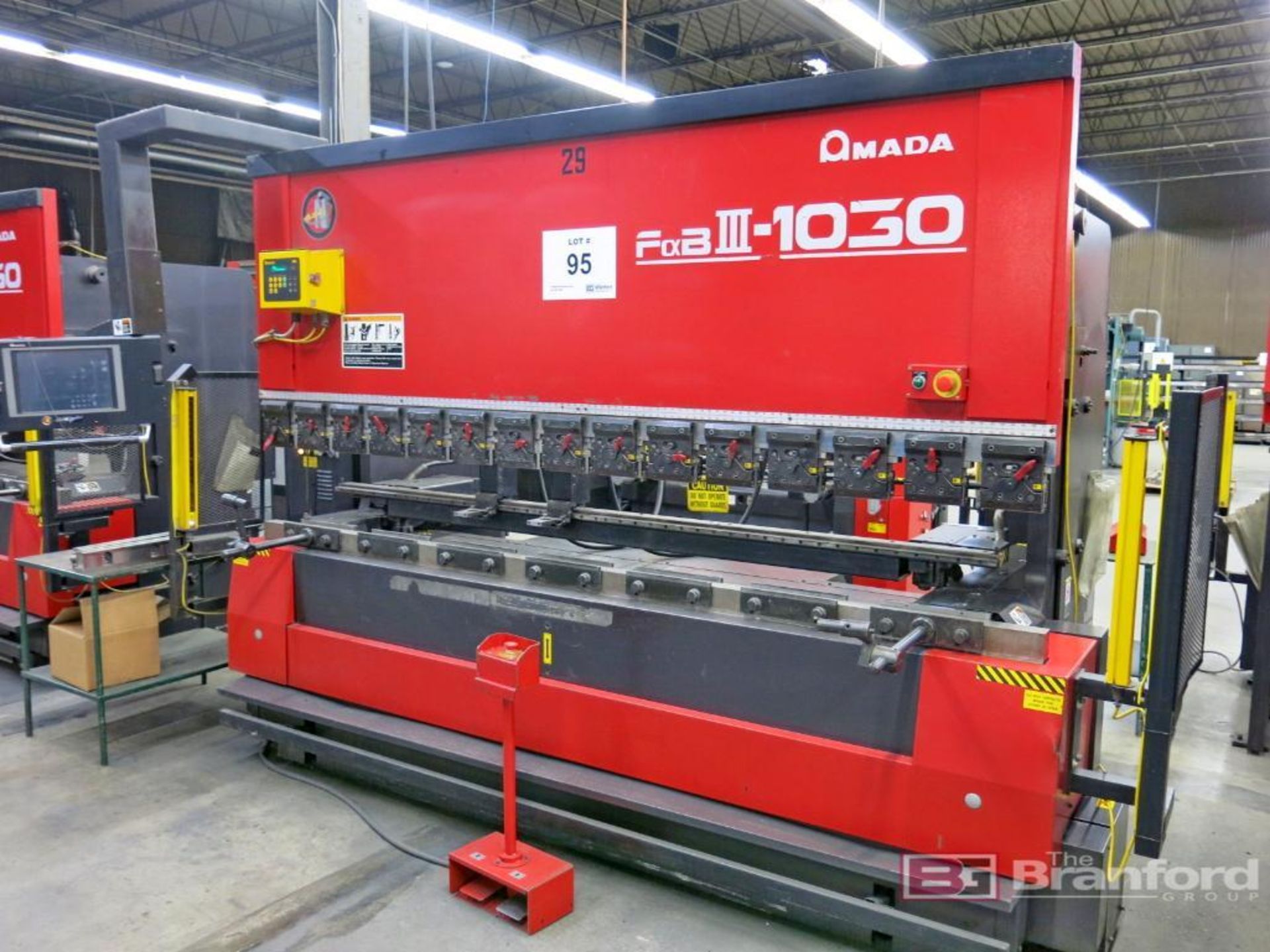

110 TON AMADA HYDRAULIC UP-ACTING PRESS BRAKE

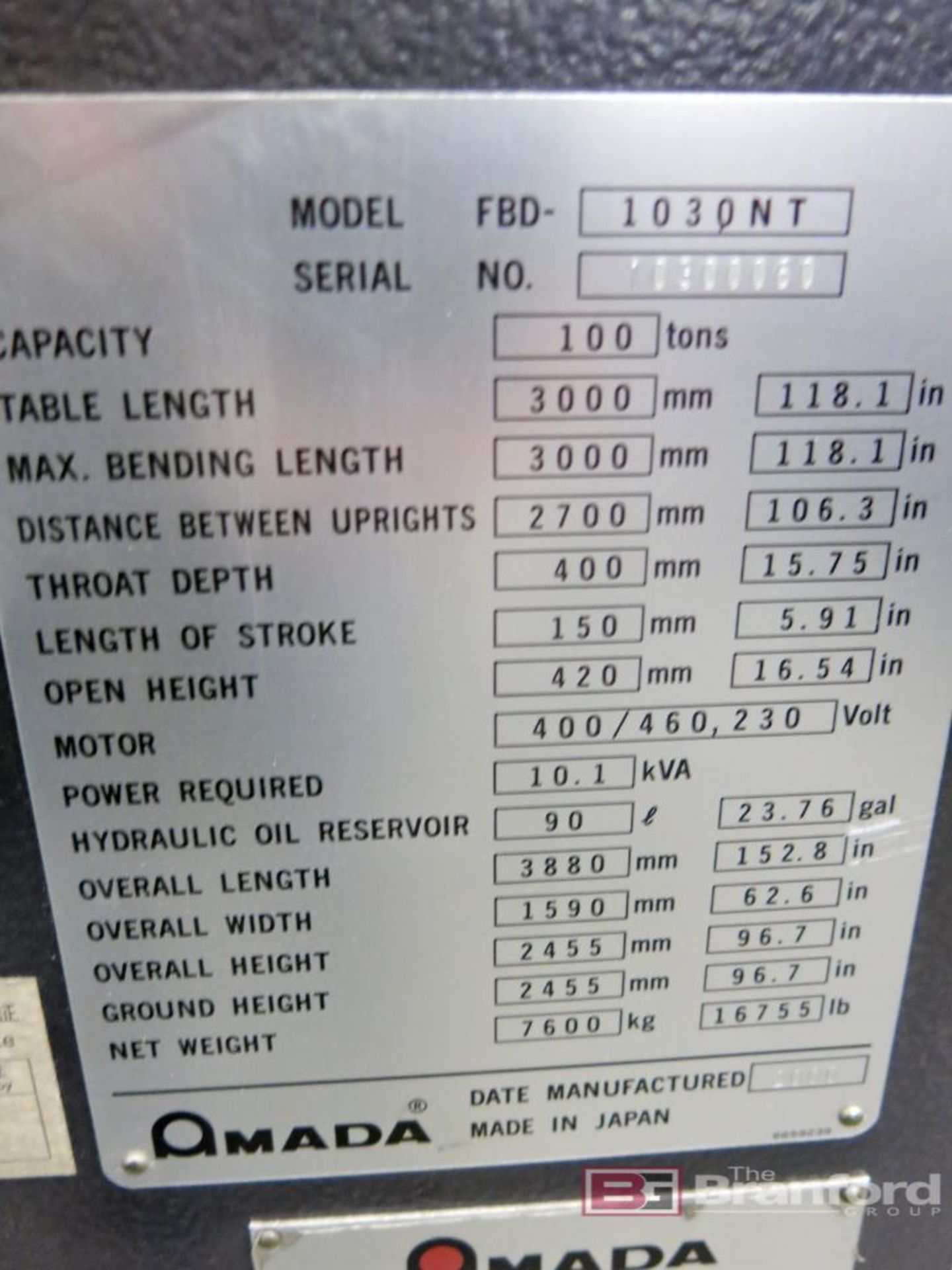

   MODEL FBD-1030NT        S/N 10300060        NEW 2000

TONNAGE CAPACITY ..................... 110 TONS
OVERALL LENGTH OF BED & RAM .......... 118.1"
BENDING LENGTH ....................... 118.1"
DISTANCE BETWEEN UPRIGHTS ............ 106.3
STROKE (ADJUSTABLE) .................. 5.91"
OPEN HEIGHT .......................... 16.54"
THROAT DEPTH ......................... 15.75"
SPEEDS ............................... 3.55 IPS APP.
                                       .35 IPS BEND
                                       3.54 IPS RETURN
HYDRAULIC RESERVOIS .................. 23.76 GALLONS

MOTOR SPECS: 230V / 460V / 3 PHASE

EQUIPPED WITH:

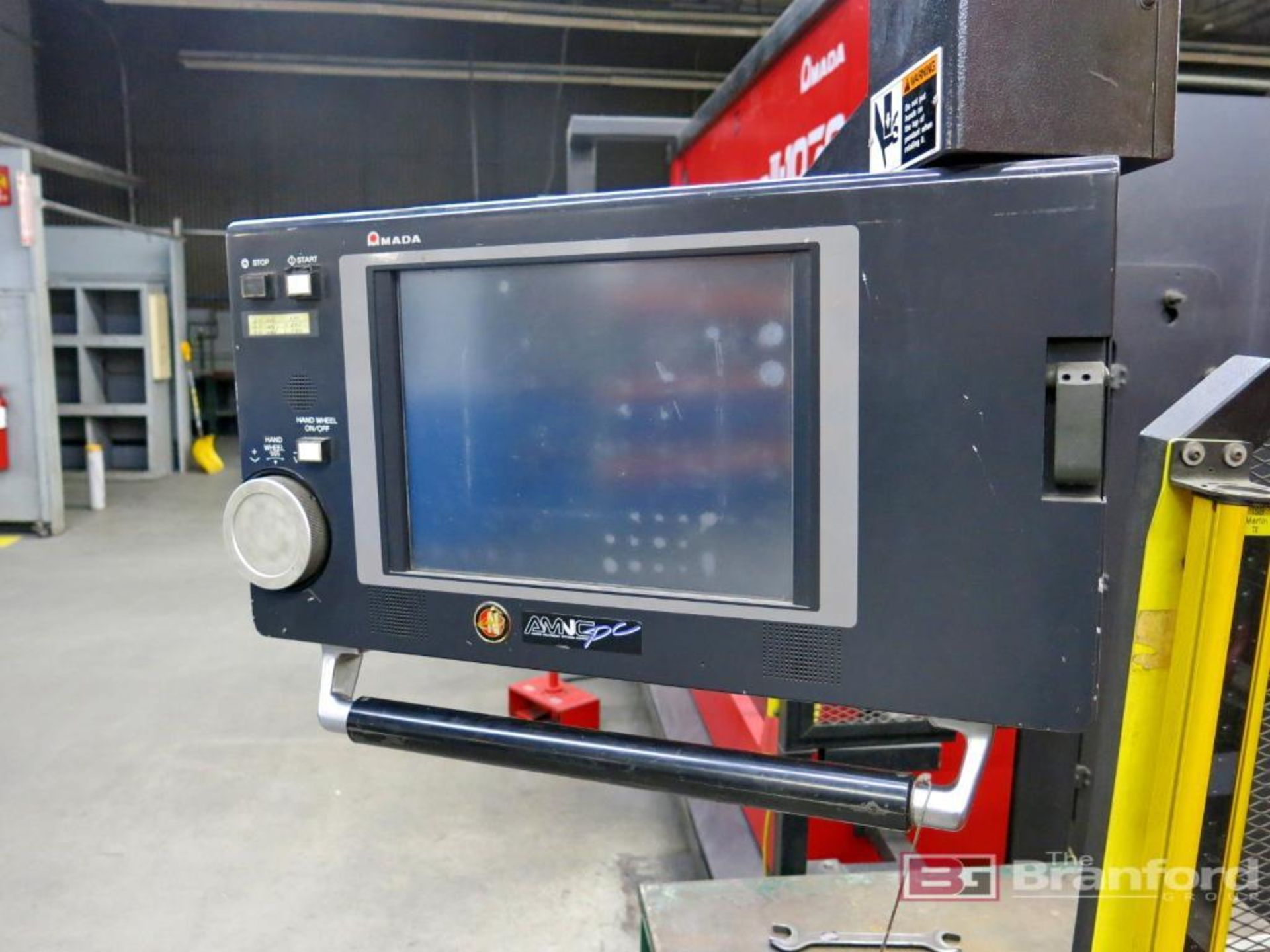

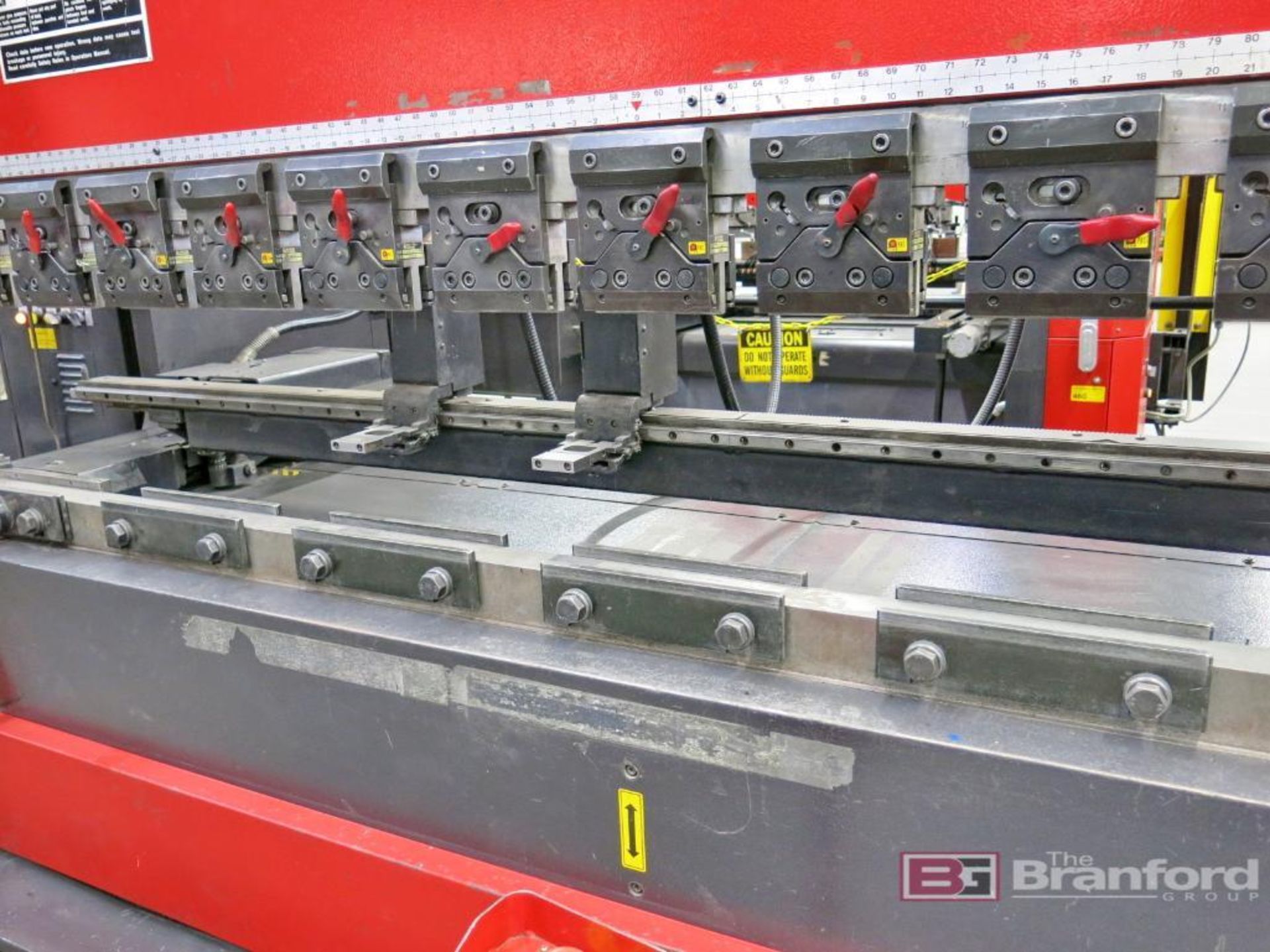

- AMNC-PC AMADA CNC 8-AXIS BACK GAUGE CONTROL (Y1, Y2, L1, L2, D1, D2, Z1 HORIZ. FINGER MOVEMENT, Z2 AXIS BACKGAUGE VERT. FINGER POSITION

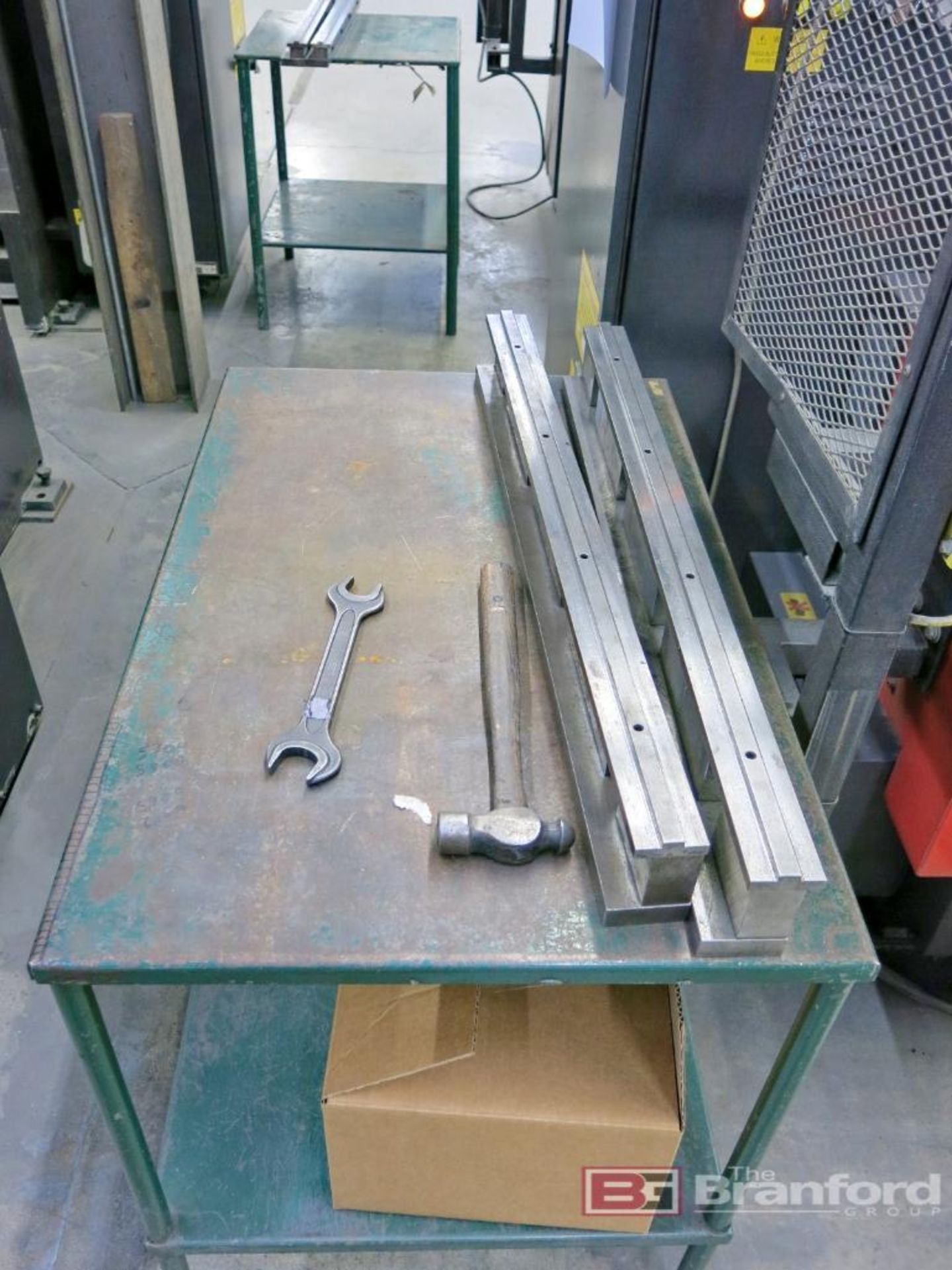

- FULL COMPLEMENT OF QUICK CHANGE CLAMPS

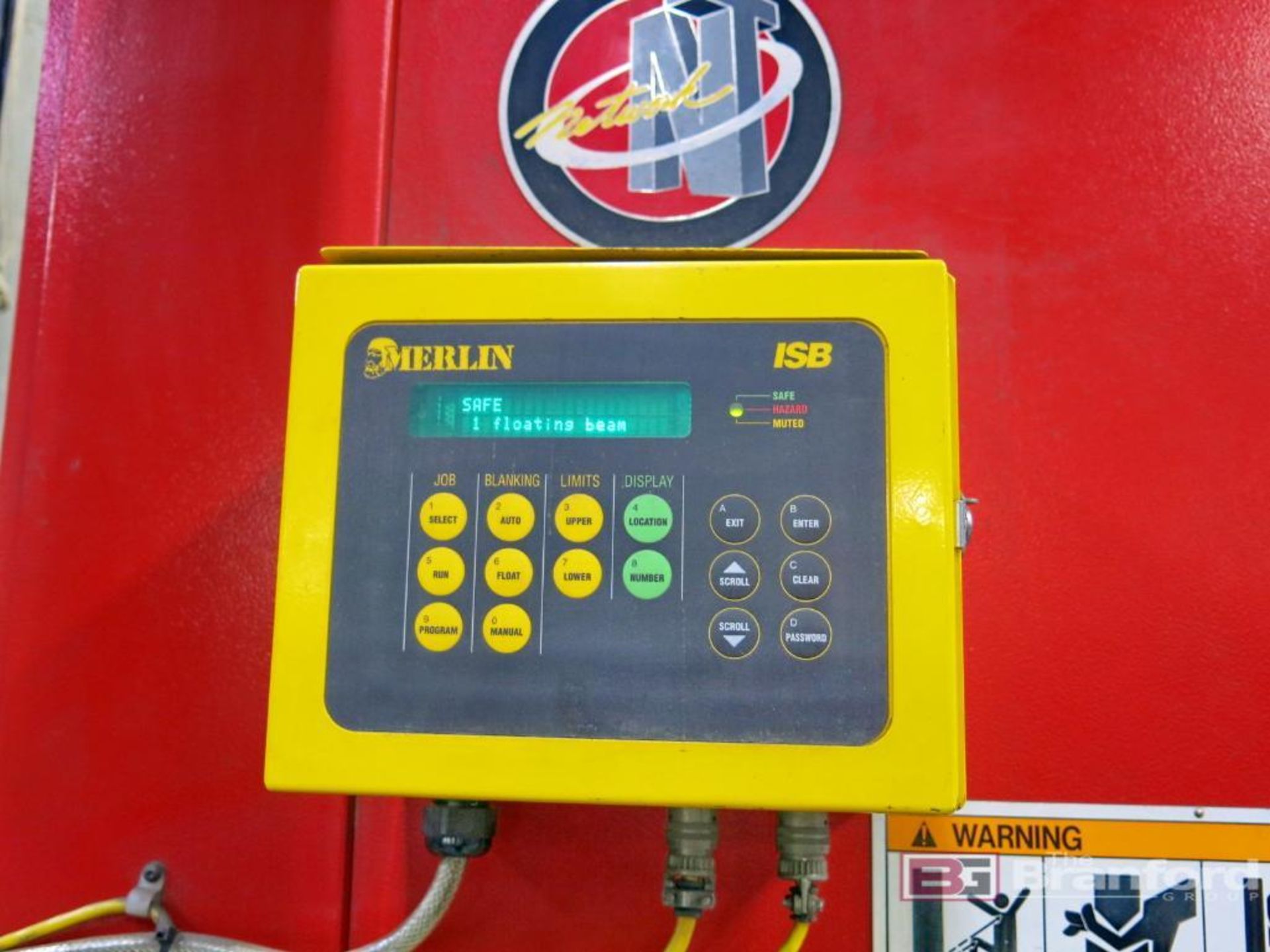

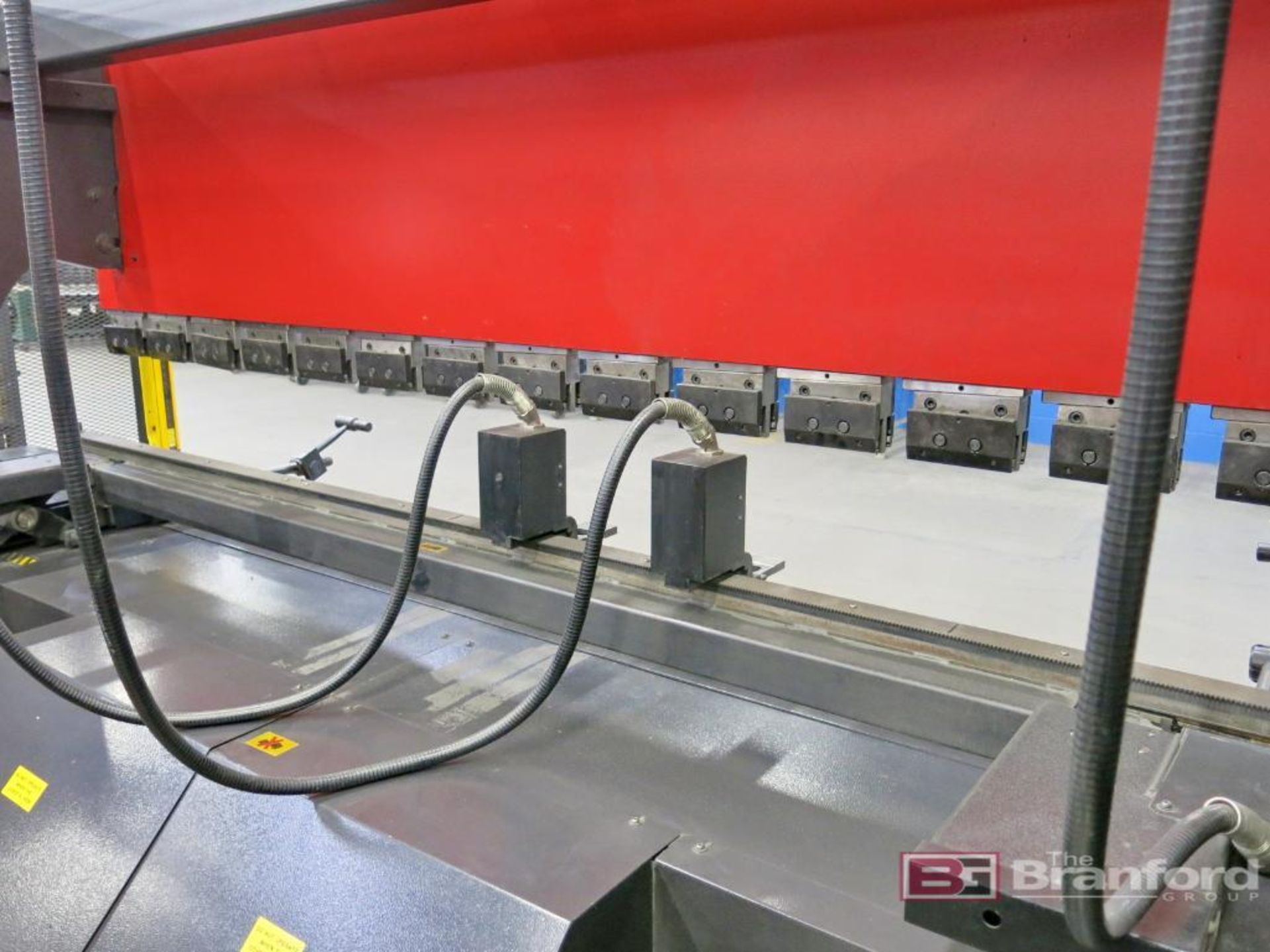

- MERLIN ISB LIGHT CURTAINS
- FOOT PEDAL
- FLUSH FLOOR MOUNT DESIGN

DIMENSIONS: 153"L X 63"D X 97"H
WEIGHT: 16,755 LBS
