Baileigh RDB-100 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:: Baileigh

Model:: RDB-100

Year:: NEW

Ref #:: 150024

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

										NEW BAILEIGH MANUAL ROTARY DRAW BENDER
 FOR TUBE & PIPE BENDING, MODEL: RDB-100

 See video of machine in use -
  http://youtu.be/7p5avGPmgNQ


 FEATURES:


 -Uses standard Baileigh Industrial drop on die sets for fast tooling changes
 -Replaceable bronze bushings at all pivot points with grease zerks
 -Two speeds
 -180 degree one-shot bending for lighter materials
 -Anti-spring back mechanism included
 -Integrated degree dial with bend indicator included
 -Stand and handle included
 -Infinite tooling possibilities



 SPECIFICATIONS:


 -Mild Steel Pipe (Schedule 40):  1.00"
 -Aluminum Pipe (Schedule 40):  1.00"
 -Stainless Steel Pipe (Schedule 40):  .75"
 -Mild Steel Round Tube (Wall):  1.75" (.083)
 -Aluminum Round Tube (Wall):  2.00" (.125)
 -Stainless Steel Round Tube (Wall):  1.50" (.083)
 -Chromolly Round Tube (Wall):  1.50" (.083)
 -Mild Steel Solid Rod:  1.0"
 -Mild Steel Square Tube (Wall):  1.00" (.125)
 -Minimum OD:  .25"
 -Maximum Center Line Radius* (CLR):  10.50"
 -Minimum CLR:  .50"
 -Weight:  290 lbs.
 -Length:  42.00"
 -Width:  22.00"
 -Height:  42.00"

 *Maximum CLR dependant on material outside diameter.



 OPTIONAL TOOLING (Call for Pricing):

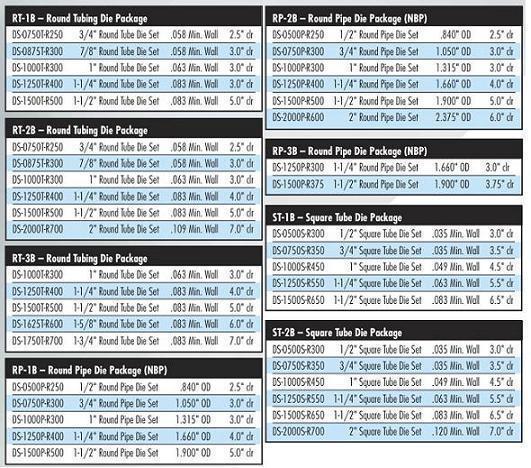

 -Die Sets and Packages* (see diagram above)
 -Inside and Outside Radius Gauges
 -Universal Bend Plate
 -B-lube

 *All pipe packages based on Schedule 40 pipe.
