Baileigh RDB-125 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:
Baileigh
Model:
RDB-125
Year:
NEW
Ref #:
150025

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com


NEW BAILEIGH HYDRAULIC ROTARY DRAW BENDER
FOR TUBE & PIPE BENDING, MODEL: RDB-125

See video of machine in operation at -

http://youtu.be/cOfvN4gk6kE



FEATURES:


-Low pressure industrial grade hydraulic system
-Uses standard Baileigh Industrial drop on die sets for fast tooling changes
-Replaceable bronze bushings at all pivot points with grease zerks
-Anti-spring back mechanism included
-Integrated degree dial with bend indicator included
-Infinite tooling possibilities



SPECIFICATIONS:


-Mild Steel Pipe (Schedule 40):  2.00"
-Aluminum Pipe (Schedule 40):  2.00"
-Stainless Steel Pipe (Schedule 40):  1.50"
-Mild Steel Round Tube (Wall):  2.50" (.125)
-Aluminum Round Tube (Wall):  2.50" (.156)
-Stainless Steel Round Tube (Wall):  2.375" (.125)
-Chromolly Round Tube (Wall):  2.00" (.125)
-Mild Steel Solid Rod:  1.25"
-Mild Steel Square Tube (Wall):  2.00" (.125)
-Minimum OD:  .25"
-Maximum Center Line Radius* (CLR):  10.50"
-Minimum CLR:  .50"
-Power Requirements:  110V
-Weight:  350 lbs.
-Length:  42.00"
-Width:  22.00"
-Height:  42.00"

*Maximum CLR dependant on material outside diameter.



OPTIONAL TOOLING (Call for Pricing):

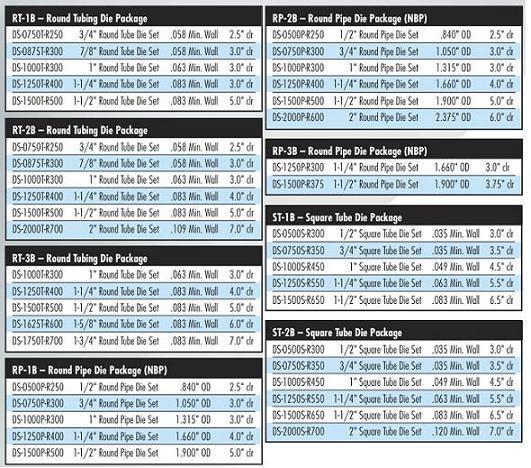

-Die Sets and Packages* (see diagram above)
-Angle Finder
-Inside and Outside Radius Gauges
-Universal Bend Plate
-B-lube

*All pipe packages based on Schedule 40 pipe.
