Diacro #3 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:: Diacro

Model:: #3

Year:: New

Ref #:: 148455

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

NEW DI-ACRO 1" HAND BENDER
MODEL: #3          MADE IN U.S.A.

Di-Acro Manual Benders are ruggedly-built, versatile machines for bending wire, solid stock, tubing, flat stock, etc. Accurately forming and duplicating simple, compound, and reverse bends is easy with a Di-Acro Bender. The operator is also able to quickly change over tooling from one bending operation to another. All Di-Acro Benders are identical in operation and operating characteristics – each successive model increases in size and capacity.

The fabricating possibilities of Di-Acro Benders are only limited by the ingenuity of the operator.
Review the https://www.diacro.com/wp-content/uploads/2016/07/Art-Of-Bending_2013.pdf to gain insight into the machine’s versatility!

STANDARD EQUIPMENT
Bend locating gauge – material stop
Angle stop – sets degree of bend
Locking pin assembly – secures solid stock for bending
Center pin – provides one radius set-up and is used to mount additional tooling
Holding pin – used to secure collars and blocks on mounting plate

ACCESSORIES:
Quik-Lok – material clamp for tube bending – $845.00
Machine stand – dimensions 20” L x 15” W x 33” H – $455.00
Extended length handle – $230.00

SPECIFICATIONS:

HELPFUL HINTS:

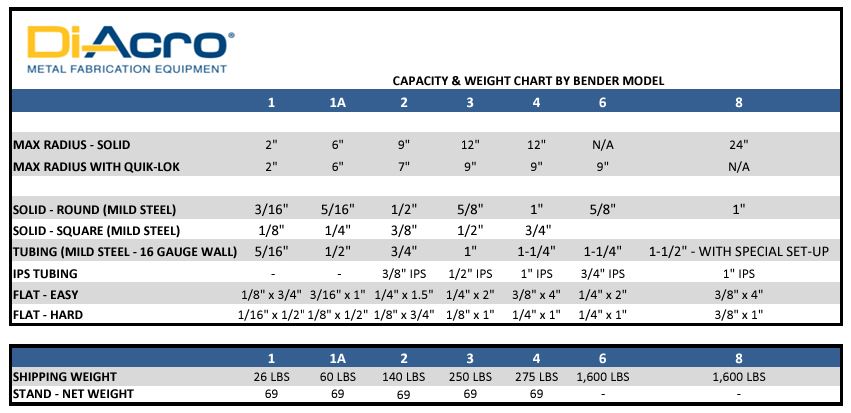

DI-ACRO BENDER CAPACITY CHART
https://www.diacro.com/wp-content/uploads/2015/12/DI-ACRO-BENDER-CAPACITY-WEIGHT-CHART.pdf

MODEL 3 BENDER MANUAL
https://www.diacro.com/wp-content/uploads/2016/07/3-HAND-BENDER-2014.pdf

In order to identify the smallest radii that can be formed with optimal results, use these general rules:
2-1/2 times tubing OD = smallest centerline radius when using the follow block method
4 times tubing OD = smallest centerline radius when using grooved roller method
1 times solid stock OD = smallest inside radius
When selecting tooling for your application, remember to compensate for material springback (or elasticity). In some cases, by overbending slightly beyond the required angle you can adjust for springback. In addition to overbending, it may be necessary to form the material around a radius which is smaller than the required radius.

TOOLING OPTIONS:
BENDER TOOLING GUIDANCE:
https://www.diacro.com/wp-content/uploads/2018/04/Bender-Tooling-Guidance.pdf

BEND-R-PAK: https://www.diacro.com/product/model-3-bender/
– an assortment of commonly used tooling specifically selected for the Model 3 Bender – $1,095.00

Crush bend tooling is available on some models.

Custom tooling can be quoted per customer’s request.
