Watch Video:

Baileigh RDB-325 NEW PIPE, TUBE & BAR BENDERS

Price on Request

Make:
Baileigh
Model:
RDB-325
Year:
NEW
Ref #:
150058

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

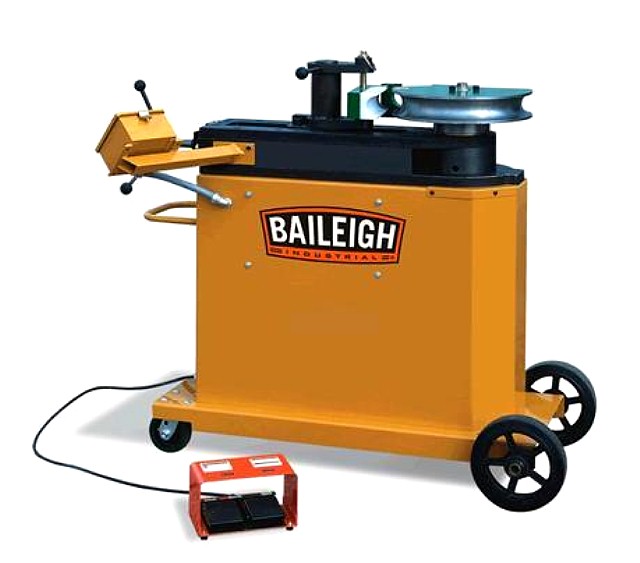

NEW BAILEIGH PROGRAMMABLE ROTARY DRAW BENDER
FOR TUBE & PIPE BENDING, MODEL: RDB-325

view video of this machine at - http://youtu.be/wnUcSZ6x0F0



FEATURES:


-Computer programmable
-Programmer holds 170 jobs with 10-bends per job
-Touch-screen
-Can bend 360 degrees left or right (with optional tooling)
-Six bending speeds
-Fast, 10 seconds to 180 degrees
-16.5" (419 mm) maximum centerline radius
-Accepts optional positioning table
-Portable



SPECIFICATIONS:


-Mild Steel Pipe (Schedule 80):  2.00"
-Aluminum Pipe (Schedule 80):  2.50"
-Stainless Steel Pipe (Schedule 40):  2.00"
-Mild Steel Round Tube (Wall):  3.00" (.095)
-Aluminum Round Tube (Wall):  3.00" (.203)
-Stainless Steel Round Tube (Wall):  3.00" (.095)
-Chromolly Round Tube (Wall):  3.00" (.083)
-Mild Steel Solid Rod:  1.25"
-Mild Steel Square Tube (Wall):  2.00" (.125)
-Minimum OD:  .25"
-Maximum Speed to 180 Degrees:  10 Sec.
-Maximum Center Line Radius* (CLR):  16.50"
-Minimum CLR:  .50"
-Power Requirements:  220V (1Ph)
-Weight:  1,200 lbs.
-Length:  60.00"
-Width:  32.00"
-Height:  48.00"

*Maximum CLR dependant on material outside diameter.



OPTIONAL TOOLING (Call for Pricing):

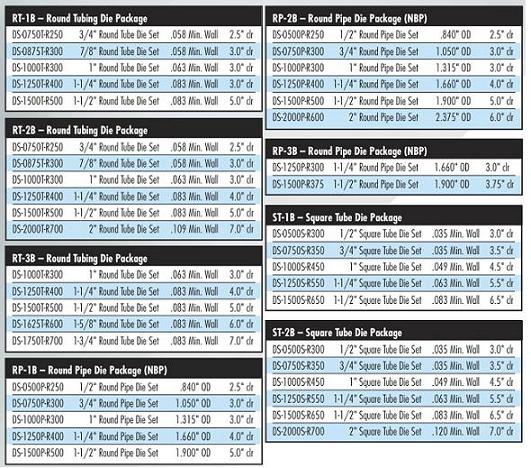

-Die Sets and Packages* (see diagram above)
-Angle Finder
-Inside and Outside Radius Gauges
-Rotary Positioning Tables:  10ft., 15ft., & 20ft. lengths
-Universal Bend Plate
-B-lube

*All pipe packages based on Schedule 40 pipe.
