CERTIFIED COMPARATOR PRODUCTS CCP CC-14, 2010, ND1200 DRO, LENSES COMPARATORS

Price on Request

Make:: CERTIFIED COMPARATOR PRODUCTS

Model:: CCP CC-14, 2010, ND1200 DRO, LENSES

Year:: 2010

Ref #:: 178771

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

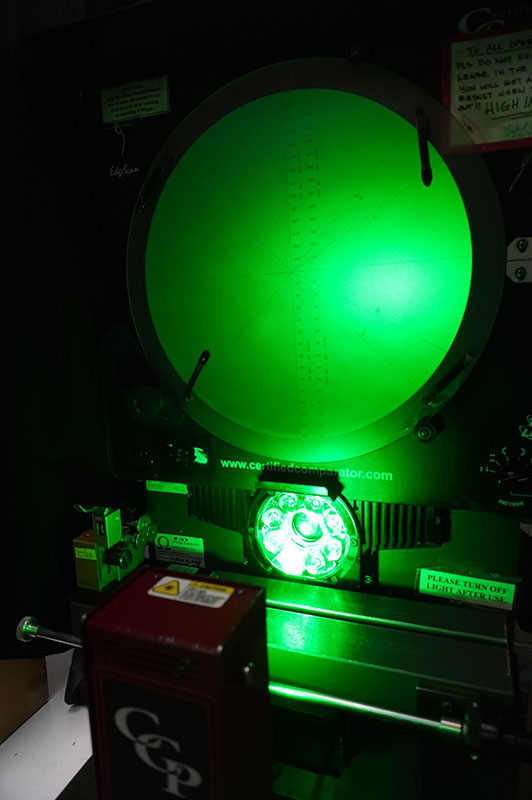

  14" CERTIFIED COMPARATOR PRODUCTS
    MODEL: CC-14      "MADE IN USA"
   BENCH MODEL OPTICAL COMPARATOR (CORRECT IMAGE)
   WITH "TRULIGHT" ALL-LED ILLUMINATION

HEIDENHAIN QUADRA CHEK ND-1200 DIGITAL READOUT
 WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

"EDGESCAN" INTERNAL AUTO EDGE DETECTION

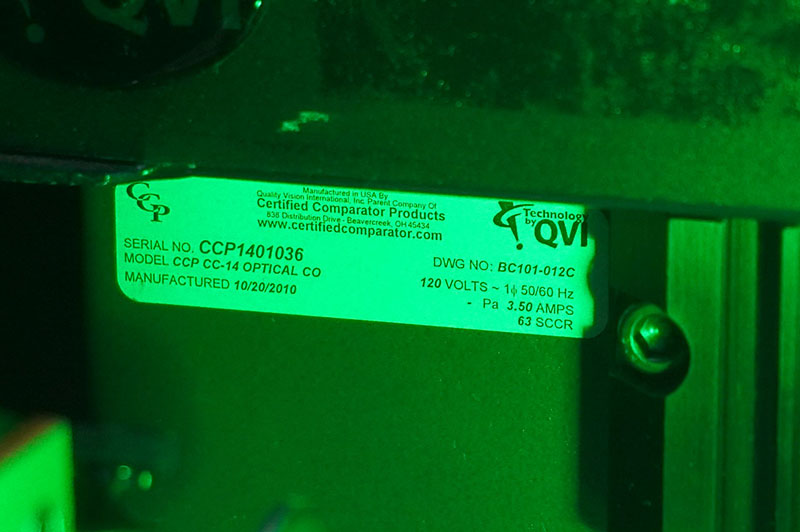

S/N: CCP1401036      NEW: 10/20/2010


SPECIFICATIONS:
SCREEN DIAMETER: ............... 14"
SIZE OF MEASURING TABLE: ....... 17-3/4" x 4"
MEASURING CAPACITY
- LONGITUDINAL TABLE TRAVEL: ... 8" (X)
- VERTICAL TABLE TRAVEL: ....... 5" (Y)
- FOCUS TRAVEL ................. 1.5" (Z)
WORKTABLE HELIX MOTION ......... +/- 6.5°
ANGULAR MEASURING CAPACITY: .... 360° CHART ROTATION
THROAT CLEARANCE: .............. 9.8"
LOAD CAPACITY ON TABLE: ........ 45 LBS.

DIMENSIONS: ............... 32" L-R x 35.5" F-B x 41"H
MACHNE WEIGHT: ................. 315 LBS. APPROX



EQUIPPED WITH:

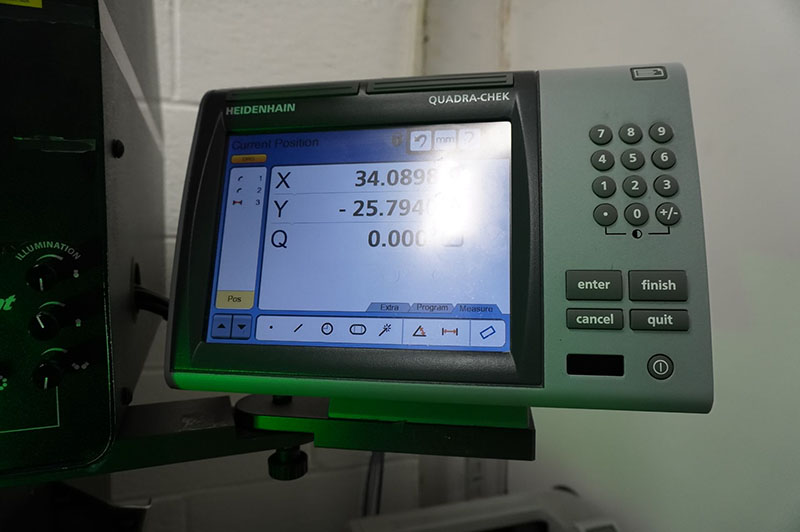

-HEIDENHAIN/QUADRA CHEK ND-1200 COMPUTATIONAL
  3-AXIS DIGITAL READOUT SYSTEM, X, Y & Q AXES,
  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

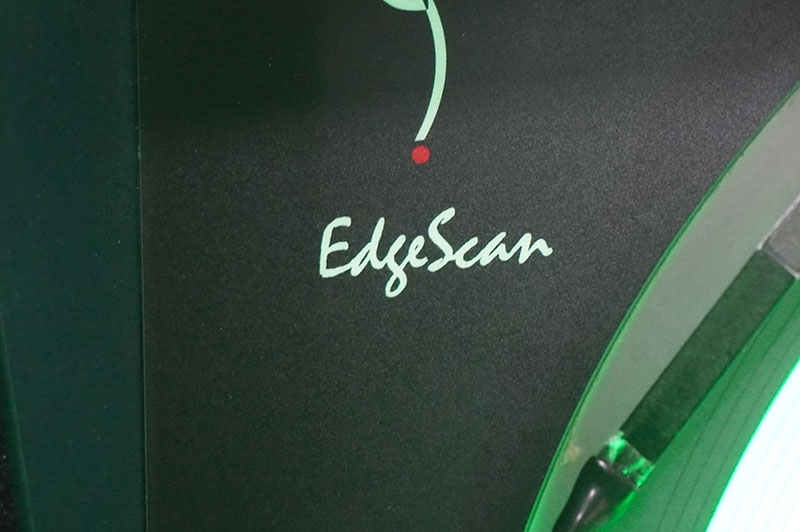

-"EDGESCAN" INTERNAL OPTICAL EDGE DETECTION
-DIGITAL DISPLAY OF ROTARY SCREEN PROTRACTOR,
 1' VERNIER, THIS IS THE "Q" AXIS ON THE DRO.
-X & Y SCALE RESOLUTION 0.000040" (1um)
-ALL-LED LIGHTING, "TRULIGHT"
-THRU THE LENS SURFACE ILLUMINATION
-TABLE HAS FINE ADJUSTMENT KNOBS (X & Y) AND
  QUICK RELEASE (X)
-HELIX MOTION - PIVOTING WORKTABLE WITH +/- 6.5° MOTION
-THREE POSITION MANUAL LENS TURRET
-10X & 20X LENSES ARE WITH OUR MACHINE
-TELECENTRIC LENSES - UPRIGHT & REVERSED IMAGE.
-"UNIVERSAL CONCENCRICITY GAGE" ACCESSORY, ON TABLE
-FACTORY FLOOR STAND
-ELECTRICAL 1/60/115 VOLTS AC

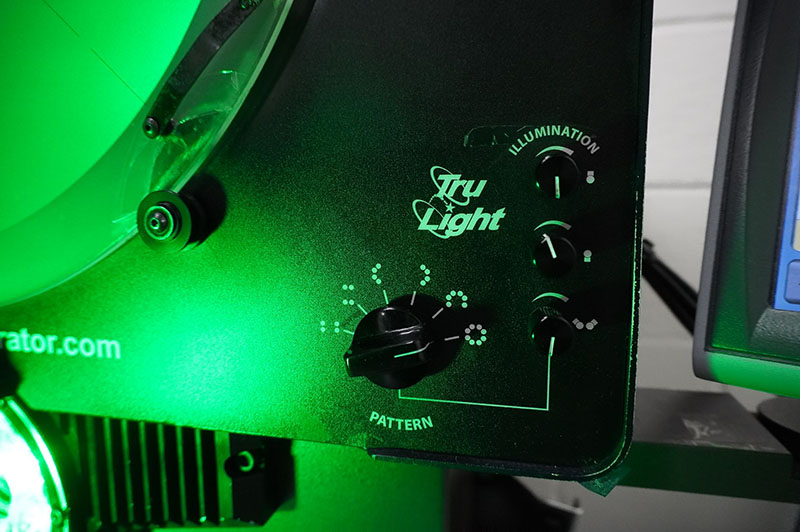

"TRULIGHT ALL-LED LIGHTING:
OBLIQUE 9DARK FIELD) RING LIGHT WITH 8 WHITE LED's,
6 SWITCH-SELECTABLE PATTERNS FOR EFFECTIVE DIRECTIONAL
 LIGHTING; CONTINOUSLY VARIABLE INTENSITY.
THROUGH-THE-LENS COAXIAL SURFACE LIGHT, WHITE BRIGHTFIELD,
 LED, CONTINOUSLY VARIABLE LIGHT.

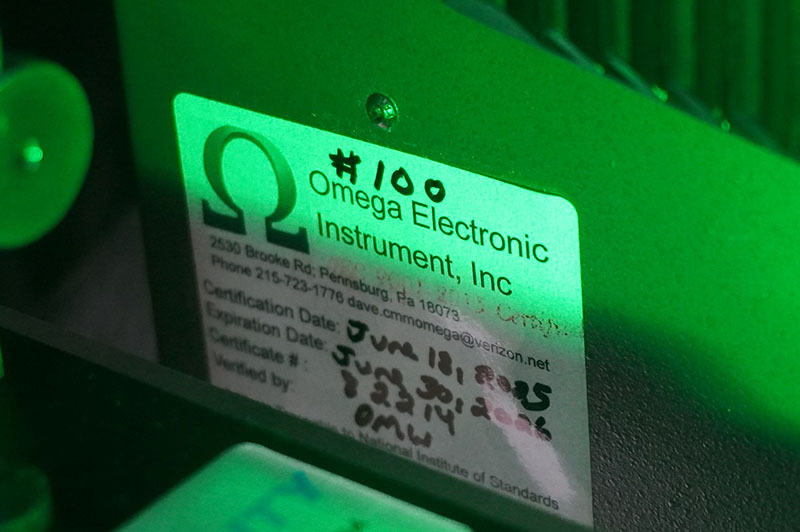

CALIBRATED ON 06/18/2025 BY:
OMEGA ELECTRONIC INSTRUMENT, INC.
CERTIFICATE No. 82214
(215) 723-1776
dave.cmmomega@verizon.net


** WOW!  EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
