Dorsey Gage Co. BENCHMARK 16HN COMPARATORS

Price on Request

Make:: Dorsey Gage Co.

Model:: BENCHMARK 16HN

Year:: 2023

Ref #:: 178772

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

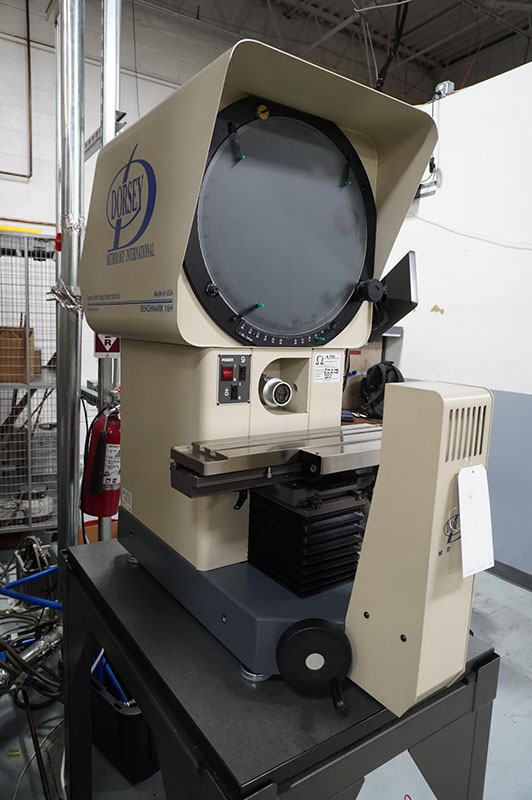

          16" DORSEY "Made in USA"
          Optical Comparator
           with Erect Image

** "METLOGIX MX 203" DRO, featuring
    programmable geometric functions **

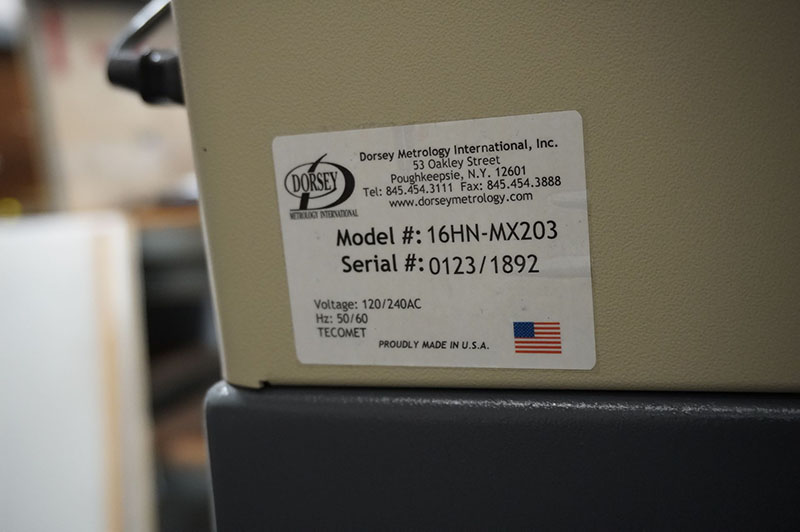

Model: 16H-200HN,    S/N: 0123-1892    New: 2023

Screen Diameter: ................ 16"
Size of measuring table: ........ 5" x 18"
Measuring capacity
- longitudinal table travel: .... 10"
- vertical table travel: ........ 6"
Helix table adjustment: ......... +/- 15°
Angular measuring capacity: .. 1 minute/0.01° arc
Cross travel for focusing: ...... 2"
Allowable work load on table: ... 150 lbs.

Approximate Weight
  (Comparator Only):  460 lbs.
Approximate Dimensions: 28" L-R, 42" F-B x 70" H

Equipped With:
Erect profile image
5" x 18" cast iron,nickel plated, twin dovetail
 workstage

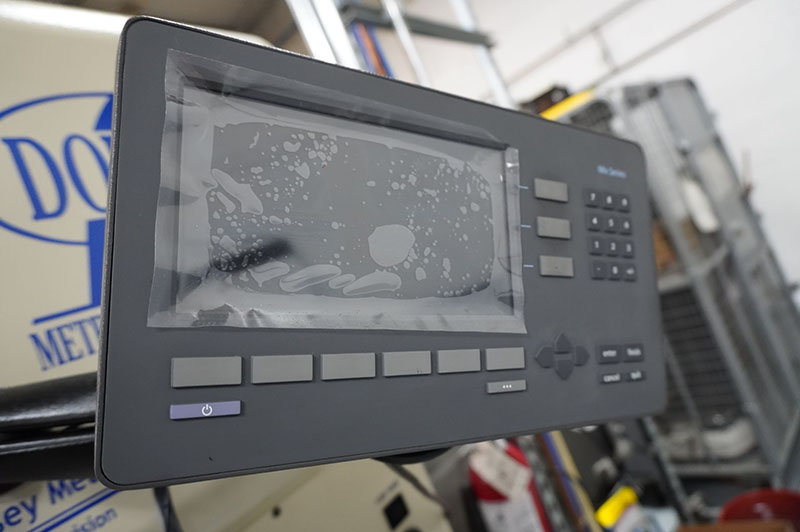

"Metlogix Model MX 203" Digital Readout (X, Y & Q)
 (0.00005" resolution - 1 micron)
 with programmable geometric functions
"Q" Axis is Dispalyed on the Digital Readout
Tungsten halogen bulbs for both profile
 (150W) & Surface (250W) illumination located
 in lamphouse
Fiber optic x 2 surface illumination
Manually driven protractor ring with
 digital readout display
20X projection lens
Table mounted swivelling vise made by DORSEY
LISTA three-drawer storage cabinet
1/60/120-240 Volt electrics

Special Note:
This Optical Comparator is made in
 Poughkeepsie, N.Y., by "Dorsey Metrology",
 www.dorseymetrology.com .  Additionally
 lenses and other accessories can be
 purchased from them, for this super-precision
 Optical Comparator.

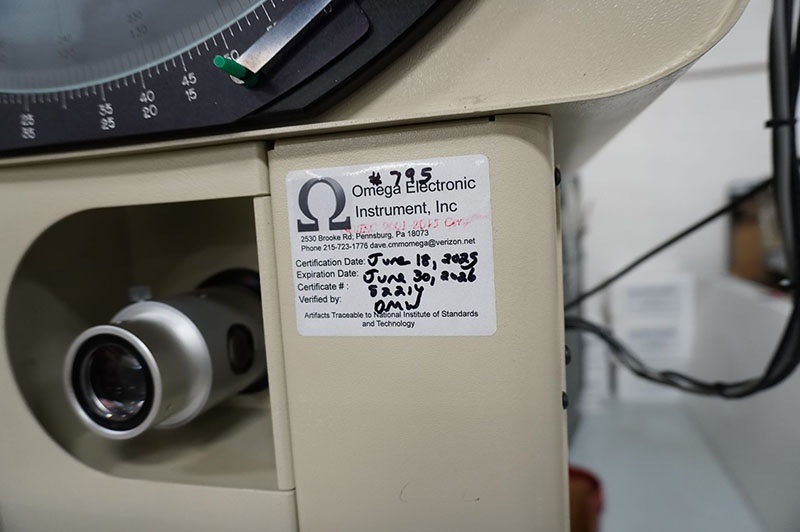

Calibrated on 06/18/2025 By:
Omega Electronic Instrument, Inc.
Certificate No. 82214
(215) 723-1776
dave.cmmomega@verizon.net


*** Seriously Beautiful Machine - Wow!! ***
