Chevalier FALCON-2033 VERTICAL MACHINING CENTERS. VMC's

$17,500

Make:: Chevalier

Model:: FALCON-2033

Year:: 2003

Ref #:: 178551

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

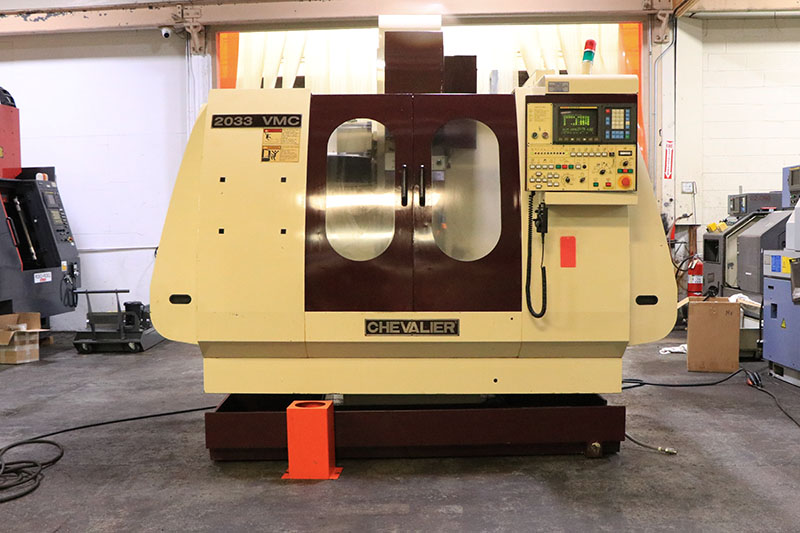

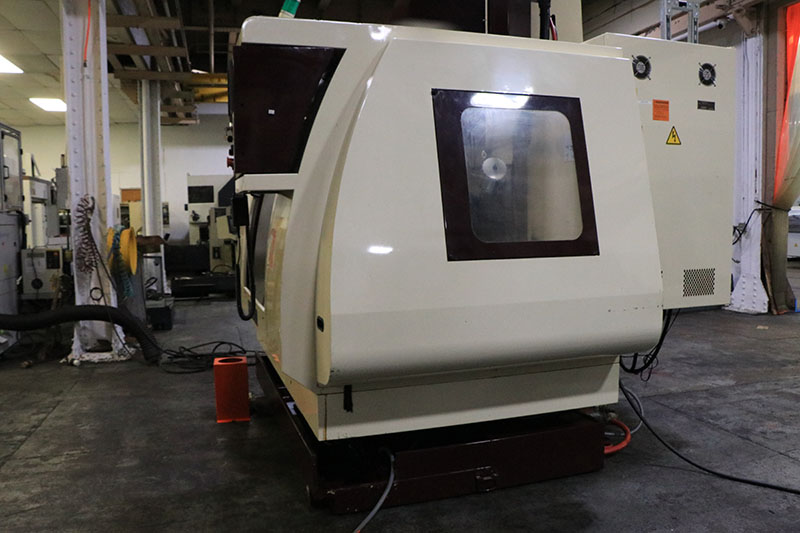

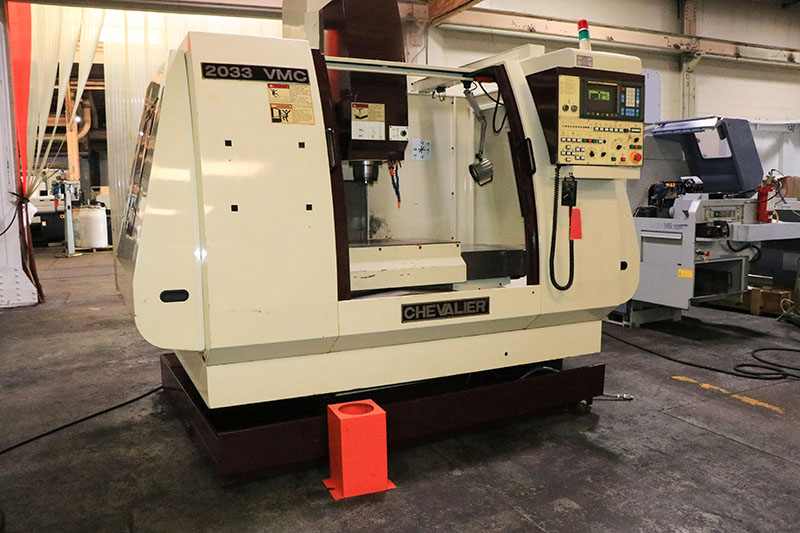

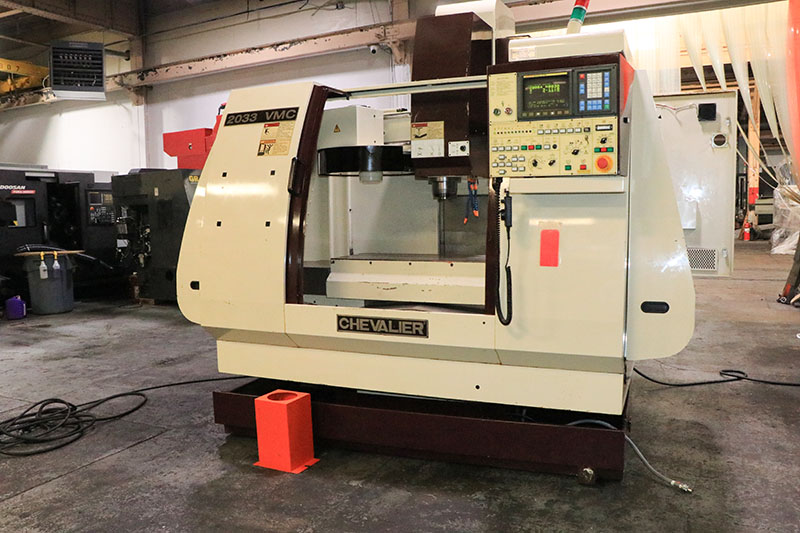

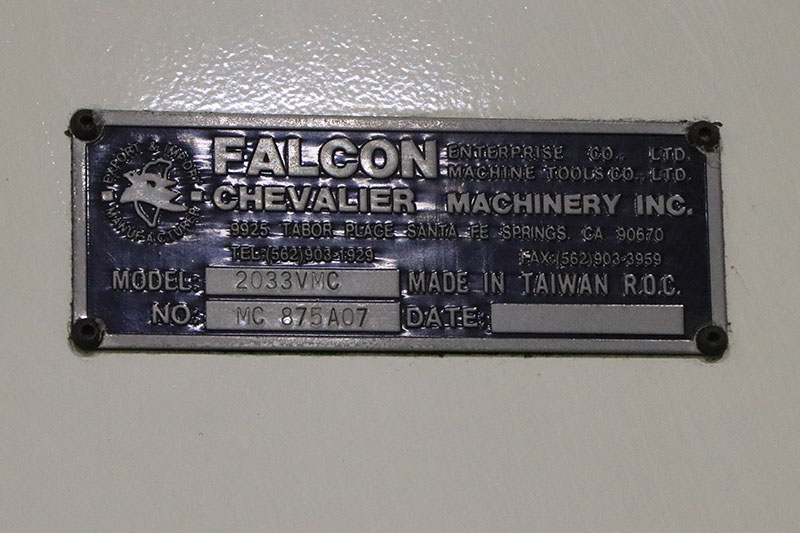

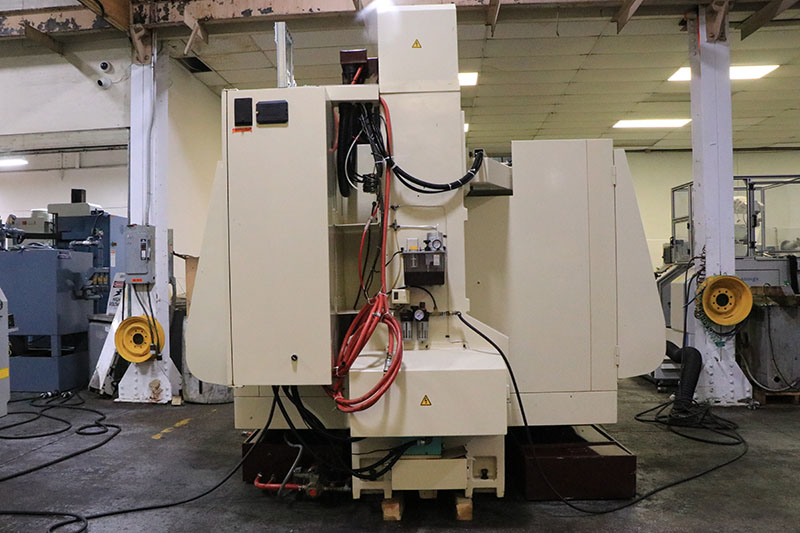

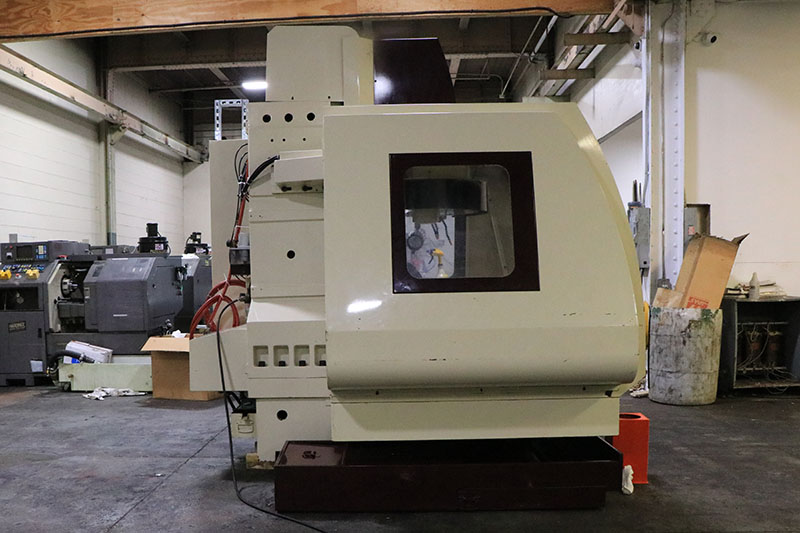

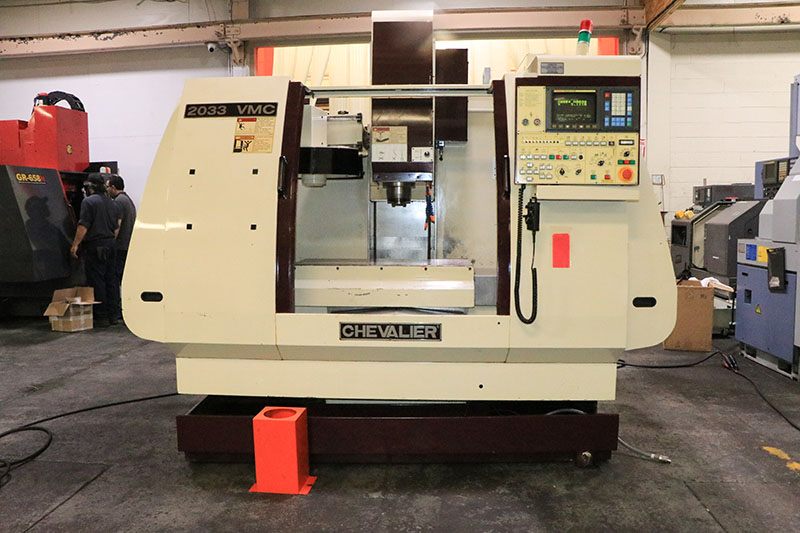

CHEVALIER VERTICAL MACHINING CENTER
MODEL: FALCON-2033,   YEAR: 2003

SPECIFICATIONS:
X-AXIS TRAVEL............... 33.5"
Y-AXIS TRAVEL............... 19.7"
Z-AXIS TRAVEL............... 19.7"
TABLE SIZE.................. 39.4" X 17.7"
MAXIMUM TABLE LOAD.......... 1100 LBS / 500 kg
SPINDLE NOSE TO TABLE TOP... 5.9" - 25.6"
SPINDLE MOTOR............... 15 HP
MAX SPINDLE SPEED........... 8,000 RPM
SPINDLE TAPER............... 40 CAT
AUTOMATIC TOOL CHANGER...... 20 TOOLS
RAPID TRAVERSE RATES X-Y/Z.. 590/472 IPM
APPROXIMATE MACHINE WEIGHT.. 10,560 LBS
APPROXIMATE FLOOR SPACE .... 107.9" X 98.7" X 108.5"

EQUIPPED WITH:

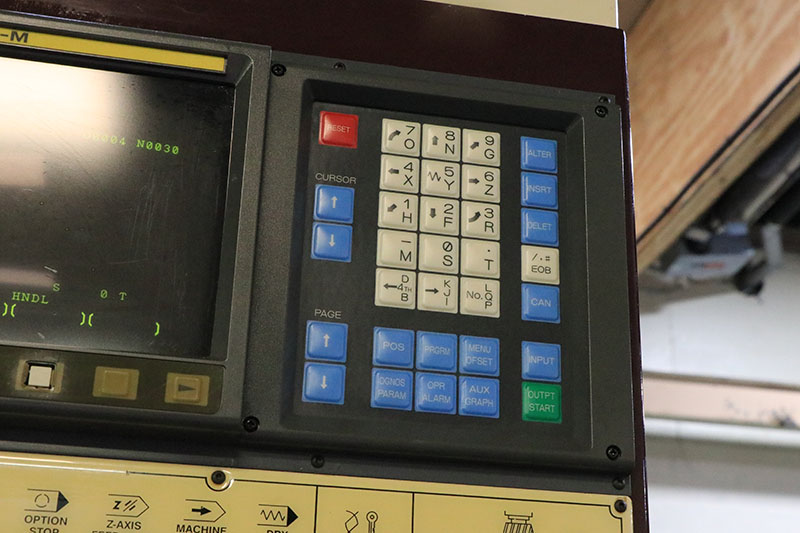

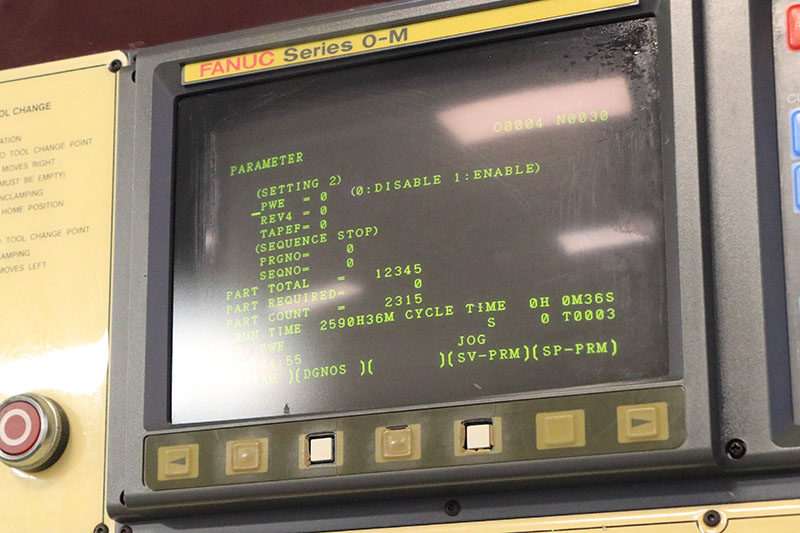

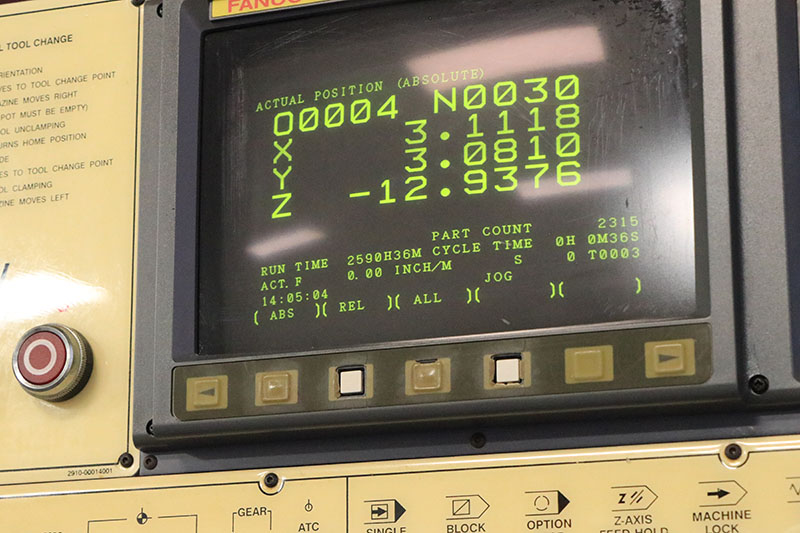

- FANUC MODEL: 0-MC CNC CONTROL

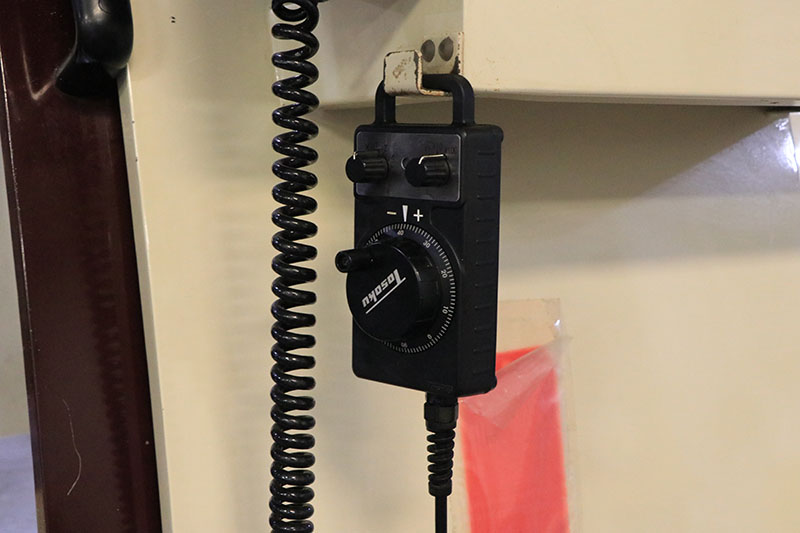

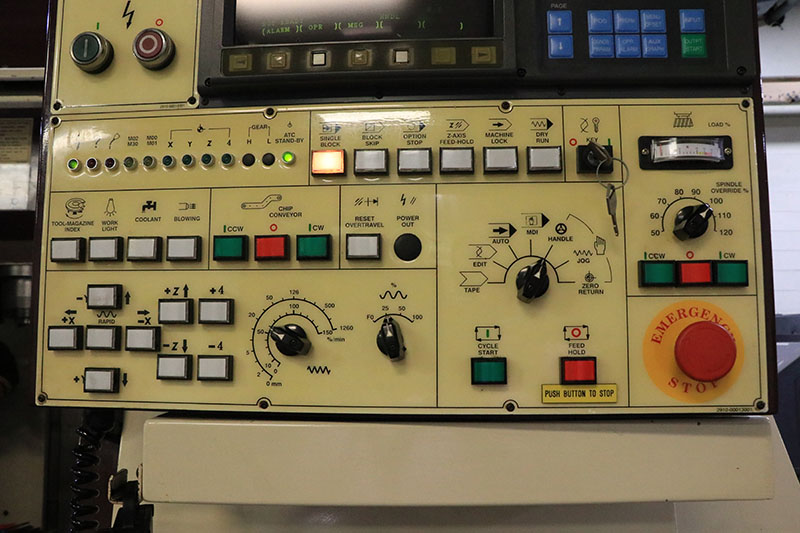

- MANUAL PULSE GENERATOR

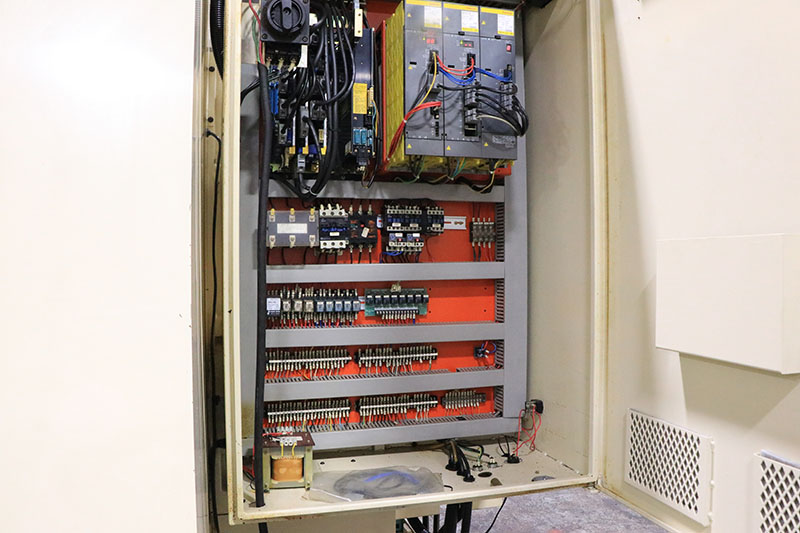

- FANUC MOTORS & DRIVES ALL AXES
- RIGID TAPPING

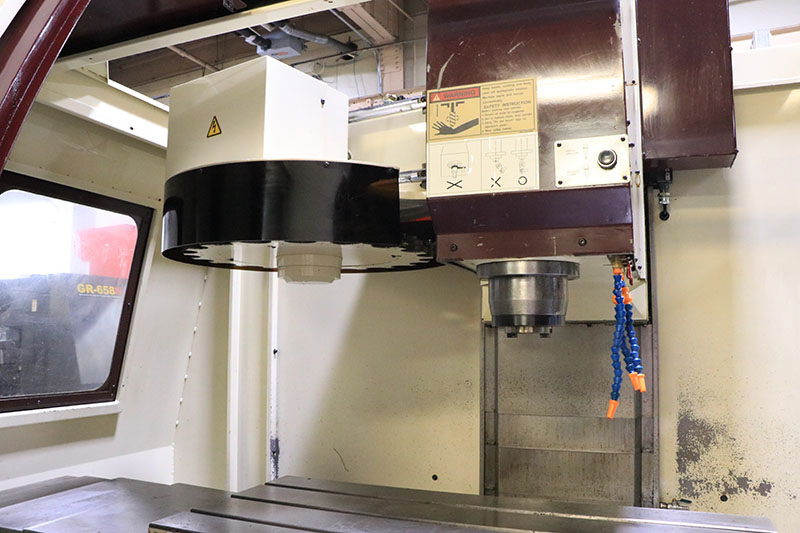

- 20 STATION AUTOMATIC TOOL CHANGER
- COOLANT SYSTEM
- BOX WAYS
- CHIP CONVEYOR

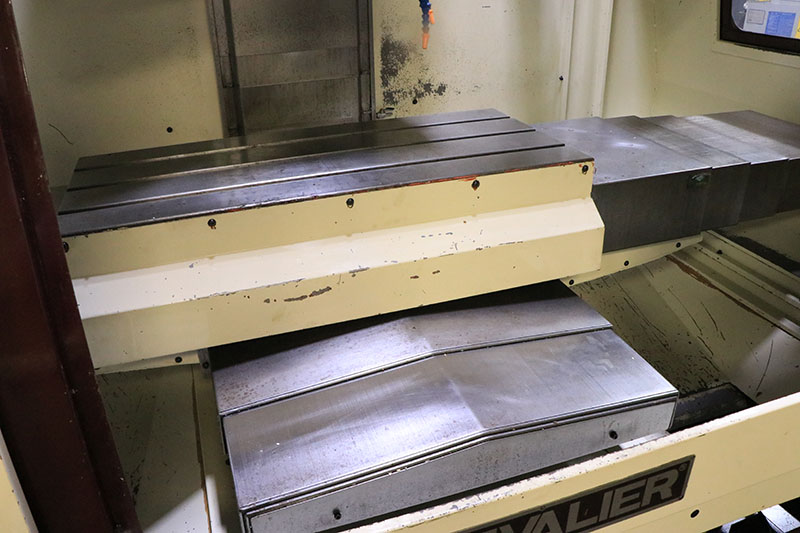

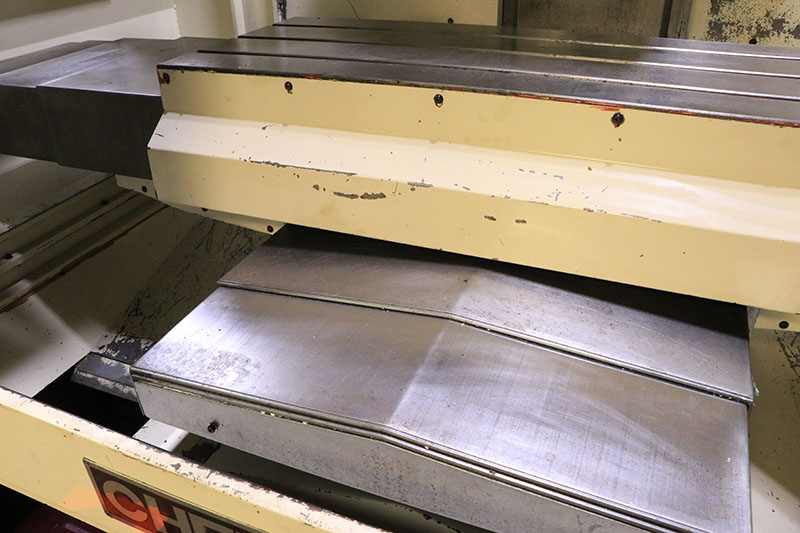

- STEEL TELESCOPIC WAY COVERS
- 15 HORSE POWER FANUC AC SPINDLE MOTOR

 PURCHASED FROM A FORTUNE 500 COMPANY
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****  SUPERB  ****
