Chevalier FSG-2060ADII, 1999, 3X AUTOMATIC, PROG. AUTO IDF SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-2060ADII, 1999, 3X AUTOMATIC, PROG. AUTO IDF

Year:: 1999

Ref #:: 179306

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

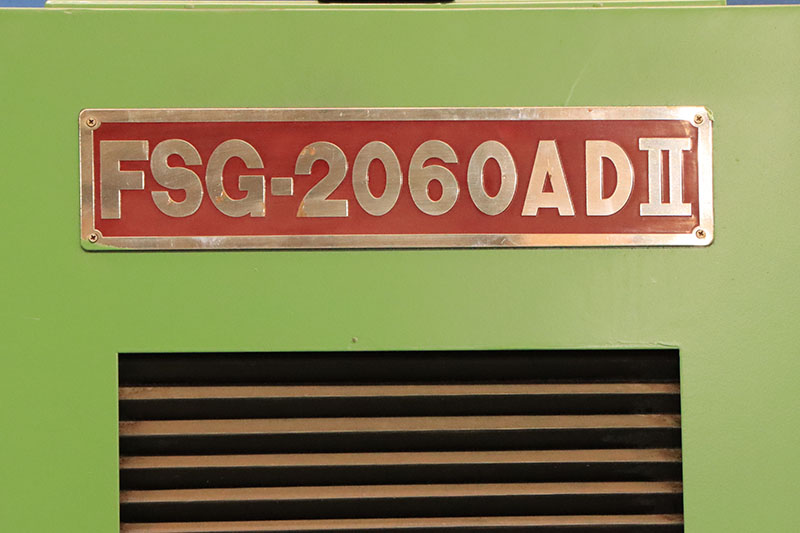

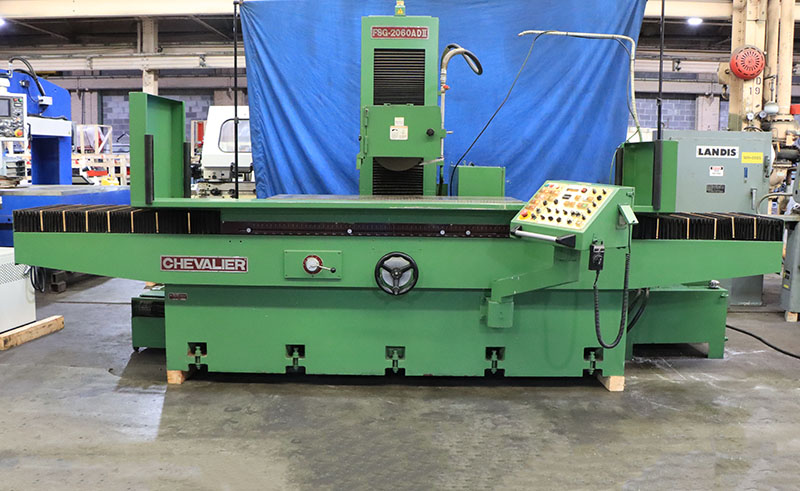

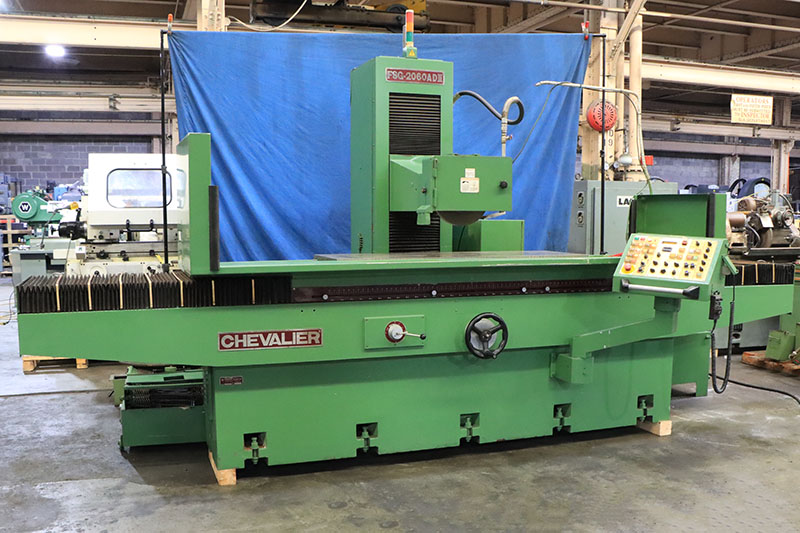

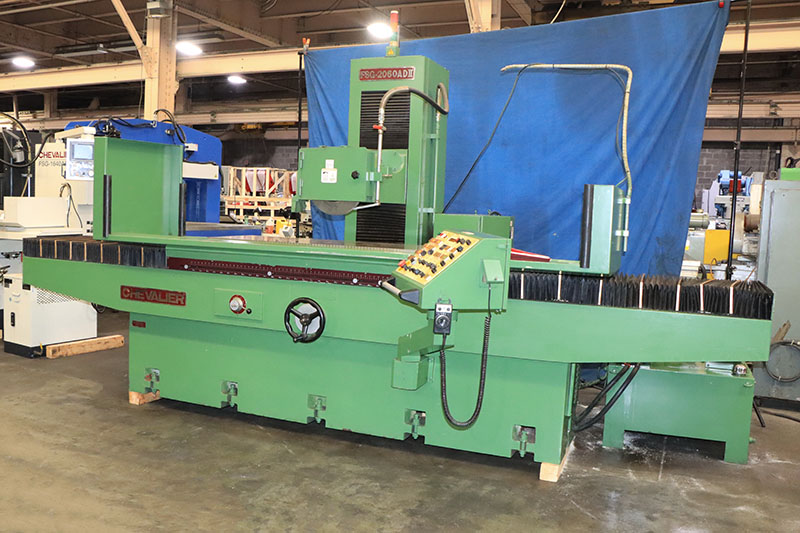

   20" x 60" CHEVALIER MODEL FSG-2060ADII
"COLUMN TYPE" 3-AXIS AUTOMATIC SURFACE GRINDER
WITH PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED

     S/N: RB881001      NEW: 1999

SPECIFICATIONS:
TABLE SIZE:...................... 19.7" X 59.4"
MAXIMUM TABLE LOAD .............. 2,579 LBS
MAX. DISTANCE FROM TABLE TO
 SPINDLE CENTERLINE ............. 28- 5/8"
POWER LONGITUDINAL TABLE SPEED .. 16' - 82' F.P.M.
MAX TABLE TRAVEL ................ 63 1/4"
MAX. CROSS TRAVEL OF COLUMN ..... 22"
AUTO CROSSFEED INCREMENTS ....... 1/8" - 1- 1/4"
POWER RAPID TRAVERSE RATE ....... 4.9' FPM
CROSSFEED, HANDWHEEL, PER REV. .. 0.2"
CROSSFEED, HANDWHEEL GRAD. ...... 0.001"
POWER RAPID TRAVERSE, VERTICAL .. 15.7" IPM
MPG LEAST INCREMENT ............. 0.0001"
GRINDING WHEEL SPINDLE SPEED .... 1,740 R.P.M.

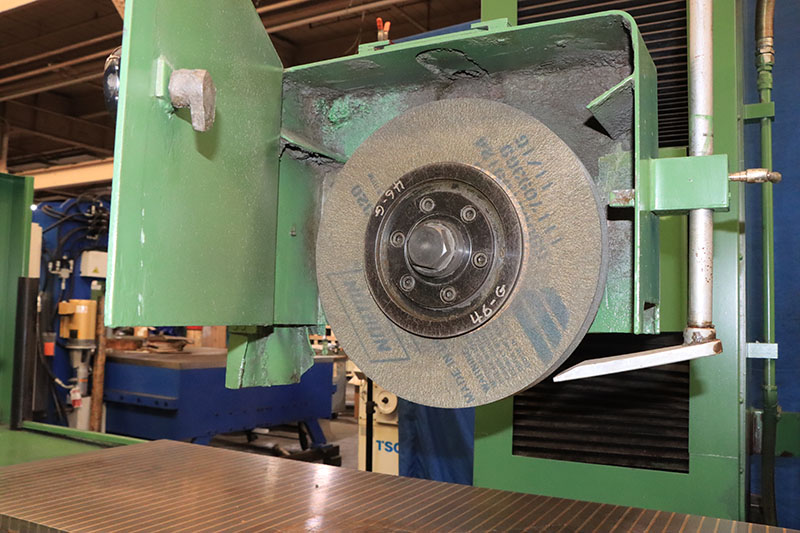

WHEEL SIZE:...................... 14" x 2"W x 5" BORE

APPROX. FLOOR SPACE REQUIRED .... 182" x 96" x 102" H
APPROXIMATE WEIGHT .............. 17,600 LBS

MACHINE FEATURES:

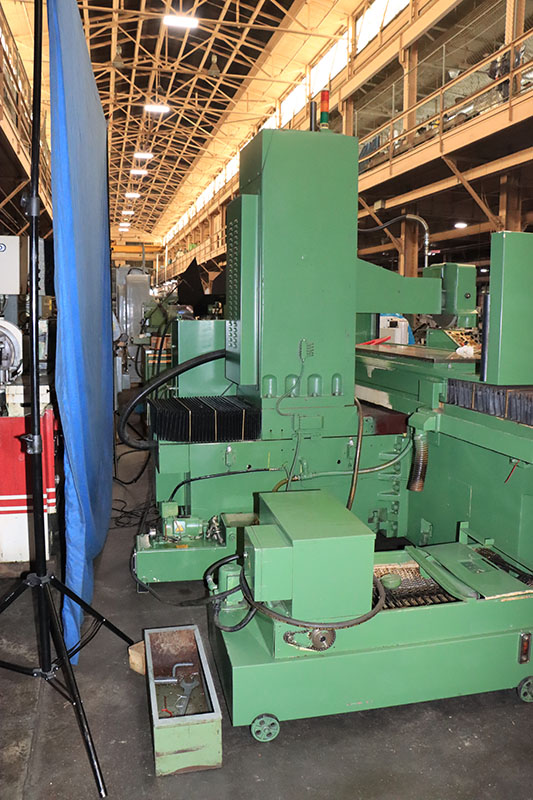

-TRAVELLING COLUMN TYPE CONFIGURATION,
  WITH TABLE SUPPORTED IN FULL TRAVEL
  TO AVOID OVERHANG.
-MICROPROCESSOR CONTROLLED, AUTO CYCLE OPERATION
-SURFACE, CRISSCROSS, PLUNGE AND SIDE GRINDING MODES
-MITSUBISHI AC SERVO DRIVE & MOTOR ON VERTICAL
  AXIS & CROSS AXIS, WITH BALLSCREWS.
-LEAST INPUT INCREMENT IS 0.0001"

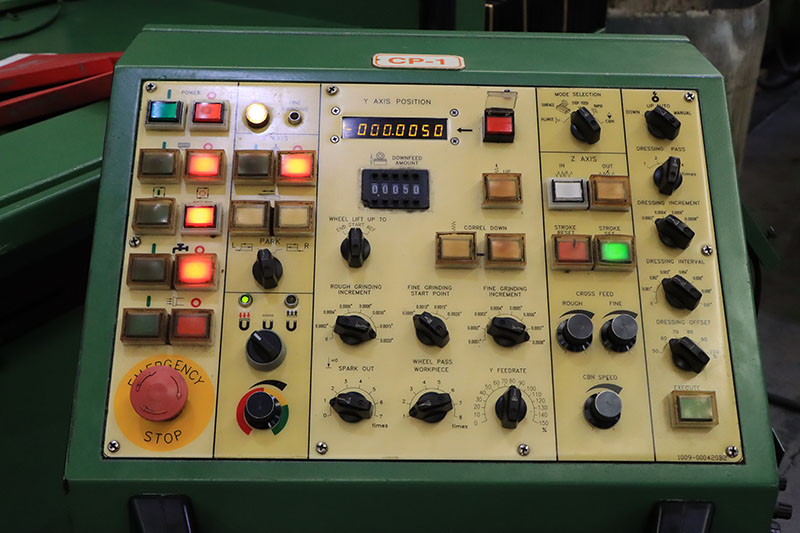

-CONTROL PANEL WITH DIGITAL DISPLAY

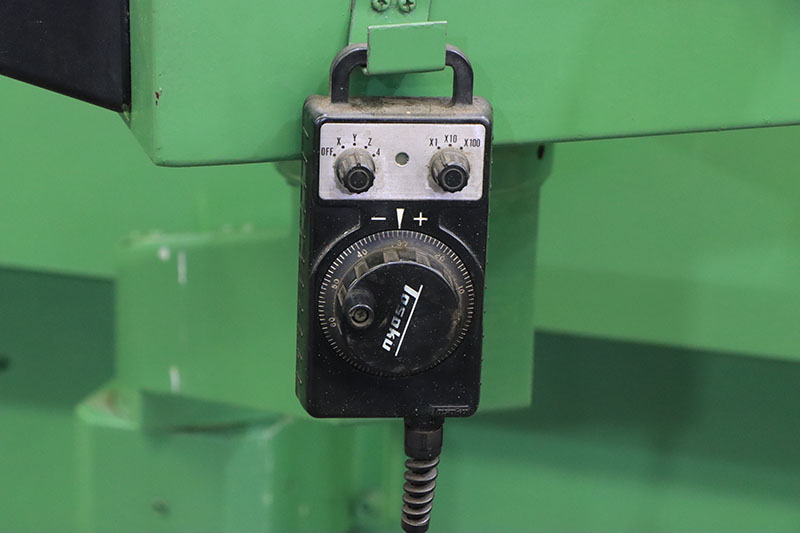

-MPG FOR VERTICAL AXIS, "Y" AXIS, WITH DIGITAL DISPLAY

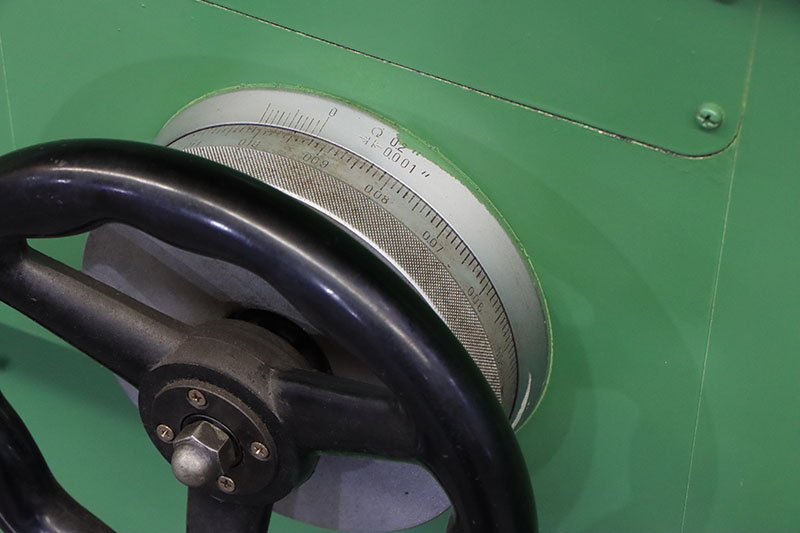

-HANDWHEEL FOR CROSS AXIS MANUAL MOVEMENT, 0.0001" GRADUATION

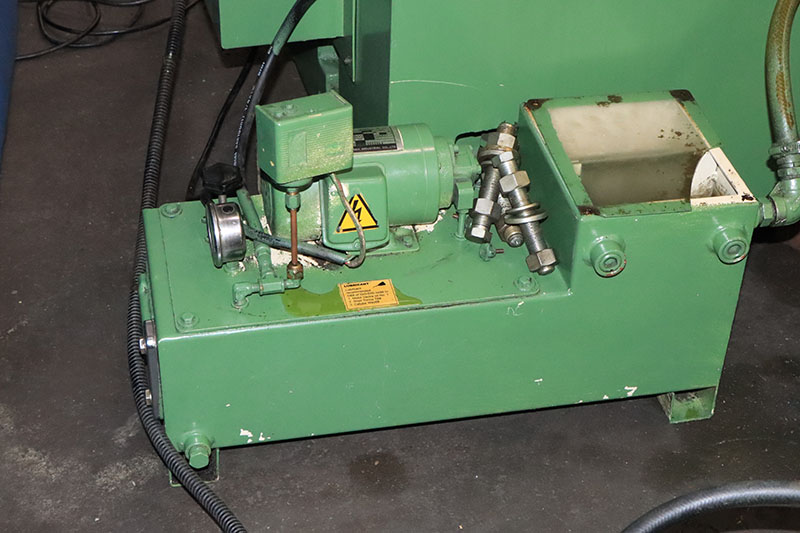

-LUBRICATION TANK & PUMP

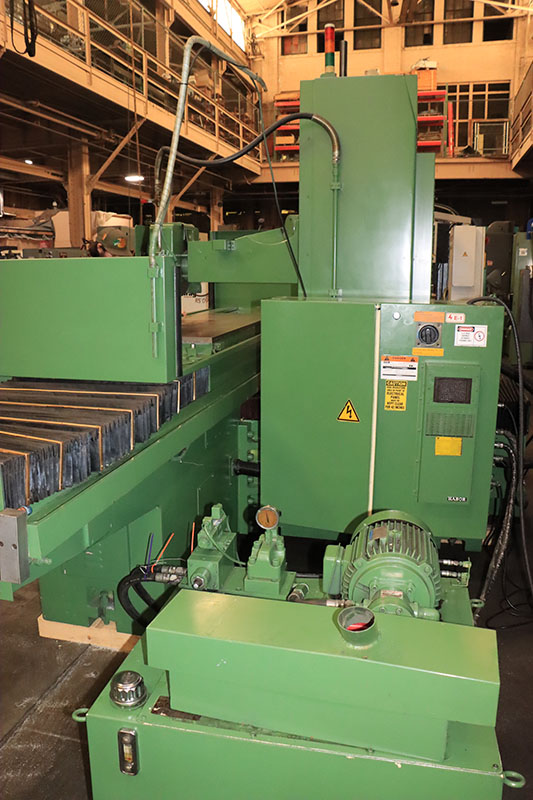

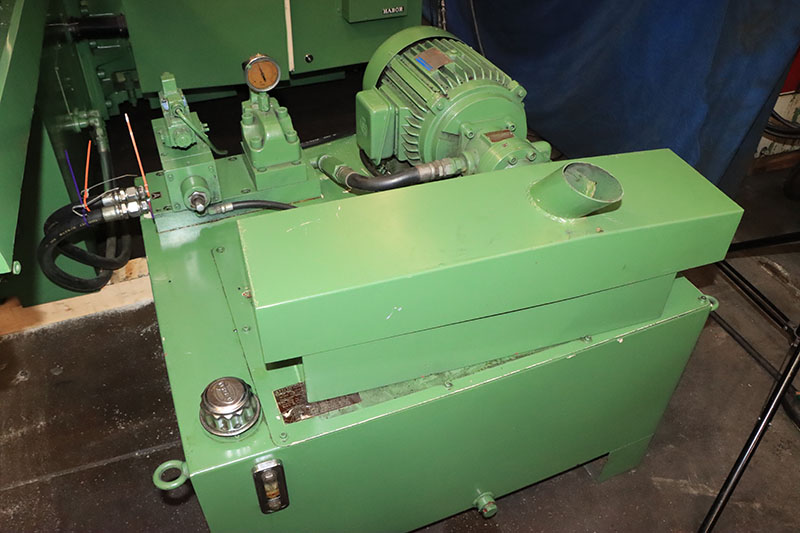

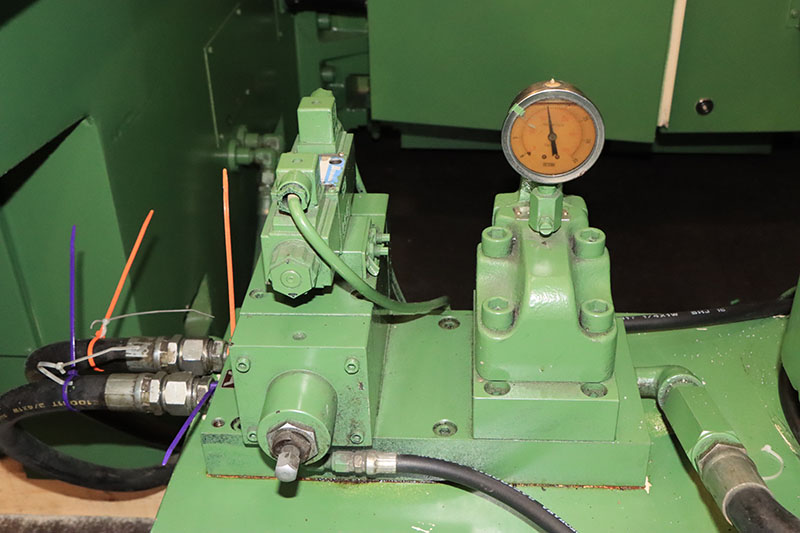

-EXTERNAL HYDRAULIC TANK

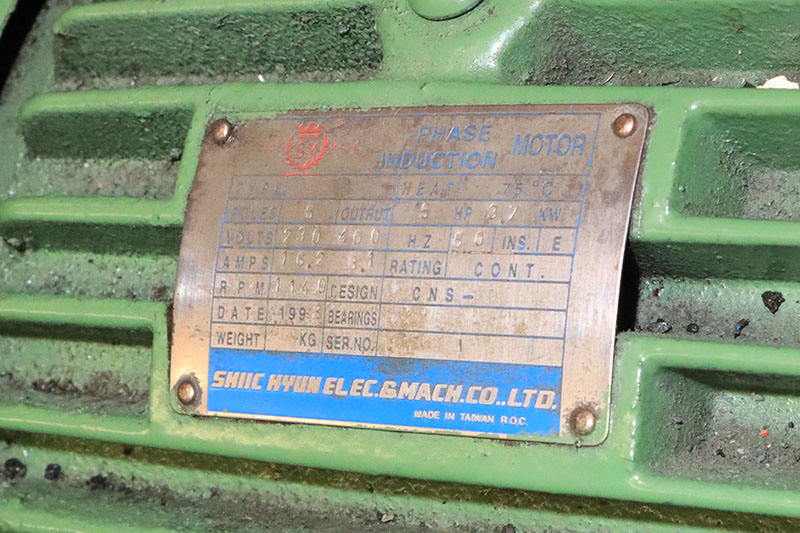

-10 H.P. SPINDLE MOTOR/3/60/230-460 VOLTS

EQUIPPED WITH:

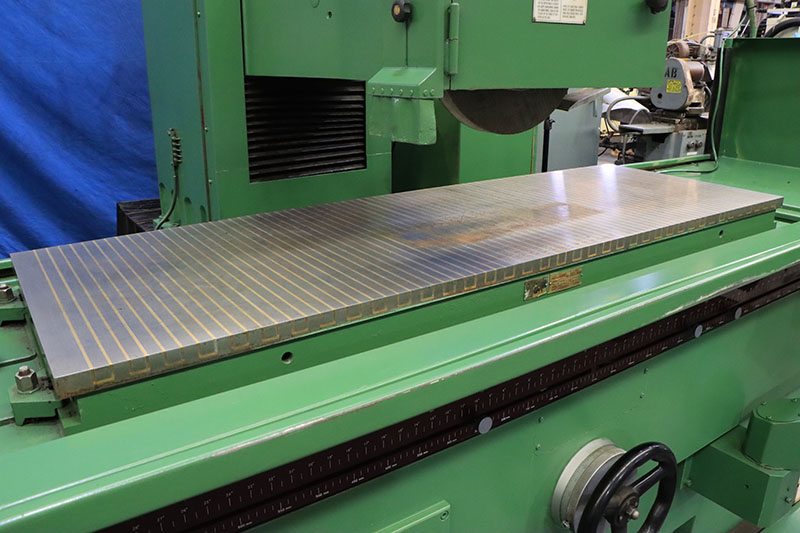

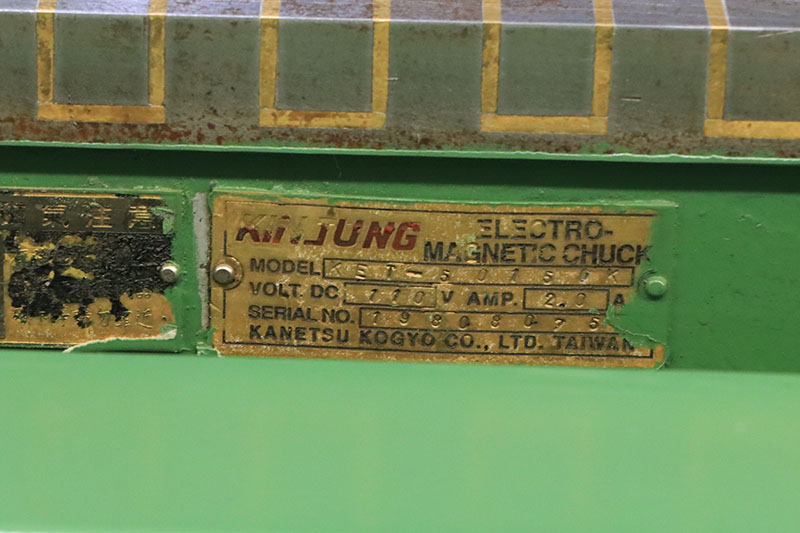

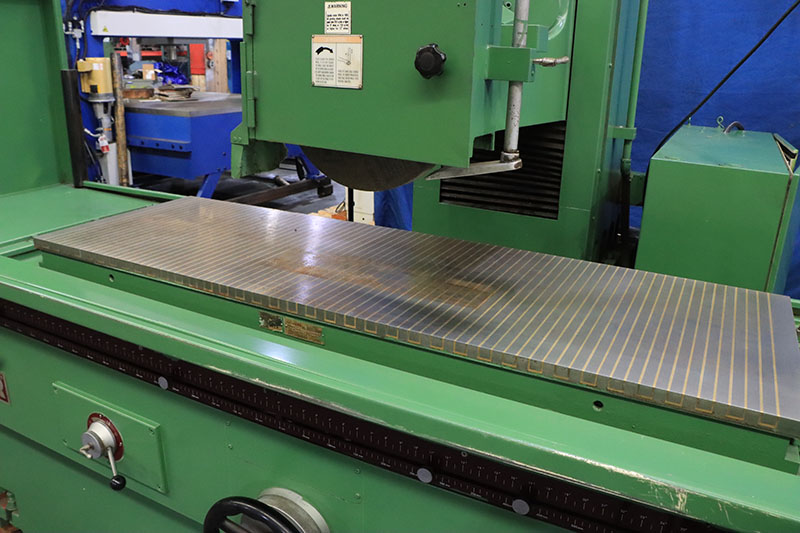

19.7" x 59.4" "KANETSU" "KET-50150K" ELECTRO-MAGNETIC CHUCK
  (CHUCK IS IN EXCEPTIONAL/MINT CONDITION)
VARIABLE HOLD NEUTROFIER CONTROL, ON MACHINE CONSOLE

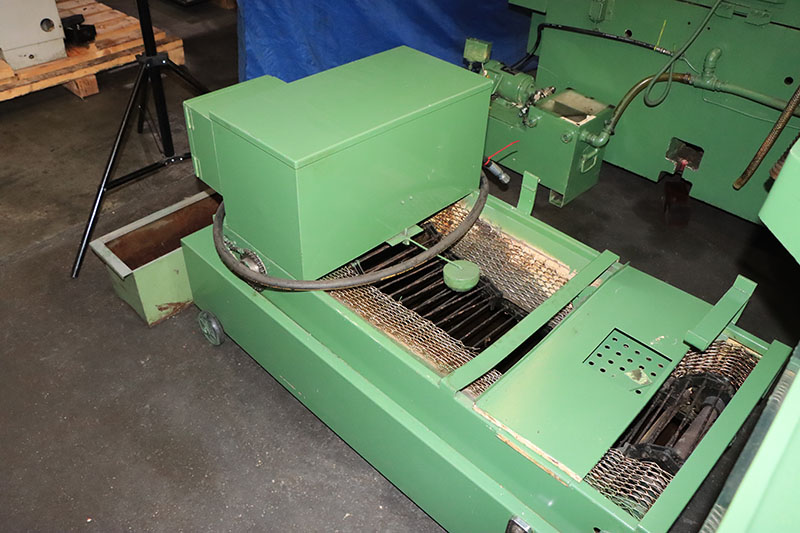

COOLANT TANK WITH PAPER FILTRAION
OPERATING MANUAL WITH ELECTRICAL SCHEMATICS
3/60/230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 480 VOLTS

VIDEO:
https://youtu.be/EX6eVMwhux4?si=Vv0hrO_SkhuXPGcK


** VERY QUIET SPINDLE & HYDRAULICS **
** SMOOTH & QUIET AXES MOVEMENTS **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERIOR CONDITION & APPEARANCE  **
