Chevalier FSG-3A1020, 1993, AUTO IDF, 3X AUTO FEED, 2X DRO, SURFACE GRINDERS, HYDRAULIC

Price on Request

Make:: Chevalier

Model:: FSG-3A1020, 1993, AUTO IDF, 3X AUTO FEED, 2X DRO,

Year:: 1993

Ref #:: 178554

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

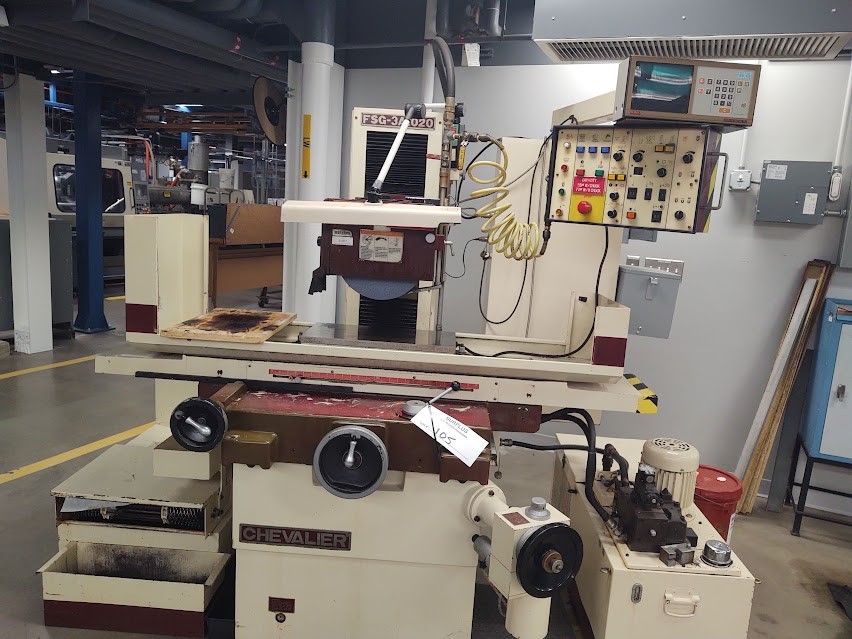

   10" X 20" CHEVALIER PRECISION SURFACE GRINDER,
       PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED,
             WITH 12" GRINDING WHEEL


MODEL: FSG-3A1020    S/N: N3823003   NEW: 1993

NOMINAL GRINDING CAPACITY ................... 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 22- 7/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 24- 3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............ 11- 7/16"
MAX. CROSSFEED TRAVEL, MANUAL ............... 11- 3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 21- 1/2"

VARIABLE TABLE SPEED, HYDRAULIC .......... 16' TO 82' FPM

AUTOMATIC CROSSFEED INCREMENT ............ 0.02" TO 0.4"
POWER RAPID TRAVERSE (CROSS) ................ 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.001"
PER REVOLUTION .............................. 0.02"

AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION .............................. 0.1"
MICROFEED ................................... 0.0001"
RAPID TRAVERSE RATE ......................... 13" IPM

SPINDLE MOTOR ............................... 3 HP
STANDARD GRINDING WHEEL ......... 12" DIA. x 1- 1/4" x 3"B

APPROX. WEIGHT .......................... 3,306 LBS.
APPROX. DIMENSIONS ...................... 85" X 48" X 65"H

MACHINE FEATURES:
FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE
  CONTROL W/DIGITAL DISPLAY
AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
SPARKOUT CYCLE W/AUTOMATIC WHEELHEAD RETRACTION
  @ COMPLETION OF GRIND CYCLE
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
ELECTRONIC CROSS & VERTICAL FEEDS
MICRO-DOWNFEED (.0001" GRAD.)
12" GRINDING WHEEL

EQUIPPED WITH:
"SOKKI" HIGH ACCURACY "MADE IN JAPAN"
  2-AXIS DIGITAL READOUT DISPLAY.
10" X 20" ELECTRO-MAGNETIC CHUCK
W/VARIABLE HOLD NEUTROFIER CONTROL ON THE MACHINE
  CONTROL CONSOLE
COOLANT SYSTEM w/PAPER FILTRATION
WORK LIGHT
EXTERNAL HYDRAULIC SYSTEM
AUTO LUBE SYSTEM
12" GRINDING WHEEL
5 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS WIRED FOR 3/60/

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ORIGINAL PAINT - EXCELLENT CONDITION **
** FROM ONE OF AMERICA'S GREATEST COMPANIES **
