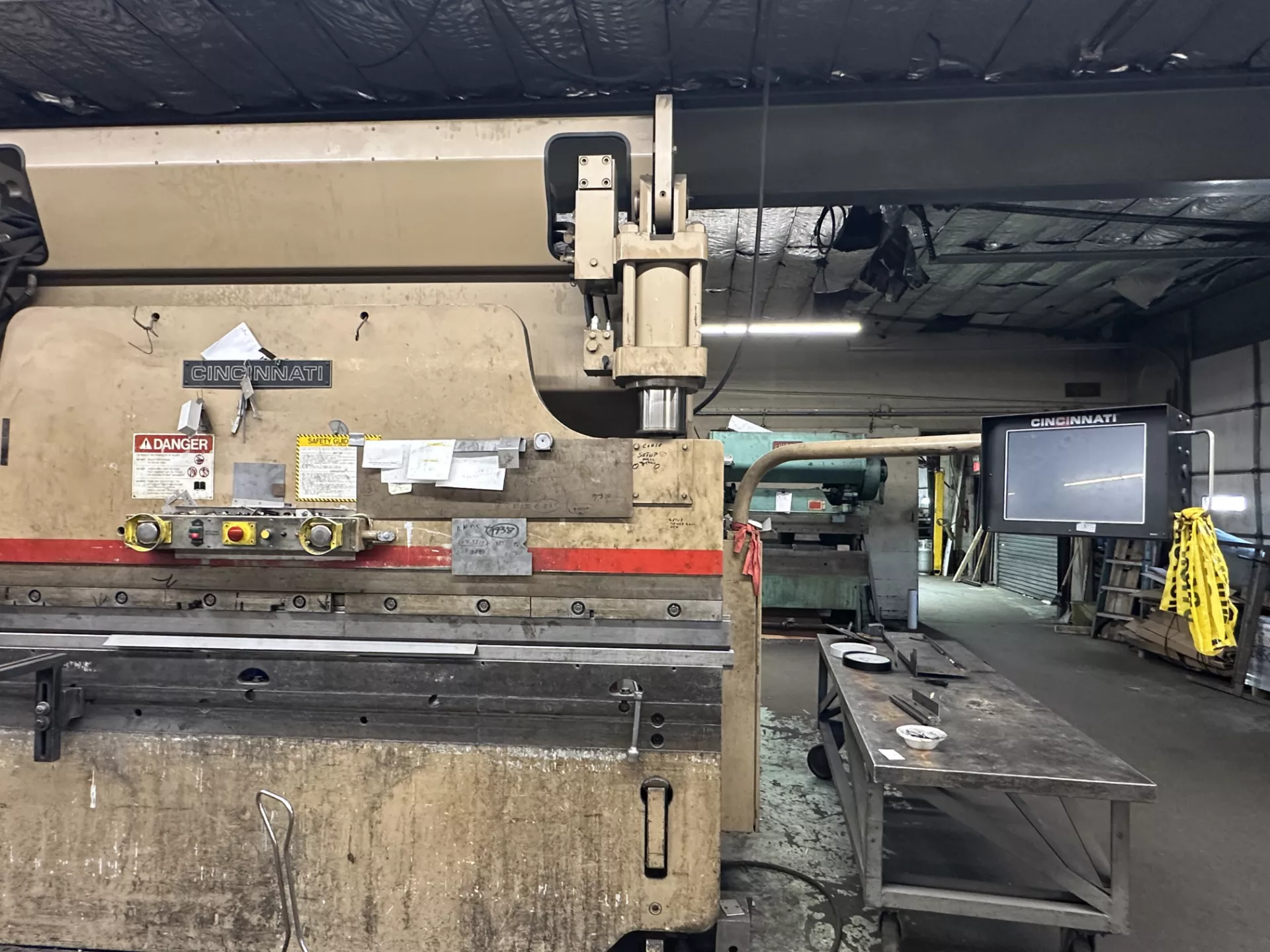

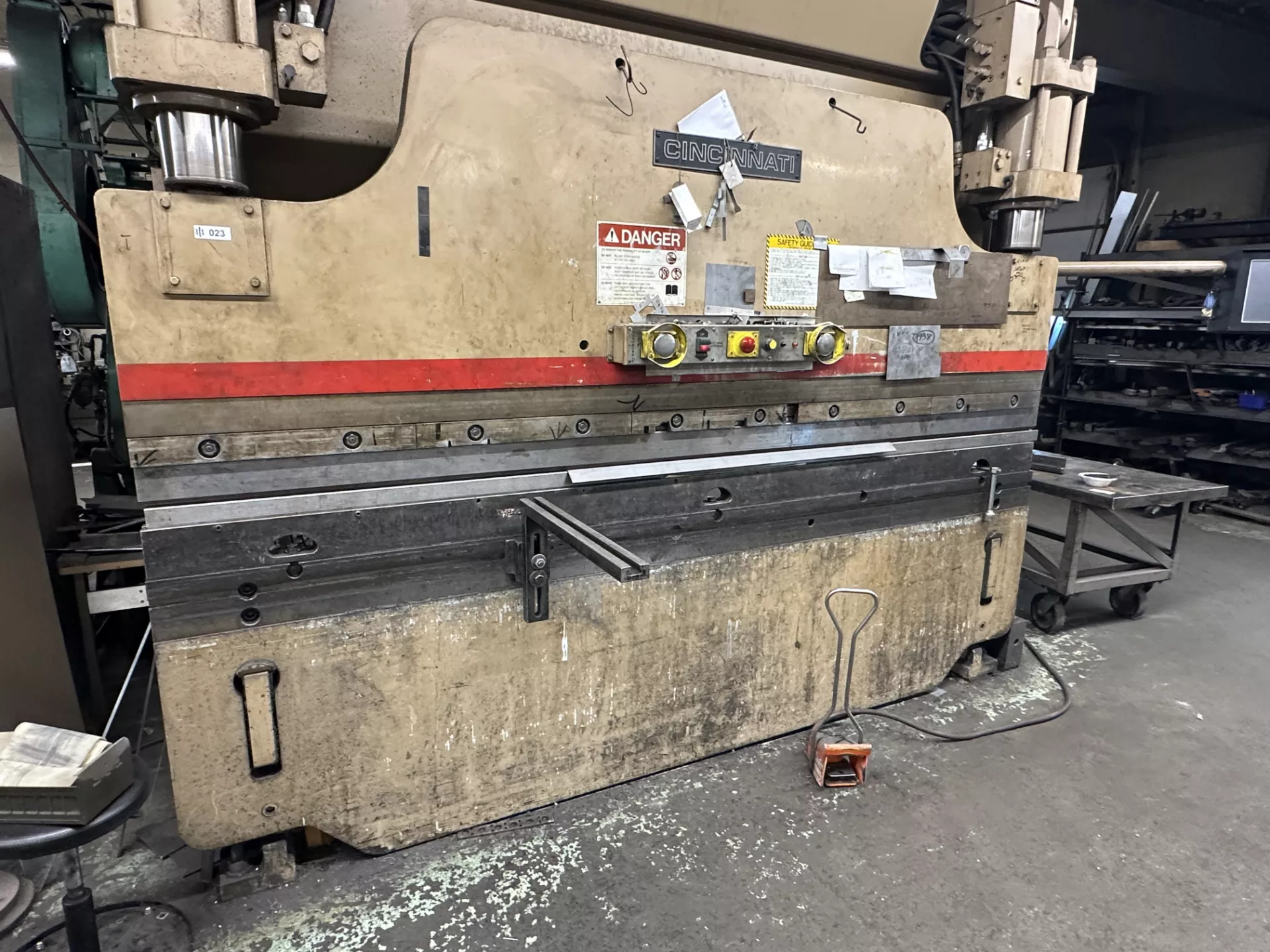

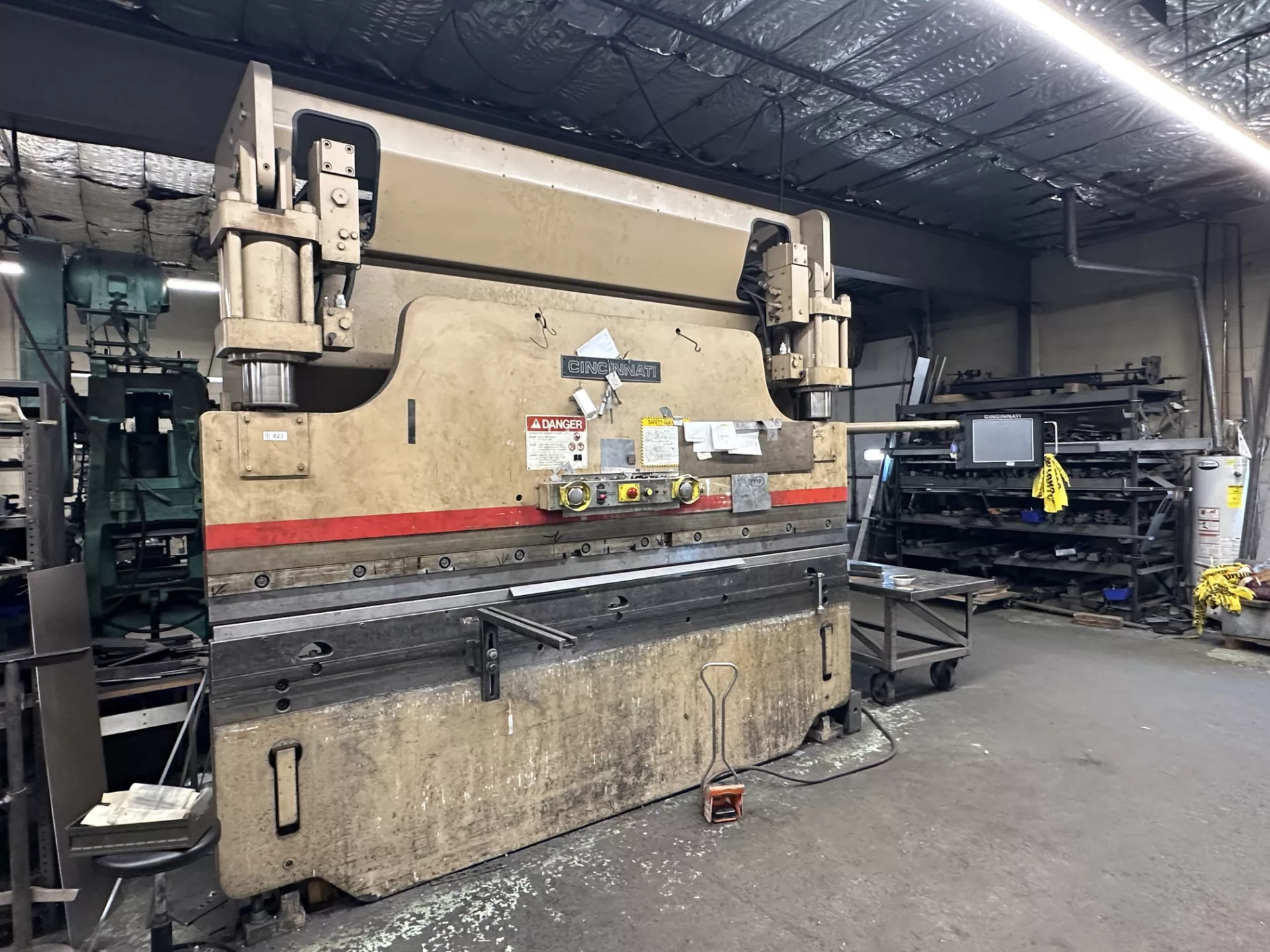

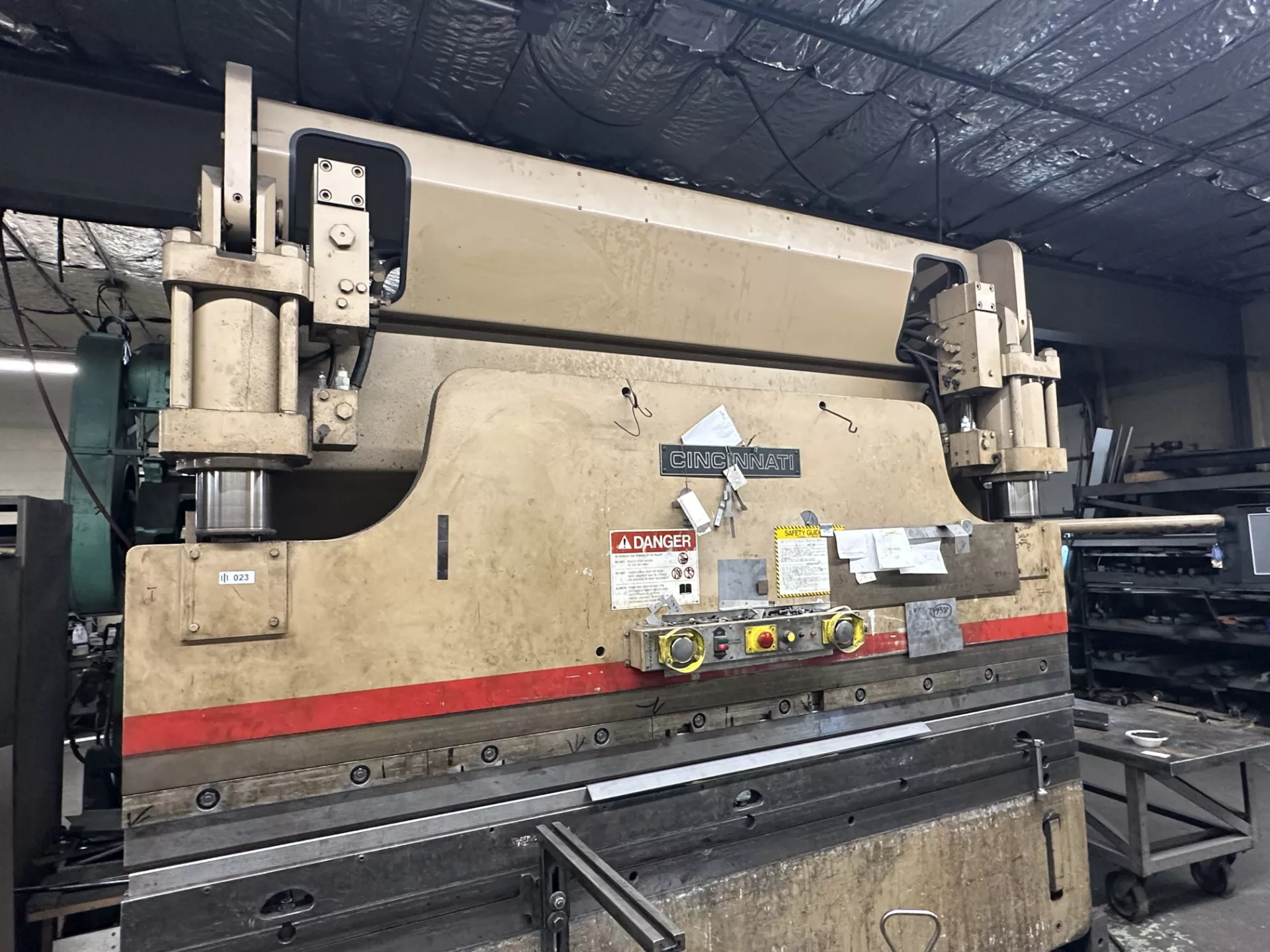

Cincinnati 135CBII PRESS BRAKES w/CNC BACK GAUGES

$44,500

Make:: Cincinnati

Model:: 135CBII

Year:: 1998

Ref #:: 179426

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com


135 TON x 10' CINCINNATI HYDRUALIC PRESS BRAKE
MODEL 135CBx8          S/N 49899          NEW 1998

TONNAGE ...................... 135 TONS
OVERALL LENGTH ............... 10'
DIST. BETWEEN HOUSINGS ....... 8'6"
BENDING CAP. (MILD STEEL) .... 3/16" X 10'3"
                               1/4" x 7'6"
                               1/2" x 4'8"
STROKE ....................... 8"
THROAT DEPTH ................. 7"
OPEN HEIGHT .................. 15"
CLOSED HEIGHT ................ 7"
RAM SPEED - HIGH ............. 136 IPM
            MEDIUM ........... 65 IPM
            LOW .............. 16 IPM
            RETURN ........... 122 IPM
MOTOR ........................ 25 HP

Dimensions: 126" x 48" x 122" high
Weight: 16,000 lbs

CURRENTLY 480 VOLT / 3 PHASE

EQUIPPED WITH:
- UPDTED CINCINNATI CONTROLS DONE IN 2025
- CNC CONTROL OVER THE RAM TRAVEL
- LOW, MEDIUM & HIGH SPEED MODES
- ADJUSTABLE TONNAGE
- PEDESTAL MOUNTED PALM BUTTONS
- FOOT PEDAL
- LOWER DIE RAIL
