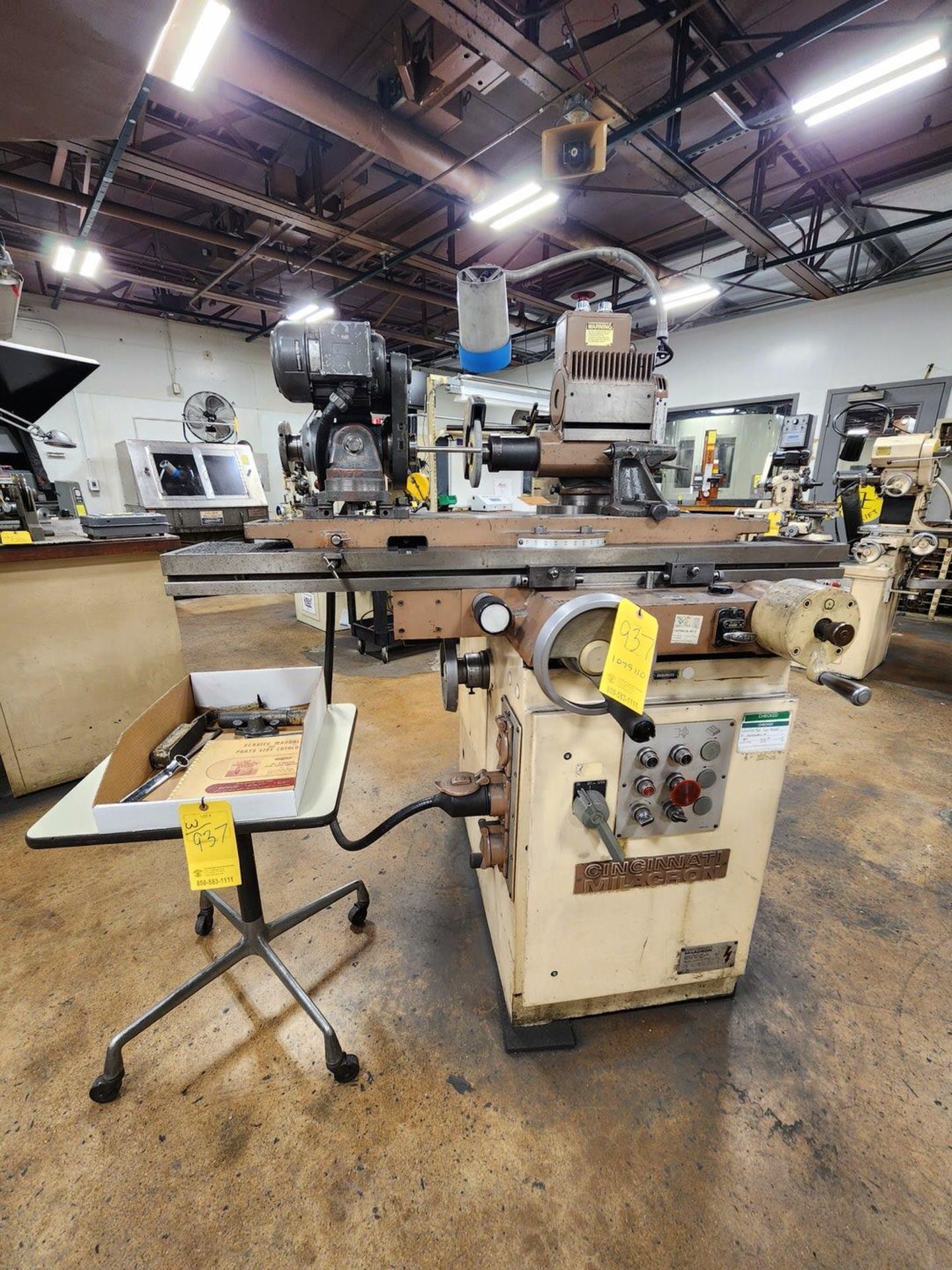

Cincinnati-Milacron #2MT, 1978, TILT WHEEL, MTRZ'D WKHD w/5C COLLET TOOL & CUTTER GRINDERS

Price on Request

Make:: Cincinnati-Milacron

Model:: #2MT, 1978, TILT WHEEL, MTRZ'D WKHD w/5C COLLET

Year:: 1978

Ref #:: 179466

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

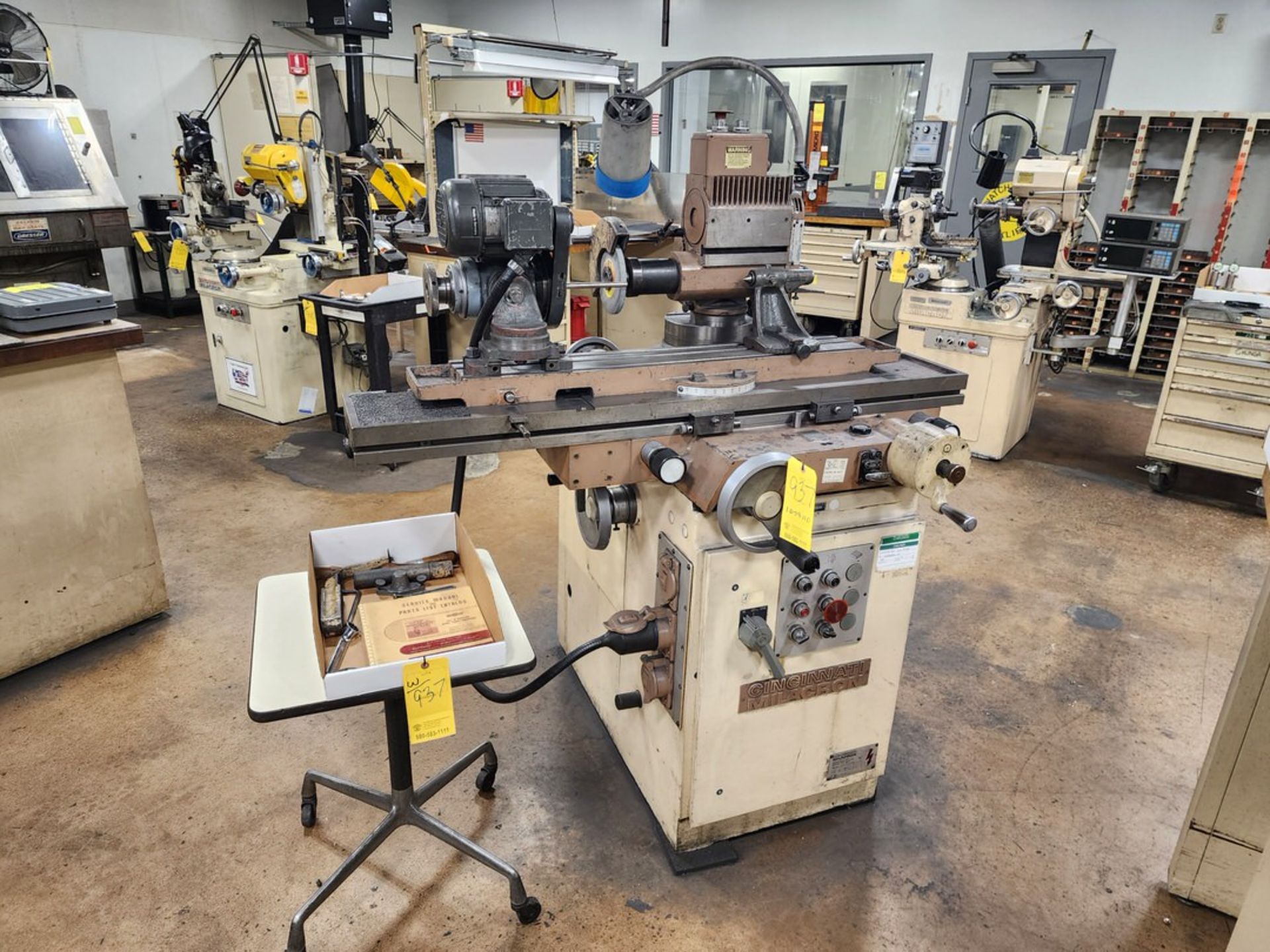

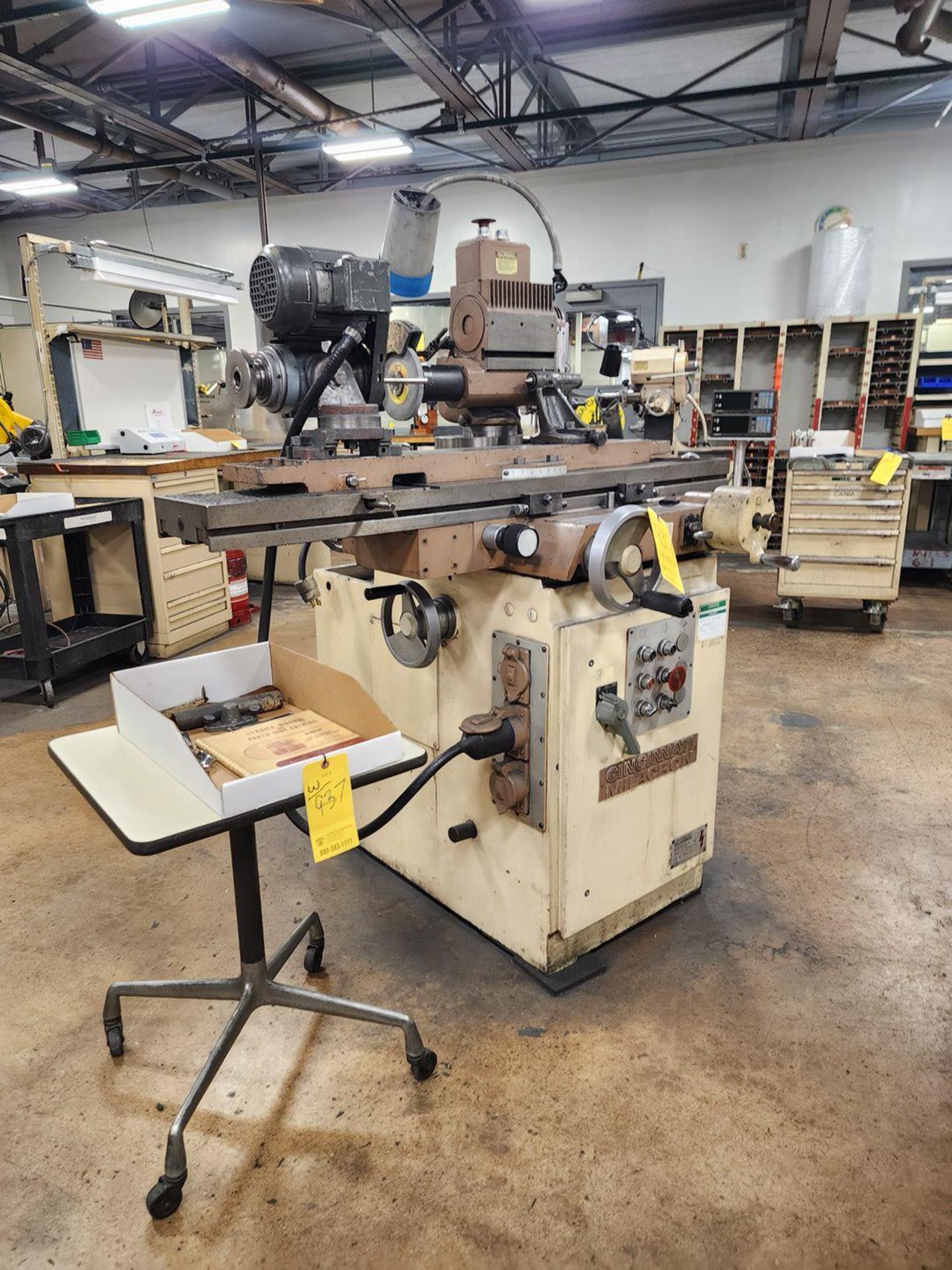

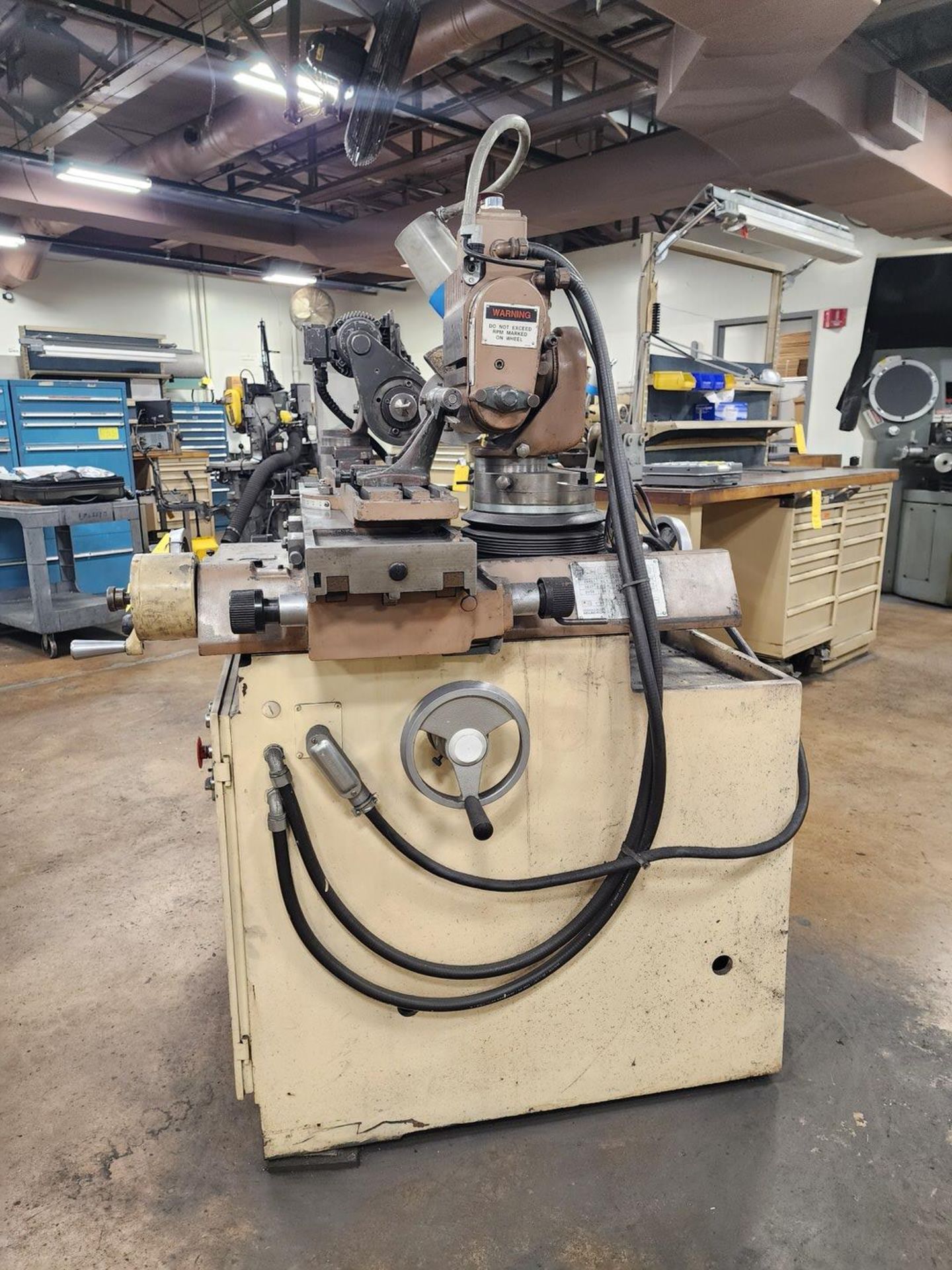

         NO. 2 CINCINNATI-MILACRON
                MODEL: MT
      UNIVERSAL TOOL & CUTTER GRINDER

    S/N: F-4984-E-79-05-36     NEW: 1979

CAPACITY:
SWING OVER TABLE DIAMETER ......................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS ...... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD .............. 21-1/2"
FACE MILLS ON WORKHEAD DIAMETER ................... 10"
FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. .. 18"
SAWS ON TABLE DIAMETER ............................ 48"
FORMED CUTTERS (USING 6" WHEEL) DIAMETER .......... 10"

RANGE:
TABLE SIZE ..................................... 6" x 36"
LONGITUDINAL TABLE TRAVEL ......................... 16"
CROSS MOVEMENT OF TABLE ........................... 10"
TABLE SWIVEL ...................................... 180°
TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ...... 5"
FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) ... 2"
TABLE GRADUATIONS IN CENTER, IN DEGREES ........... 90°
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ....... 10-1/2"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ......... 13-1/2"
SPINDLE TILTS ABOVE AND BELOW CENTER .............. 15°
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE ......... 360°

SPINDLE SPEEDS:
6" WHEEL, SURFACE SPEED 6,022 FT./MIN. ......... 3,834 RPM
3" WHEEL, SURFACE SPEED 5,887 FT./MIN. ......... 6,425 RPM


APPROXIMATE MACHINE WEIGHT ..................... 3,000 LBS
APPROXIMATE DIMENSIONS ................. 36" X 38"D X 60"H

MACHINE FEATURES:

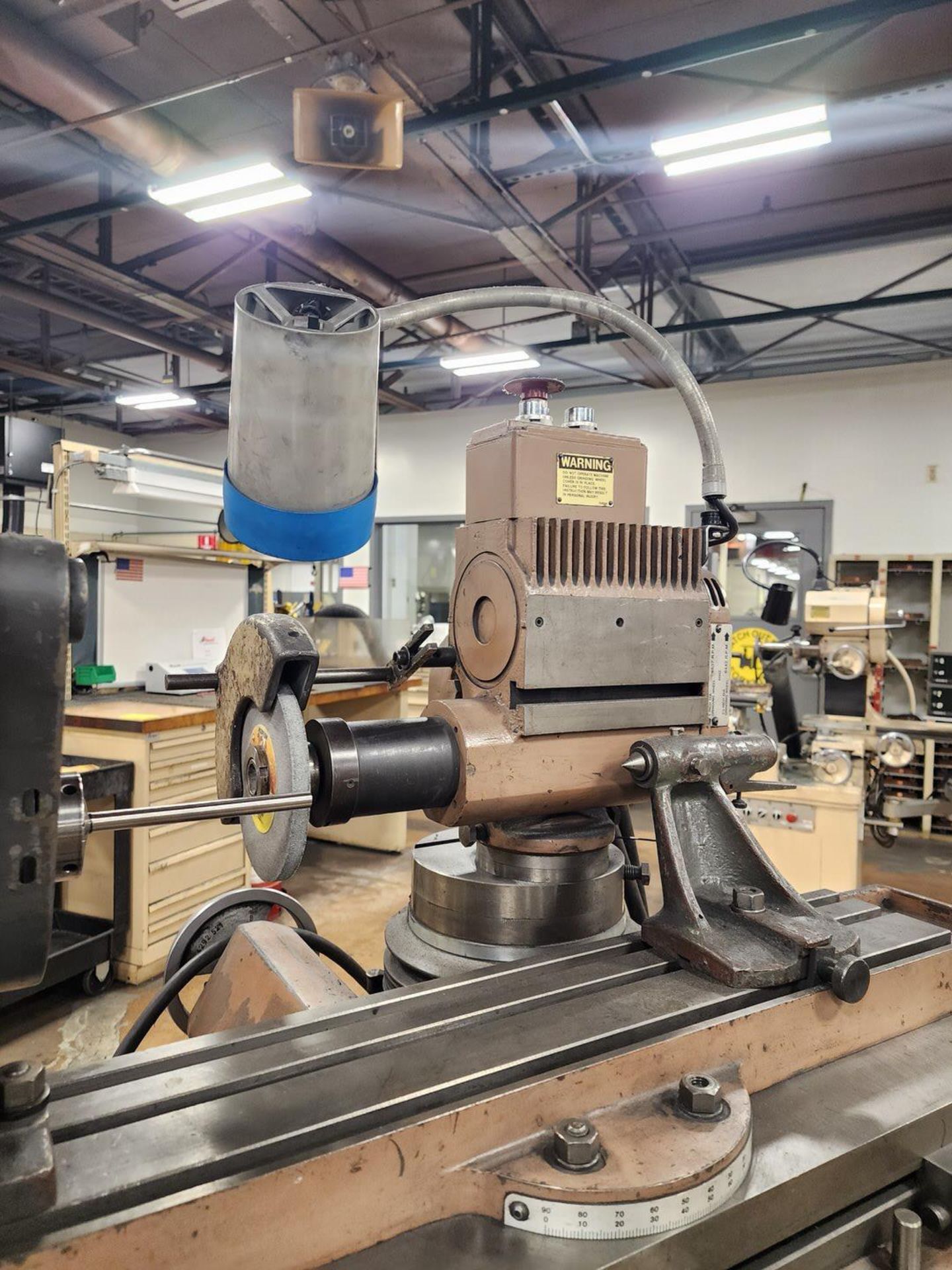

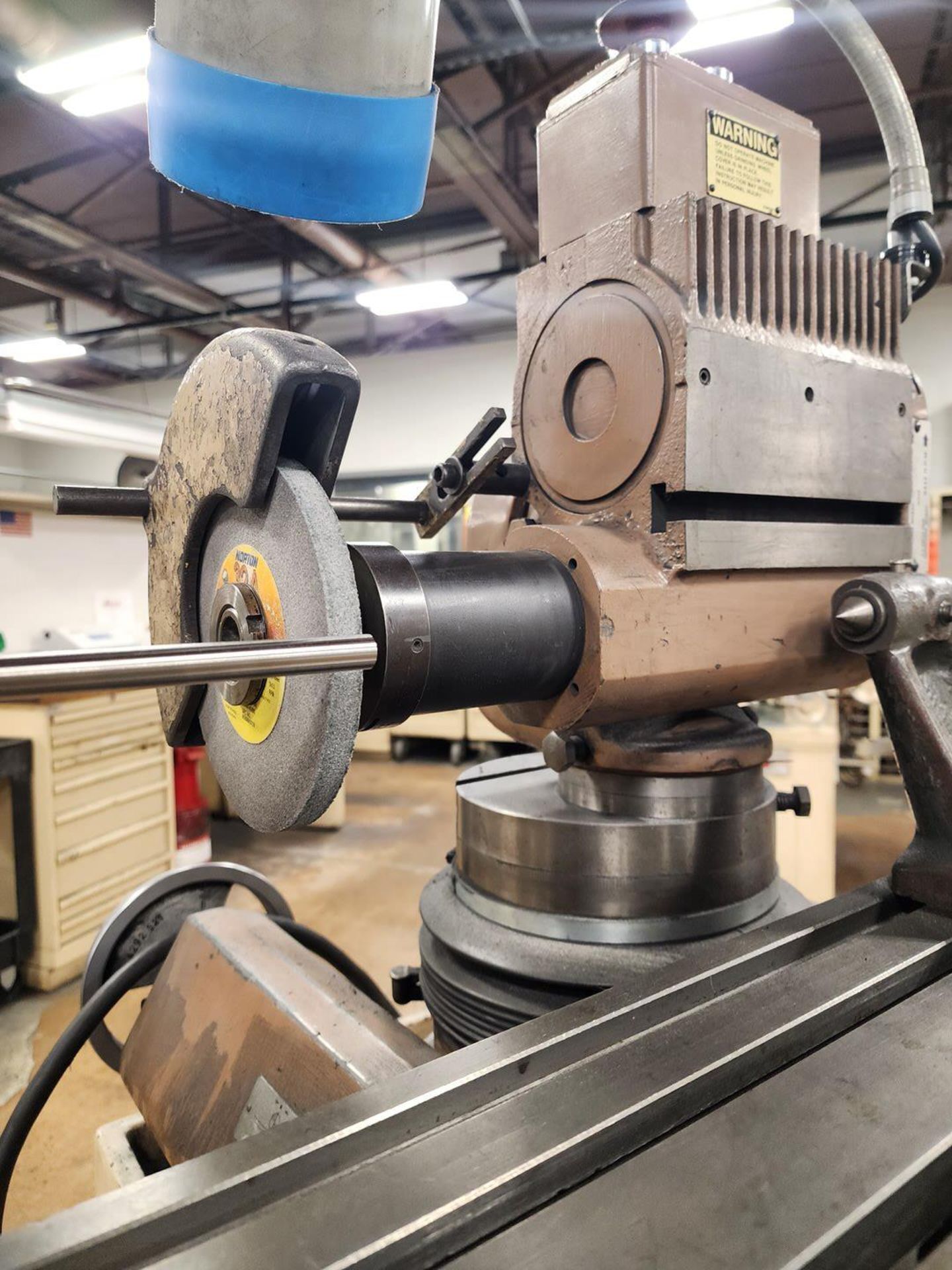

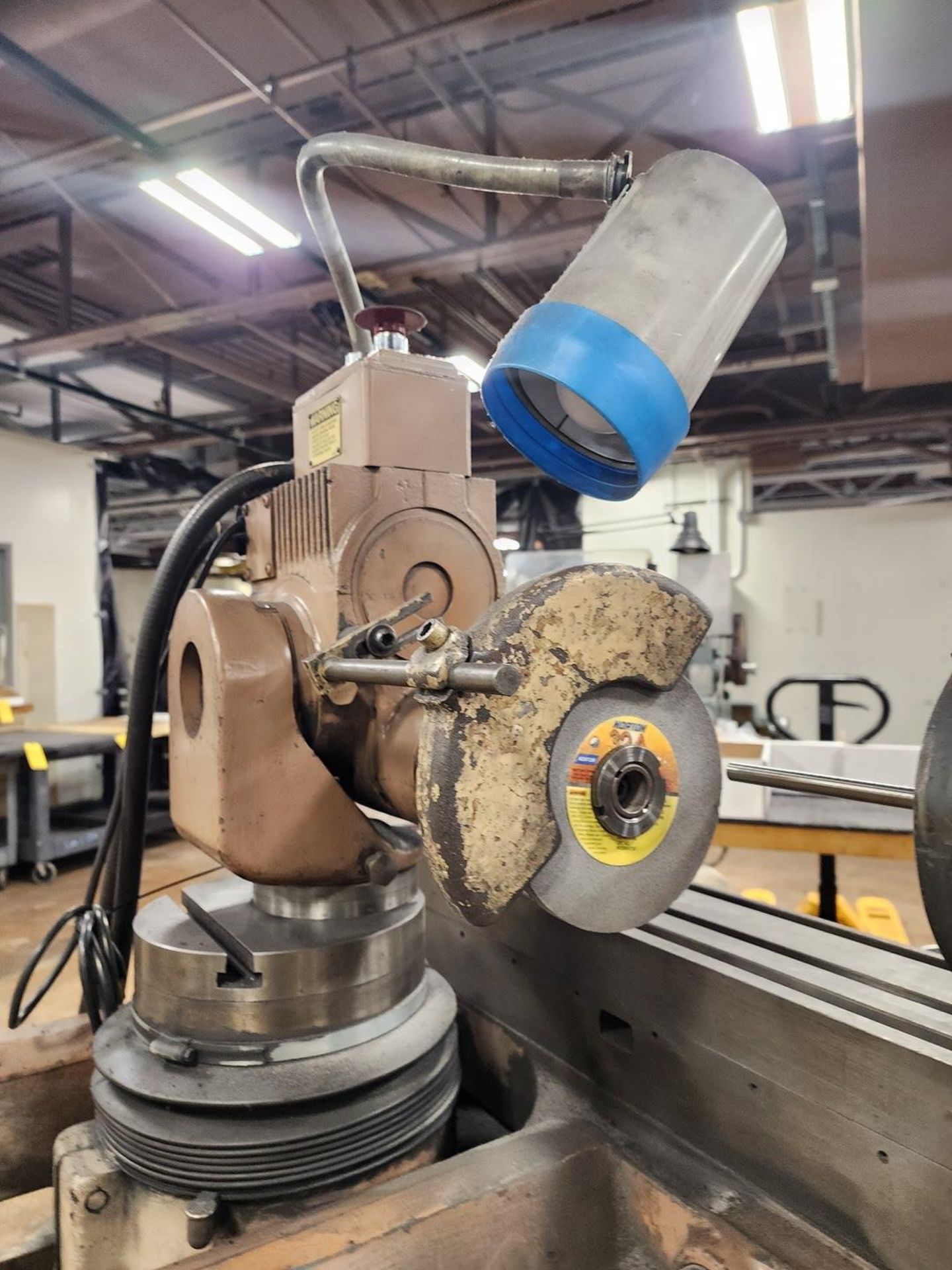

TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR

EQUIPPED WITH:

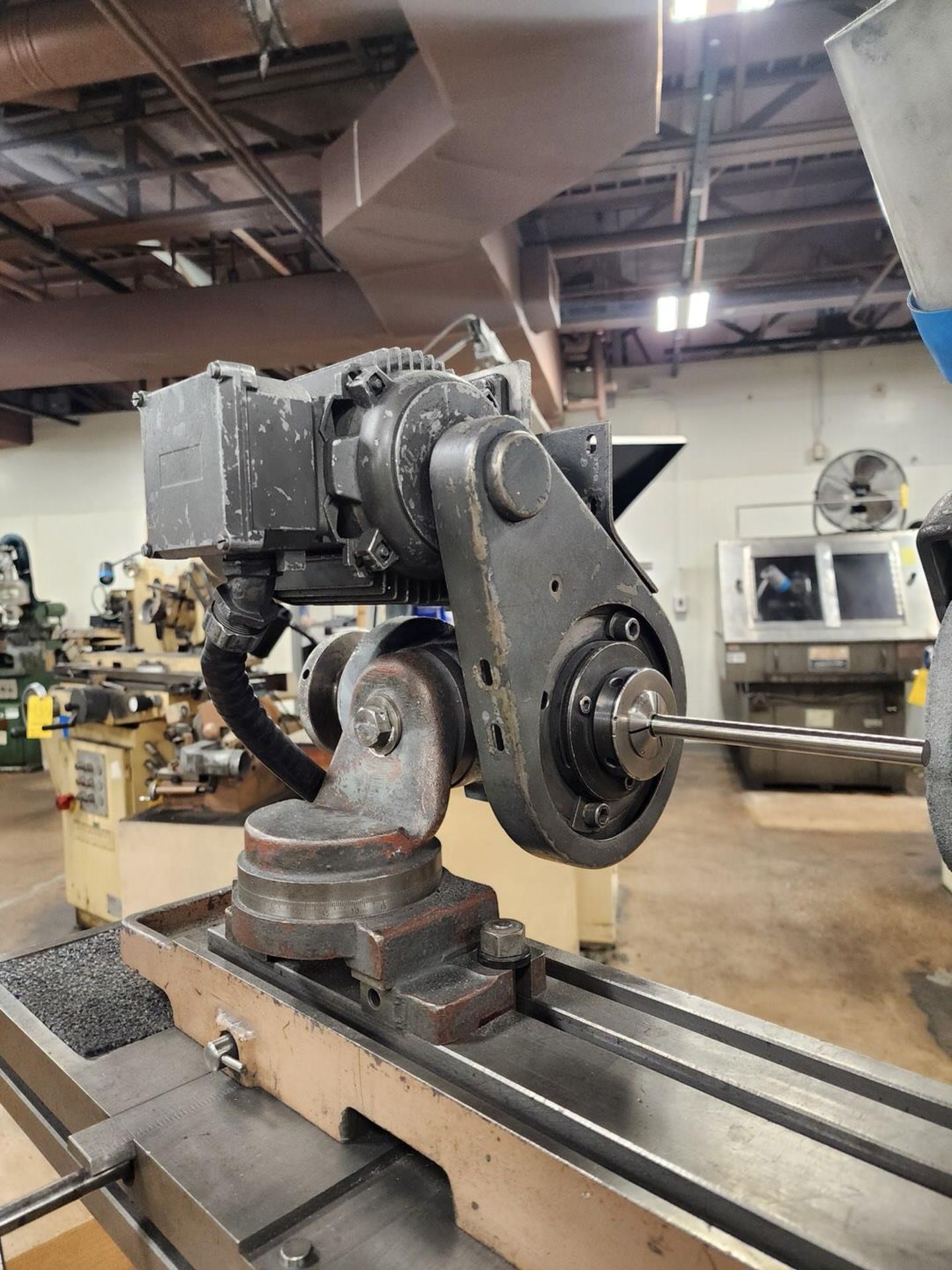

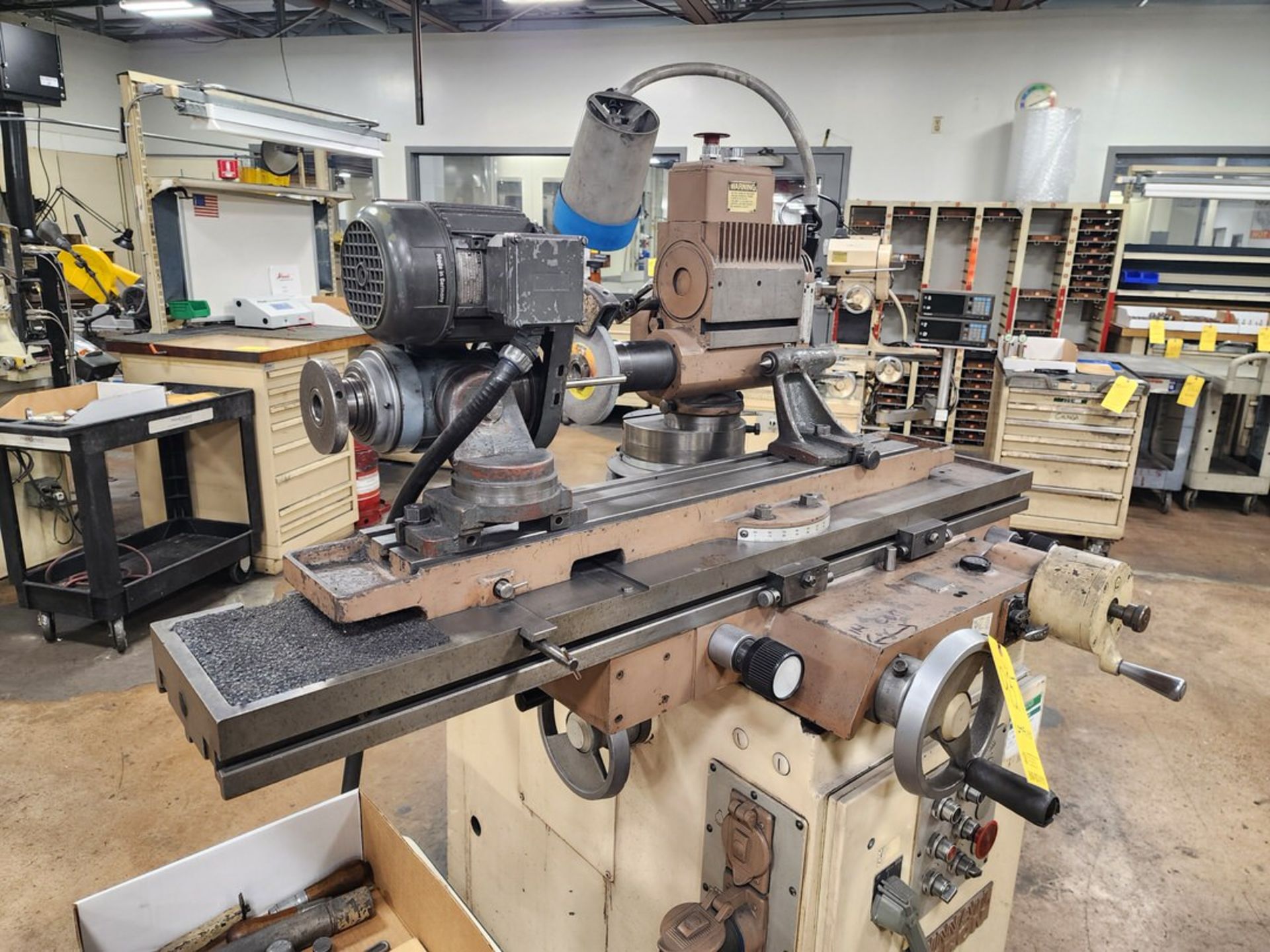

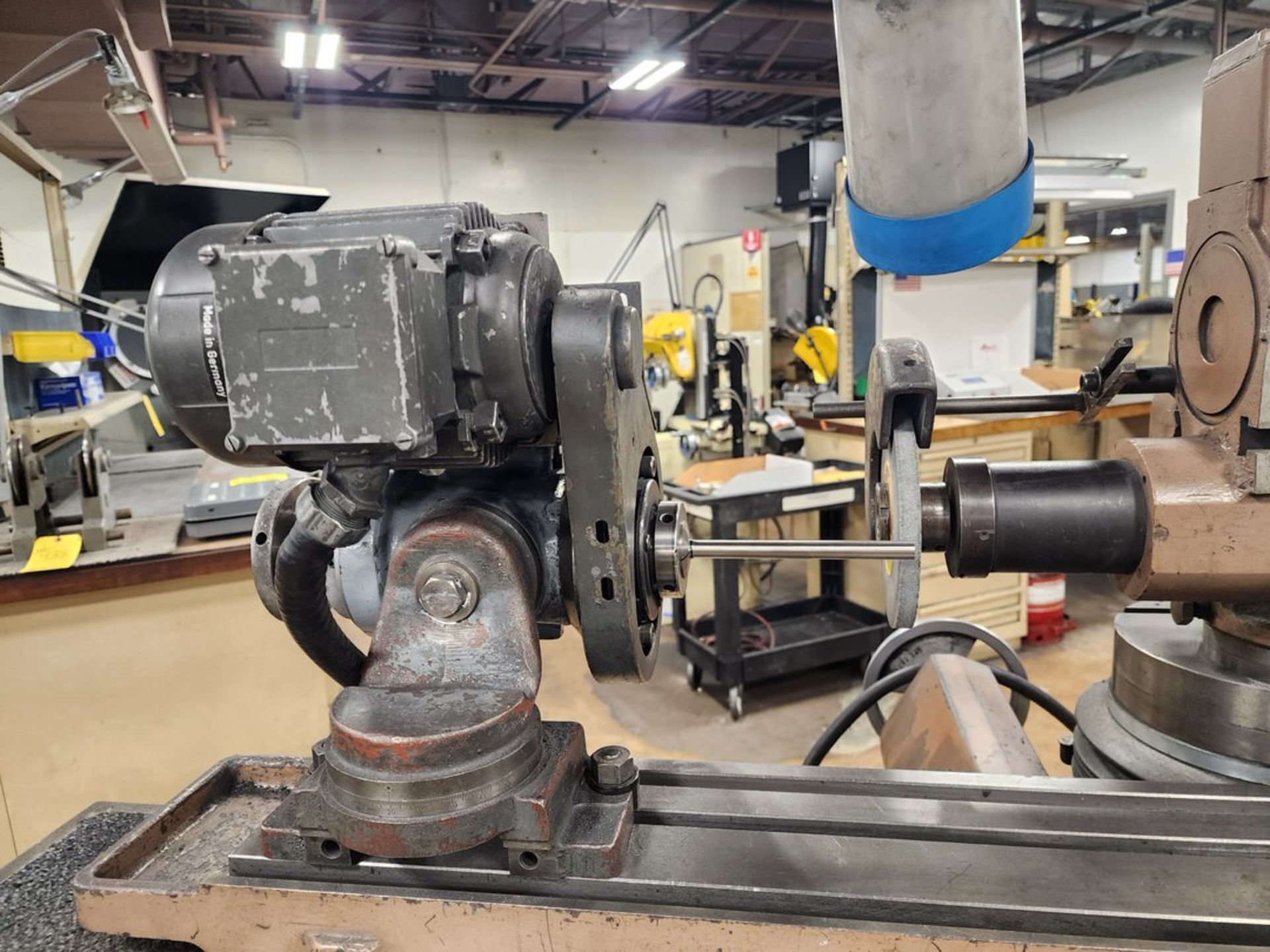

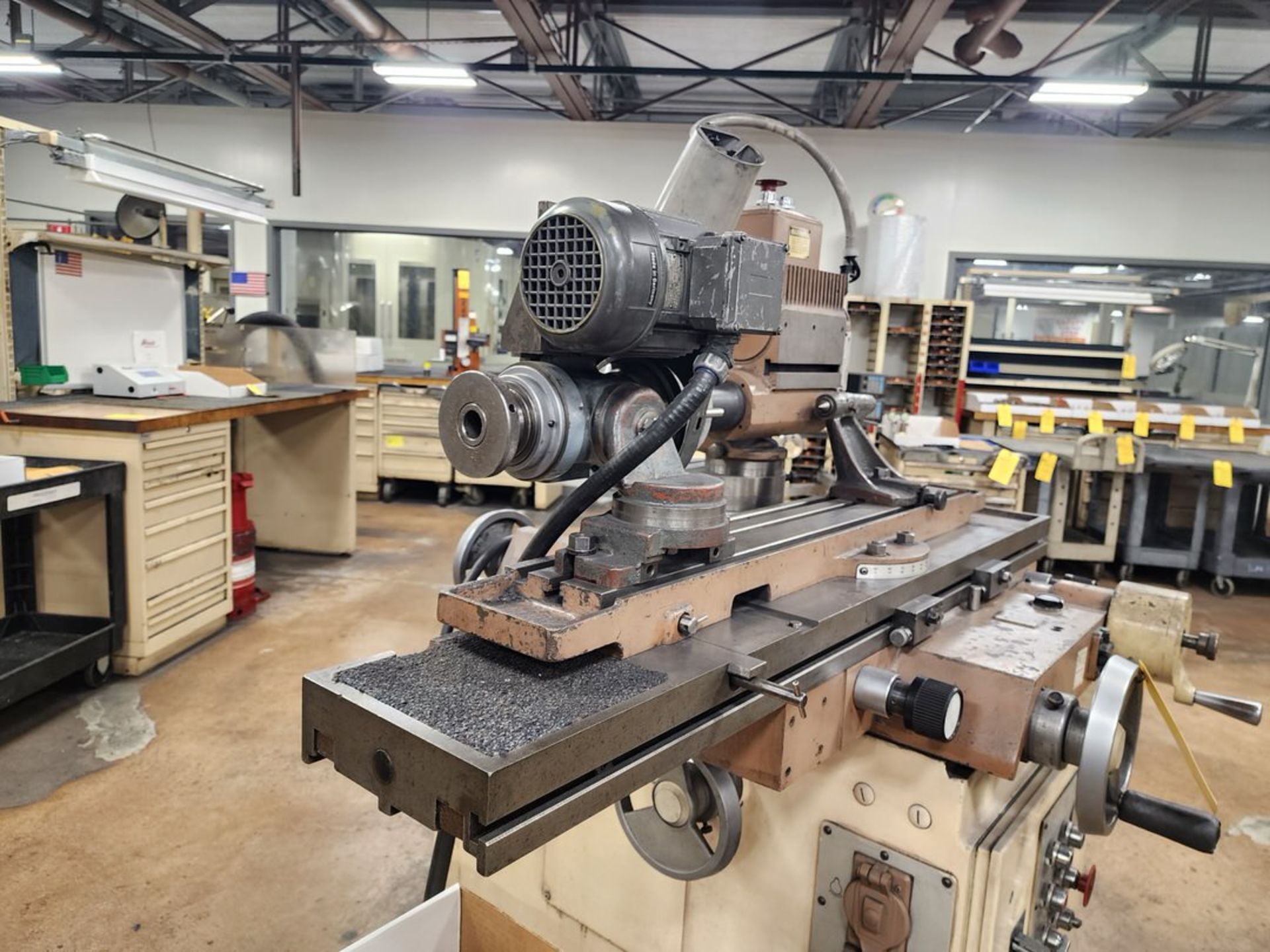

CINCINNATI MILACRON MOTORIZED WORKHEAD,
  WITH 5C COLLET ATTACHMENT
CINCINNATI TAILSTOCKS
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS

AVAILABLE TO PURCHASE SEPARATELY:
CINCINNATI MILACRON RADIUS ATTACHMENT,
  COMPLETE WITH WORKHEAD,
https://www.machineryvalues.com/inventory/cincinnati-milacron-radius-grinding-fixture-grinder-attachments/162337/0

** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
