Republic-Lagun TCG-106, NO. 2 Type, 2016, Helical Grinding Attch. TOOL & CUTTER GRINDERS

Price on Request

Make:: Republic-Lagun

Model:: TCG-106, NO. 2 Type, 2016, Helical Grinding Attch.

Year:: 2016

Ref #:: 178422

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

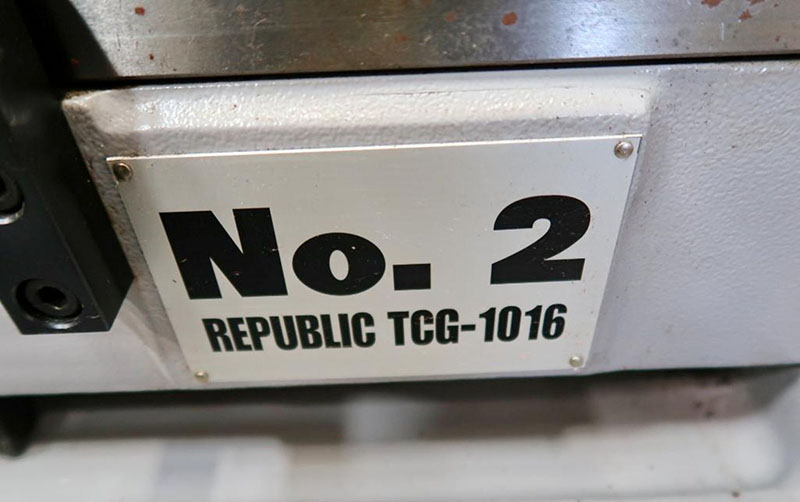

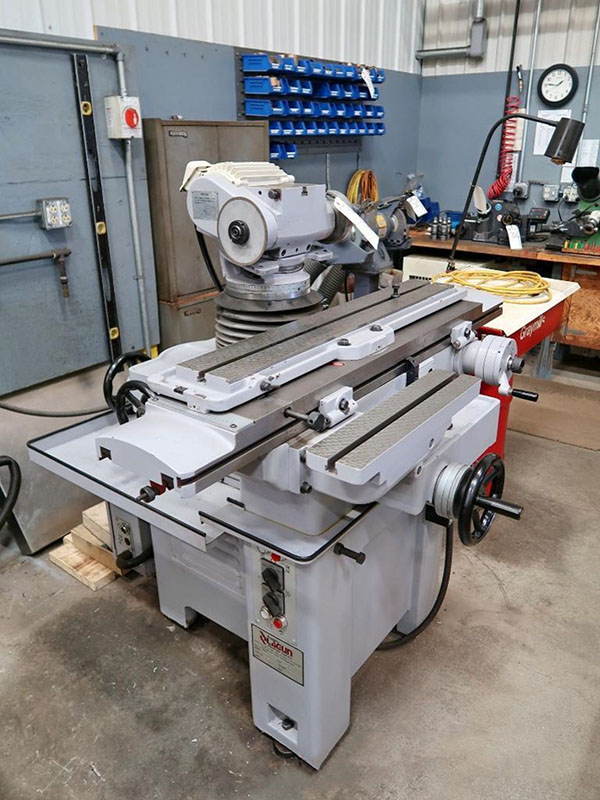

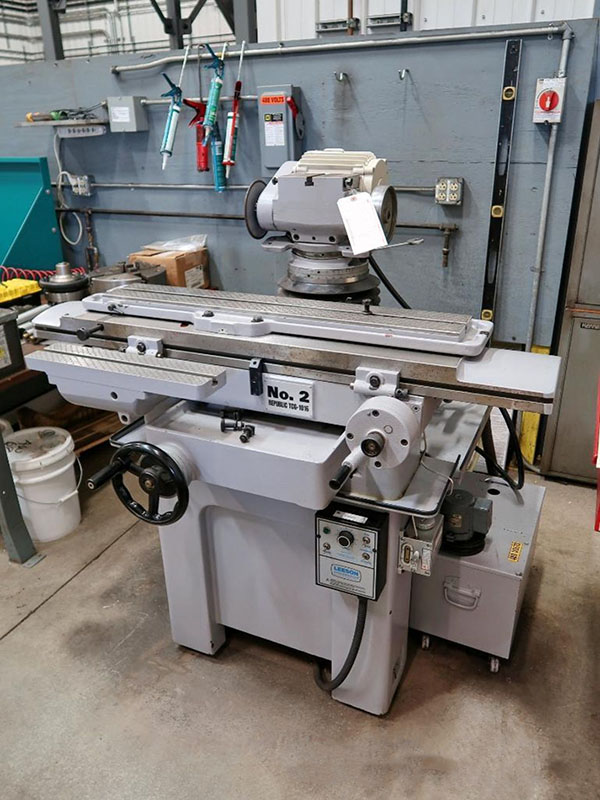

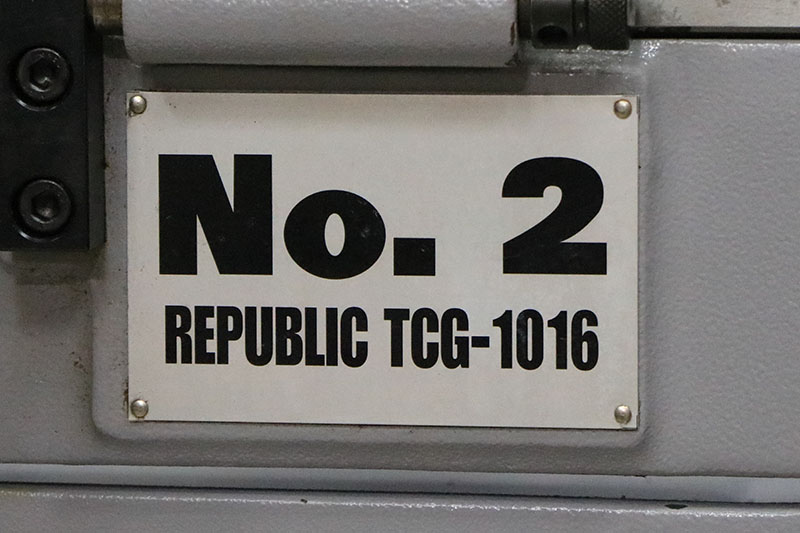

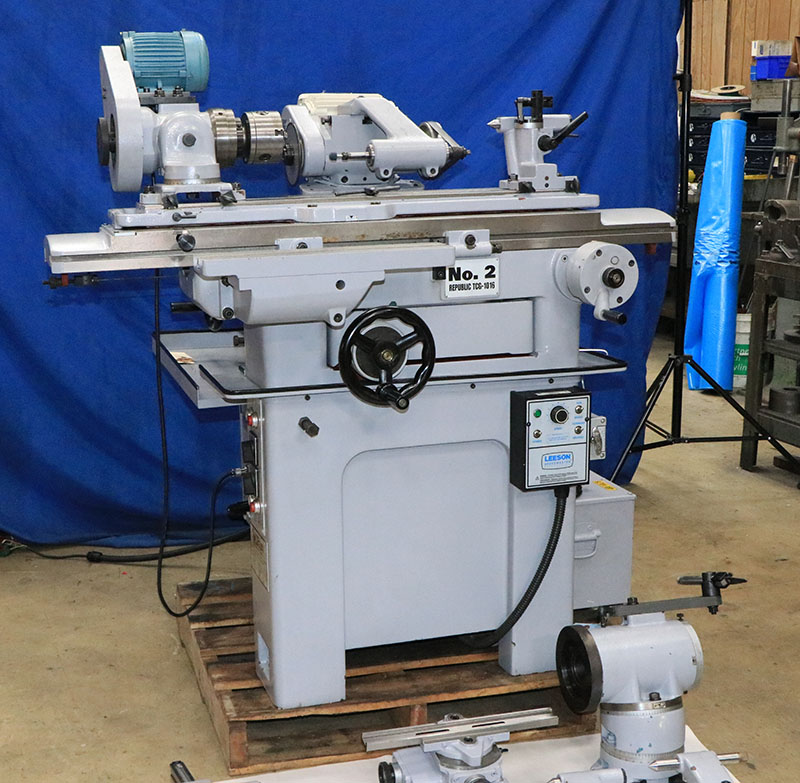

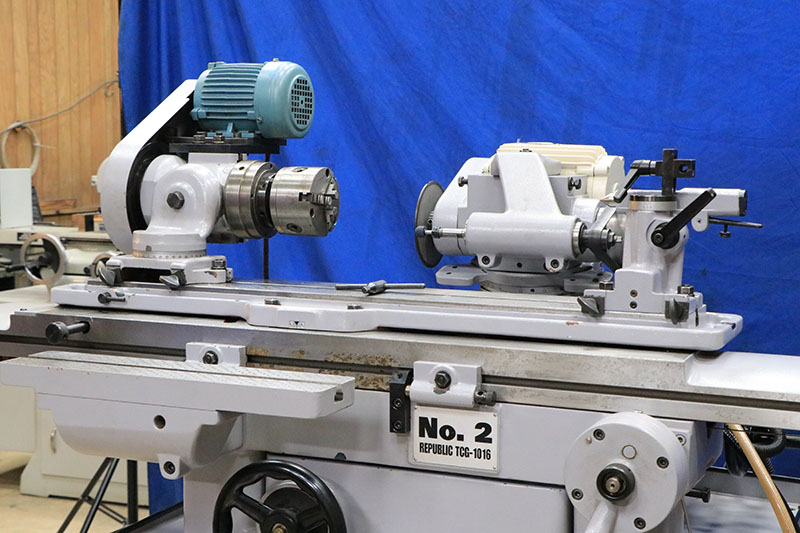

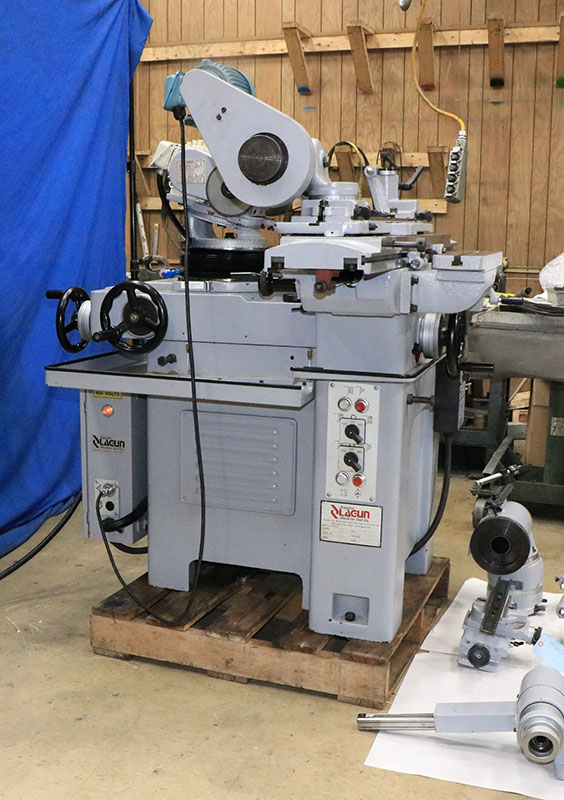

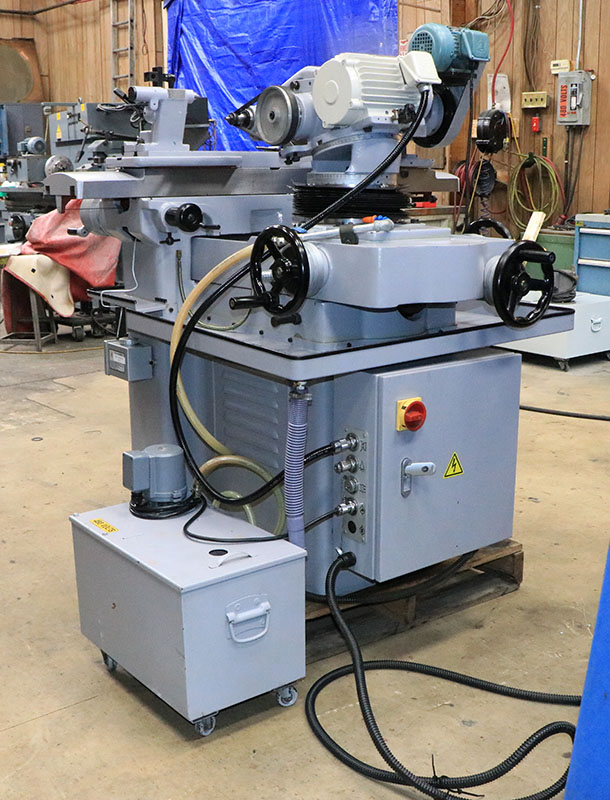

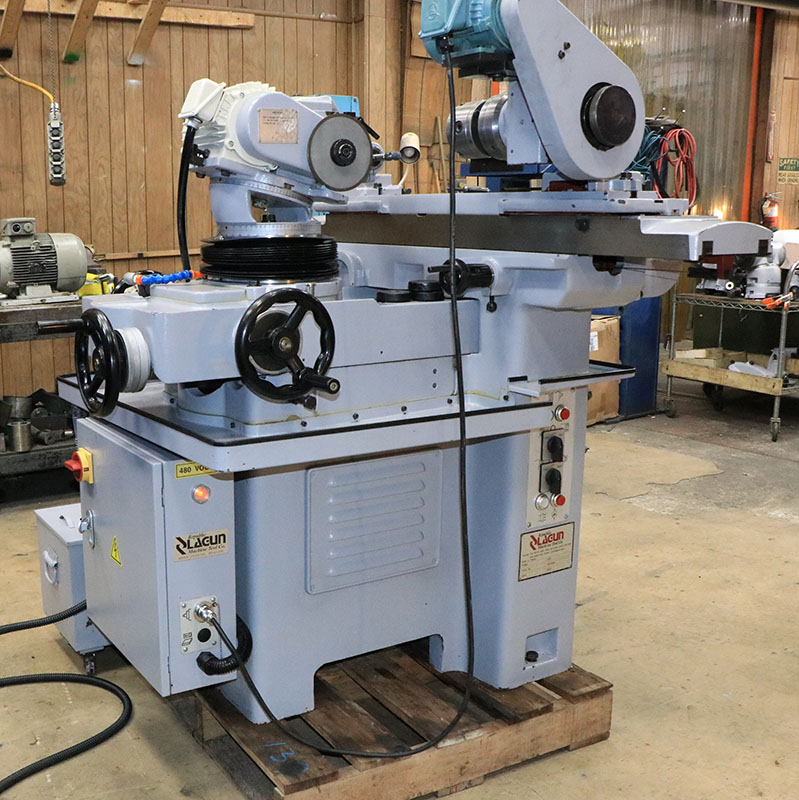

  No. 2 Republic-Lagun Model: TCG-1016
  Universal Tool and Cutter Grinder
  ** Loaded with Many Accessories **

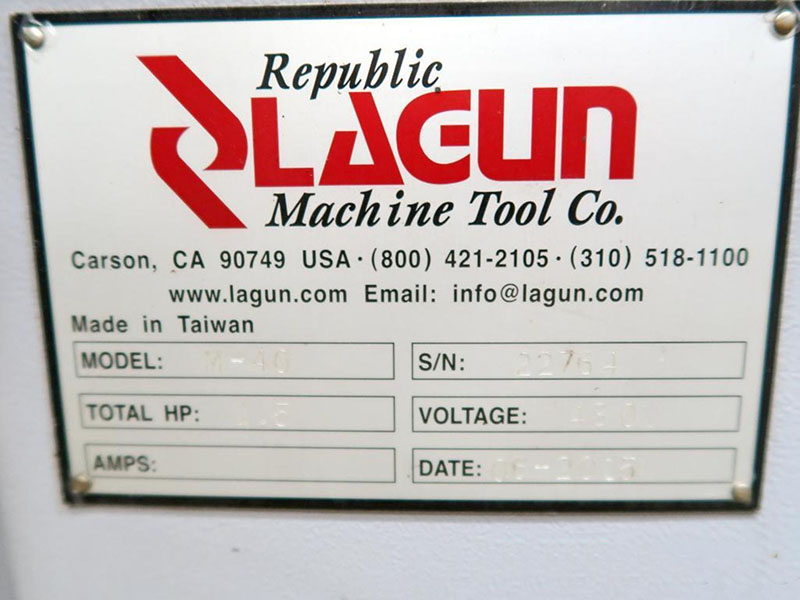

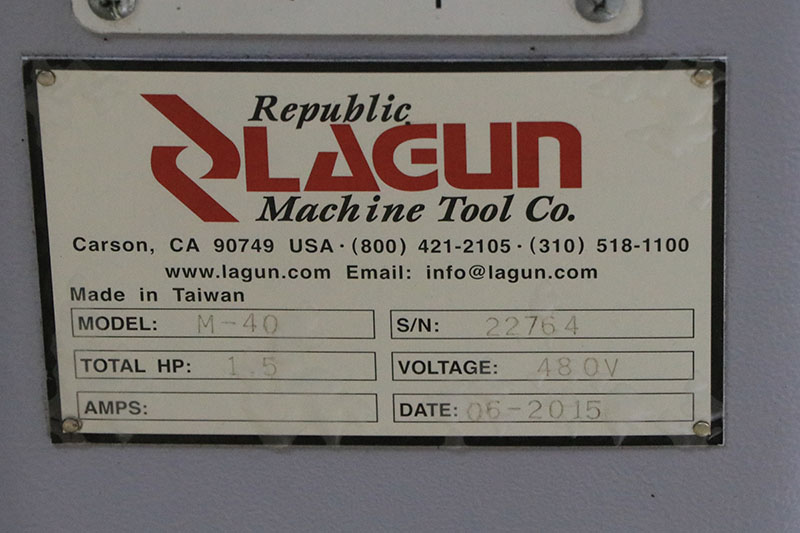

 S/N: 22764    New: 2016

*** Like New Condition ***


Specifications:
Swing Over Table: 10″
Distance Between Centers: 27 1/2″
Distance Between Tailstock and Workhead: 22 3/4″
Workhead Hold Tapers:
  ASA # 50 One End; # 5 M.T. or # 12 B & S Other End

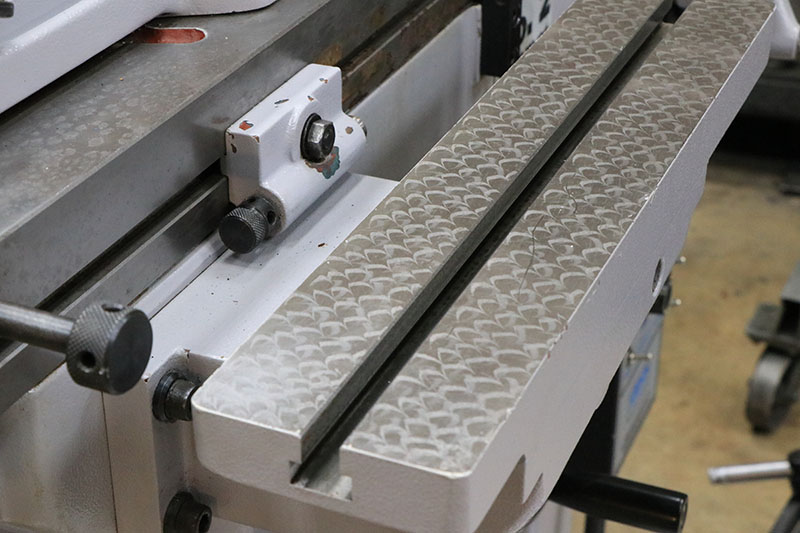

Table Work Surface: 5.315″ x 37″
Table T-Slot: 0.565″
Longitudinal Table Travel: 15 3/4″
Cross Travel of Saddle: 10″

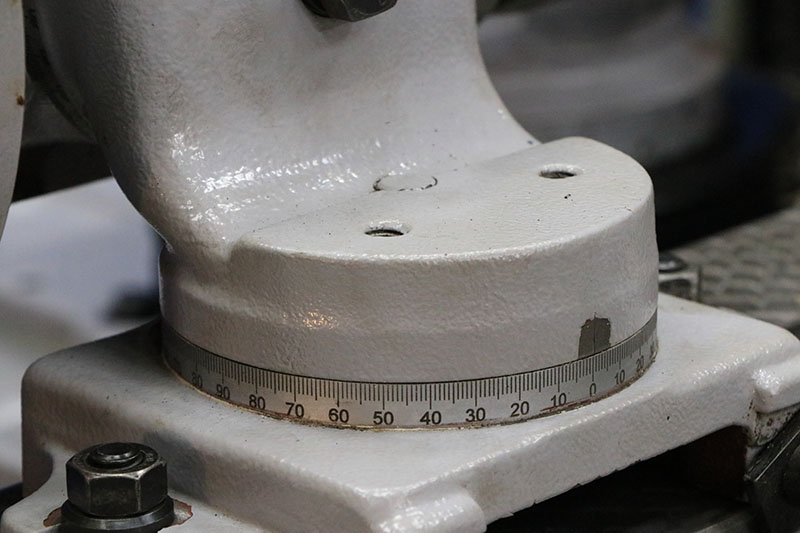

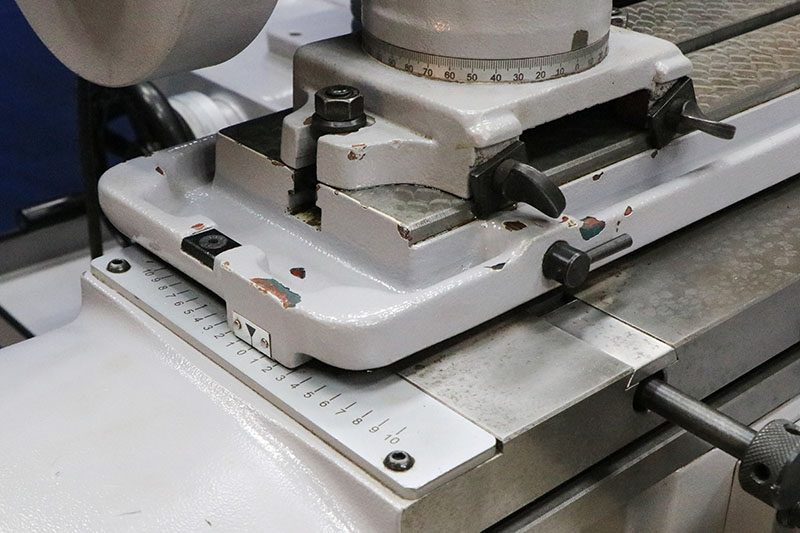

Table Swivel Graduations: +/- 60°
Table Graduation on End: +/- 10°
Vertical Movement of Wheel Head: 10″
Wheel Head Tilt: +/- 15°
Wheel Head Swivel: 360°
Wheel Spindle Centerline to Table Top: 2″ – 12″
Wheel Spindle Centerline to T-Slot Center: 6 1/2″ – 16 1/2″
Grinding Wheel Spindle Speed: 2,600, 3,700, 6,200 RPM

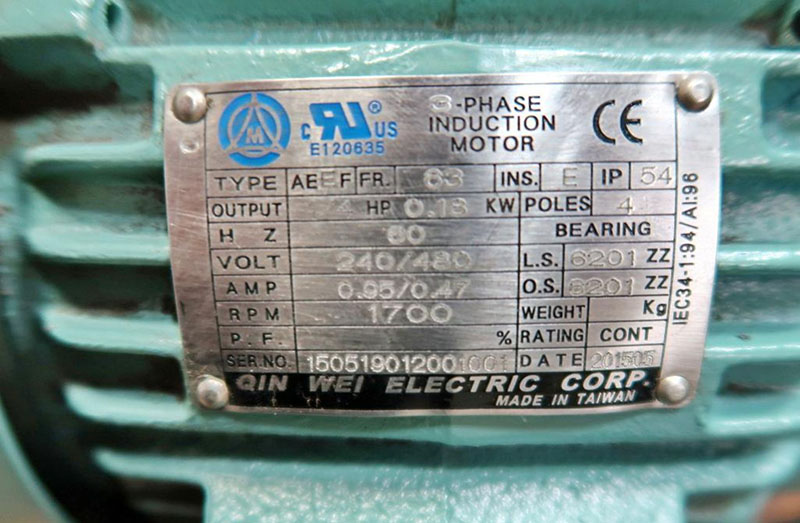

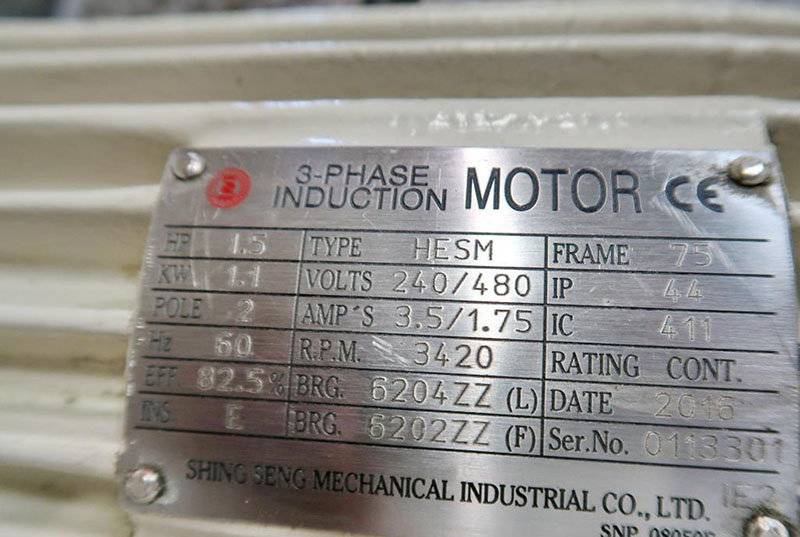

Grinding Wheel Spindle Drive: 2 HP / 240 V, 480 V / 3 PH

Compact footprint, Floor Space: 61″ x 68 1/2″
Dimensions: 57 1/2″ x 57 1/2″ x 59 1/2″ H
Weight: approx. 2,560 lbs.

Standard Features:
Highest quality meehanite casting with outstanding
 rigidity and vibration dampening

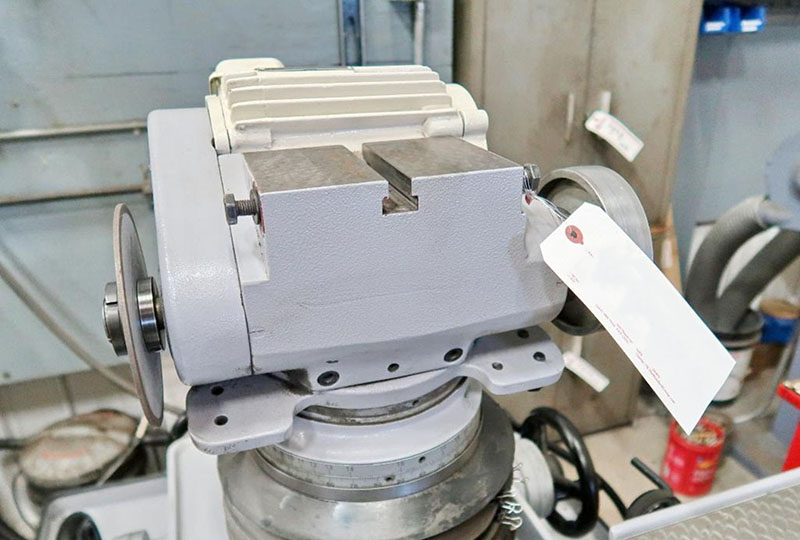

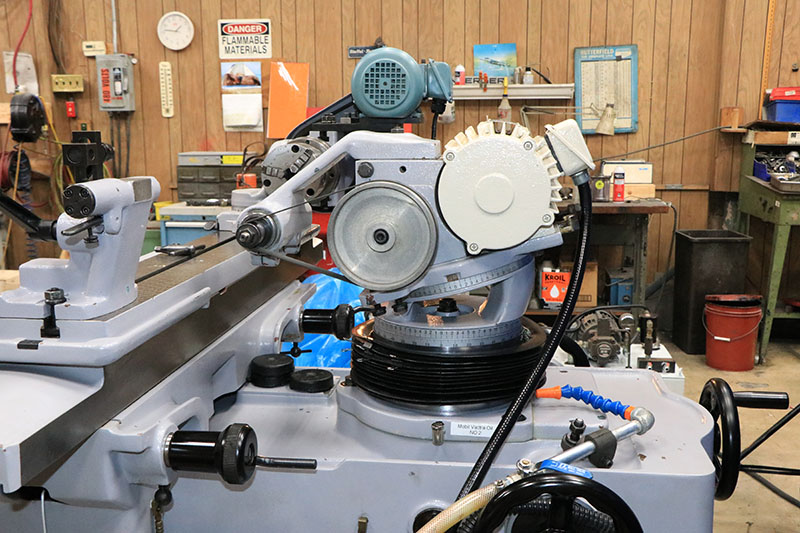

Tilt wheelhead for easy clearance setting.
Wheelhead is designed to tilt +/- 15°. It can also
 be swiveled 360° on the horizontal plane.
 These features make it very easy to set rake and
 relief angles and provide a wide angle of grinding.
 Grinding wheels can be mounted on both ends

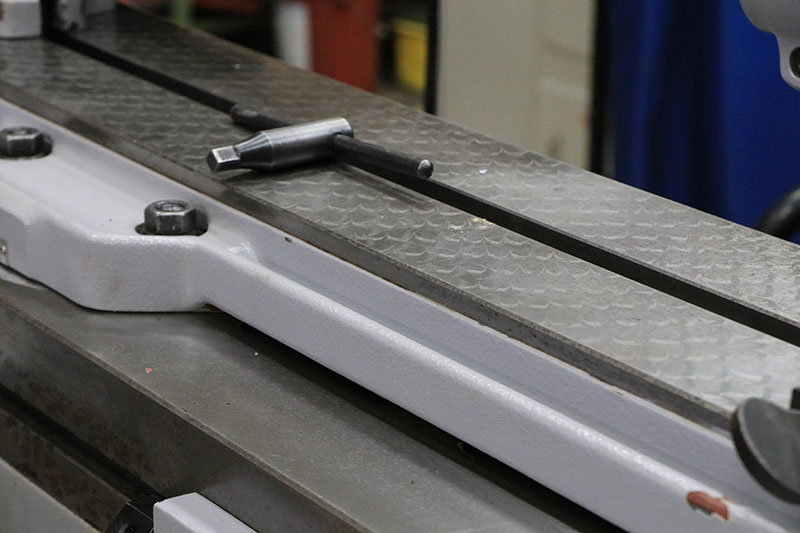

Table slideways are hardened and precision ground.
Table is mounted on anti-friction slideway ball bearings,
 controlled by table cable on take-up reels for
 backlash-free operation. Fingertip control of table
 movement is by coarse and fine feed table feeds
 knobs on right and left side and rear
Universal workhead can be swiveled at any angle
 horizontally and vertically. Both ends have a taper hole

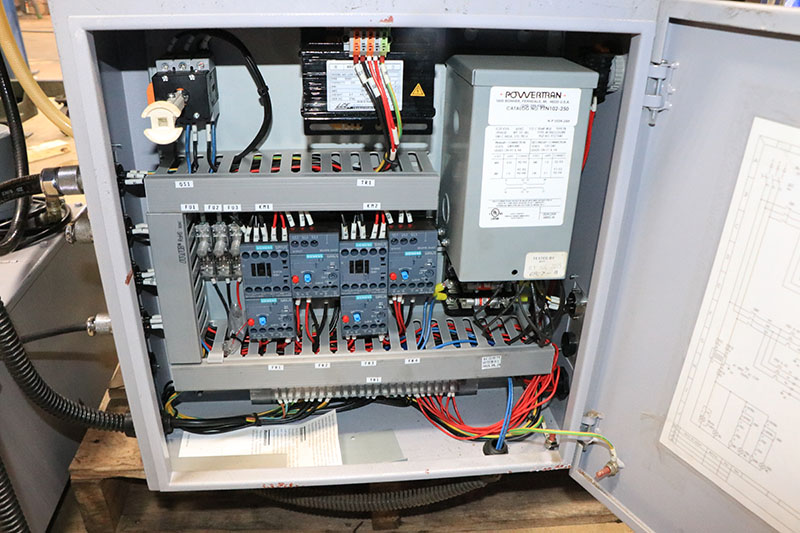

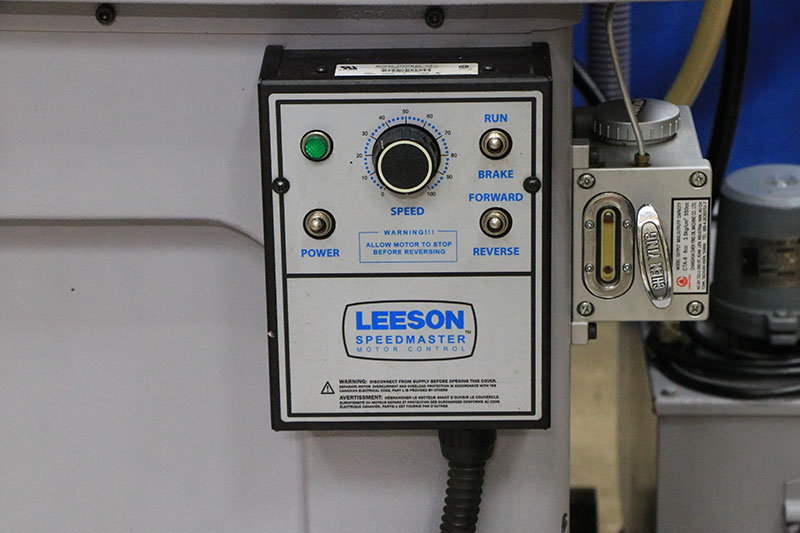

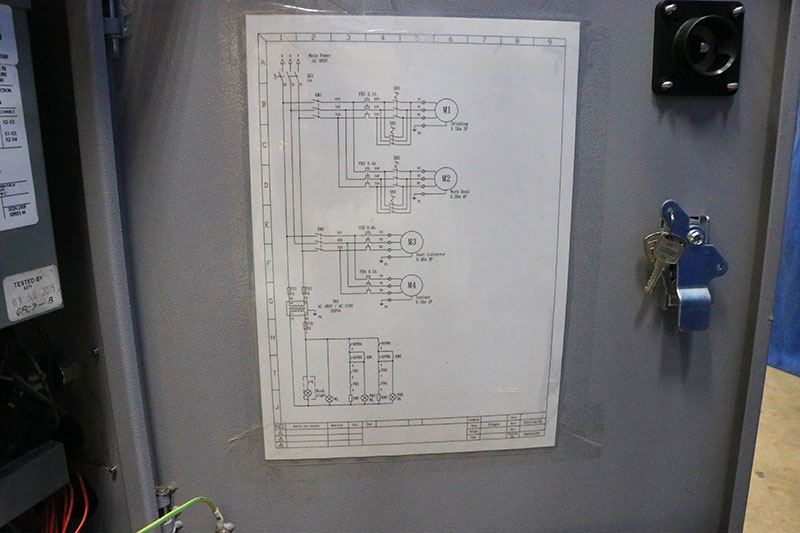

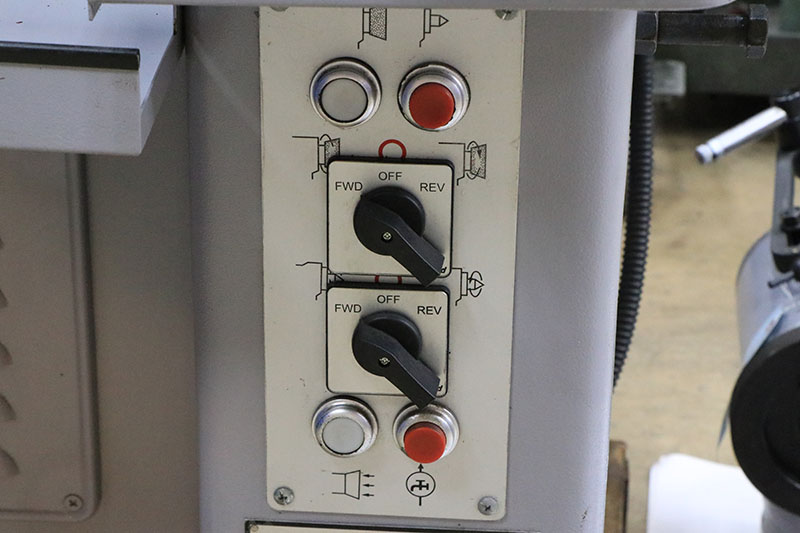

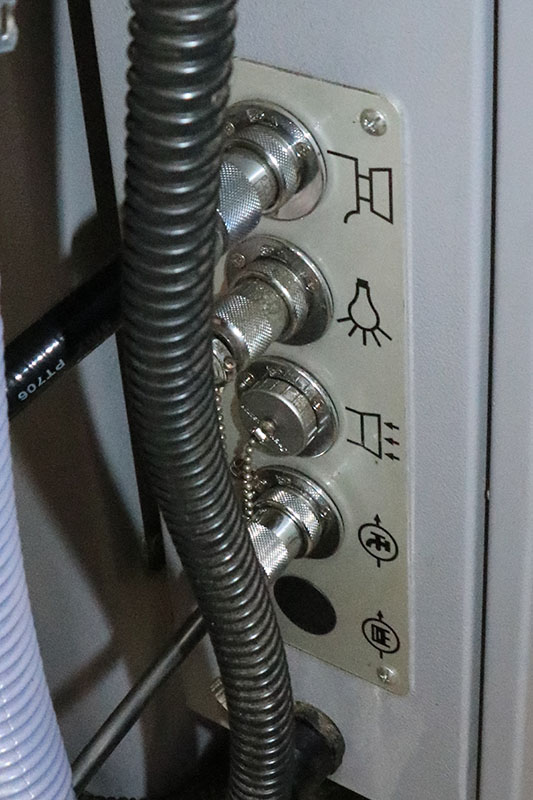

Complete 3/60/220/440 volt electrics in nema-type
 enclosure and operating controls convenient to operator

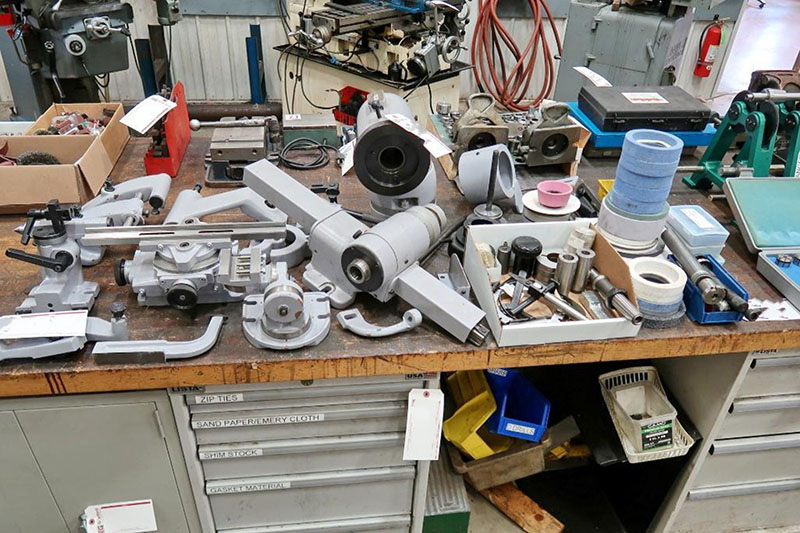

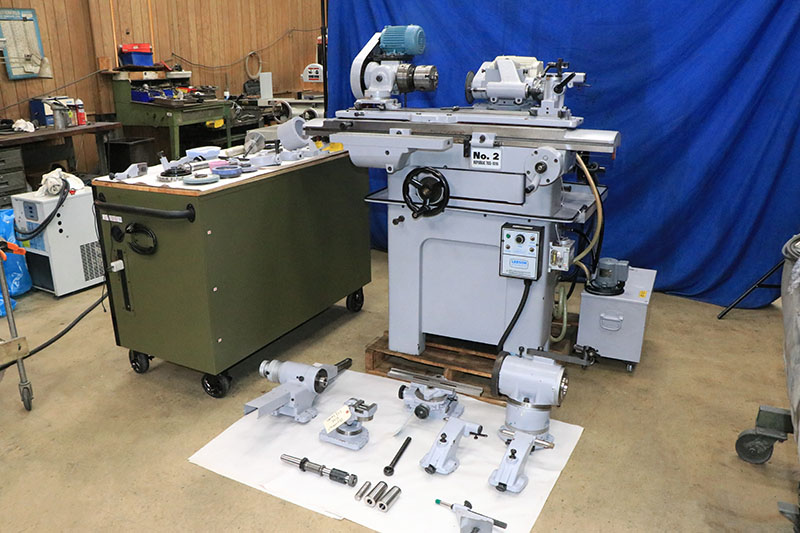

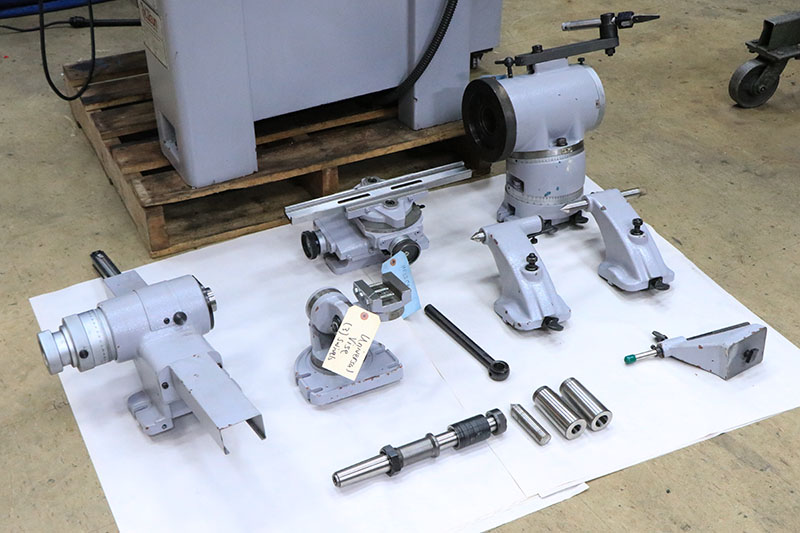

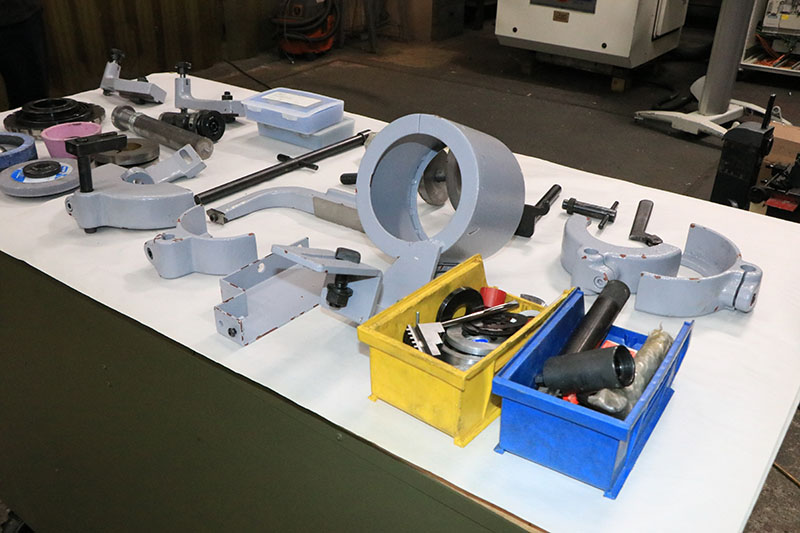

Equipment:

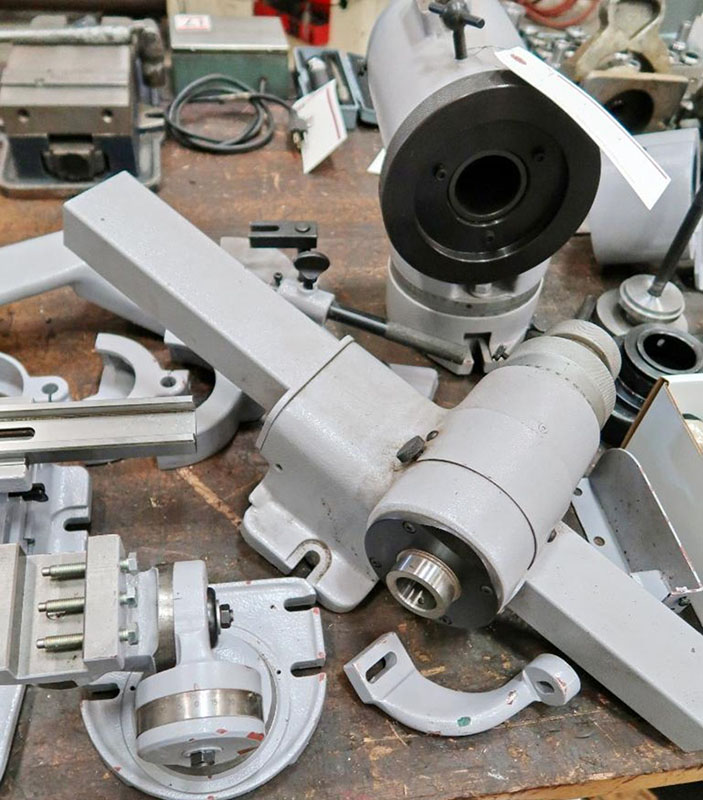

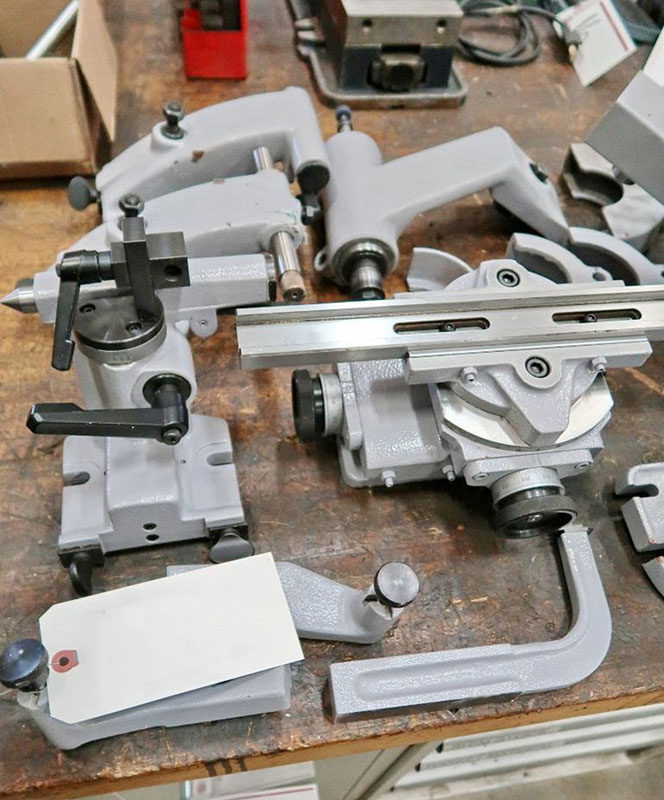

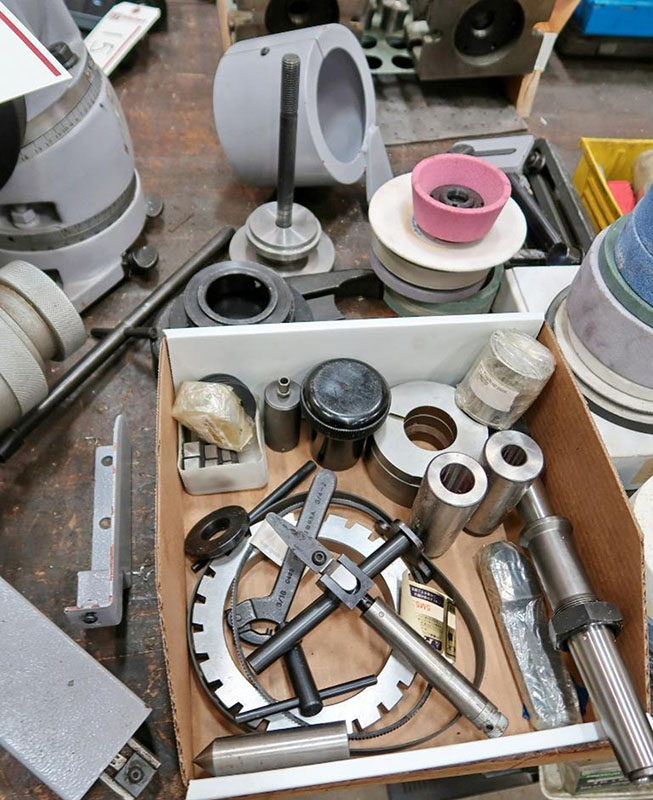

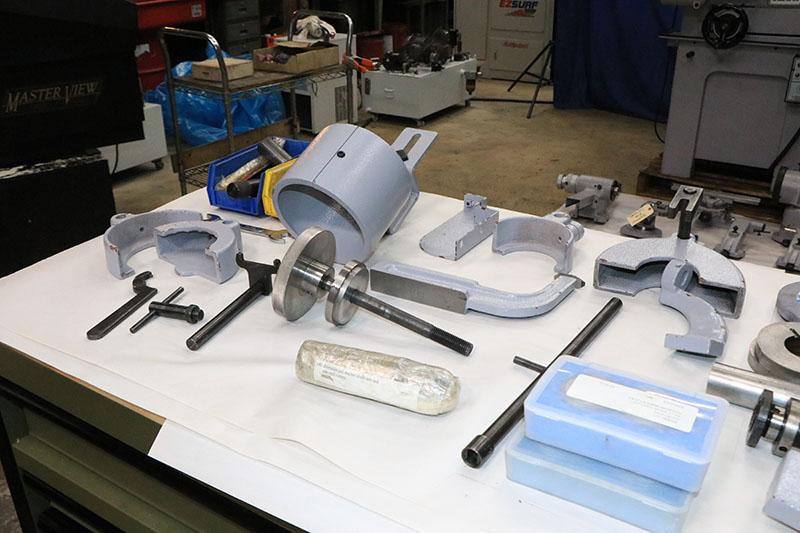

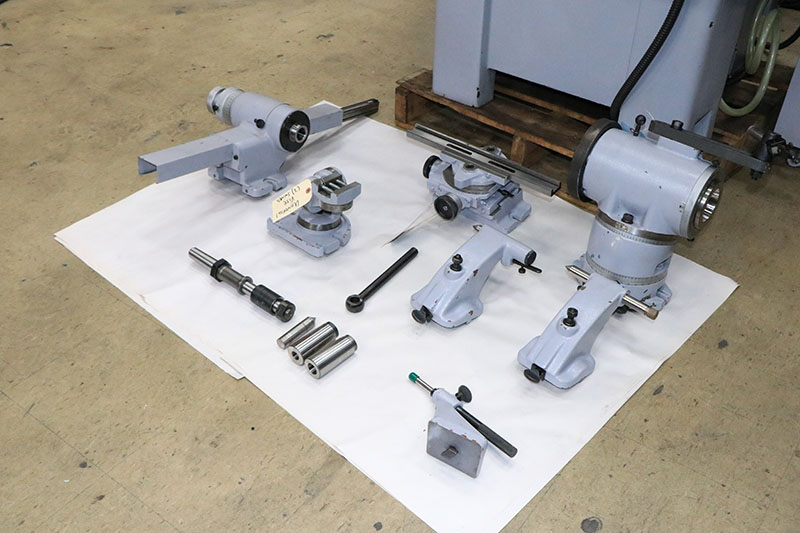

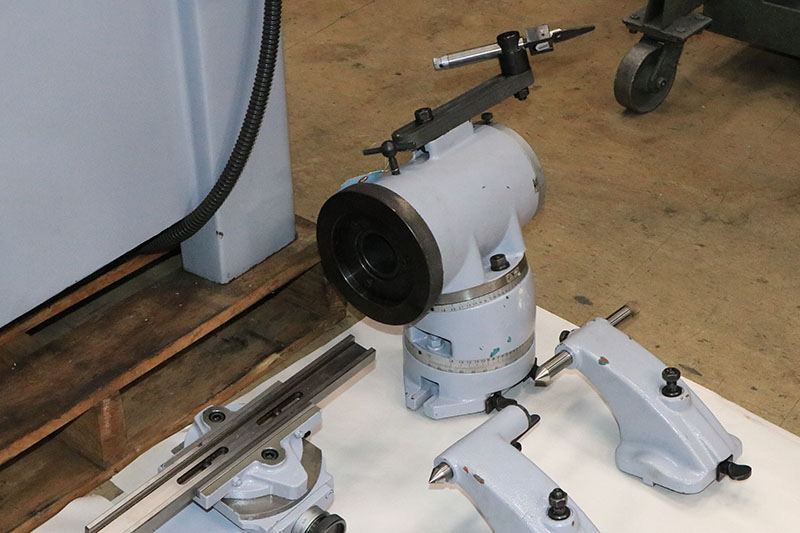

Two tailstocks, with centers
 (left hand and right hand tailstocks with centers)

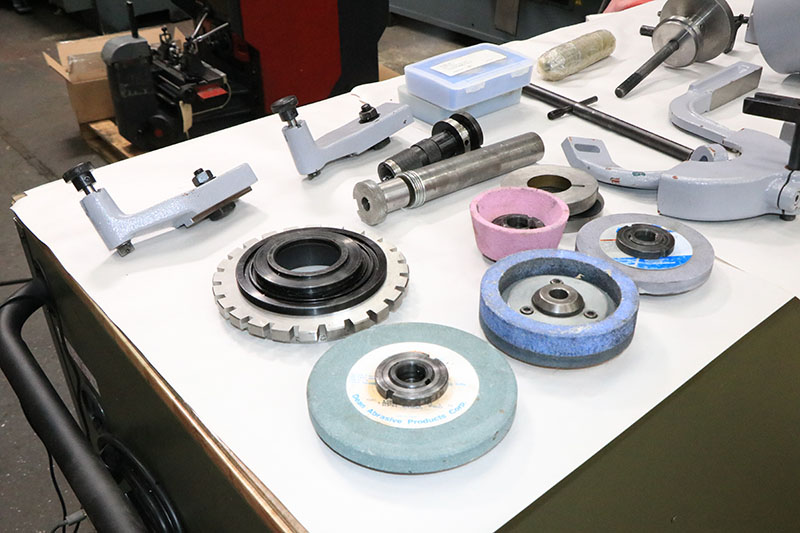

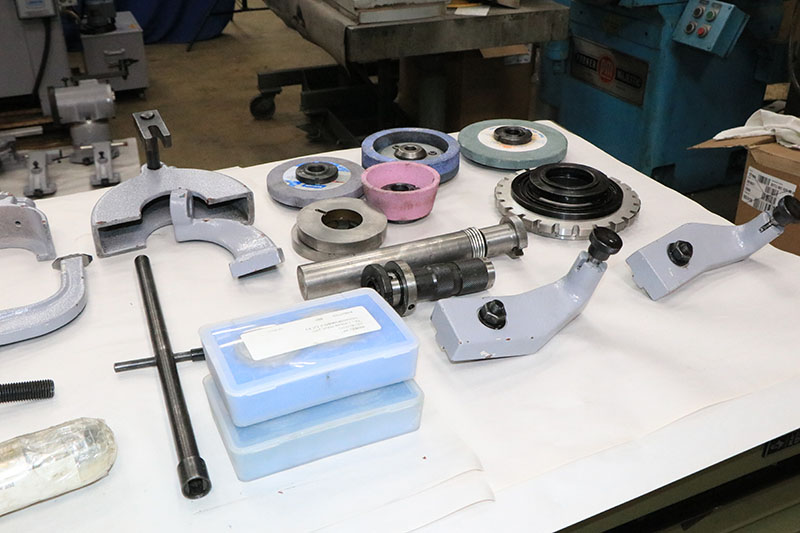

Grinding wheel mounts and flanges

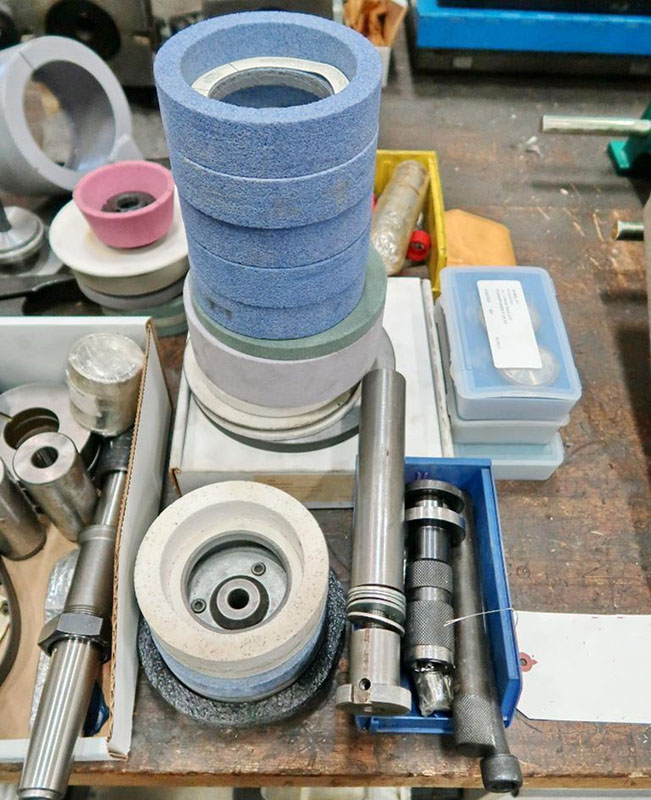

Assortment of grinding wheels
Table mounted wheel dresser

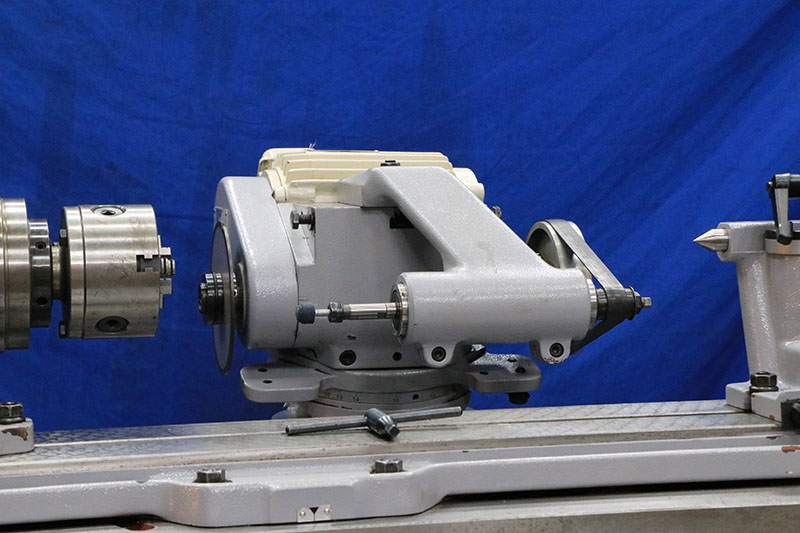

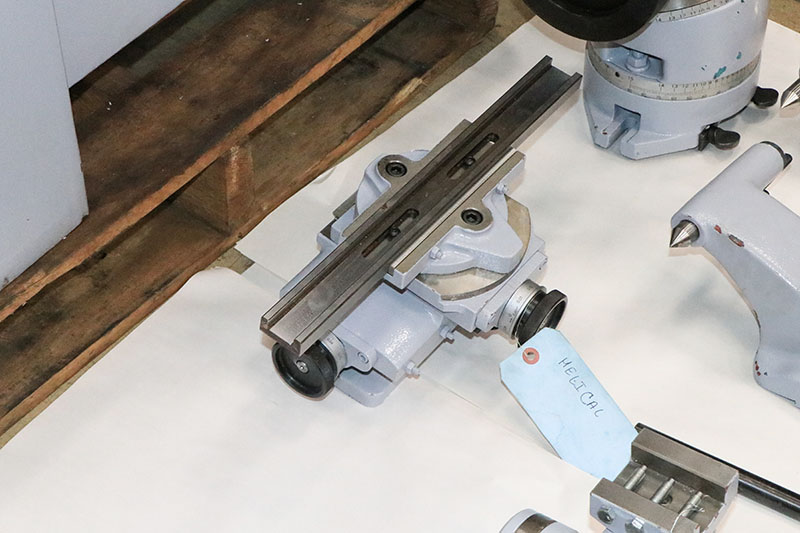

"Helical Grinding Attachment"

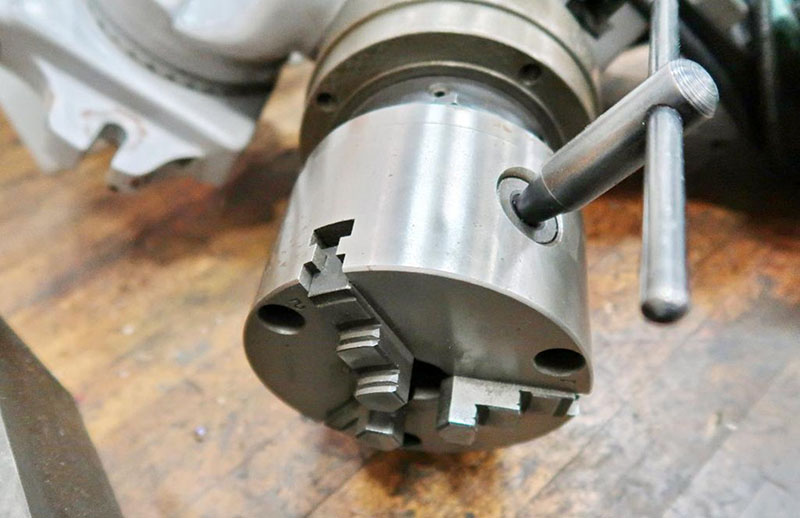

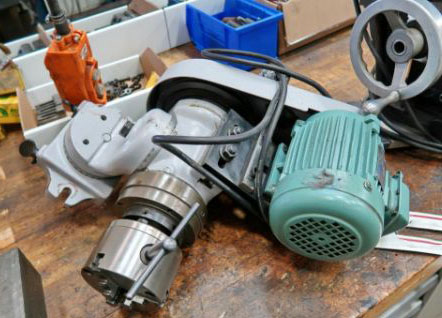

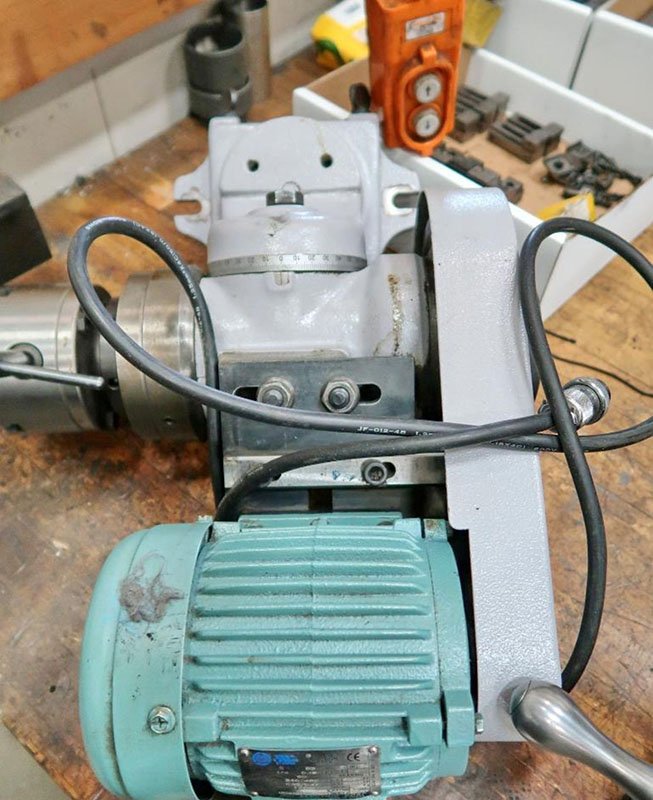

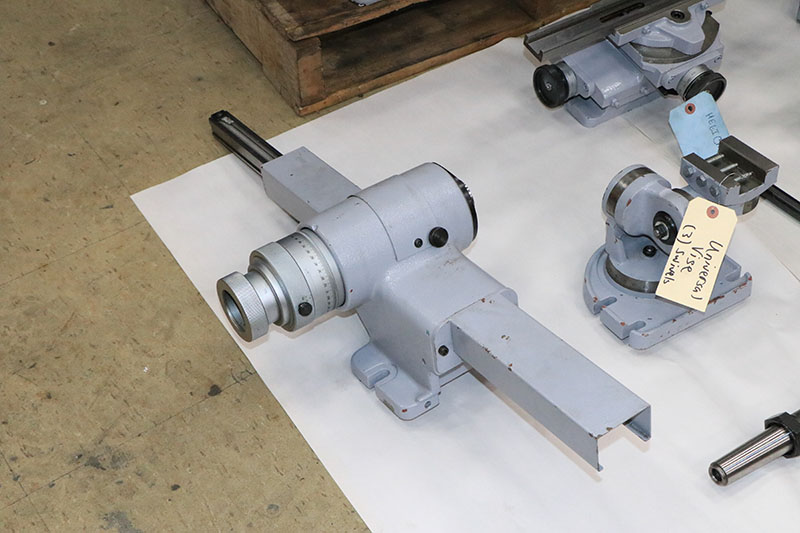

Motorized Workhead
Large Taper Non-Motorized Workhead
Index Plate
Wheel Extension
Universal Vise, Double Swivel, and Tilting

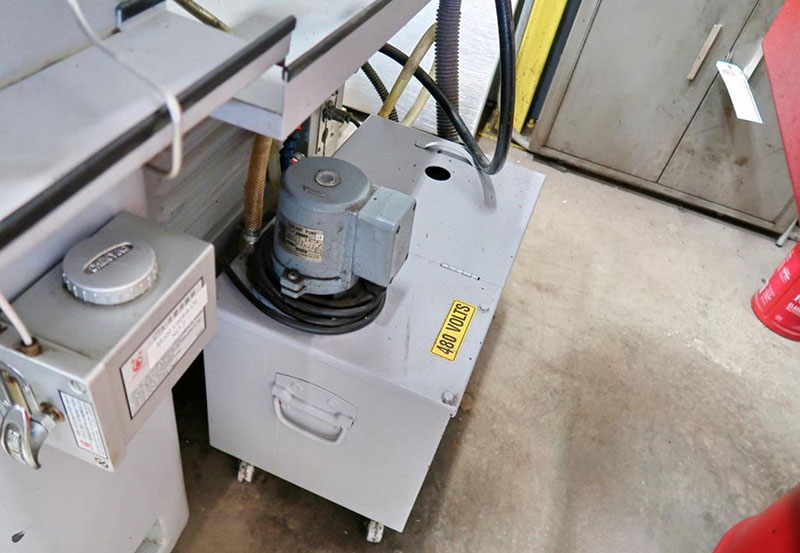

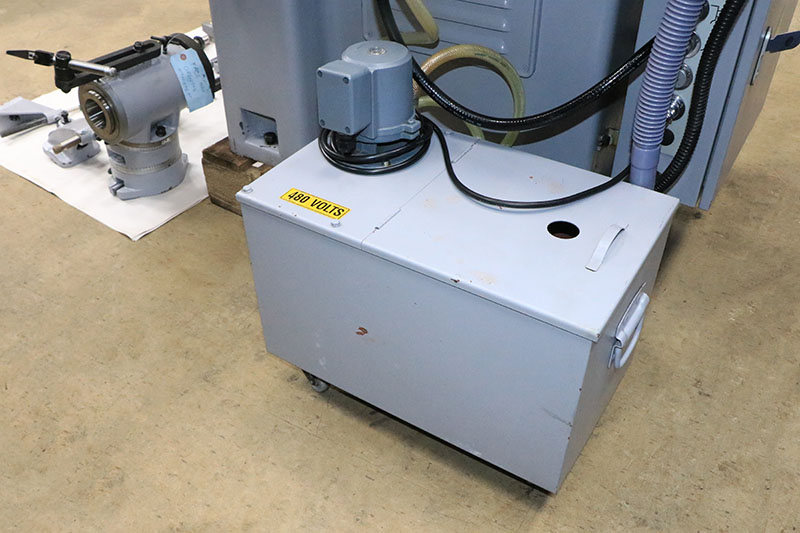

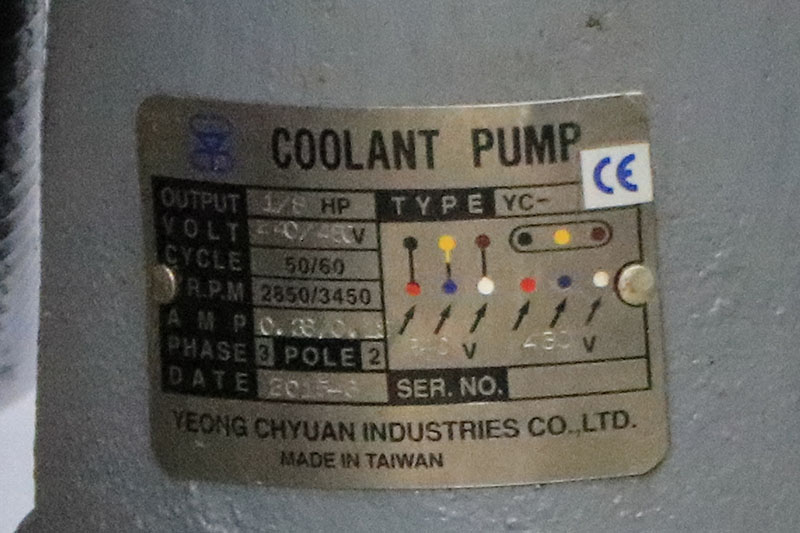

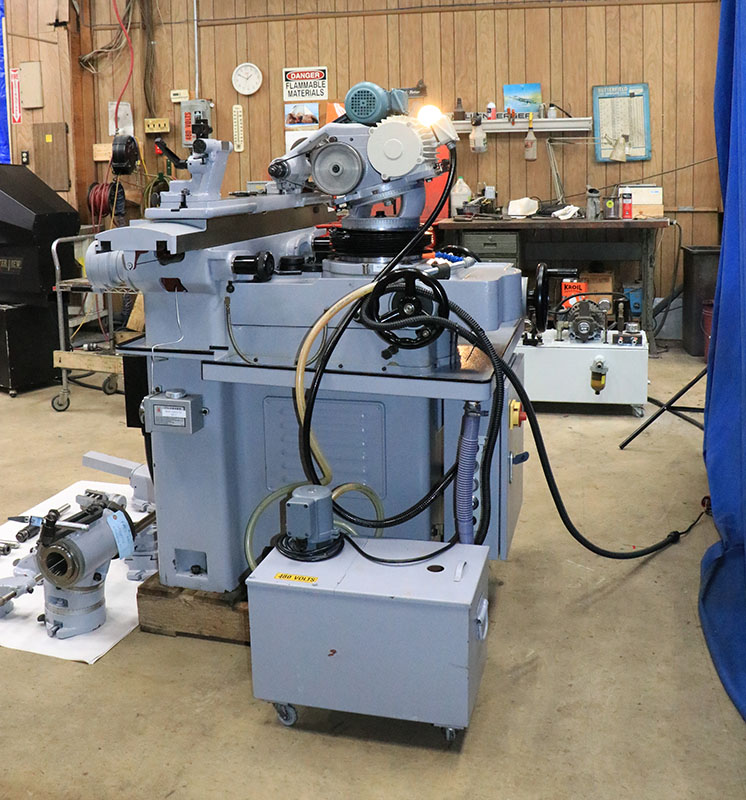

Coolant Tank with Pump
Machine is Presently Wired for 3/60/480 Volts

*** Like New Condition & Appearance ***
** Inspect under Power in our Harrison, NJ Warehouse **
