Citizen M-20V 10-AXIS CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Citizen

Model:: M-20V 10-AXIS

Year:: 2005

Ref #:: 178195

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

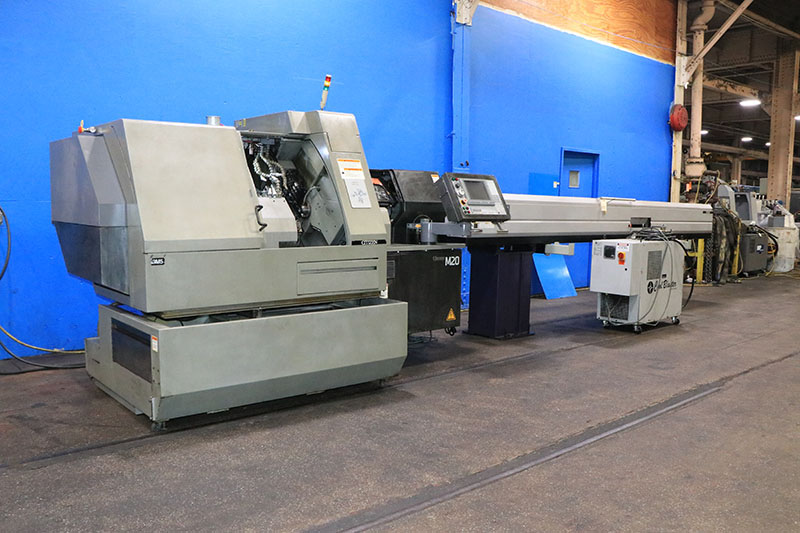

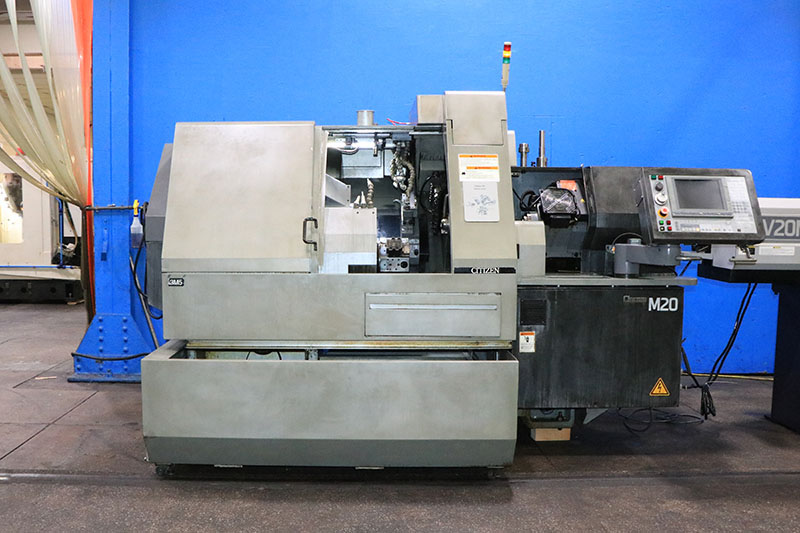

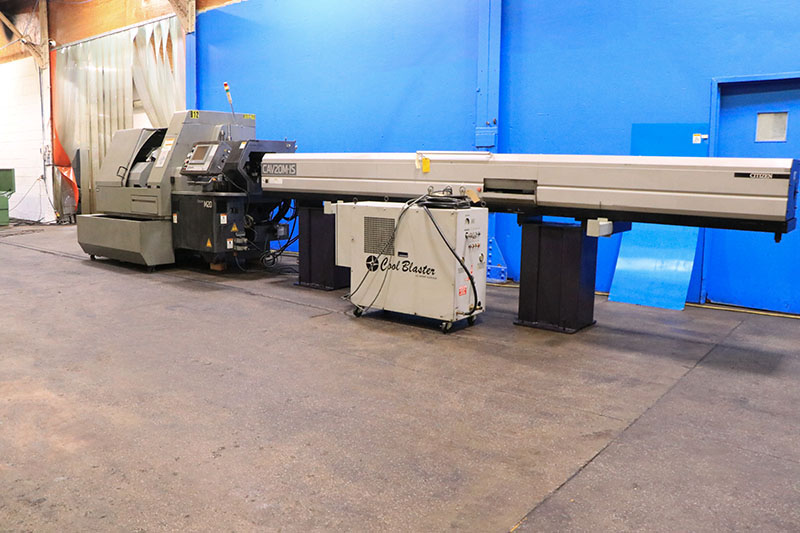

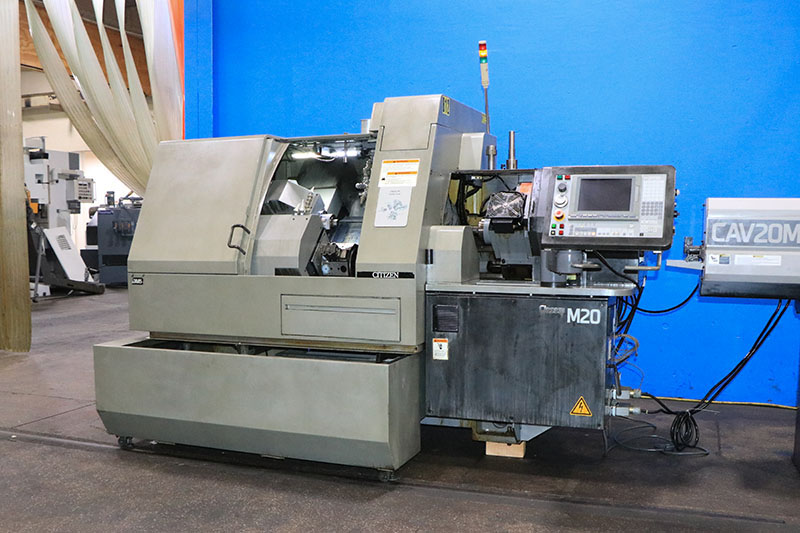

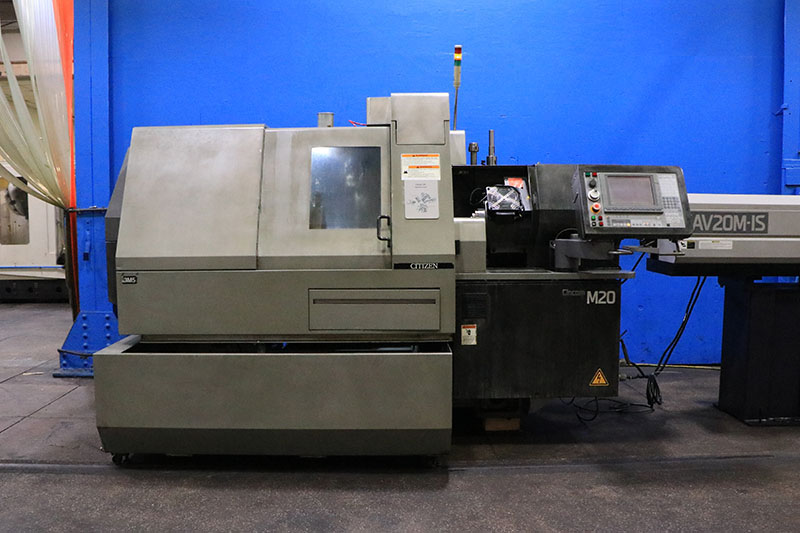

CITIZEN M-20V (3M5) SWISS TYPE CNC LATHE
NEW: 2005

VIDEO LINK: https://youtu.be/d6FpU03S1Ro?si=yLFJMYz78lo6PIFy

SPECIFICATIONS:

CAPACITY 0.75"
POWER 7.5 hp
RPM 10,000 RPM
# AXIS 10
SWISS, CHUCKER OR CONVERTIBLE? Swiss
MAIN SPINDLE INDEXING Full C
SUB SPINDLE INDEXING Full C
LIVE BACK WORKING TOOLS? Yes

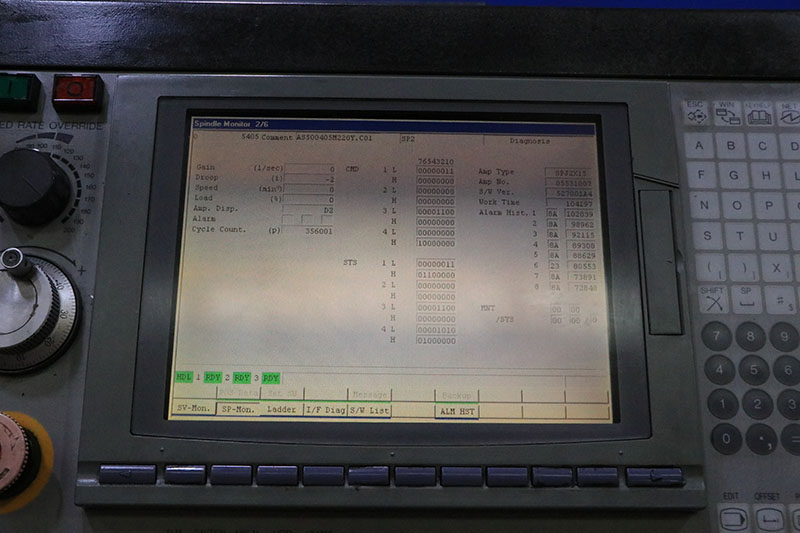

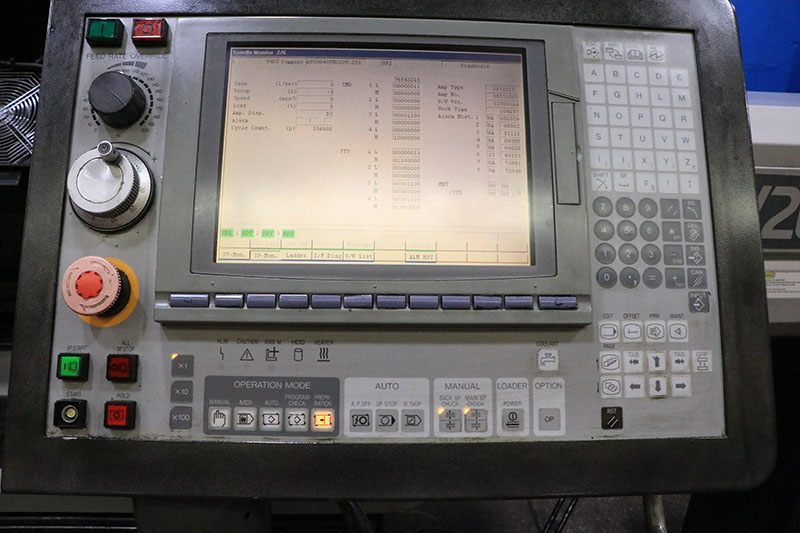

CONTROL CNC (Mitsubishi Meldas)
DIMENSIONS 110" x 50" x 72"
WEIGHT 6,100 lbs
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

Specifications:
Axes:                                      X1,Y1,Y2,Z1,C1,X2,Z2,C2,X3,Z3 (misc Axes: TI, A1,A2,A3)
Machining Diameter:                        3/4" (20mm)
Machining length per chucking:             12.59" (320mm)
Main spindle speeds:                       200 - 10,000 rpm

Rotary tool speeds: (turret & gang plate): 200 - 5000 RPM
Backworking: Chucking Diameter:            3/4" (20mm)
             Backwork Length:              5.70" (145mm)
             Drilling/Tapping:             M8
             Back Spindle Speeds:          200 - 8000 RPM

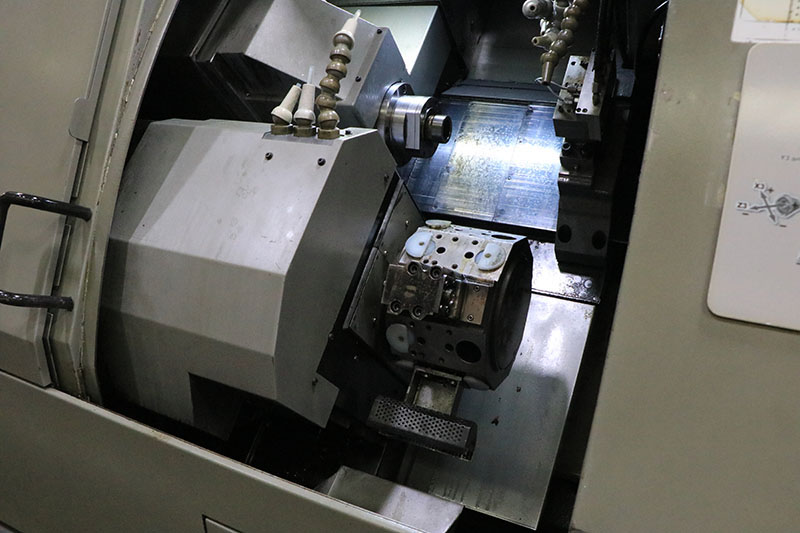

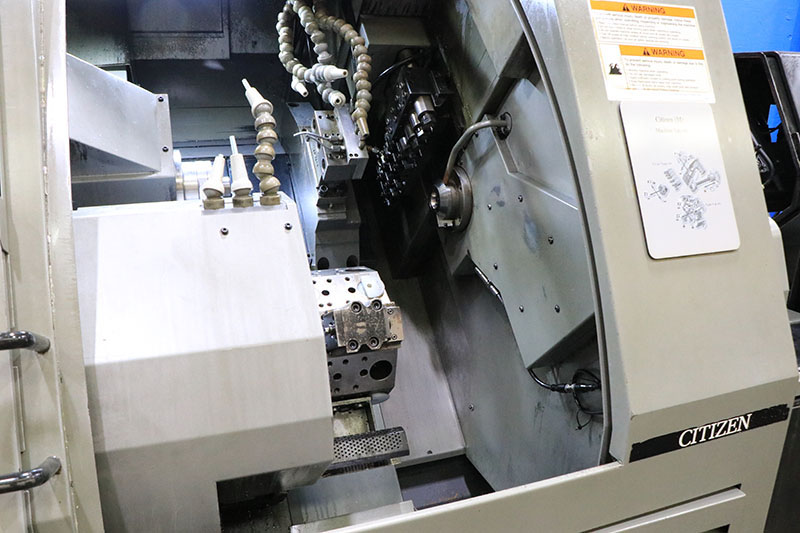

Tooling Set-up: Turret tooling:            12 (24 in half index mode)
                                           Turret Y-Axis
                Gang-Tool Tooling:         5 turning + 4 rotary
                Back Working Tool Post:    3 (+ rear facing tools on turret)

Tool Sizes: Gang Tooling / Turret:         16 x 16 x 130mm / 16 x 16 x 90mm

Motors: Main Spindle Drive:                5 / 7.5 hp
        Rotary Tool / Back Spindle Motors: 2 hp  / 3HP

Machine Dimensions: 110" x 50" x 72"
Machine Weight: 6,100 lbs


To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
