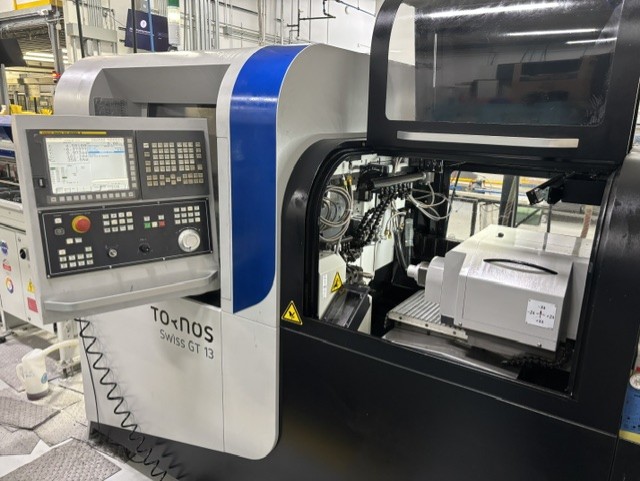

Tornos GT-13 CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Tornos

Model:: GT-13

Year:: 2019

Ref #:: 179378

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

TORNOS GT-13 SWISS TYPE CNC LATHE
NEW: 2019

Specifications and Options: (to be confirmed by buyer)

Machine Base Configuration

 Tornos Swiss GT13/6 Sliding Headstock Lathe

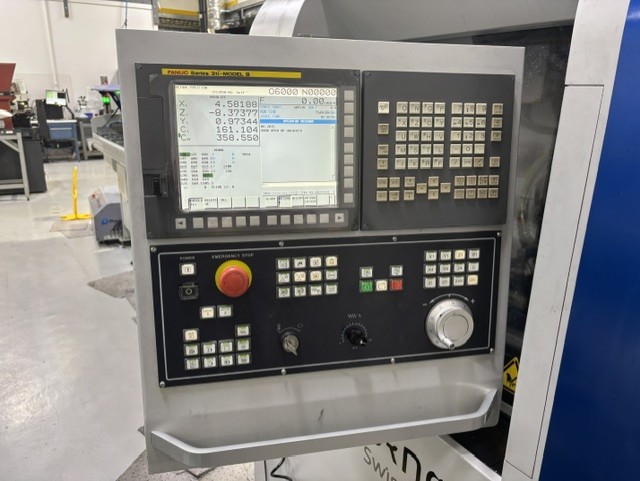

Fanuc 31i-B CNC Control
6 CNC axes
13 mm bar capacity
Independent main and counter spindles
Synchronous rotating guide bushing
Guide bushingless machining kit
C-axis on both main and counter spindle
Adjustable pneumatic part ejector
Counter spindle collet cleaning with coolant
Three-color stack light (Yellow / Red / Green + White ON)
Central lubrication system

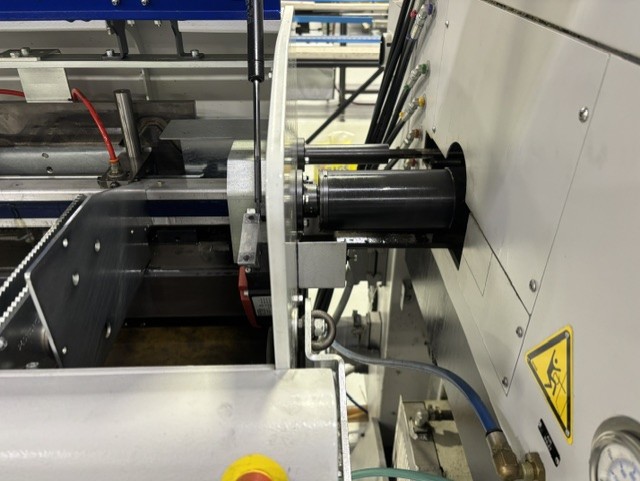

Electrical interface for Tornos bar loader
Oil mist collector interface
Fire suppression interface
Customer M-function interface (6 inputs / 6 outputs)
CE/CEM compliant machine

Main Spindle

 15,000 RPM maximum
F16 collet adaptation
13 mm maximum capacity
C1 axis functionality

Guide Bushing

 15,000 RPM
Synchronous motorized guide bushing
Type B guide bush
180 mm maximum part length with guide bushing
30 mm maximum part length without guide bushing

Main Tool System
Front Tool Plate

 5 turning tool stations (12 × 12 mm)

Rear Tool Plate

 3 turning tool stations (12 × 12 mm)

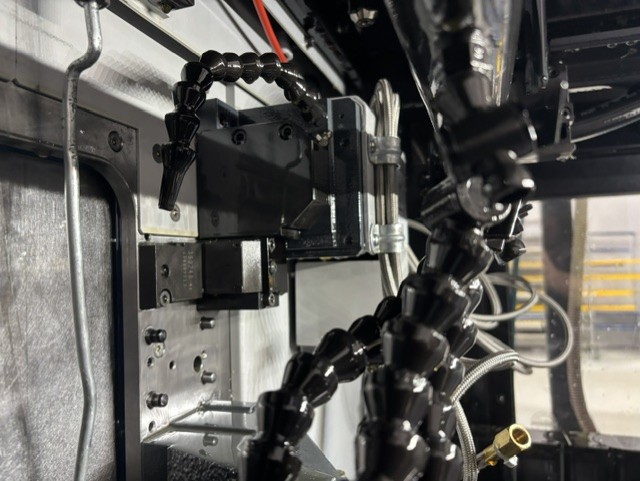

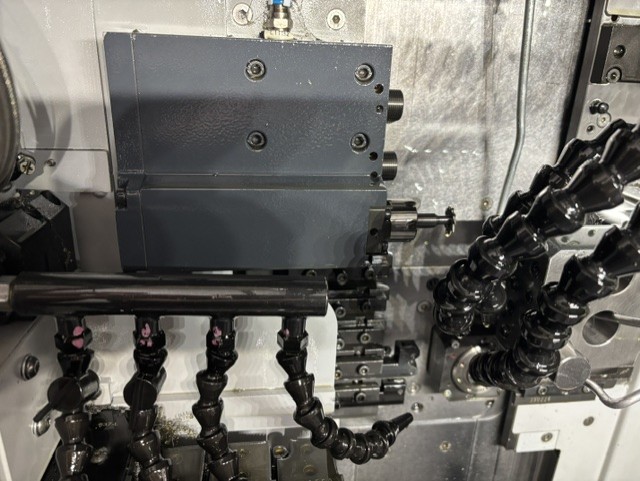

Live Tooling

 S11 live spindle (10,000 RPM)
Cross drilling/milling module
3 ESX16 live spindles
Two 10,000 RPM spindles
One 6,250 RPM spindle
S21 live tooling motor (6,000 RPM)
Tool block with four Ø22 mm bores for stationary tooling

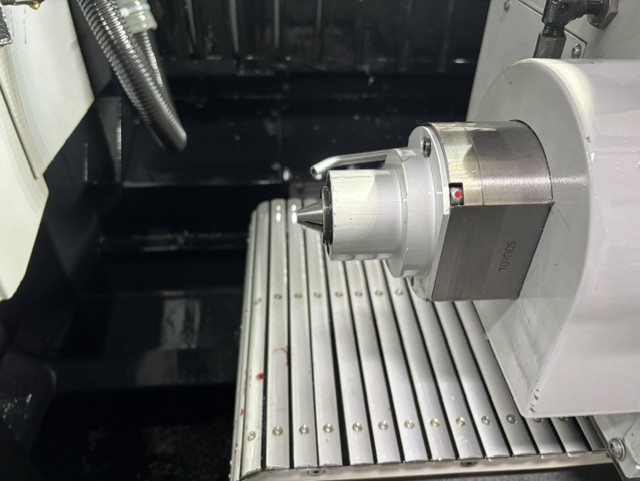

Counter Spindle

 15,000 RPM
F16 collet adaptation
13 mm capacity
C4 axis functionality

Counter Operations Tooling

 Support for 8 back-working tools
Four upper positions for live or stationary tooling
Four lower stationary holders (20 mm shank)
Two upper Ø22 mm holders
S51 live tooling motor (6,000 RPM)
Supports up to four live tools

Standard Machine Equipment

 Pneumatic part ejector
Coolant-assisted collet cleaning
Part chute
Part conveyor
Central lubrication
20 bar / 20 LPM high-pressure coolant system
Two cartridge filters
Five independently controlled coolant outlets
200 L coolant tank
40 L chip tank
440 W coolant pump
Coolant flow detector
LED work lights
Service tool kit

Standard CNC Functions

 Multiple threading cycles
Manual pulse generator
Background editing
Runtime and parts counter
Custom Macro B
Constant surface speed (G96)
Spindle synchronization
Tool geometry and wear compensation
Corner radius/chamfer programming
Simplified programming from part drawing
Tool nose radius compensation
Repetitive cycles
Peck drilling
Rigid tapping
Cutoff monitoring
Memory card interface
Ethernet connection

Machine Configuration

 English operating manual
English CNC language
440–480V / 60Hz transformer
Standard Tornos black/white paint scheme

Factory Options
Loader Interface

 Mechanical interface for third-party bar loaders

Live Tool Attachments

 ESX20 live drilling/milling attachment
Right-angle live drilling/milling attachment (0–90° adjustable)

Long Parts Package

 Long parts extractor through counter spindle
Outside collection basket
600 mm maximum part length
Reduction tube kit (4–8 mm diameters)

Auxiliary Equipment
Mist Collection

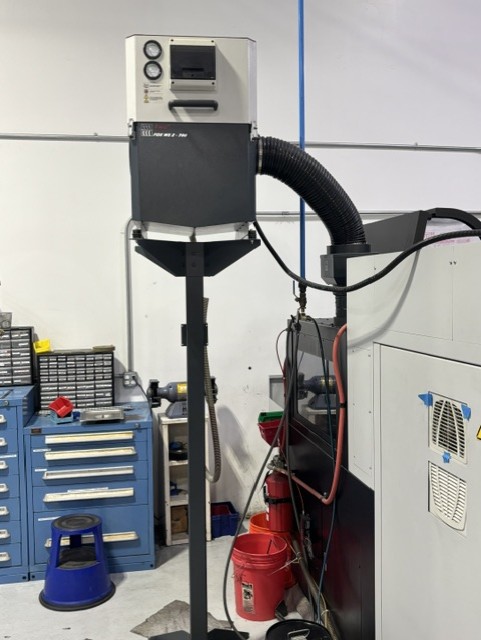

 LNS AFS Fox Mist Collector WS700

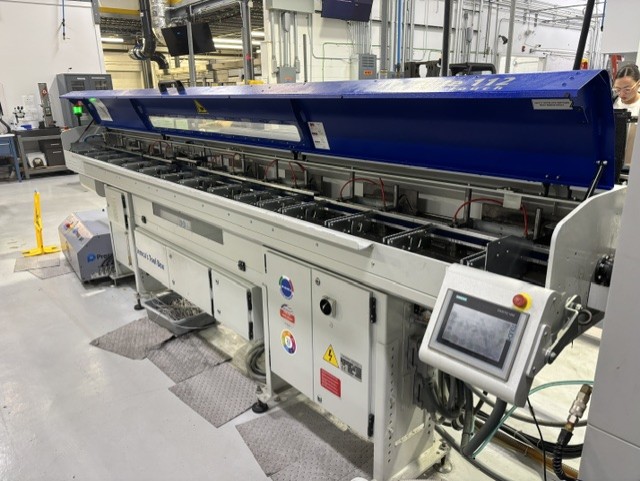

Bar Feeder

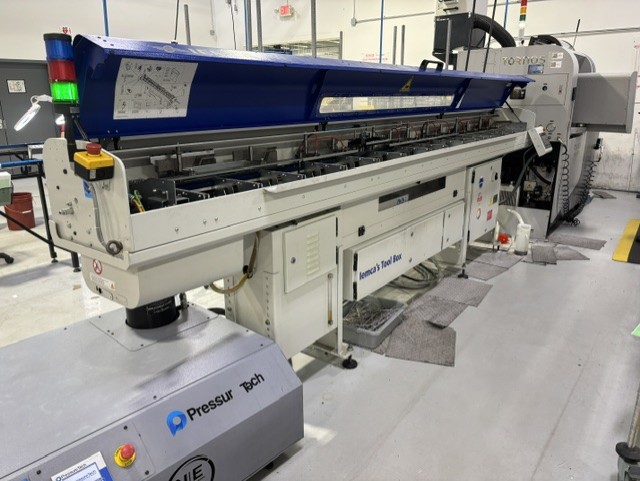

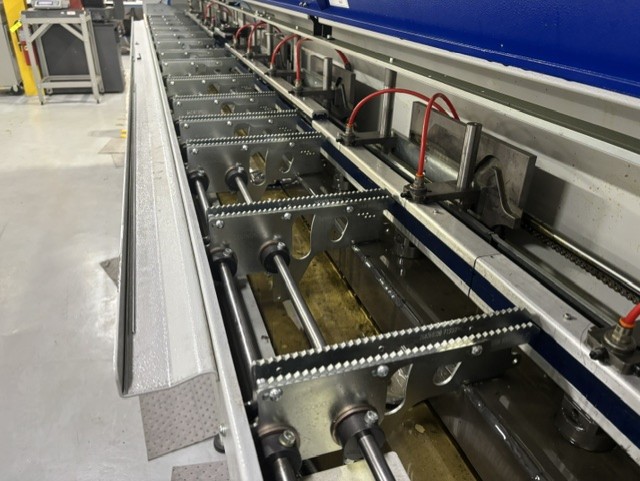

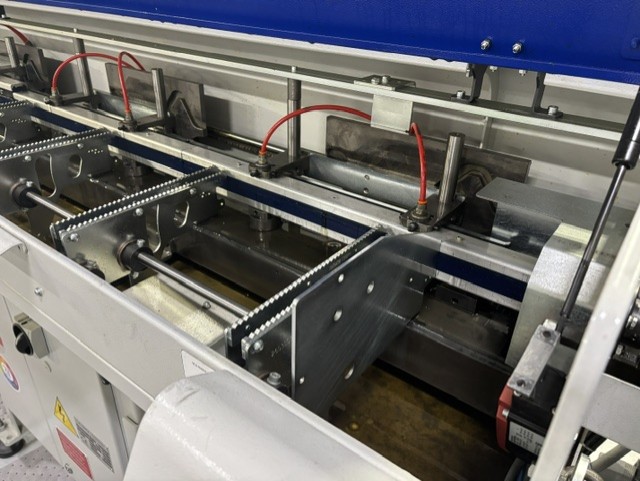

 IEMCA Elite 112/12 Magazine Bar Feeder
1–13 mm bar capacity
12 ft magazine
Includes:
Two channel sets
Spindle liner
Toolbox
1 m loading kit
Anti-vibration device
Axial shifting device
Category III interface
Special adaptation kit


High Pressure Coolant Upgrade

 NE Tool PT-2000-8-H-V2
2,000 PSI Pressure Tech pump
Eight-port system
Heat exchanger
GT13 high-pressure kit


Major Included Accessories Summary

 ✔ Fanuc 31i-B Control
✔ 6-Axis CNC
✔ Dual C-Axis Spindles
✔ Live Tooling Package
✔ Cross Drilling/Milling Module
✔ Right-Angle Live Tool
✔ Long Part Extractor
✔ 2,000 PSI High Pressure Coolant System
✔ LNS Mist Collector
✔ IEMCA Elite 112/12 Bar Feeder
✔ Ethernet Networking
