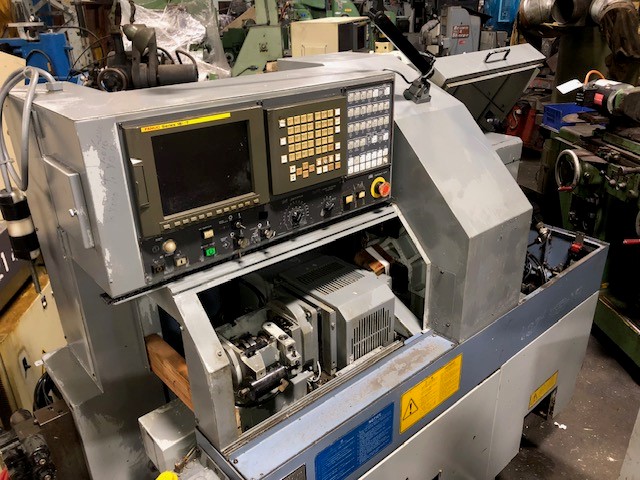

Star SA-16R CNC SWISS TYPE MULTI-AXIS LATHES

Price on Request

Make:: Star

Model:: SA-16R

Year:

Ref #:: 167503

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

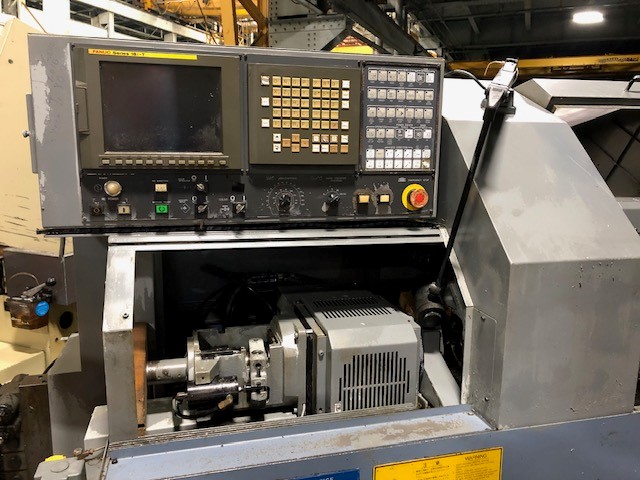

STAR SA-16R SWISS TYPE CNC LATHE

SPECIFICATIONS:
CNC Control: Fanuc 18iTA
Controllable Axes: X, Y, Z, ZB
Combinations of 6 OD tools, 3 Power Driven Tools for Cross Drill/Mill, Front
& Rear Facing 4-Spindle Attachment for Simultaneous Drilling

Max. Turning Diameter: 5/8" 16mm
Max. Drilling Capacity:
Stationary Tool: 9/32"
Power-driven Attachment: 5/32"
Main Spindle Speed: 500 - 12,000 rpm
Motor: 2.2 kw/3.7 kw
Indexing: 15 degree
No. of Tools: 6 OD
4 ID
4 Backworking ID
3 Cross Mill/Drill
Sub-spindle: Turning Diameter: 5/8"
Speed: 500 - 8,000 rpm
Motor: .5kw
Dimensions (approx.): 83"l x 31"w x 65"h
Weight (approx.): 3,740 lbs

Equipped With:
FANUC 18iT CNC CONTROL
LNS EXPRESS MAGAZINE BARFEED
