Clausing-Colchester 21" VS NEW LATHES

Price on Request

Make:: Clausing-Colchester

Model:: 21" VS

Year:: NEW

Ref #:: 161144

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

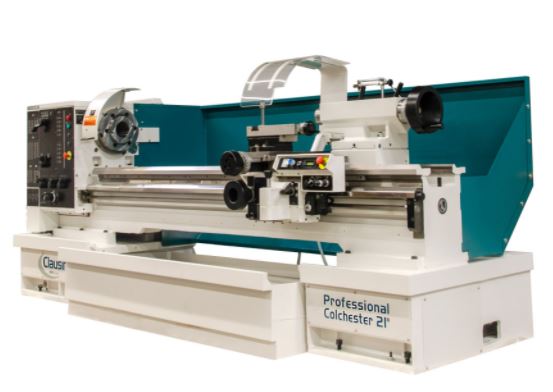

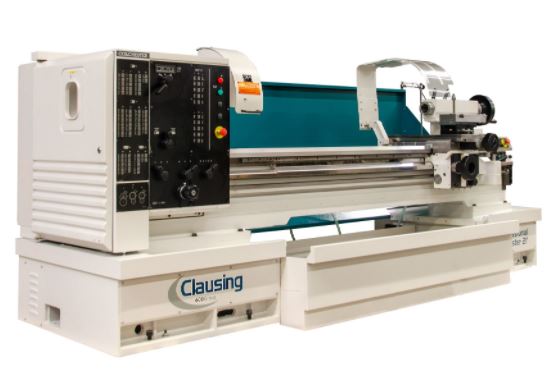

NEW CLAUSING/COLCHESTER VARIABLE SPEED LATHE
"THE PROFESSIONAL" 21" VS SERIES
cc options: 40" / 60" / 80" / 120"

SPECIFICATIONS
CAPACITY HEIGHT OF CENTER: .......... 11.02”
SWING OVER BED: ..................... 21.81”
SWING IN GAP: ....................... 32.68”
WIDTH IN FRONT OF FACEPLATE: ........ 8.5”
SWING OVER CROSS SLIDE: ............. 14.57”
BEDWAY WIDTH: ....................... 15.75”
HEADSTOCK
SPINDLE BORE: ....................... 4.09”
SPINDLE NOSE (CAMLOCK): ............. D1-11
SPINDLE NOSE TAPER: ................. 5MT
NUMBER OF SPINDLE SPEEDS: ........... 3 INFINITELY VARIABLE
SPINDLE SPEED RANGE (RPM): .......... 18-1800
LOW RANGE (RPM): .................... 18-200
MID RANGE (RPM): .................... 55-605
HIGH RANGE (RPM): ................... 160-1800
CROSS/TOP SLIDE
TRAVEL OF CROSS SLIDE: .............. 11.81”
WIDTH OF CROSS SLIDE: ............... 8”
TRAVEL OF TOP SLIDE: ................ 7.5”
WIDTH OF TOP SLIDE: ................. 4”
TAILSTOCK
QUILL TRAVEL: ....................... 5.7”
QUILL DIAMETER: ..................... 3.74”
QUILL TAPER: ........................ 6MT
FEEDS & THREADING
LONGITUDINAL FEED RANGE: ............ 0.0016-0.11IN/REV
CROSS FEED RANGE: ................... 0.0008-0.055IN/REV
NUMBER OF INCH PITCHES: ............. 73
RANGE OF INCH PITCHES: .............. 2-84 TPI
NUMBER OF METRIC PITCHES: ........... 27
RANGE OF METRIC PITCHES: ............ 0.2-14MM
NUMBER OF DIAMETRAL PITCHES: ........ 27
RANGE OF DIAMETRAL PITCHES: ......... 8-72
NUMBER OF MODULE PITCHES: ........... 51
RANGE OF MODULE PITCHES: ............ 0.2-3.5
MOTOR
SPINDLE MOTOR: ...................... 15 HP

DIMENSIONS
8114VSJ: 21” X 40” GAP
LENGTH X HEIGHT X WIDTH: ............ 101” X 51” X 51”
WEIGHT: ............................. 5,486 LBS.
8115VSJ: 21” X 60” GAP
LENGTH X HEIGHT X WIDTH: ............ 120” X 51” X 51”
WEIGHT: ............................. 5,886 LBS.
8116VSJ: 21” X 80” GAP
LENGTH X HEIGHT X WIDTH: ............ 140” X 51” X 51”
WEIGHT: ............................. 6,283 LBS.
8119VSJ: 21” X 120” GAP
LENGTH X HEIGHT X WIDTH: ............ 180” X 51” X 51”
WEIGHT: ............................. 7,960 LBS.

STANDARD FEATURES
SPINDLE CENTER BUSHING
TWO MT DEAD CENTERS
SPLASH GUARD
CHUCK GUARD
LEADSCREW COVER
COOLANT SYSTEM
INCH THREADING DIAL
SET OF WRENCHES AND KEYS
INSTRUCTION AND PARTS MANUAL
ACCURACY CHART
EMERGENCY STOP BUTTON
LOCKABLE ISOLATOR SWITCH
ONE SHOT SADDLE AND CROSS SLIDE LUBRICATION
FORWARD/REVERSE/STOP SWITCH
STANDARD 230/3/60 OR 460/3/60 VOLTS (208/3/60 VOLTS REQUIRE A TRANSFORMER)

CLAUSING/COLCHESTER “THE PROFESSIONAL” LATHE FEATURES
AC INVERTER VARIABLE SPEED SPINDLE DRIVE STATE OF THE ART AC SPINDLE DRIVE FEATURING SURFACE MOUNT TECHNOLOGY TO GIVE COMPACT SIZE AND HIGH RELIABILITY….4 YEARS PARTS AND LABOR WARRANTY ON DRIVE
24V CONTROL: THE MACHINE CONTROLS ARE 24V FOR LOW VOLTAGE REQUIREMENTS
INTERLOCKED END GUARD DOOR WITH EASY ACCESS FOR MAINTENANCE AND CHANGING END TRAIN GEARS
LEADSCREW REVERSING BOX FOR FASTER THREAD CUTTING – REVERSAL OF THE LEADSCREW WITH THE SPINDLE RUNNING AT LOW SPEED
EASY TO READ INDEX PLATE MAKES IT SIMPLE TO SELECT THE PROPER FEED RATE OR THREADS
THREE HEADSTOCK GEAR RANGES FOR A WIDE SPREAD OF CONSTANT POWER – 33 TO 1 – BETTER THAN MOST CNC LATHES
INFINITELY VARIABLE SPINDLE SPEEDS YOU CAN GET THE RIGHT SPINDLE SPEED VERY QUICKLY WITH A RESPONSE LIKE A CNC LATHE, DISPLAYED ON HEADSTOCK
ELECTROMAGNETIC SPINDLE BRAKE
FORCED LUBRICATION SYSTEM THE SPINDLE BEARINGS, GEARS AND SHAFTS ARE LUBRICATED BY A FORCED LUBRICATION SYSTEM
PRECISION TAPERED ROLLER SPINDLE BEARINGS
CHUCK GUARD WITH LIMIT SWITCH
ANTI-FRICTION CARRIAGE WAYS. LOW-FRICTION “MOGLICE” PTFE MATERIAL BETWEEN THE SADDLE AND BED FOR MINIMAL BEDWEAR AND LONGER MACHINE LIFE
SADDLE MOUNTED CHIP GUARD AND FULL REAR SPLASH GUARD
EXTRA WIDE HEAVY-DUTY CAST IRON BED WITH TRIANGULAR WEBS FOR EXCEPTIONAL TORSIONAL STIFFNESS AND EXCELLENT CHIP CLEARANCE
HEAVY DUTY TAILSTOCK FOR EXCELLENT RIGIDITY – WITH EXTRA HEAVY-DUTY QUILL
COVERED LEADSCREW PROTECTS LEADSCREW FROM CHIPS
WHEELED CHIP BIN HAS A LARGE CAPACITY FOR EASY CHIP DISPOSAL
HARDENED AND GROUND BEDWAYS - ALL BEDWAYS ARE INDUCTION HARDENED AND PRECISION GROUND
CAST IRON BASE PROVIDES THE MAXIMUM SUPPORT FOR THE BED COMBINED WITH SLOPING TOP SURFACES TO PREVENT THE ACCUMULATION OF COOLANT


OPTIONAL EQUIPMENT
18-810 15” TELESCOPIC TAPER
21-403 20” SLOTTED FACE PLATES
21-403A 24” SLOTTED FACE PLATE
21-404 28” SLOTTED FACE PLATES
18-910 LIVE CENTER
21-412VS BRONZE TIP & ROLLER STEADY REST 3/8” TO 9”
21-860 BRONZE TIP & ROLLER STEADY REST 6-1/8” TO 15”
21-411VS BRONZE TIP & ROLLER FOLLOWER REST 5/8” TO 4-1/4”
PB23-D11 FT. MOUNT 5C HANDWHEEL COLLET CHUCK
0123-R-(SIZE) INDIVIDUAL 5C ROUND COLLET INCH
INDIVIDUAL 5C ROUND COLLET METRIC
0123-SET-4 1/8”-1 1/16” BY 64THS (INCH SET)
0123-SET-5 1/8”-1 1/16” BY 32NDS (INCH SET)
0123-SET-6 1/8”-1 1/16” BY 16THS (INCH SET)
0123-SET-7 1/8”-1” BY 8THS (INCH SET)
0123-SET-1 3MM-27MM BY .5MM (METRIC SET)
0123-SET-2 3MM-27MM BY 1MM (METRIC SET)
7659 18PC 5C COLLET RACK
21-475A ALORIS QUICK CHANGE TOOL POST W/4 HOLDERS (DA)
21-475A-1 ALORIS EXTRA STRAIGHT HOLDER 1-1/4”
21-475A-1S ALORIS STRIAGHT HOLDER 1-1/2”
21-475A-2 ALORIS EXTRA V-HOLDER 1-1/4”,1” BORE BAR
21-475A-2S ALORIS V-HOLDER 1-1/2”
21-475A-4 ALORIS 1-1/2” HEAVY DUTY BORING BAR HOLDER
21-475A-4D ALORIS 1-1/2” BORING BAR HOLDER
21-475-41D ALORIS 2” BORING BAR HOLDER
21-475A-5 ALORIS EXTRA 4MT HOLDER
21-475A-55 ALORIS EXTRA 5MT HOLDER
21-475A-71 ALORIS CUTOFF HOLDER 2” HEIGHT
21-475A-BSL187 ALORIS CUTOFF BLADES SELF-LOCKING THROW AWAY 3/16”
13-438VS FIVE-POSITION CARRIAGE STOP - REQUIRES ONE POSITION
OR MICRO CARRIAGE STOP – (SOLD SEPARATELY)
17-832 ONE-POSITION CARRIAGE STOP
17-833 MICRO POSITION CARRIAGE STOP
1225325 12” 3-JAW SETRITE UNIVERSAL SCROLL CHUCK
1525325 15” 3-JAW SETRITE UNIVERSAL SCROLL CHUCK
1226325 12” 6-JAW SETRITE UNIVERSAL SCROLL CHUCK
1526325 15” 6-JAW SETRITE UNIVERSAL SCROLL CHUCK
1614525 16” 4-JAW INDEPENDENT CHUCK

DRO FOR 21” X 80” 8116VSJ
AR12M84100T 2 AXIS ACU-RITE 100 DRO
AR12M84200T 2 AXIS ACU-RITE 200 DRO
AR12M84300T 2 AXIS ACU-RITE 300 DRO
AR8116CS 2 AXIS ACU-RITE 300 DRO W/CSS CONTROL
AR12M84300TTHD 2 AXIS ACU-RITE 300 DRO W/THREAD ASSIST
AR8116300CSTHD 2 AXIS ACU-RITE 300 DRO W/CSS & THREAD ASSIST
FG1280-PKC 2 AXIS FAGOR COLOR DRO
FG1280-PK 2 AXIS FAGOR LED DRO
NW1280DP700 2 AXIS NEWALL LED DRO

DRO FOR 21” X 120” 8119VSJ
AR12M120100T 2 AXIS ACU-RITE 100 DRO
AR12M120200T 2 AXIS ACU-RITE 200 DRO
AR12M120300T 2 AXIS ACU-RITE 300 DRO
AR8119CS 2 AXIS ACU-RITE 300 DRO W/CSS CONTROL
AR12M120300TTHD 2 AXIS ACU-RITE 300 DRO W/THREAD ASSIST
AR8119300CSTHD 2 AXIS ACU-RITE 300 DRO W/CSS & THREAD ASSIST
FG12120-PKC 2 AXIS FAGOR COLOR DRO
FG12120-PK 2 AXIS FAGOR LED DRO
NW12120DP700 2 AXIS NEWALL LED DRO
