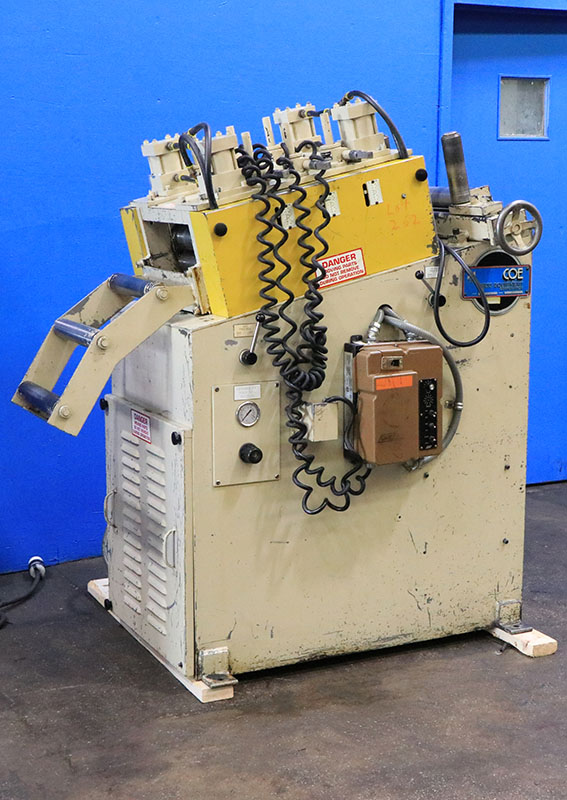

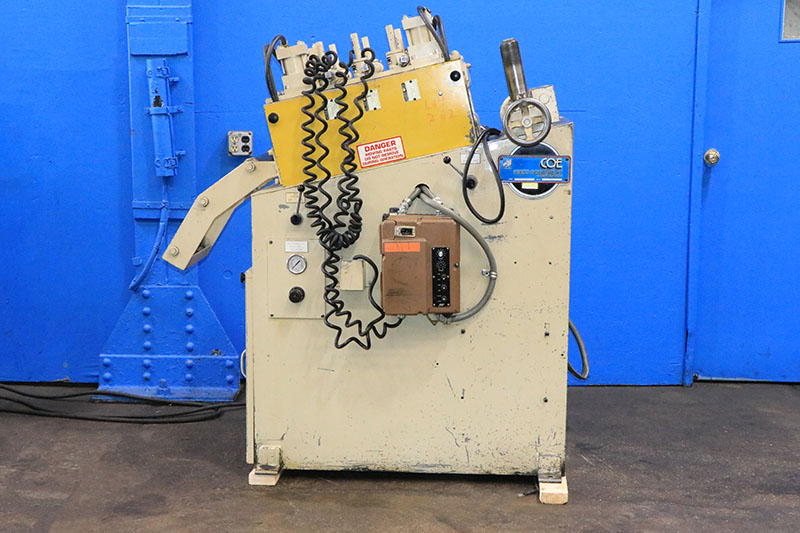

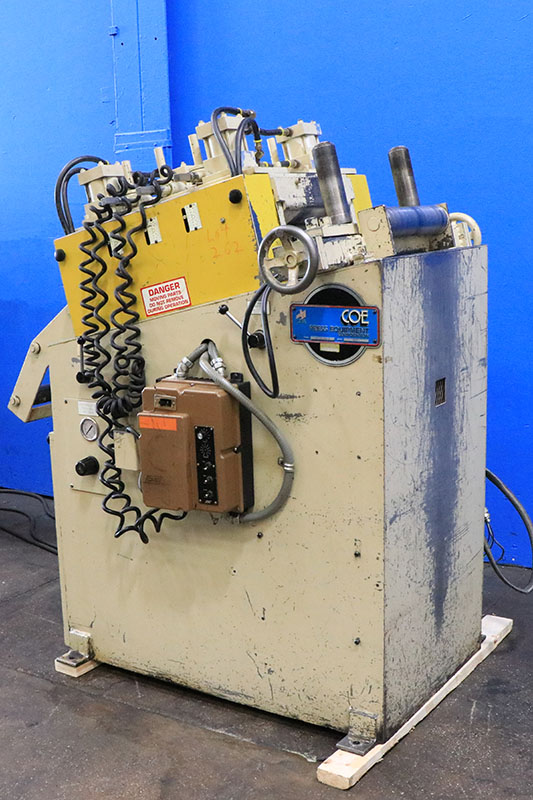

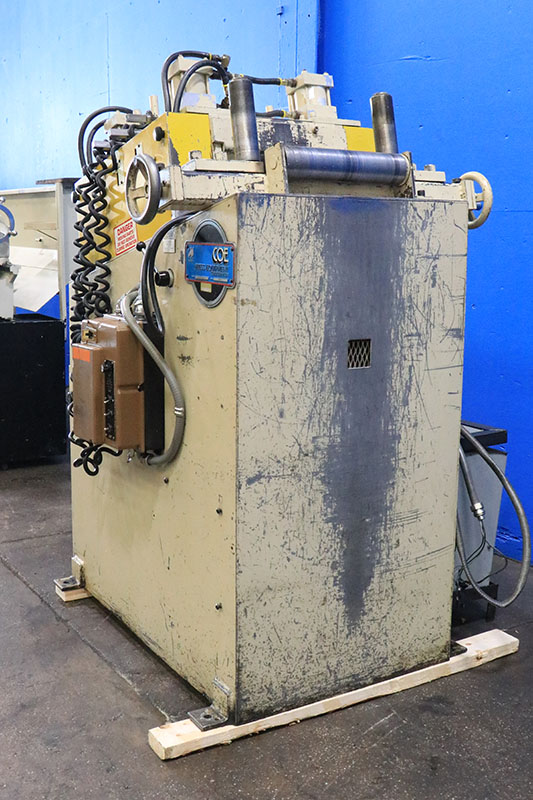

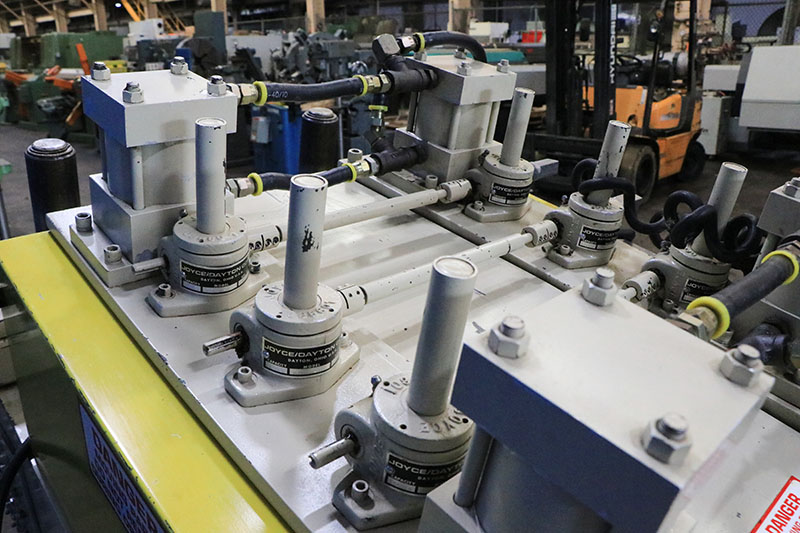

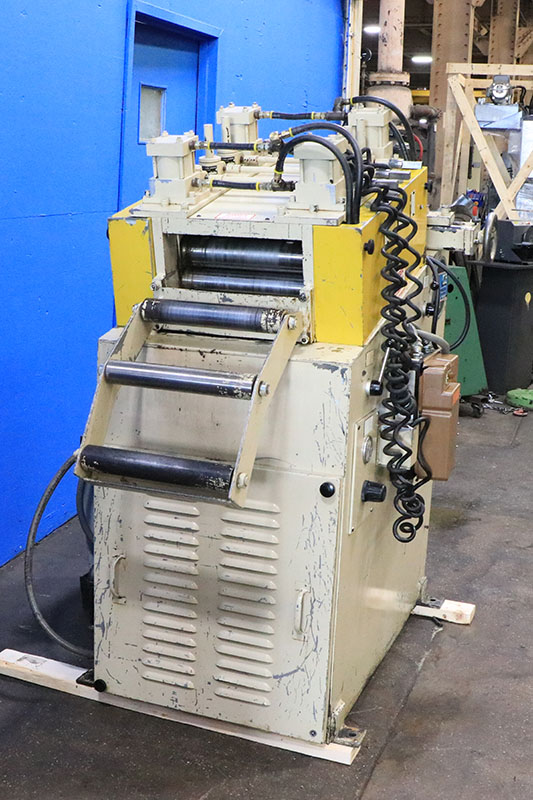

Coe CPPS-PO-300-12 STRAIGHTENERS

$14,500

Make:: Coe

Model:: CPPS-PO-300-12

Year:: 1996

Ref #:: 163824

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com


12" X .125" COE STRAIGHTENER*

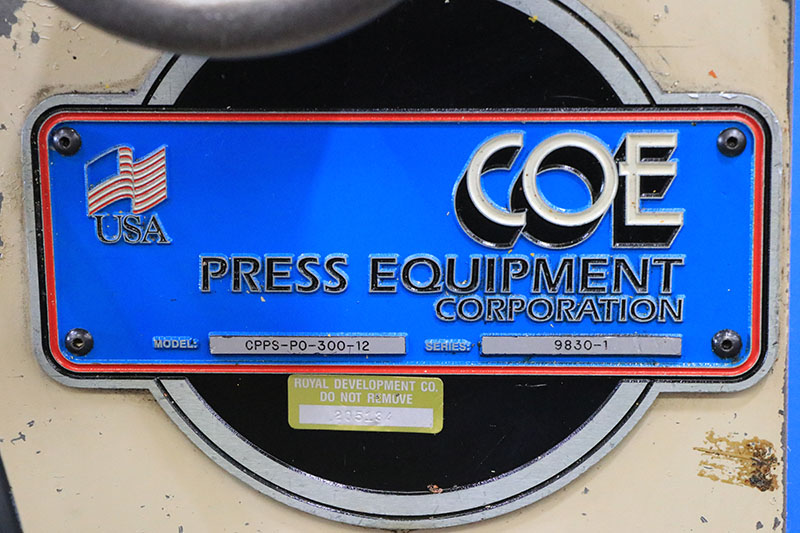

MODEL CPPS-PO-300-12          S/N 9830-1          NEW 1996

Maximum width .......................... 12"
Maximum thickness ...................... .125"
Minimum thickness ...................... .020"
Line speed ............................. 0 - 110 FPM
Number of straightening rolls .......... 7 (3 over 4)
Diameter of straightening rolls ........ 3.0"
Diameter of pinch rolls (entry & exit) . 3.0"
Motor .................................. 5 HP / 460V
Entrance passline ...................... 51-1/2"
Dimensions 52" x 42" x 61" high
Approximate Weight 3,500 Lbs.

Right To Left Line Direction

Machine is equipped with:
- Canted head design

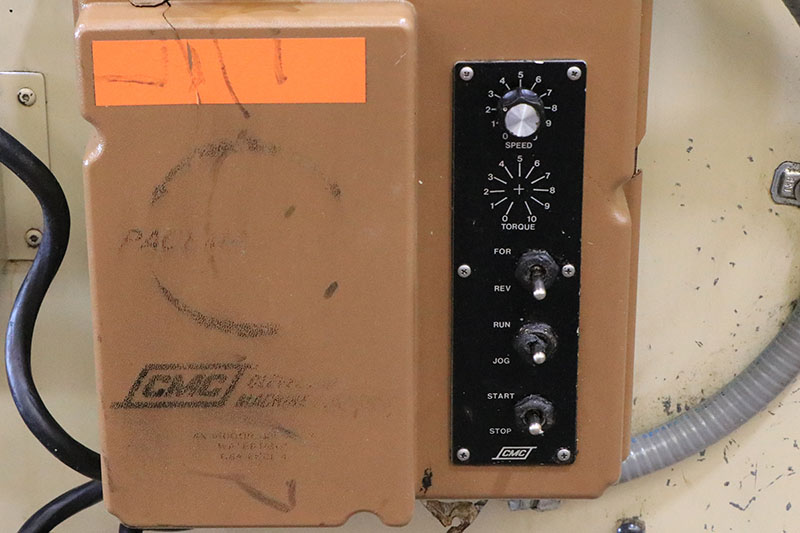

- Pacemaster vari-speed drive system
- Forward / reverse & run / jog mode selectors
- Remote jog pendant

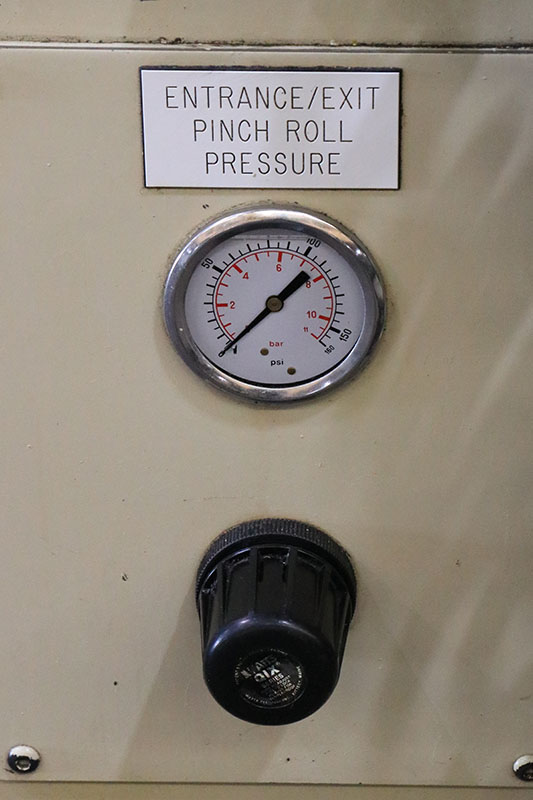

- Pneumatic lift entry & exit pinch rolls

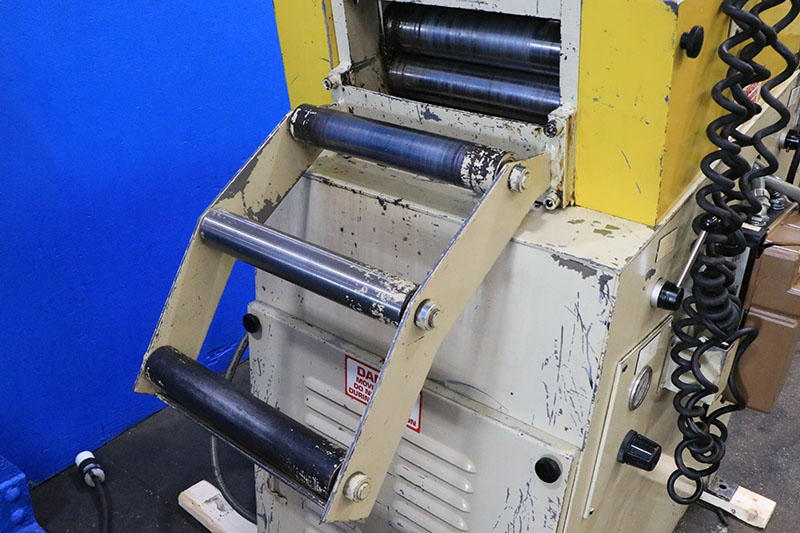

- Adjustable roller side guides on entrance
- Exit cascade rolls
- Entrance guide roll central point lubrication

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
