Daewoo Puma 300B CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Daewoo

Model:: Puma 300B

Year:: 2001

Ref #:: 179260

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

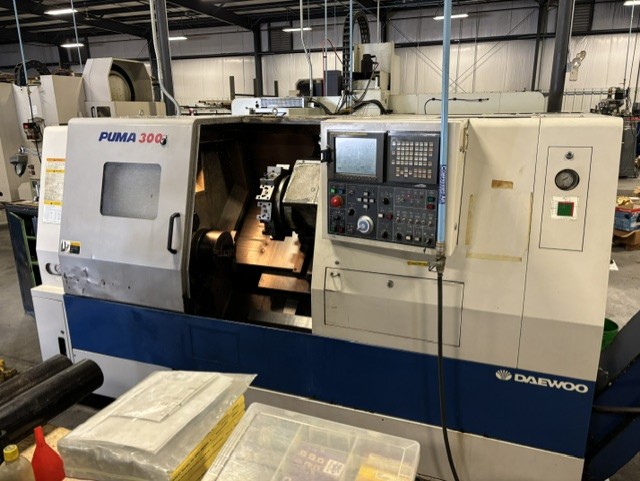

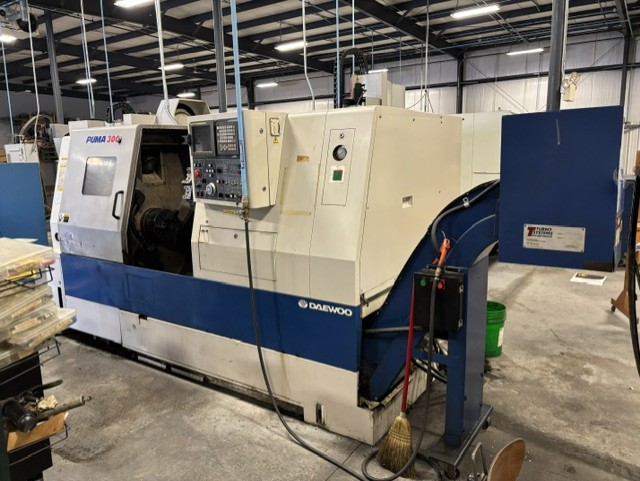

DAEWOO PUMA 300B CNC TURNING CENTER
NEW: 2001

video link: https://youtu.be/OGi-PKILEpk?si=sNLS22KiDPBOaSwW

SPECIFICATIONS:
SWING OVER BED ................ 23.0"
SWING OVER SADDLE ............. 14.5"
MAX. TURNING DIAMETER ......... 15.7"
MAX. TURNING LENGTH ........... 25.5"
MAX. BAR WORKING DIAMETER ..... 3.0"
X-AXIS TRAVEL ................. 11.1"
Z-AXIS TRAVEL ................. 26.8"
SPINDLE SPEED MAX. ............ 3500 RPM
SPINDLE NOSE .................. A2-8
SPINDLE BORE .................. 3.54"
NO. OF TOOL STATIONS .......... 12
OD TOOL SIZE .................. 1.0"
BORING BAR DIAMETER ........... 2.0"
RAPID TRAVERSE X/Z ............ 800/945 IPM
TAILSTOCK QUILL DIAMETER ...... 3.94"
TAILSTOCK QUILL TRAVEL ........ 3.94"
MAIN SPINDLE MOTOR ............ 30/35 HP
APPROX. WEIGHT ................ 12,900 LBS

EQUIPPED WITH:

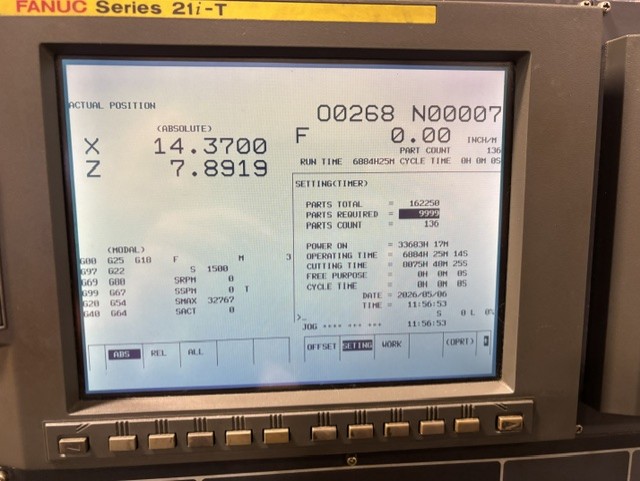

 - FANUC 21i-T CNC CONTROL
 - TOOLSETTER
 - 10" 3-JAW HYDRAULIC CHUCK
 - 12 POSITION TURRET
 - TAILSTOCK
 - CHIP CONVEYOR
 - ALL AVAILABLE TOOLHOLDERS AND MANUALS
