Okuma LT-10M Live Tool CNC TURNING CENTERS - CNC LATHES

$29,500

Make:: Okuma

Model:: LT-10M Live Tool

Year:: 1997

Ref #:: 161578

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

OKUMA LT-10M MULTI AXIS CNC TURNING CENTER
NEW: 1997

SPECIFICATIONS:
MAX DIAMETER BAR CAPACITY ........ 1.6"
MAX SWING OVER BED ............... 15.75"
DISTANCE BETWEEN NOSES ........... 37.80"
MAX TURNING DIAMETER ............. 8.27"
MAX MACHINING LENGTH ............. 5.12"
MAIN MOTOR ....................... 10/7.5 HORSEPOWER
SPINDLE SPEED L/R ................ 50 - 6,000 RPM
NO OF SPINDLE SPEED RANGES ....... AUTO 2-STEP
VAC MOTOR WINDING CHANGEOVER
TOOLS ............................ 12 + 12
DIAMETER OF OD TOOL SHANK ........ 0.79" x 0.79"
DIAMETER OF ID TOOL SHANK ........ 1.26"
SPINDLE BORE ..................... 2.09"
SPINDLE NOSE ..................... FLAT
RAPID TRAVERSE RATES ............. (X/Z) 591/787 IPM
MILLING MOTOR .................... 3 HORSEPOWER
MILLING SPEED .................... 100 - 6,000 RPM
X AXIS TRAVEL (BOTH TURRETS) ..... 7.56"
ZA AXIS TRAVEL (UPPER TURRET) .... 27.56"
ZB AXIS TRAVEL (LOWER TURRET) .... 28.74"
C AXIS TRAVEL .................... 360 DEGREE
APPROX. WEIGHT ................... 13,200 LBS
APPROX. DIMENSIONS ............... 120" X 82" X 71"

EQUIPPED WITH:

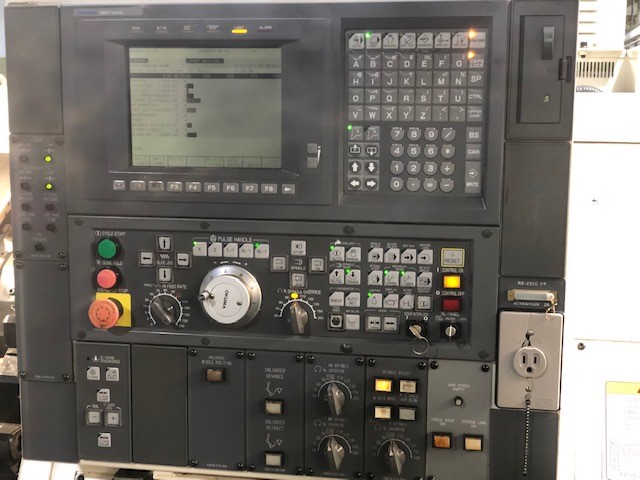

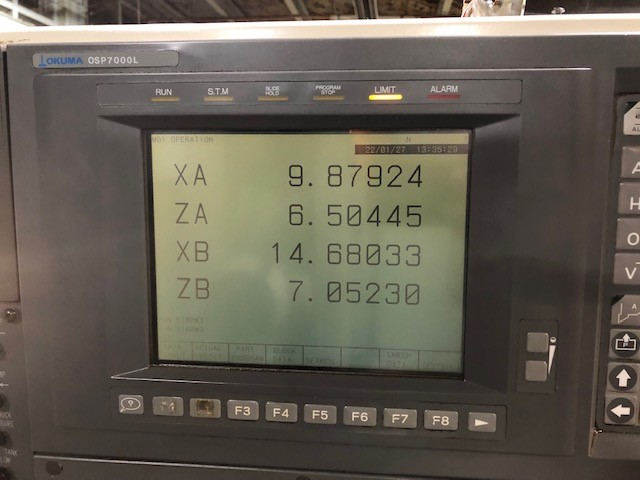

  - OSP 7000L CONTROL

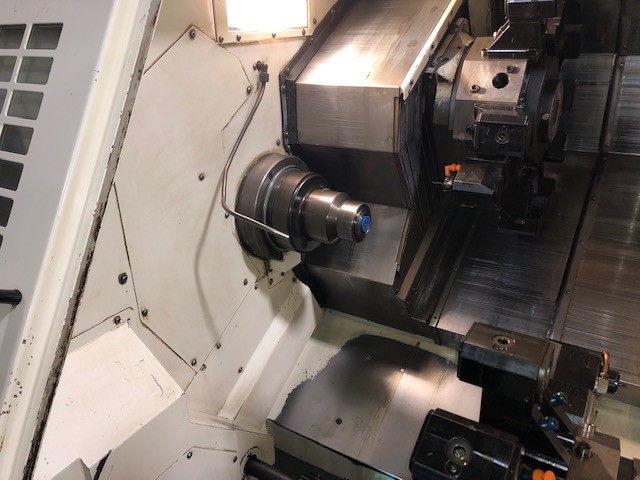

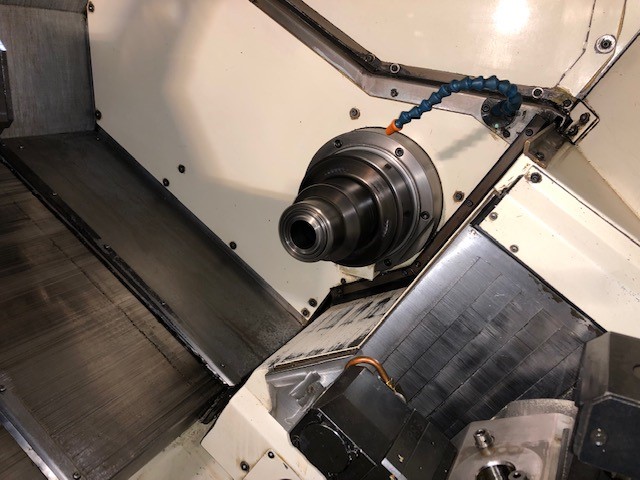

  - COLLET CHUCK ON LEFT AND RIGHT SPINDLES

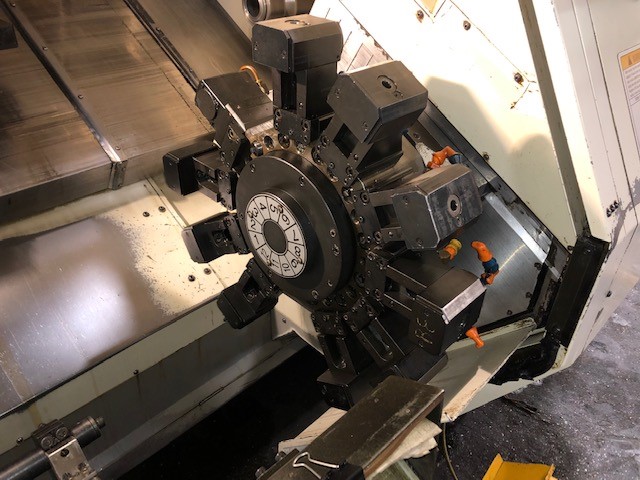

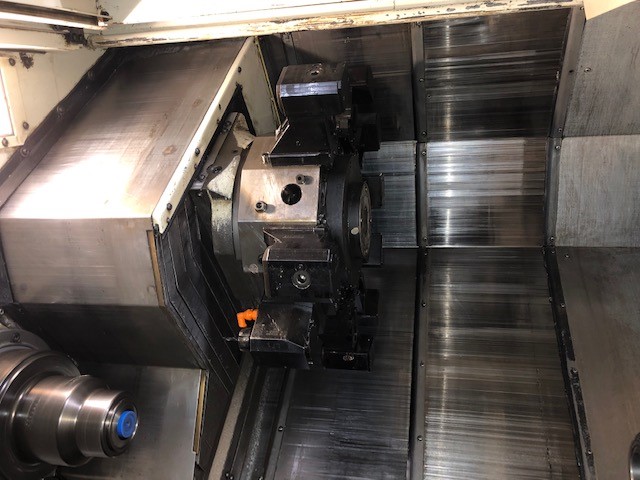

  - (2) 12 POSITION TURRETS
  - LIVE TOOL CAPABILITY ON BOTH TURRETS
  - PARTS CATCHER
  - CHIP CONVEYOR
  - ALL AVAILABLE STATIC & LIVE TOOL HOLDERS
  - ALL AVAILABLE MANUALS
