Haas DS-30Y CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Haas

Model:: DS-30Y

Year:: 2017

Ref #:: 179549

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

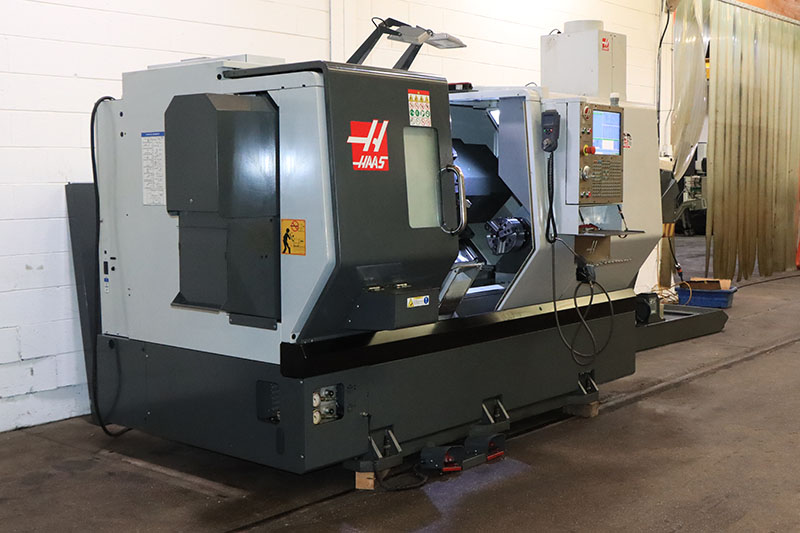

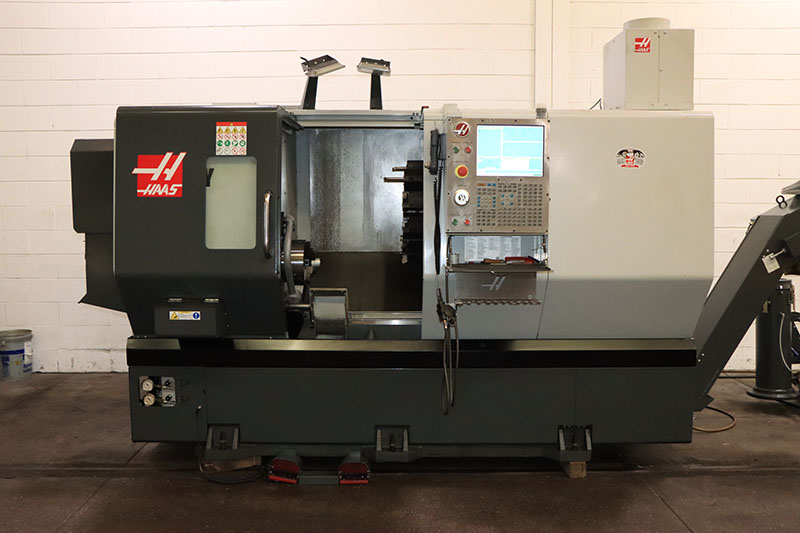

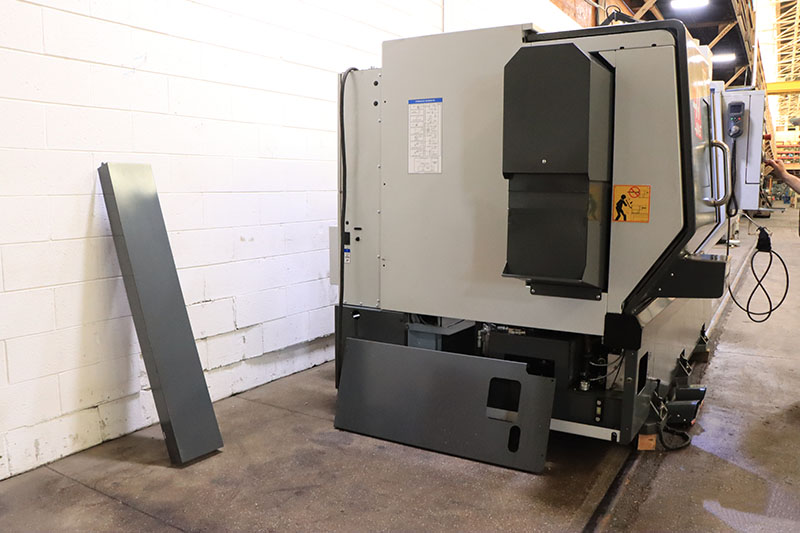

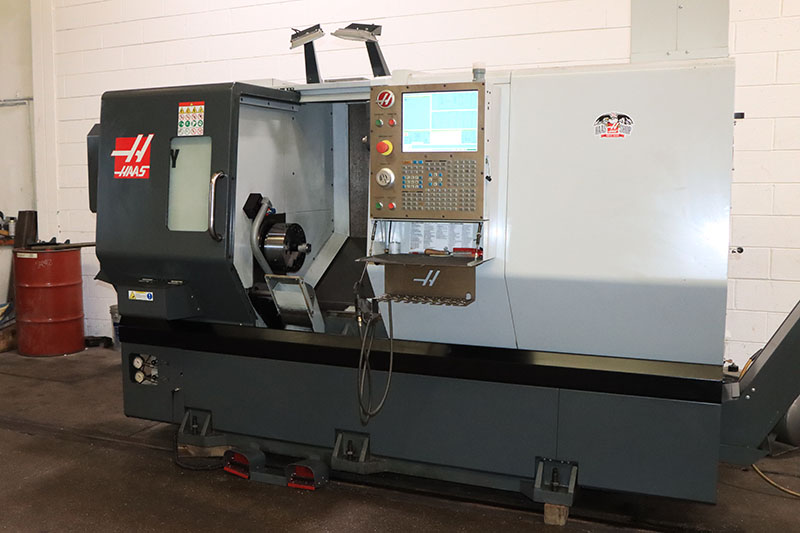

2017 HAAS DS30Y Multi-Axis CNC Turning Center

Specifications:
Swing Over Front Apron: 31.8″
Swing Over Cross Slide: 20.8″
Swing Over Cross Slide: 21.8″
Chuck Size: 10.0″
Max Cutting Diameter (varies with turret): 18.0″
Max Cutting Length (varies with workholding): 23.0″
Bar Capacity: 3.00″
X-Axis: 12.5″
Z-Axis: 23.0″
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Spindle Nose: A2-6
Max Rating: 30.0 HP
Max Speed: 4500 RPM
Max Torque: 275 ft-lbf @ 600 RPM
Spindle Bore ø: 3.50″
Sub-Spindle Chuck Size: 8.3″
Sub-Spindle Spindle Nose: A2-5
Sub-Spindle Max Rating: 20 HP
Sub-Spindle Max Speed: 4,800 RPM
Sub-Spindle Bore: 2.0″
Sub-Spindle: 2.0″
Machine Weight: 16,000 LBS

EQUIPPED WITH:

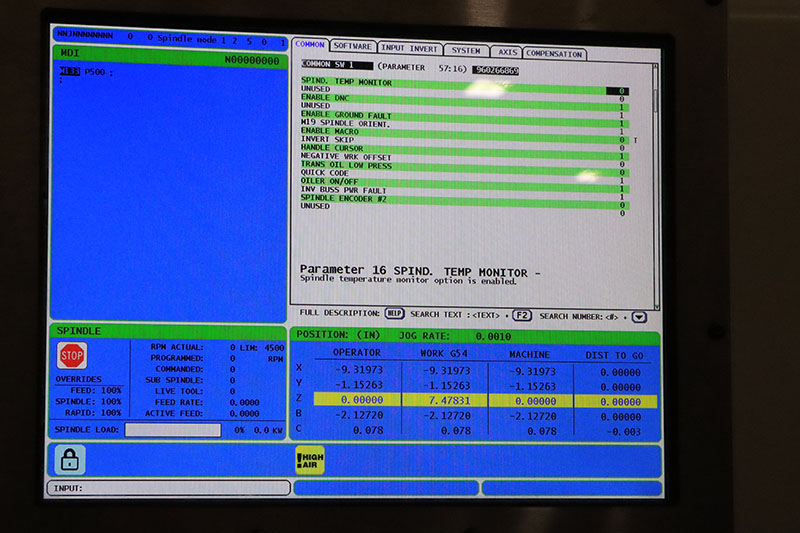

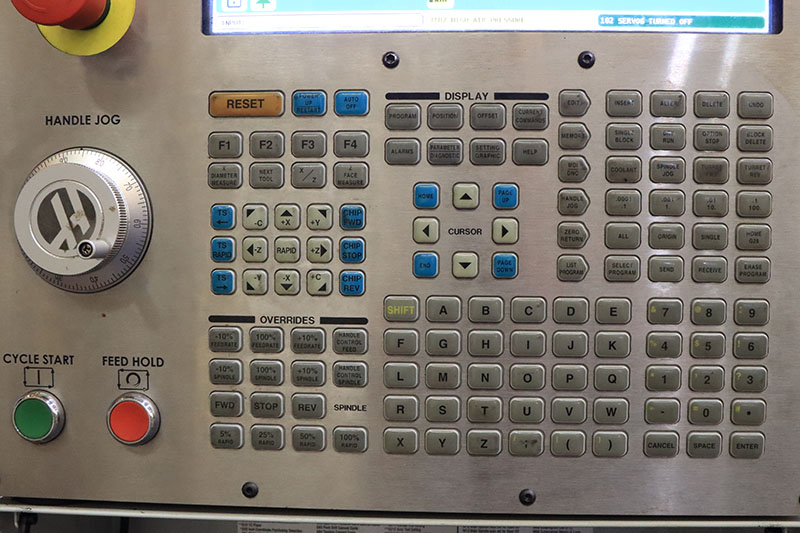

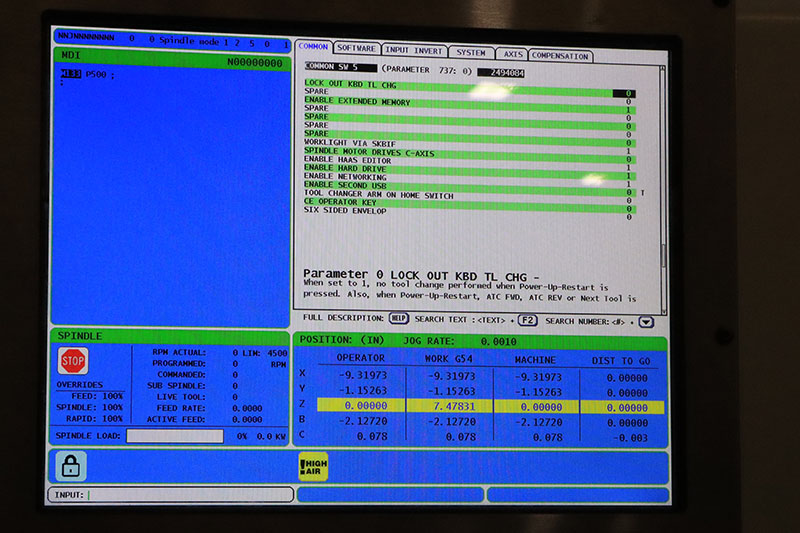

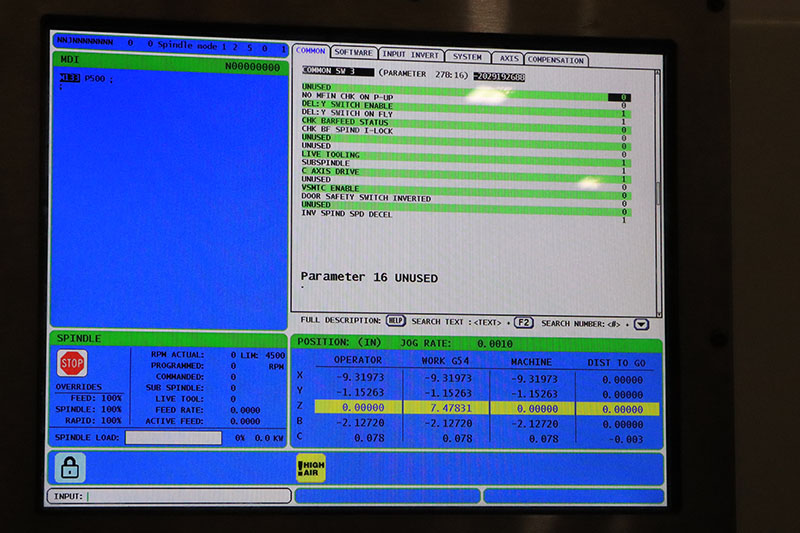

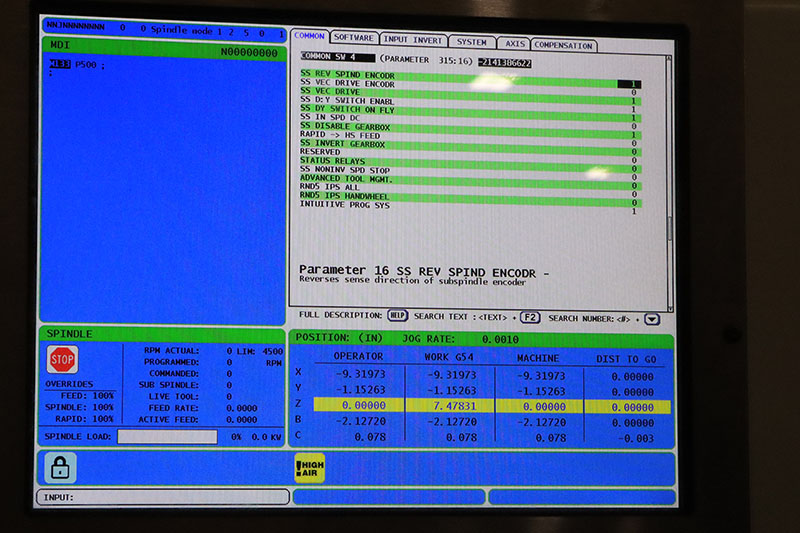

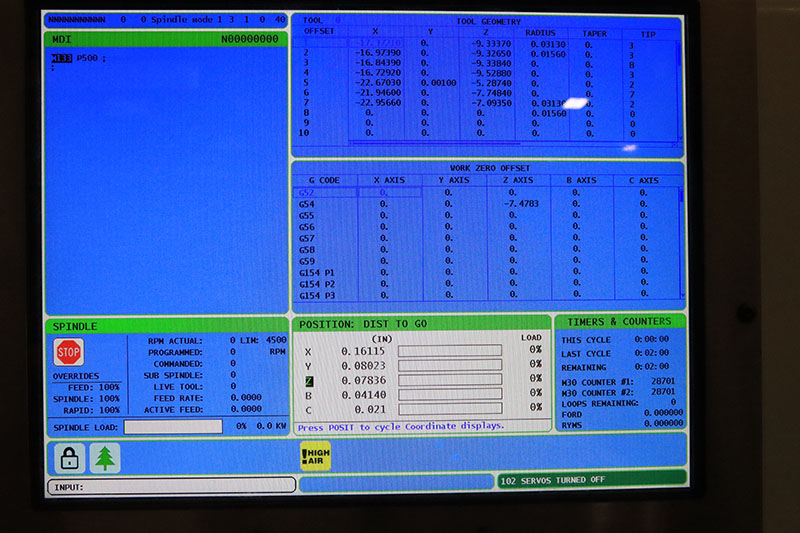

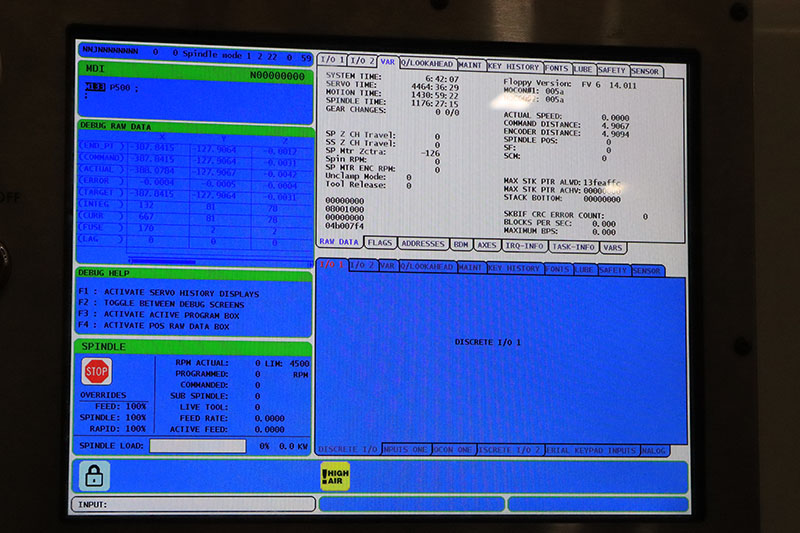

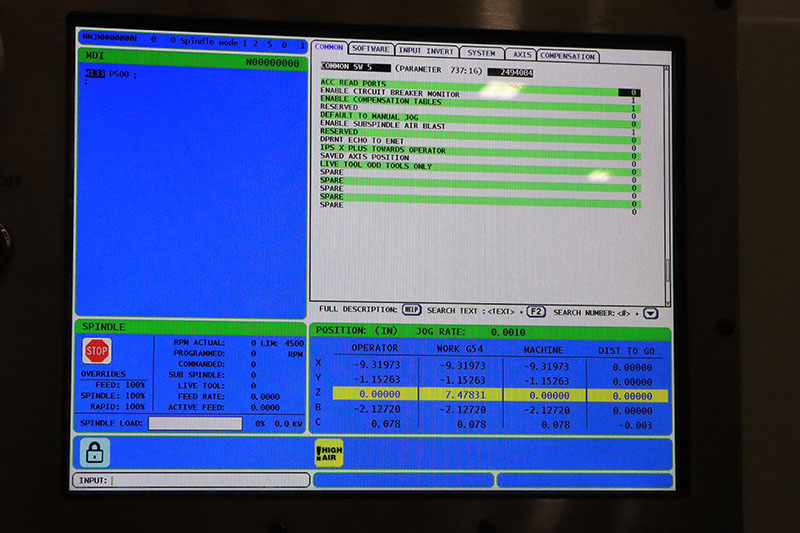

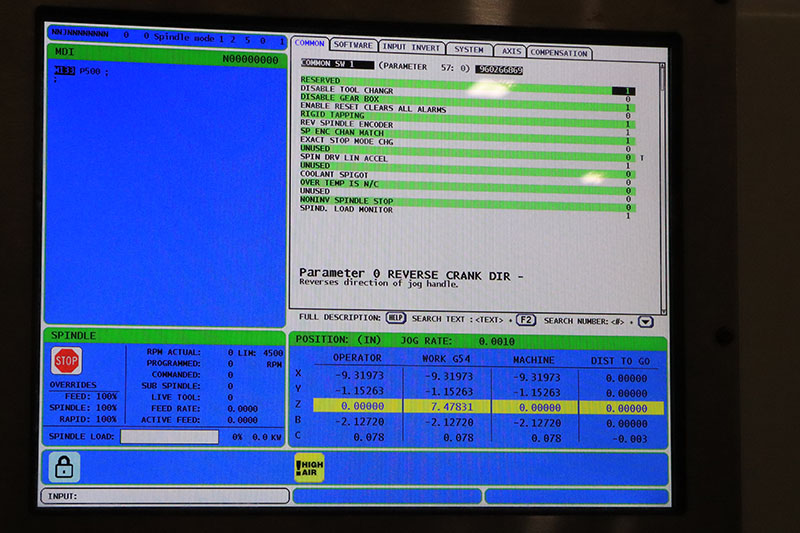

Haas CNC Control

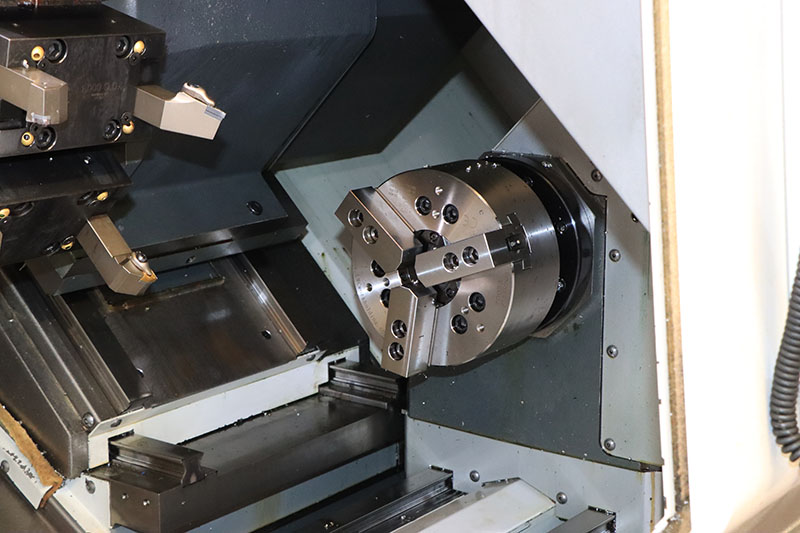

10″ & 8″ 3-Jaw Chucks
Auto Tool Presetter
Parts Catcher
Live Tooling

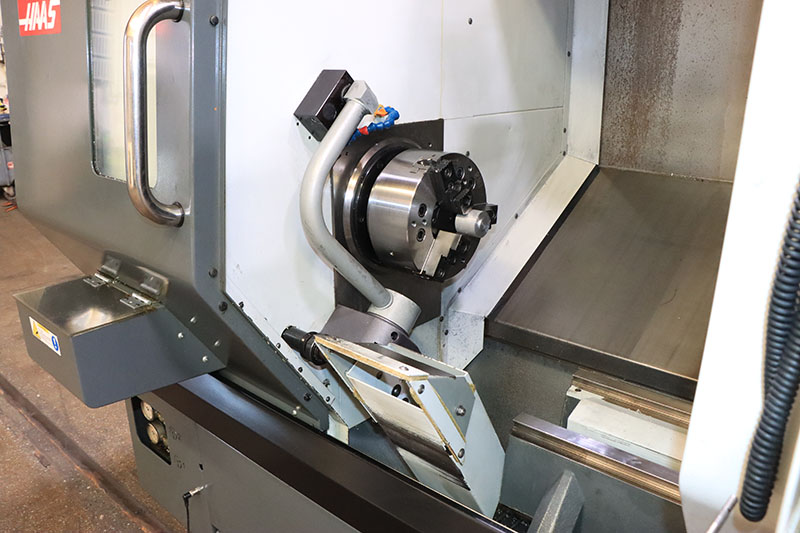

Sub-Spindle

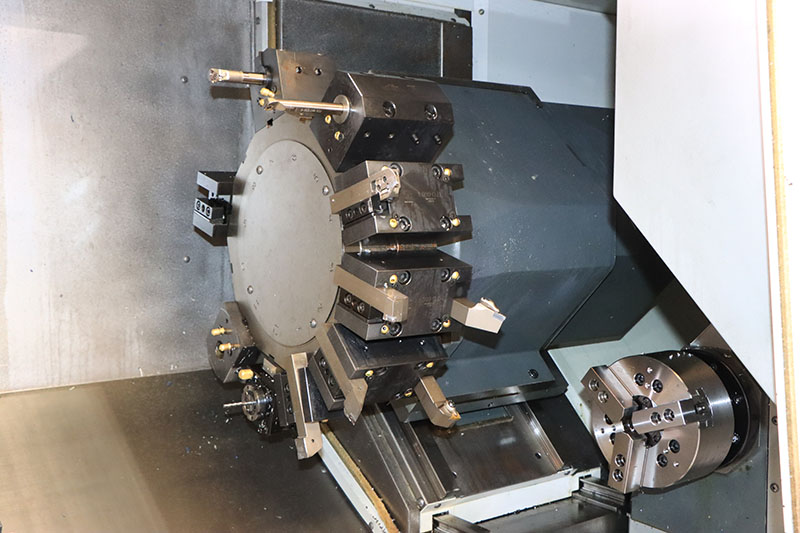

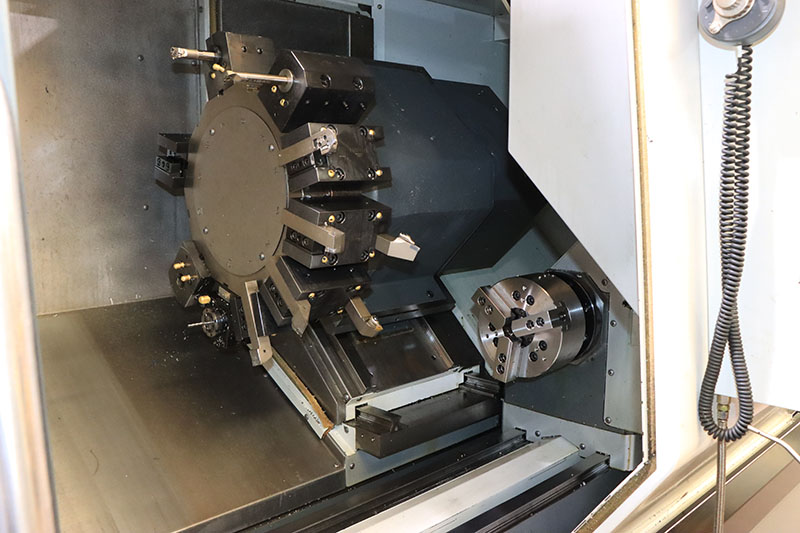

12 Station Turret
1,000 PSI High Pressure Coolant

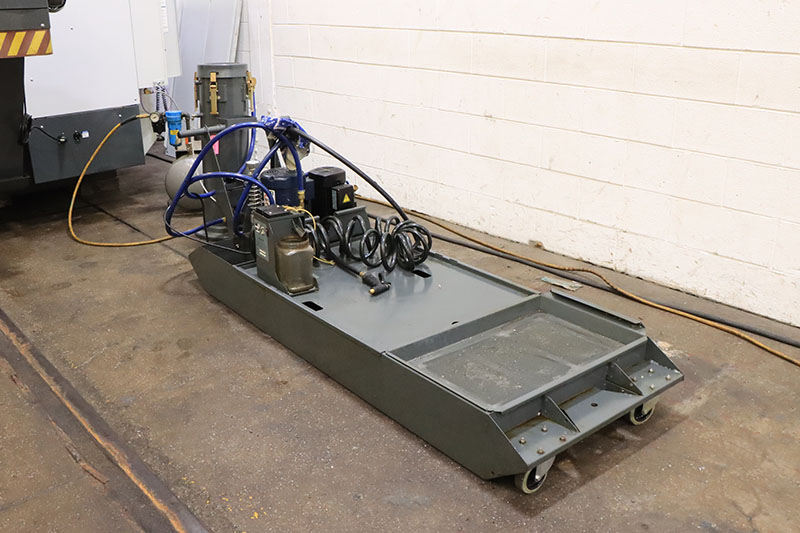

Aux. Coolant Filter
Belt Type Chip Conveyor
Enclosure Exhaust System
High Intensity Lighting
