Daewoo-Doosan Puma 2000SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Daewoo-Doosan

Model:: Puma 2000SY

Year:: 2006

Ref #:: 179817

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

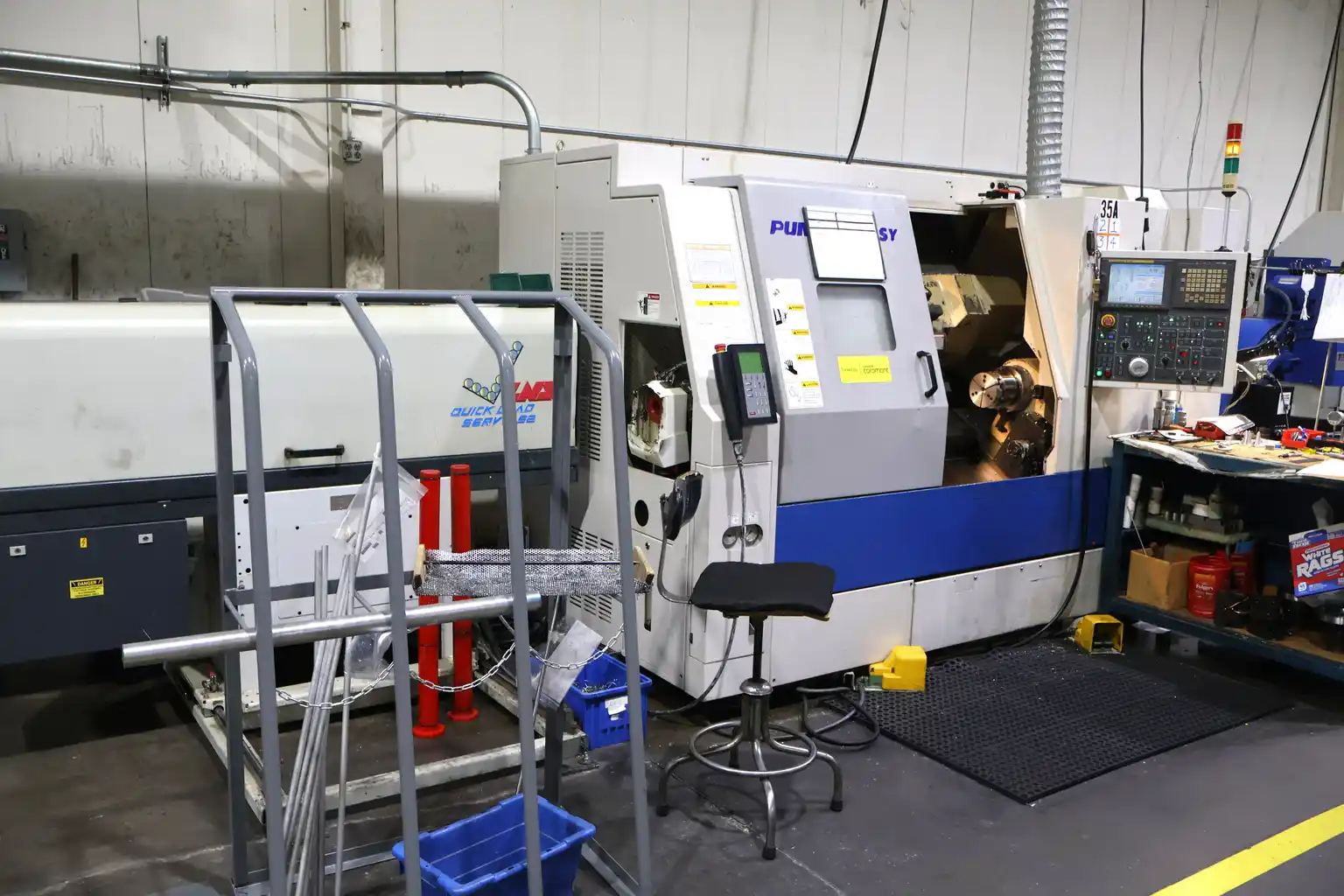

DAEWOO-DOOSAN PUMA 2000SY CNC TURNING CENTER
w/Live Milling, Y-Axis & Sub-Spindle   NEW: 2006

General Specifications As Per Brochure

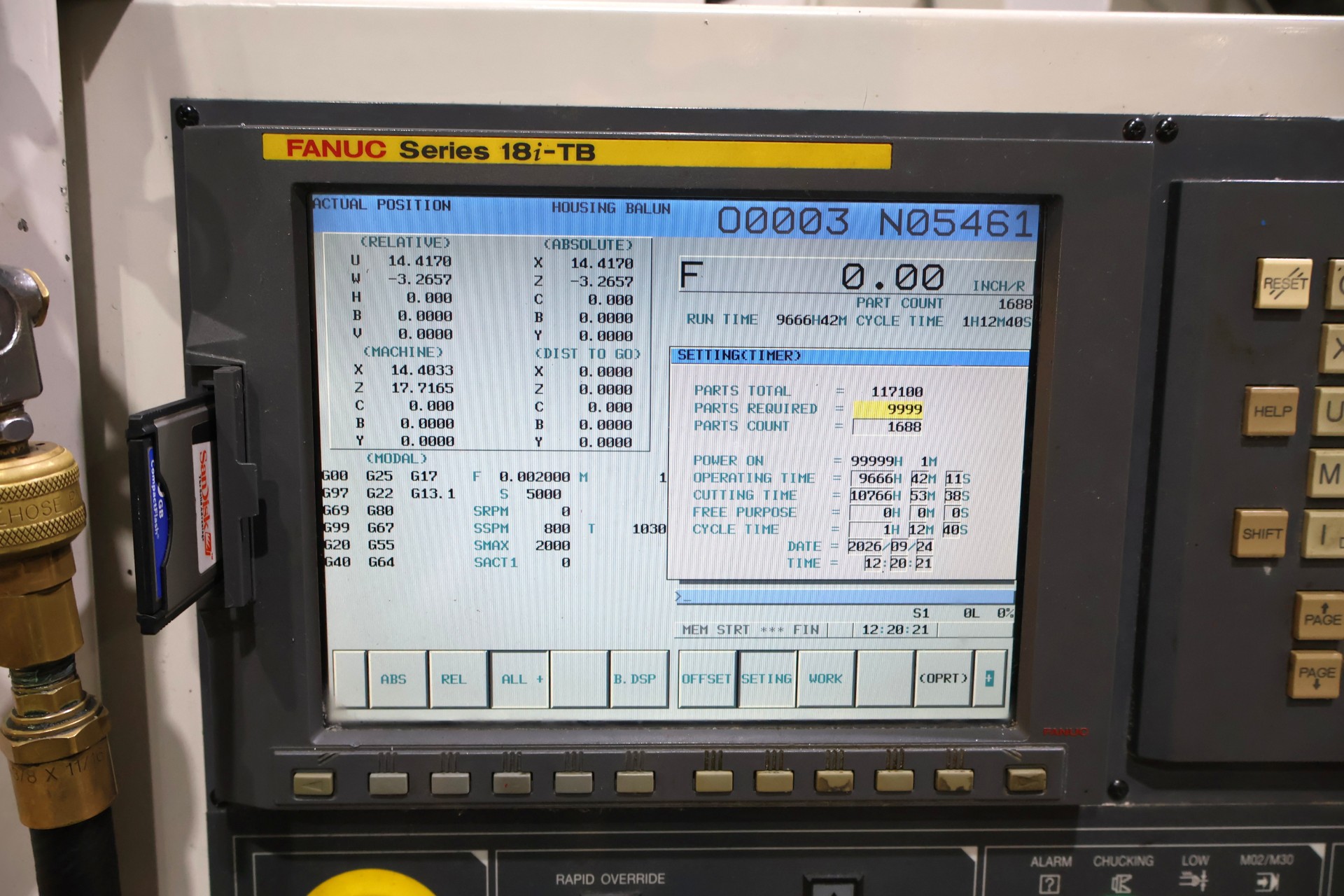

CNC Control:                               Fanuc 18i-TB
Capacity:
  Swing Over Bed:                           23.6"
  Swing Over Carriage:                      21.6"
  Max. Bar Capacity:                        2.6"
  Max. Turning Diameter (main spindle):     13"
  Max. Turning Length:                      20.1"
  Distance between main& sub-spindle:       33.8"
Main Spindle:
  Spindle Speed:                            4500 RPM
  Spindle Nose:                              A2-6
  Draw Tube ID:                             2.6"
  Spindle Bore Diameter:                    2.99"
  AC High Torque Spindle Motor:             20HP
Main Spindle C-Axis:
  Min. Programmable Angle:                  .001 degrees
Y-Axis:
  Travel:                                   3.94"
  Rapid Traverse Rate:                      295 IPM
  Repeatability:                            .00012"
Bed,Saddle,Cross Slide:
  Travel (X/Z-Axis):                        9.8"/22.8"
  Rapid Traverse Rate (X/Z-Axis):           788/945 IPM
  Ball Screw Diameter (X/Z-Axis):           1.3"/1.3"

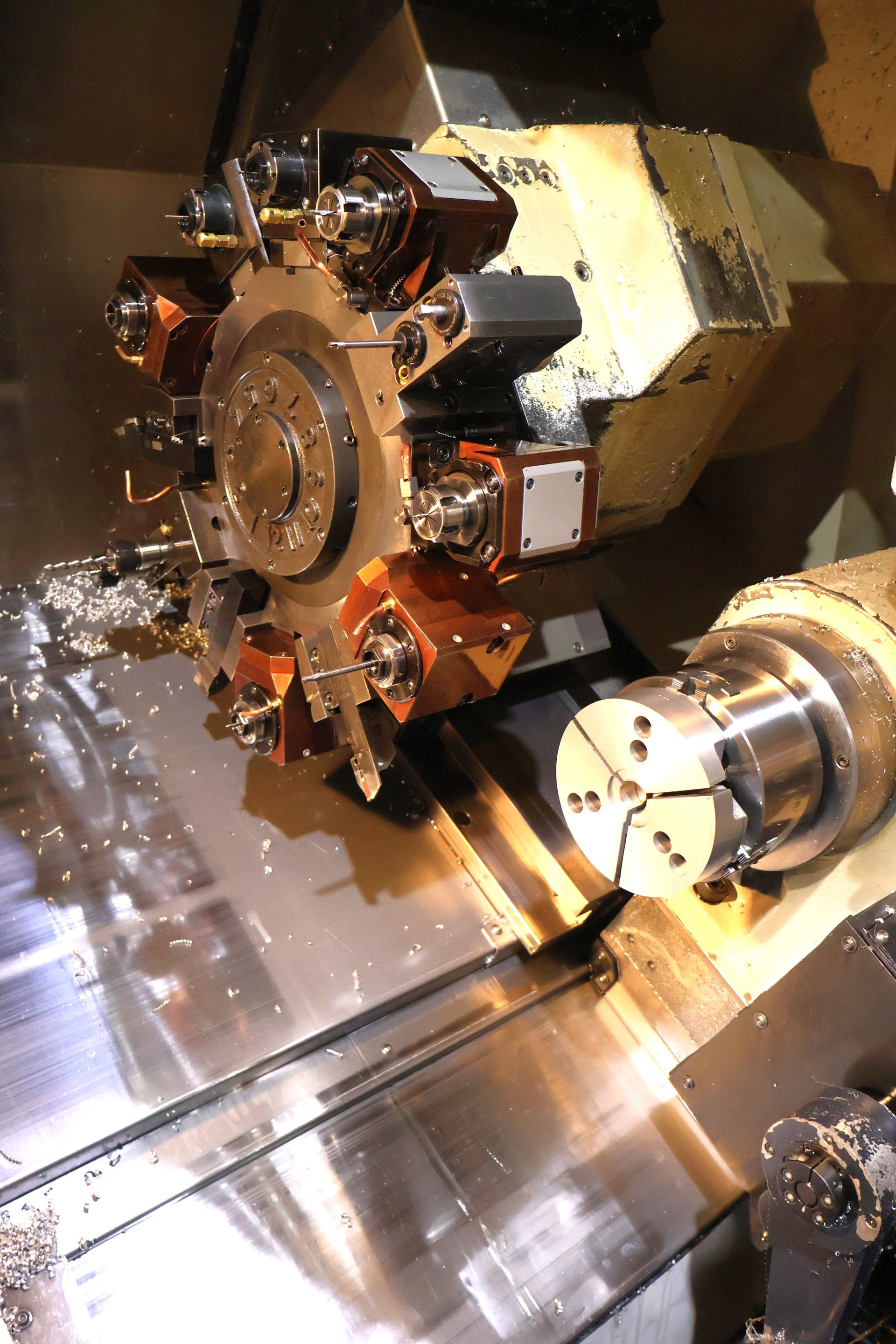

Turret:
  # of Tools:                               12
  Turning Tool Shank Size:                  1"
  Boring Bar Diameter (main spindle):       1.5"
  Boring Bar Diameter (sub-spindle):        .75"
  Turret Index Time (next station):         0.1 seconds
  Tool Selection:                           Bi-Directional
Rotating Tools:
  RPM:                                      6000 RPM
  Spindle Motor (15 min ratings):           7.5 HP
  Torque:                                   17.4 ft-lbs
  Collet Type:                              ER25
  Collet Capacity:                          1/16" - 5/8"
Sub-Spindle:
  B-Axis Travel:                            22.8"
  Speed:                                    6,000 RPM
  Motor:                                    10 HP
  Spindle Nose:                             A2 #5
  Spindle Bore:                             1.77"
  Draw Tube ID:                             1.38"
  Rapid Traverse Rate:                      787 IPM
  Min. Programmable Angle:                  .001 Degree (Full C-Axis)
Coolant System:
  Pump Pressure:                            65 PSI
  Pump Motor:                               1.2 HP
  Tank Capacity:                            39 Gallons
  Hydraulic Tank Capacity:                  2.6 Gallons
Dimensions (approx.):                       123" x 67"
Weight (approx.):                           11,500 lbs

Equipped with:

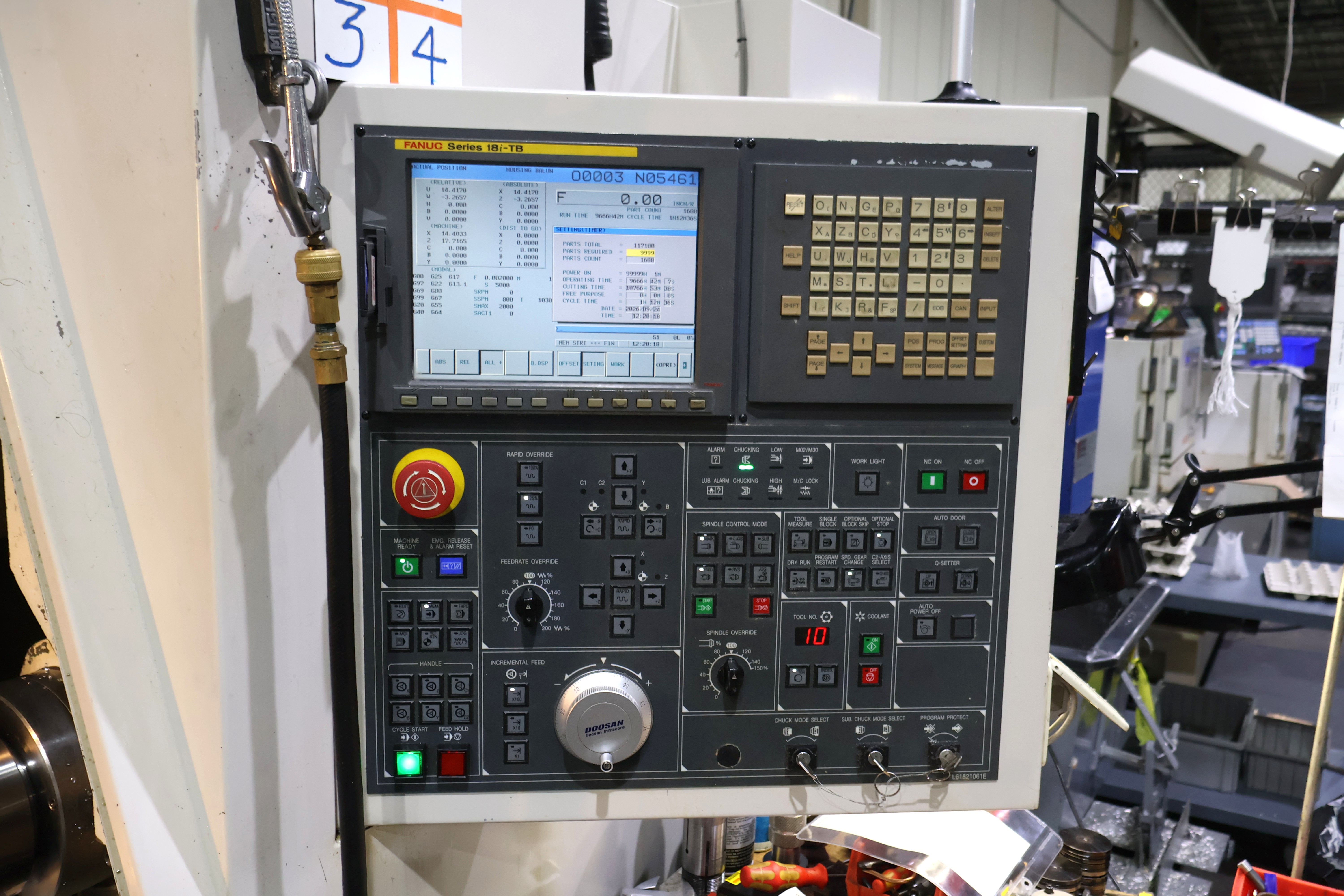

  Fanuc 18iTB CNC Control
  Tool Setter

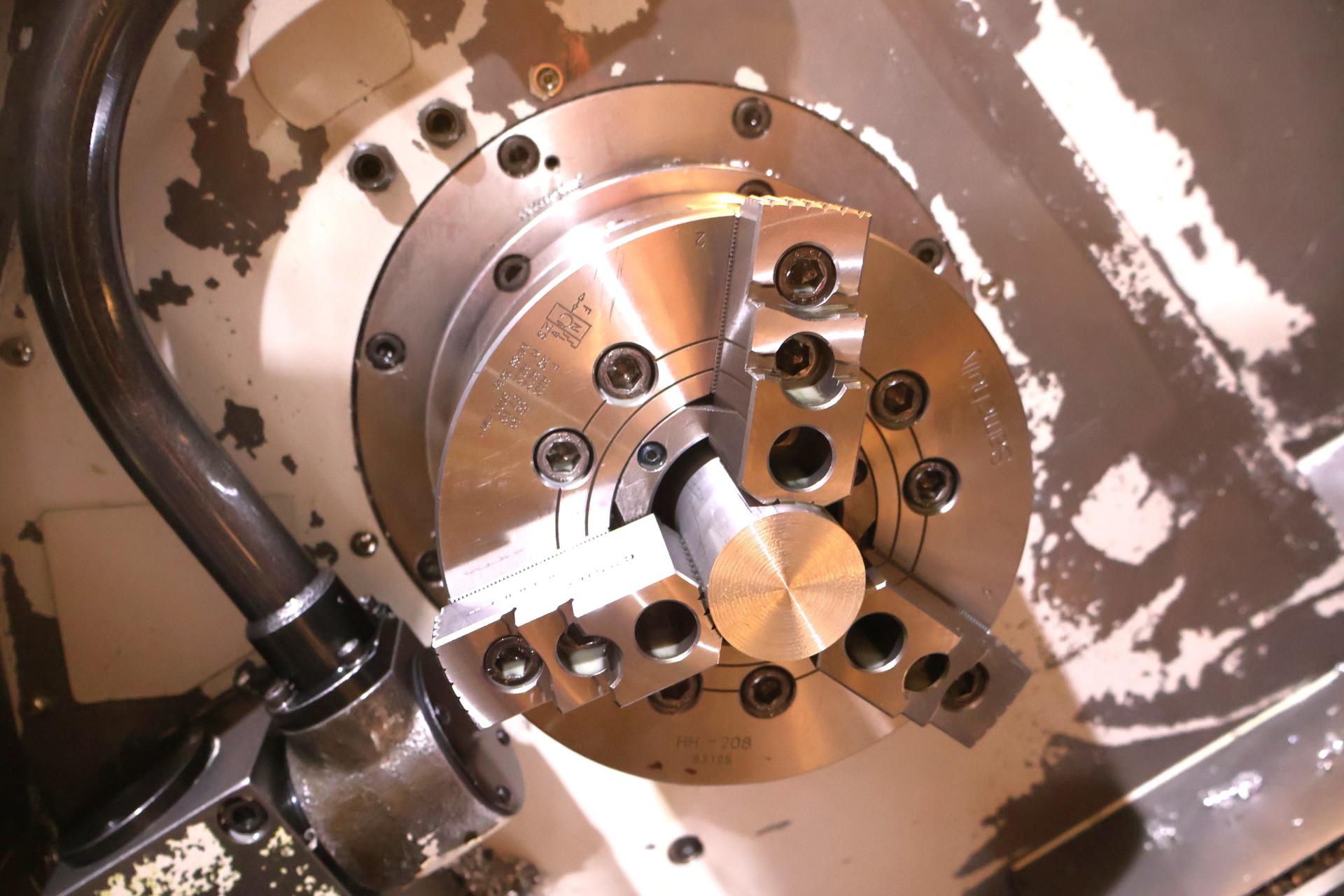

  8" Samchully 3-Jaw Chuck on Mainspindle
  6" 3-Jaw Chuck on Subspindle
  12 Station Turret
  Parts Catcher
  Chip Conveyor
  LNS Quickload Servo S2 Magazine Barfeed
  All Available Static Toolholders
  All Available Manuals
