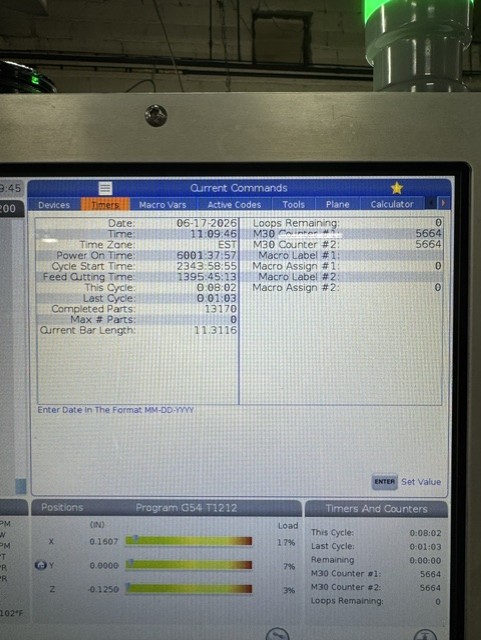

Haas ST-15Y - LOW HOURS CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Haas

Model:: ST-15Y - LOW HOURS

Year:: 2023

Ref #:: 179405

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

HAAS ST-15Y CNC TURNING CENTER
NEW: 2023

VIDEO LINK: https://youtu.be/GZw5TvP0q4k?si=-BeU8e_QGP3jp7EY

Capacities
Chuck Size: 8.3 in
Max Part Swing: 16.5 in
Max Cutting Diameter (with BMT45 turret): 11.00 in
Max Cutting Length (varies with workholding): 16.0 in
Bar Capacity 2.50 in 64 mm

Travels
X Axis 7.88 in
Y Axis ± 2.0 in
Z Axis 16.00 in

Feedrates
Rapids on X 472 ipm 12.0 m/min
Rapids on Y 472 ipm 12.0 m/min
Rapids on Z 1200 ipm 30.5 m/min

Axis Motors S.A.E METRIC
Max Thrust X 2400 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 3700 lbf

Spindle S.A.E METRIC
Spindle Nose A2-6
Max Rating 20.0 hp 14.9 kW
Max Speed 4000 rpm
Max Torque 150.0 ft-lbf @ 500 rpm
Spindle Bore ø 3.50 in

Main Spindle C Axis
Max Rating 5.0 hp 3.7 kW
Max Speed 60 rpm
Positioning (±) 0.01 °
Brake Diameter 13.9 in
Brake Holding Torque 250 ft-lbf
Control Type Interpolated Motion and Positioning Interpolated Motion and Positioning

Tailstock
Taper MT3
Hydraulic Quill Travel 3.8 in
Manual Body Positioning 20.0 in
Max Thrust (Hyd. Quill Only) 1130 lbf
Min Thrust (Hyd. Quill Only) 140 lbf

Turret
Number of Tools 12 Stations
Boring Bar Rear Clearance (from back of turret )3.80 in
Live Tooling
Max Speed 4000 rpm
Tooling BMT45
Spindle Power 20.0 hp 14.9 kW

EQUIPPED WITH:
 - HAAS CNC CONTROL
 - TOOLSETTER
 - 8" 3-JAW HYD. CHUCK
 - PARTS CATCHER
 - 12 POSITION BMT 45 TURRET
 - TAILSTOCK
 - CHIP CONVEYOR
 - HAAS BARFEEDER
 - (4) LIVE TOOLHOLDERS
 - ALL AVAILABLE STATIC TOOLHOLDERS
