Gildemeister CTX-320 Linear CNC TURNING CENTERS - CNC LATHES

$39,500

Make:: Gildemeister

Model:: CTX-320 Linear

Year:: 2004

Ref #:: 163620

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

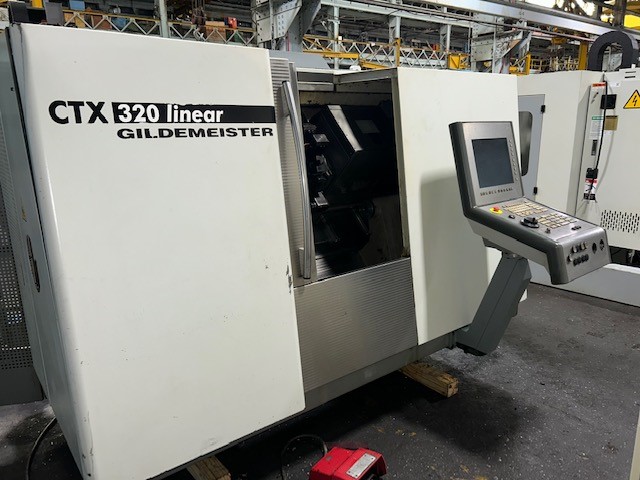

GILDEMEISTER CTX-320 LINEAR MULTI-AXIS CNC TURNING CENTER
NEW: 2004

VIDEO LINK: https://youtu.be/ItkKslTDlTc

SPECIFICATIONS:
SWING OVER BED ................. 15.74"
SWING OVER CROSS SLIDE ......... 11.81"
MAX. TURNING DIAMETER .......... 9.68"
DISTANCE BETWEEN CENTERS ....... 23.6"
BAR CAPACITY ................... 1.96"
X-AXIS TRAVEL .................. 8.26"
Z-AXIS TRAVEL .................. 17.71"
MAX. SPINDLE SPEED ............. 6000 RPM
SPINDLE POWER .................. 16kW
TAILSTOCK TRAVEL ............... 15.74"
TURRET TYPE .................... SAUTER 05.456.416
NUMBER OF TOOLS ................ 12 (ALL STATIONS DRIVEN)
TOOL SYSTEM .................... VDI 30 (AXIAL)
DRIVEN TOOLS SPEED ............. 5000 RPM
C-AXIS INDEXING ................ 0.001 DEGREE
APPROX. DIMENSIONS ............. 153" X 62" X 75"
APPROX. WEIGHT ................. 9,000 LBS

EQUIPPED WITH:
  - FANUC 180i CNC CONTROL
  - C& Y AXES

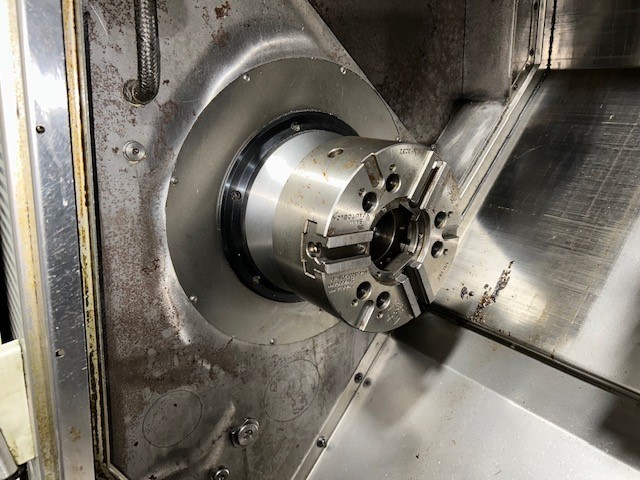

  - 8" SMW HYD. CHUCK

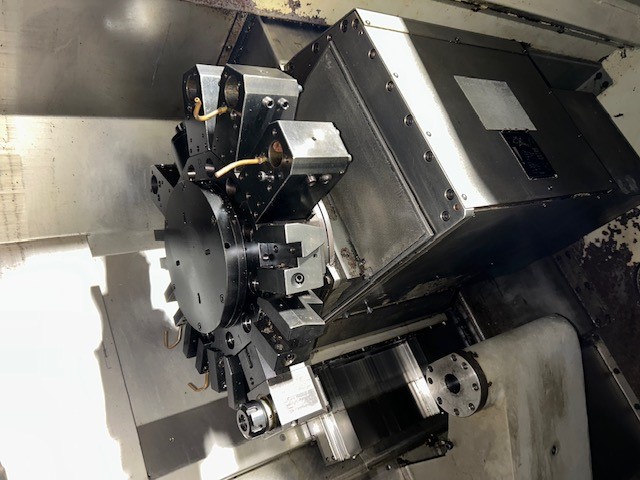

  - 12 POSITION TURRET

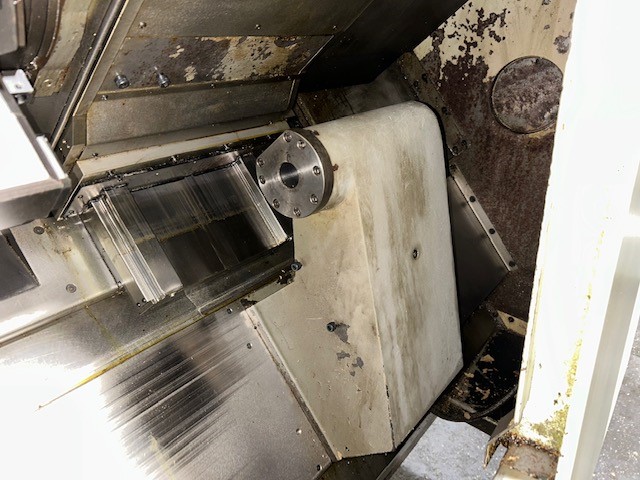

  - TAILSTOCK
  - CHIP CONVEYOR
  - LIVE TOOLHOLDERS
  - ALL AVAILABLE STANDARD TOOLHOLDERS
  - ALL AVAILABLE MANUALS
