Hwacheon HI-TECH 200B CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hwacheon

Model:: HI-TECH 200B

Year:: 2019

Ref #:: 178712

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

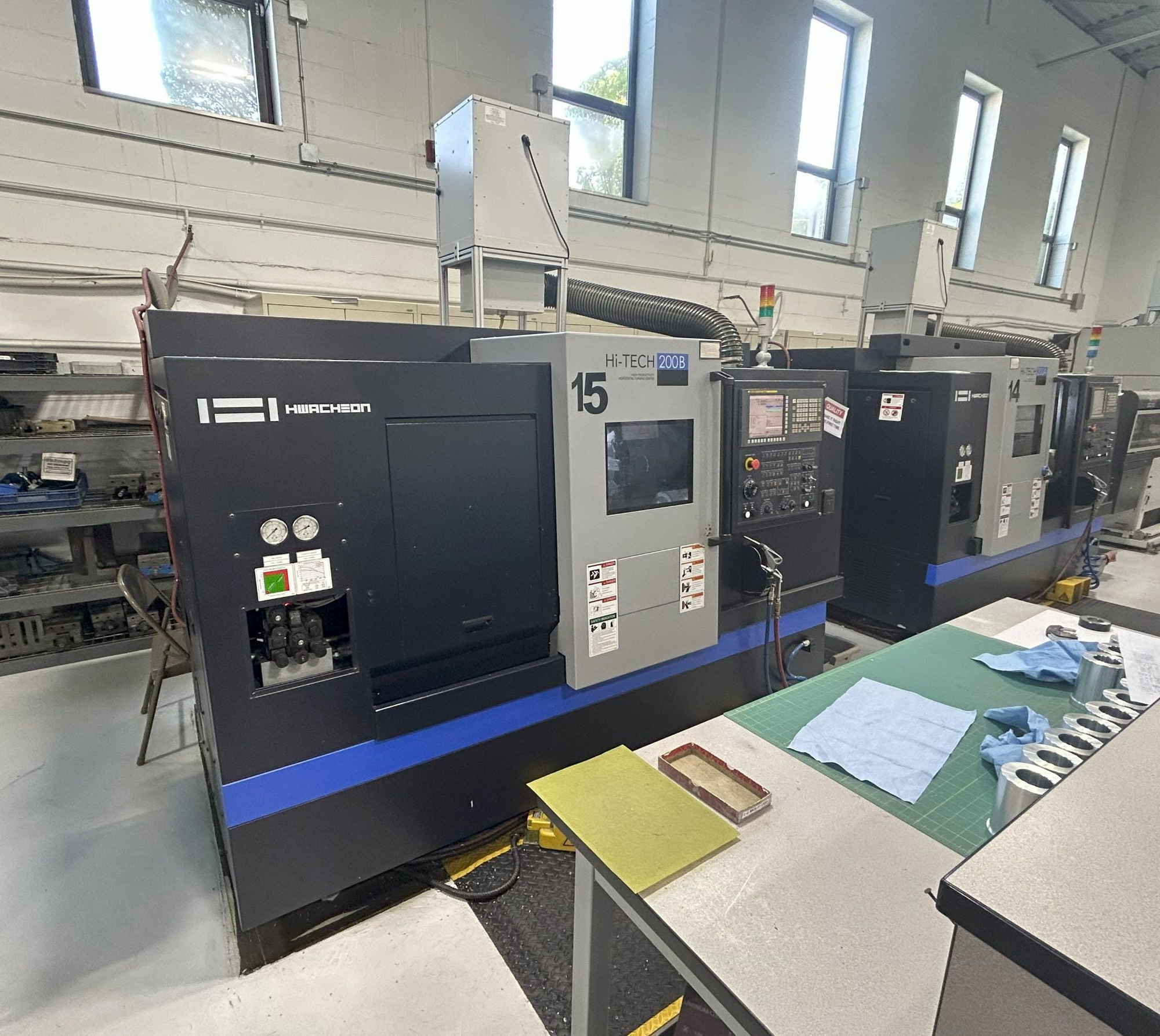

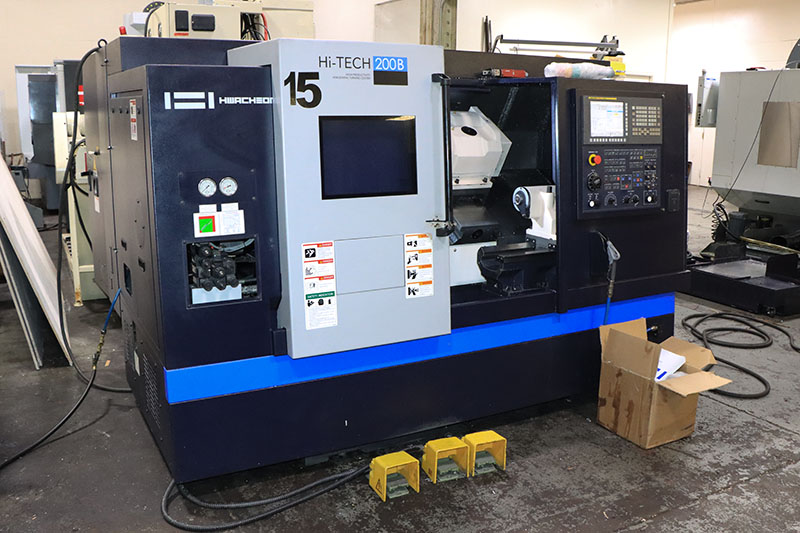

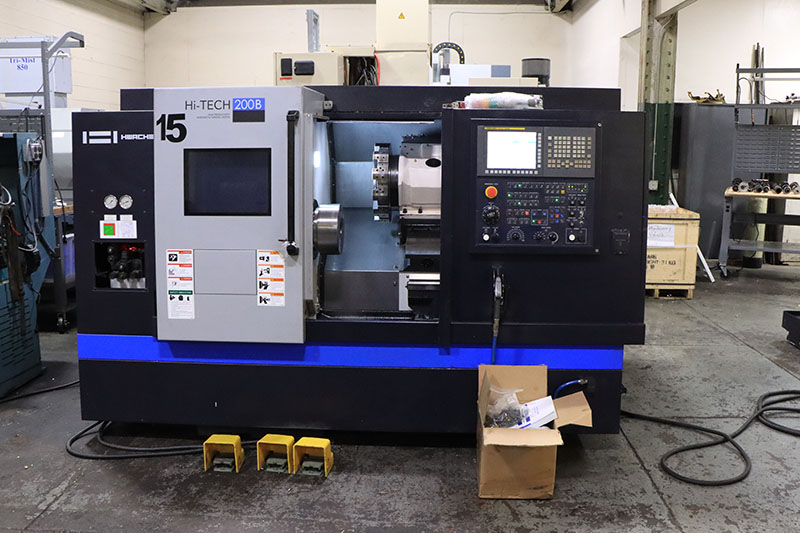

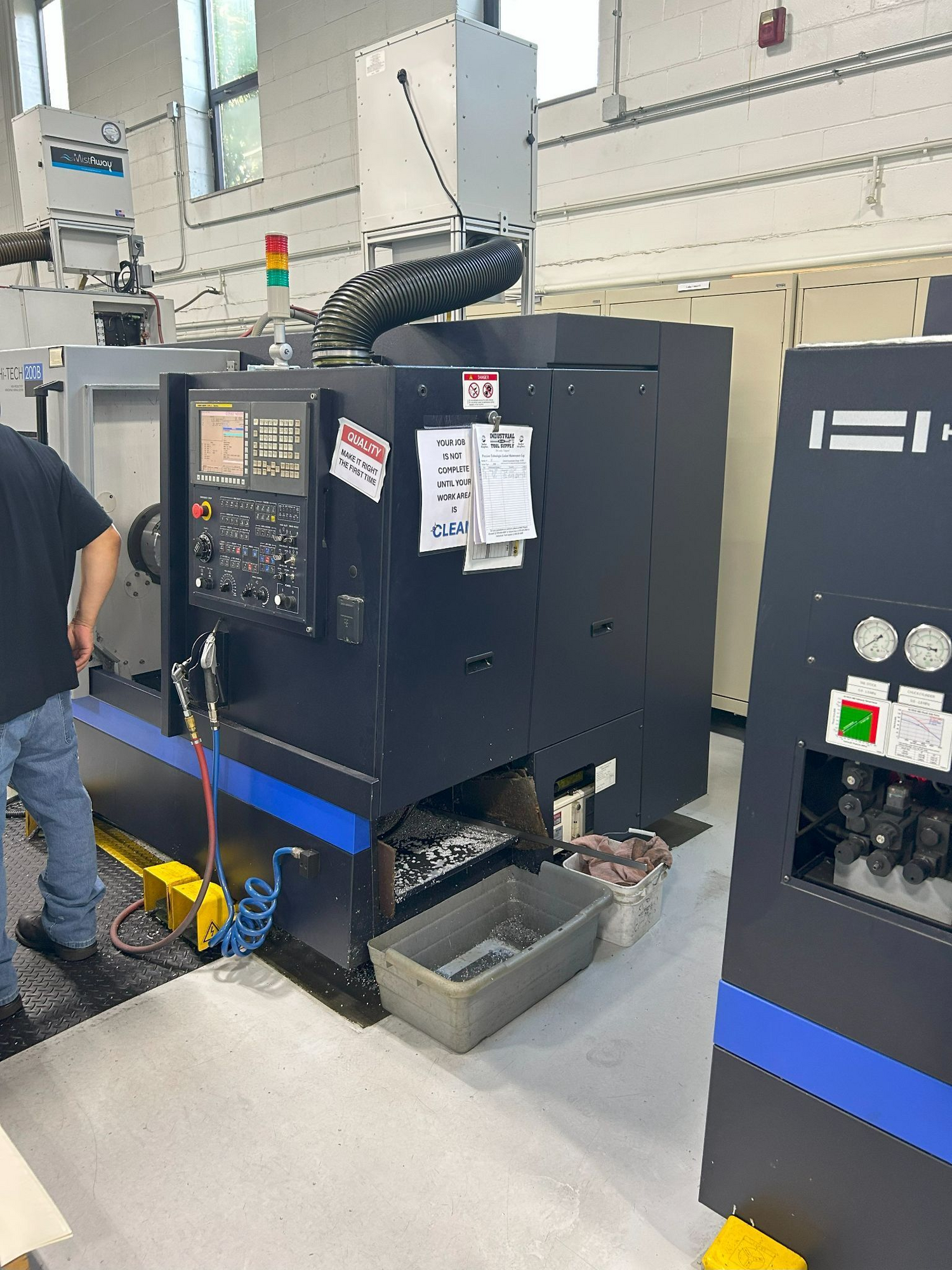

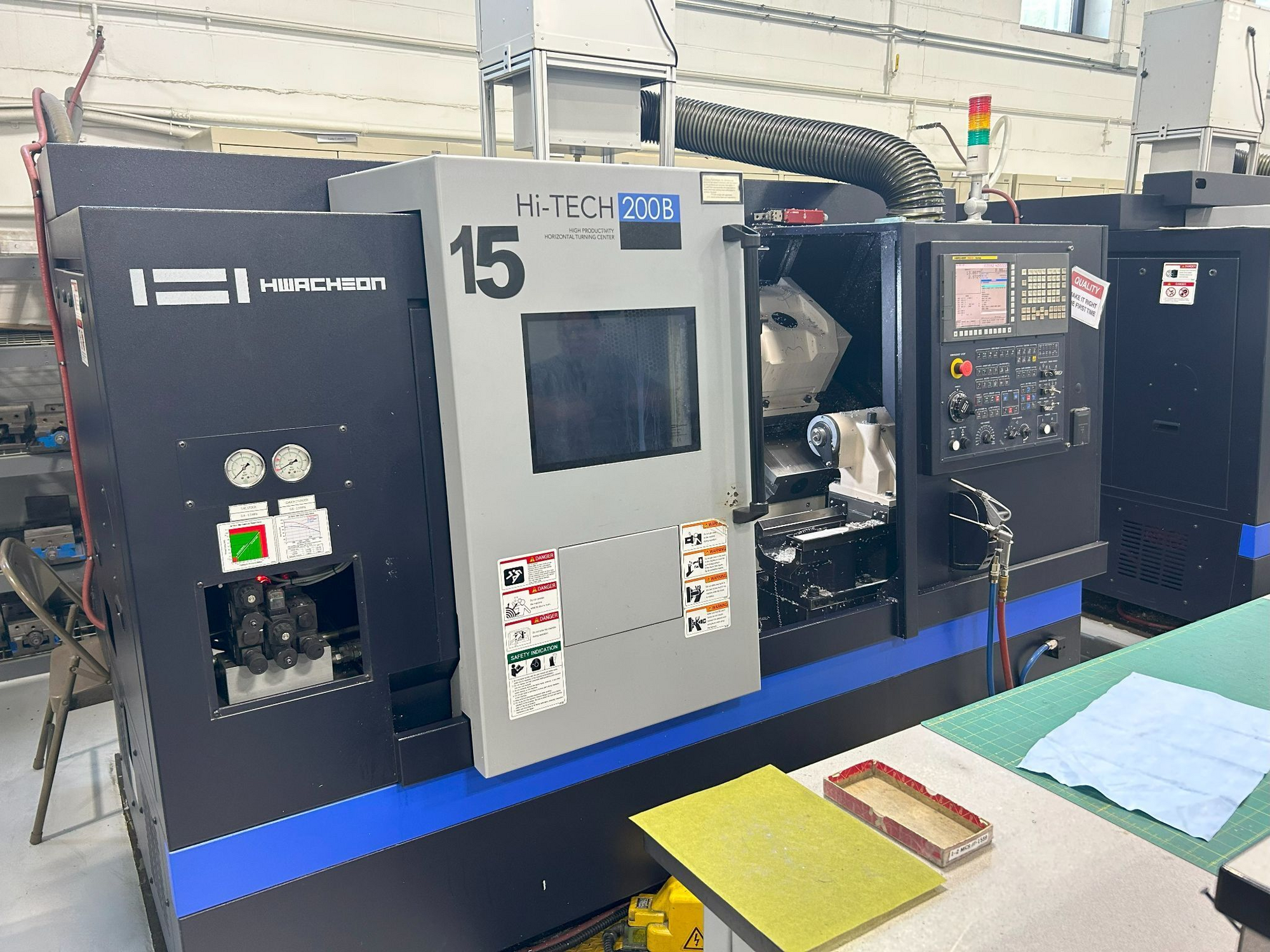

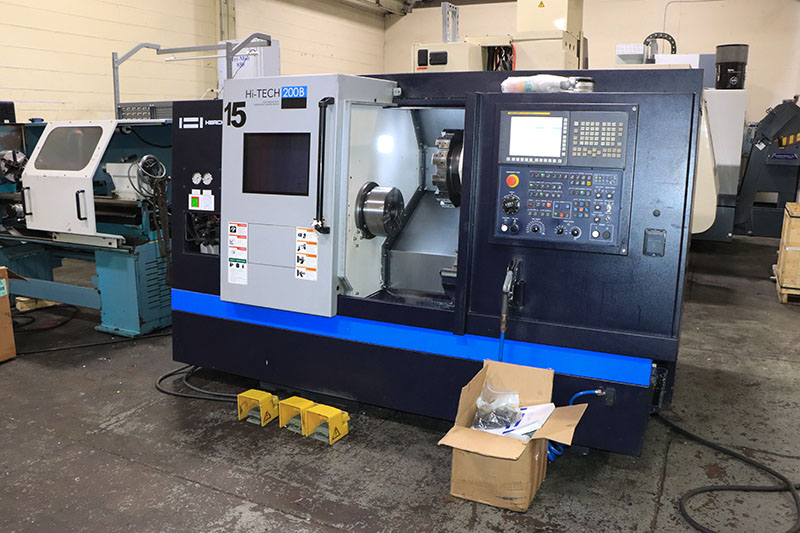

HWACHEON Hi-TECH 200B CNC TURNING CENTER
New: 2019

video link: https://youtu.be/PpDOg9RaofE?si=rk3CPttXrjBWIQUz

Specifications:

Swing Over Bed: 19.68"
Max. Turning Diameter: 13.8"
Machining Length: 15.75"
X-Axis Travel: 7.67:
Z-Axis Travel: 16.93"
Chuck Size: 10"
Spindle Nose: A2-6
Bar Capacity: 2.5"
Spindle Motor: 20/15 hp
Max. Spindle Speed: 3,500 RPM
Number of Turret Tool Stations: 12
Tool Size: 1" x 1.57"

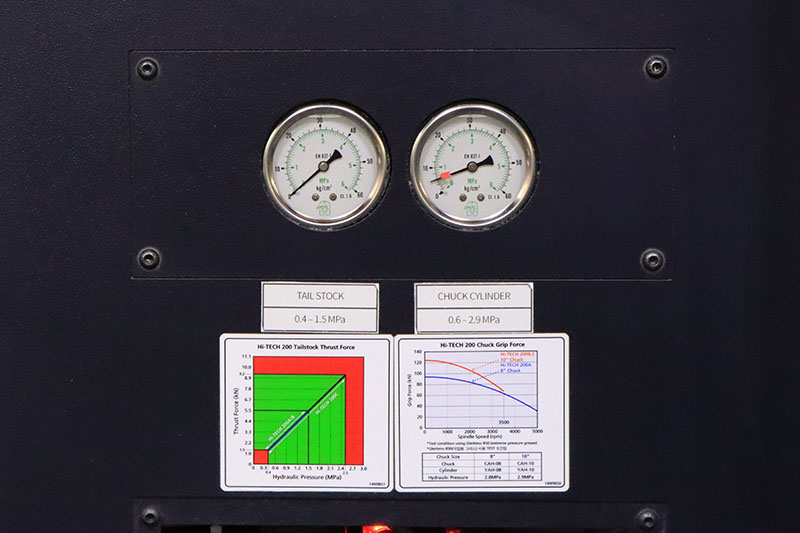

Tailstock Quill Diameter: 3.15"
Tailstock Quill Stroke: 3.94"
Tailstock Quill Taper: MT#4
Power Supply: 30kVA
Dimensions 104" x 66" x 68" High
Approx. Weight 9,300 Lbs

Equipped With:

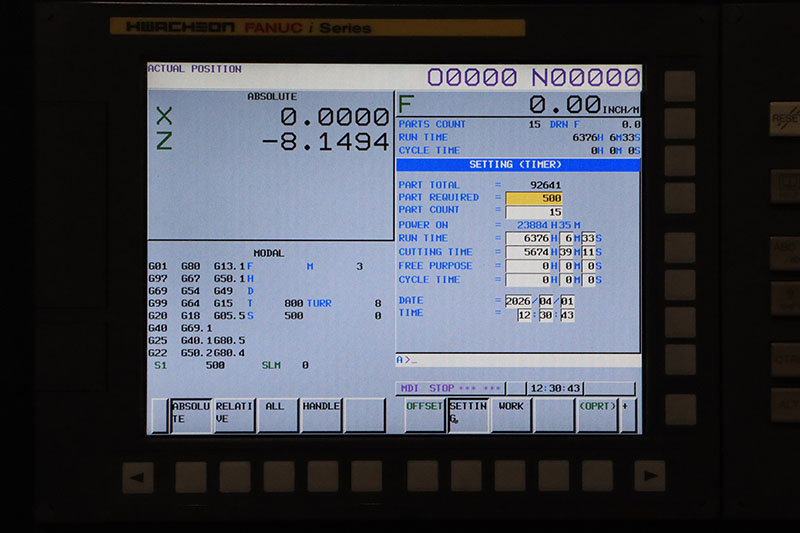

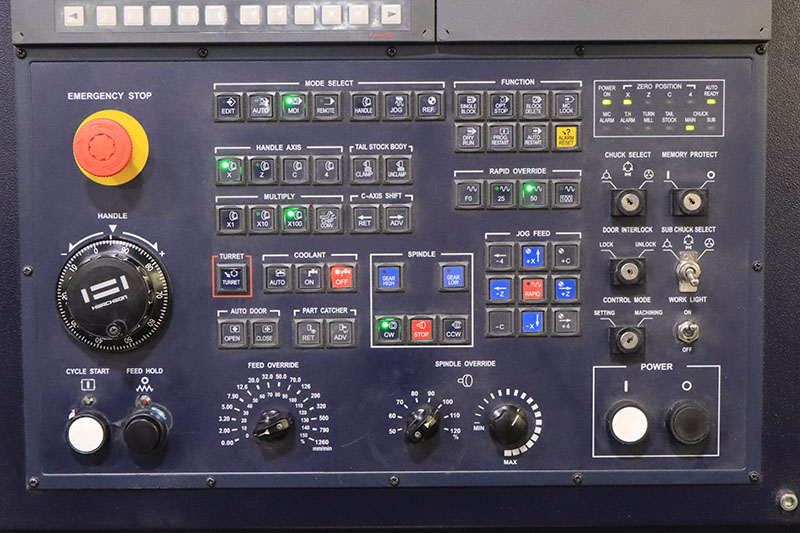

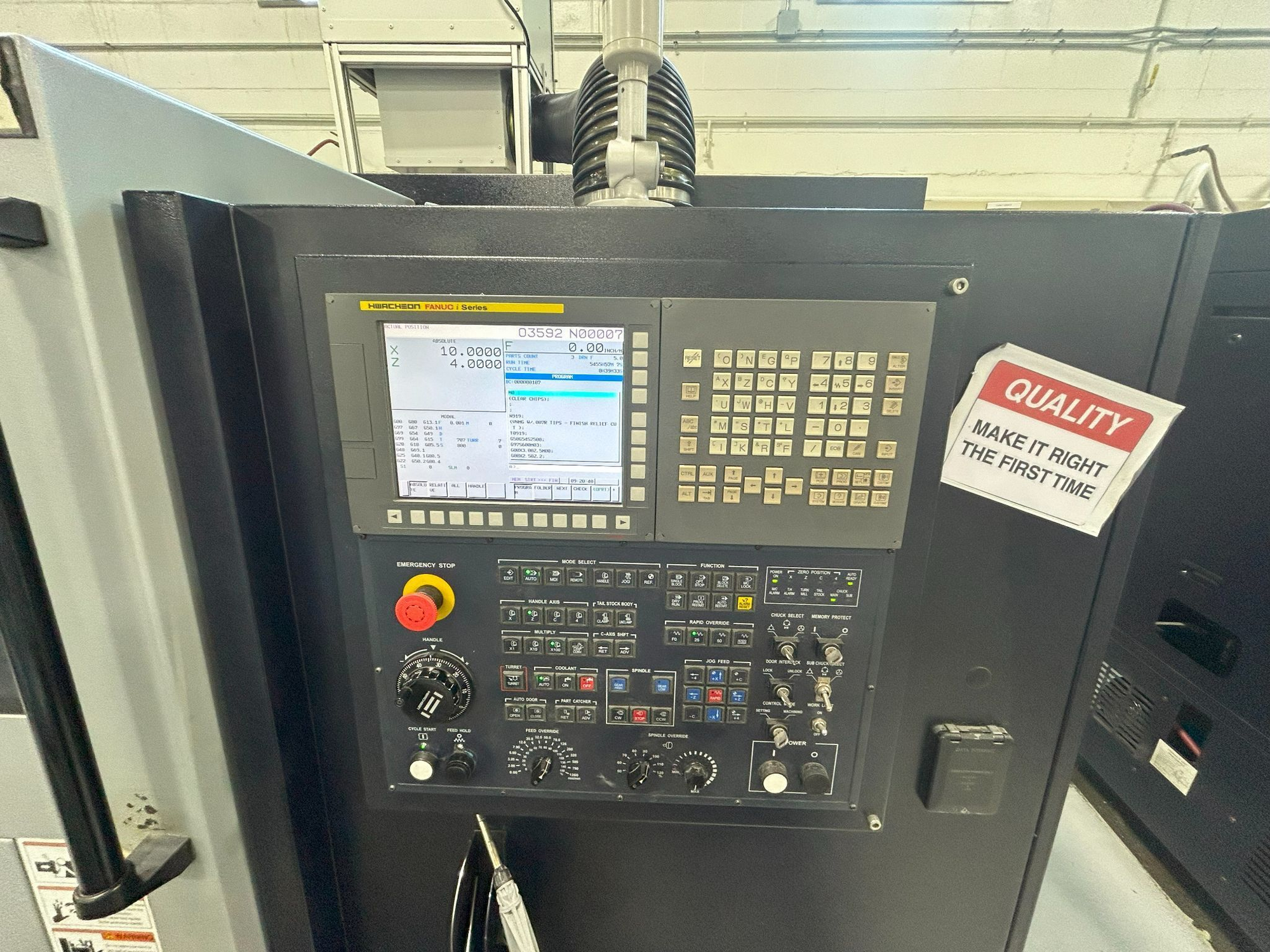

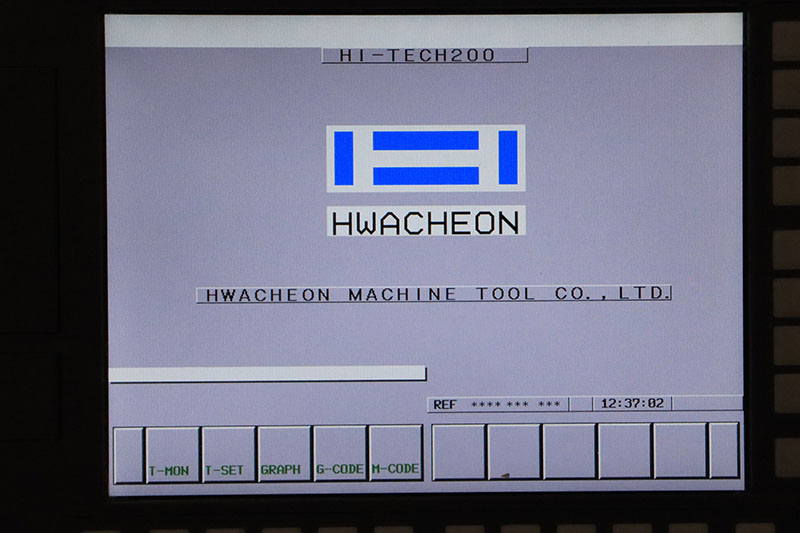

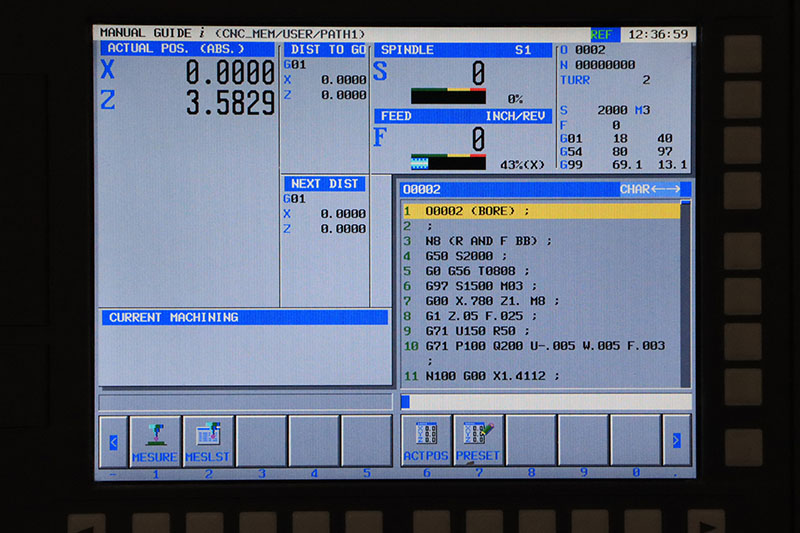

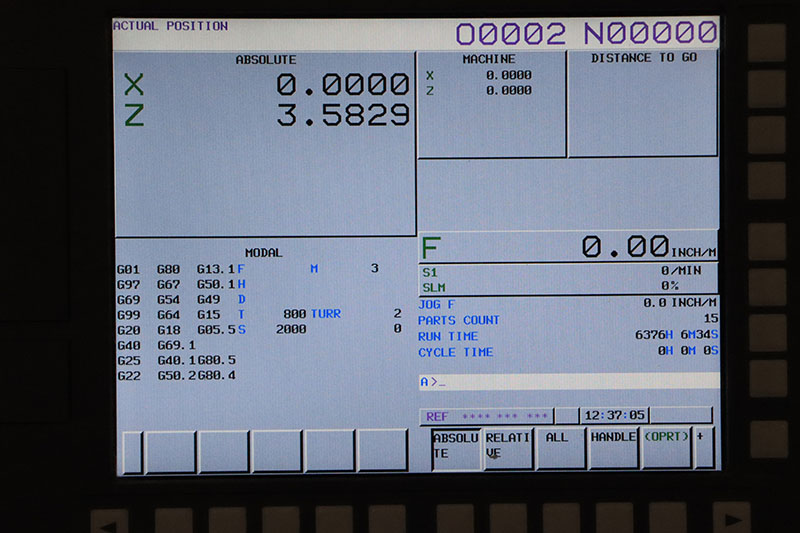

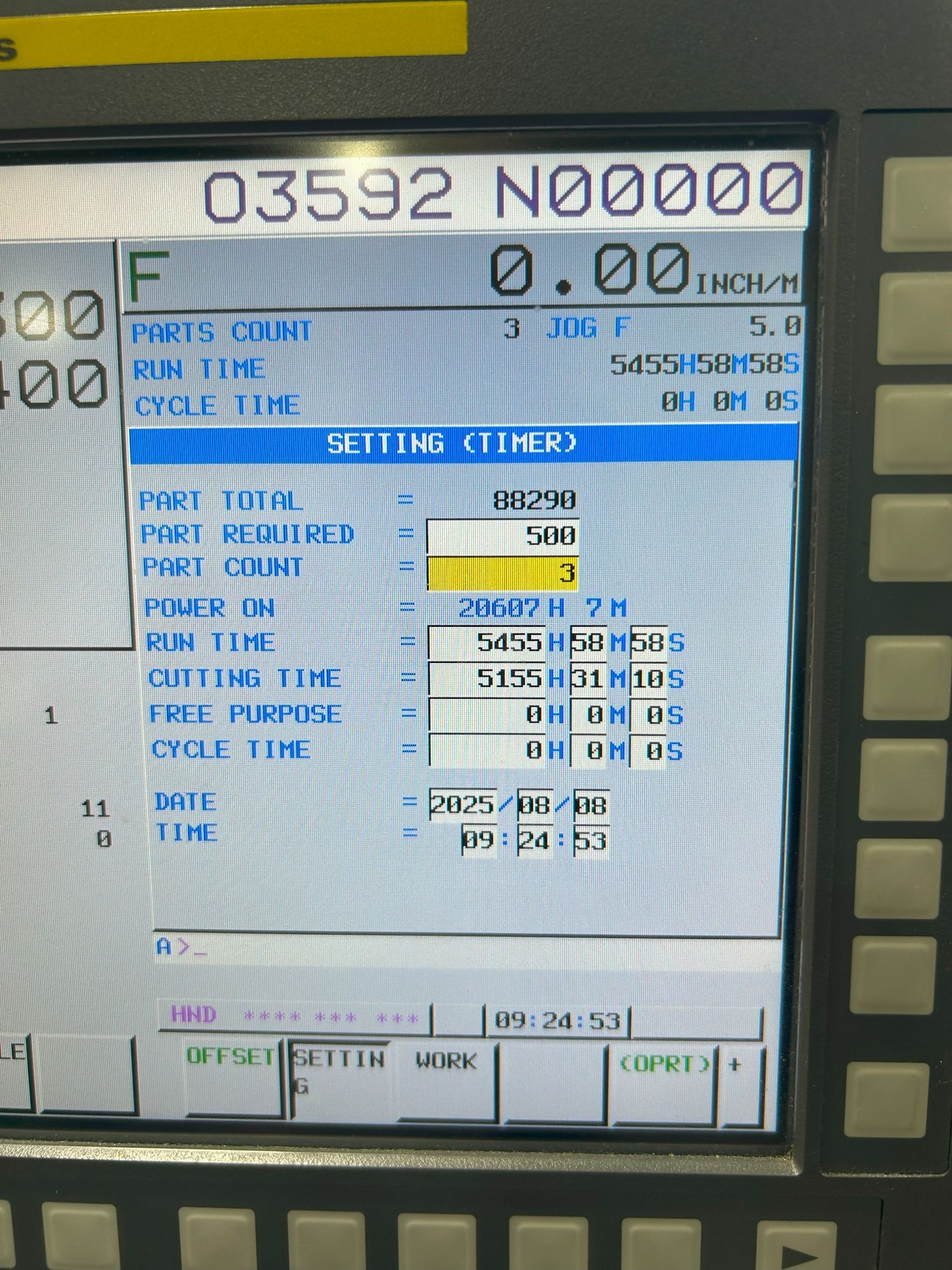

 - Fanuc 0i-TD CNC Control

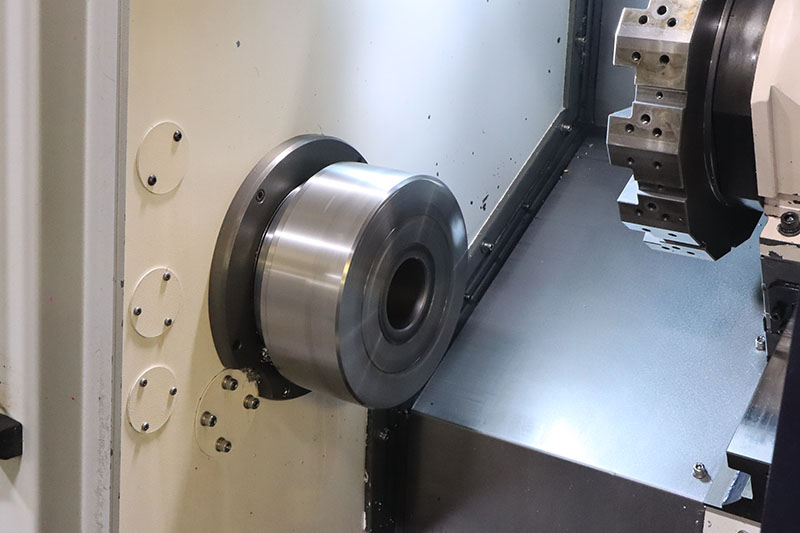

 - 10" 3-Jaw Hydraulic Chuck

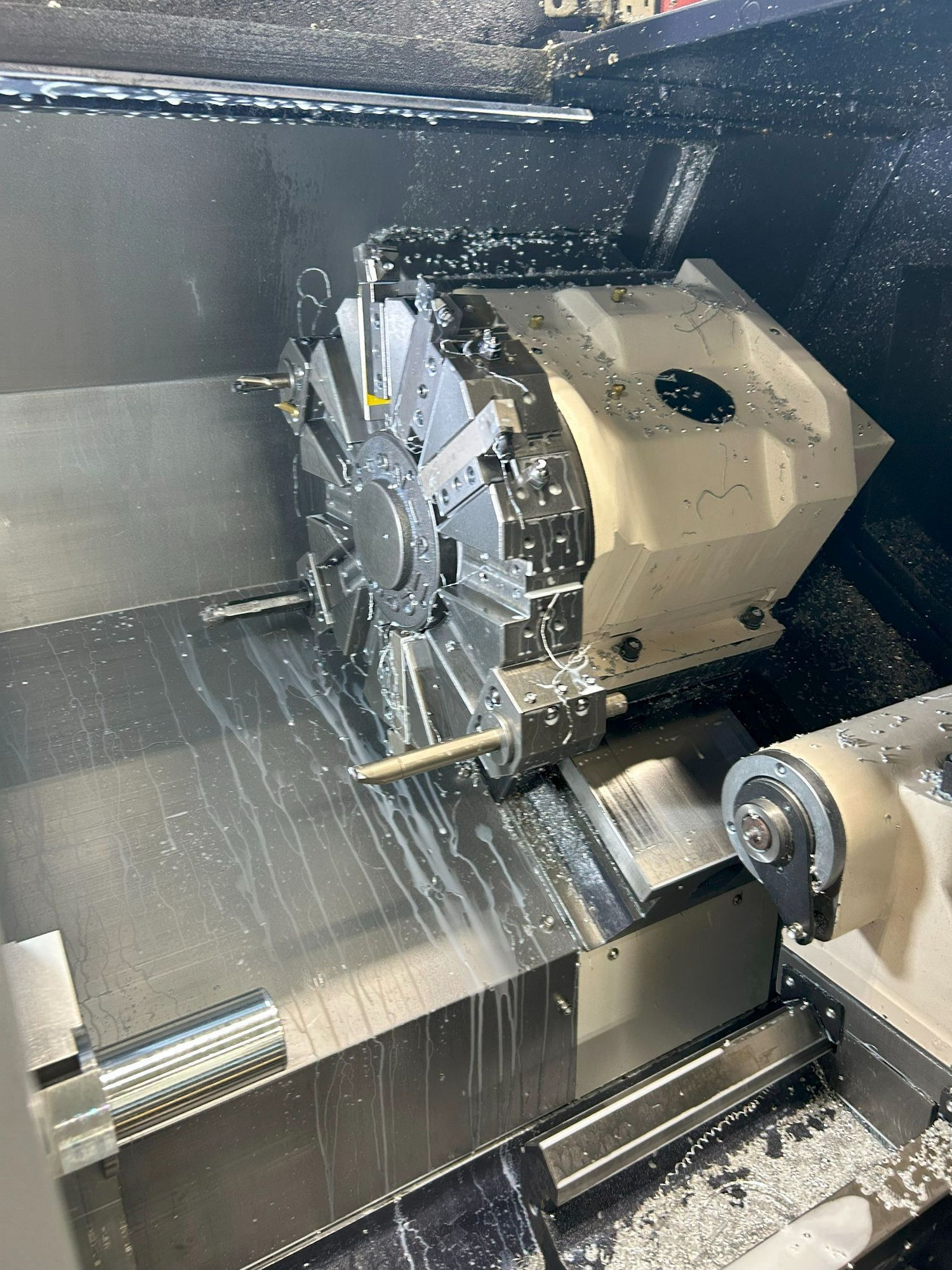

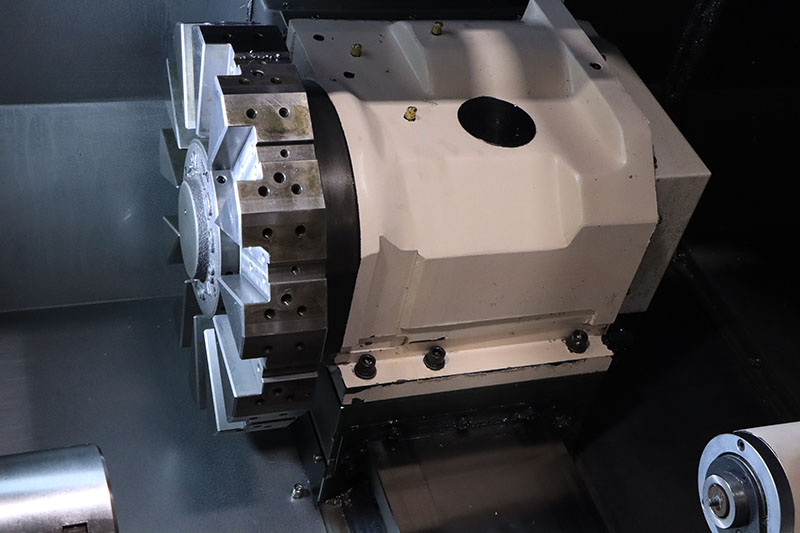

 - 12 Position Turret

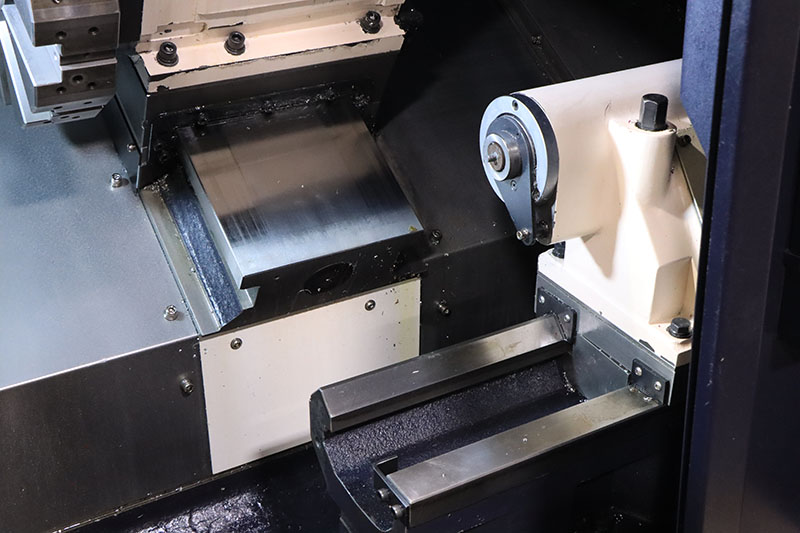

 - Tailstock

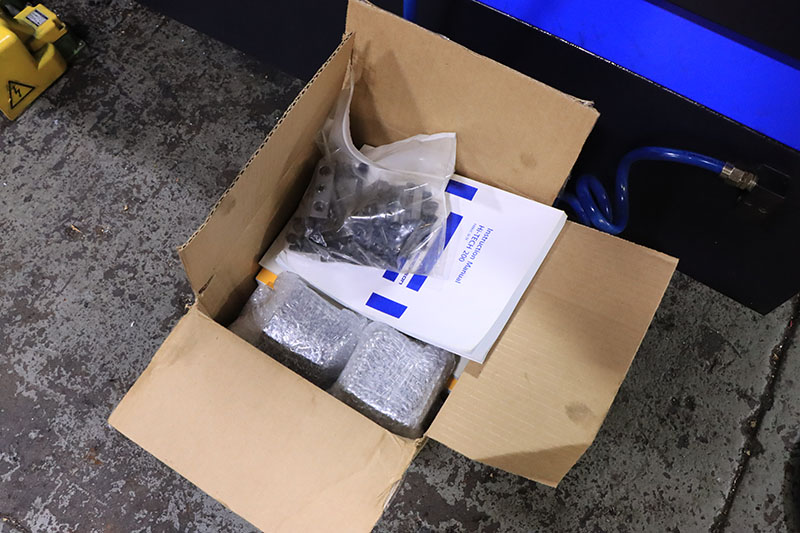

 - All Available Toolholders and Manuals
