Doosan HP4000 II HORIZONTAL MACHINING CENTERS (HMC's)

$129,500

Make:
Doosan
Model:
HP4000 II
Year:
2014
Ref #:
164201

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


DOOSAN 4-AXIS HORIZONTAL MACHINING CENTER
MODEL: HP 4000 II, NEW: 2014

SPECIFICATIONS:
PALLET SIZE .......................... 15.75" X 15.75" (400MM)
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 23.6"
  Y-AXIS TRAVEL ...................... 22.0"
  Z-AXIS TRAVEL ...................... 23.6"
SPINDLE NOSE TO PALLET CENTER  ....... 5.91" - 29.53"
SPINDLE CENTER TO PALLET TOP ......... 1.97" - 24.02"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING ...................... .001 DEGREE
MAXIMU WORKPIECE WEIGHT .............. 880 LBS
PALLET CHANGE TIME ................... 7 SECONDS
RAPID TRAVERSE RATE (X/Y/Z) .......... 2,362 IPM
MAX CUTTING FEED RATE ................ 2,362 IPM
SPINDLE TAPER ........................ CAT #40 BIG PLUS
SPINDLE SPEEDS ....................... 0 - 14,000 RPM
TOOLCHANGER CAPACITY ................. 80 STATIONS
MAXIMUM TOOL DIAMETER ................ 3"
MAX. TOOL DIA. WITHOUT ADJACENT TOOLS. 5.5"
MAXIMUM TOOL WEIGHT .................. 22 LBS
SPINDLE DRIVE ........................ 30 HP
APPROXIMATE DIMENSIONS ............... 200" x 102" x 113"
APPROXIMATE WEIGHT ................... 27,577 LBS.

EQUIPPED WITH:
-FANUC 31iB CONTROL

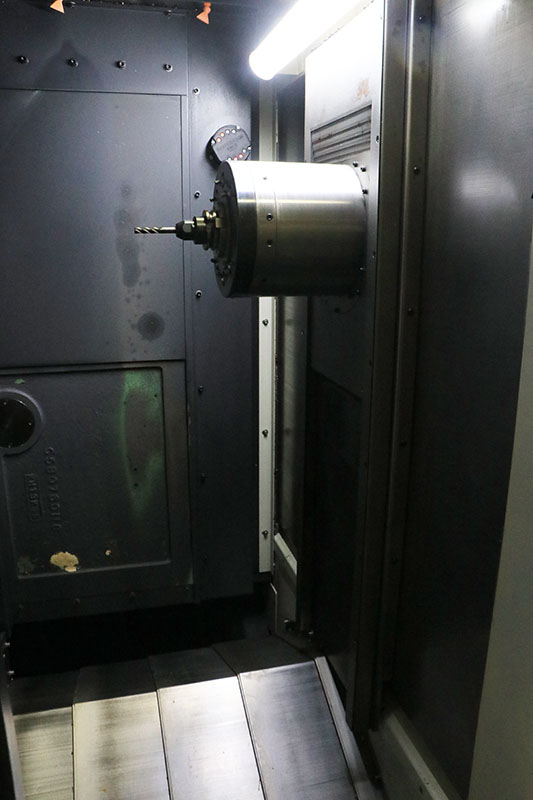

-30 HP HIGHPOWER SPINDLE DRIVE, 14,000 RPM SPINDLE
-THRU-SPINDLE COOLANT
-CHIP BLASTER 1,000 PSI UNIT

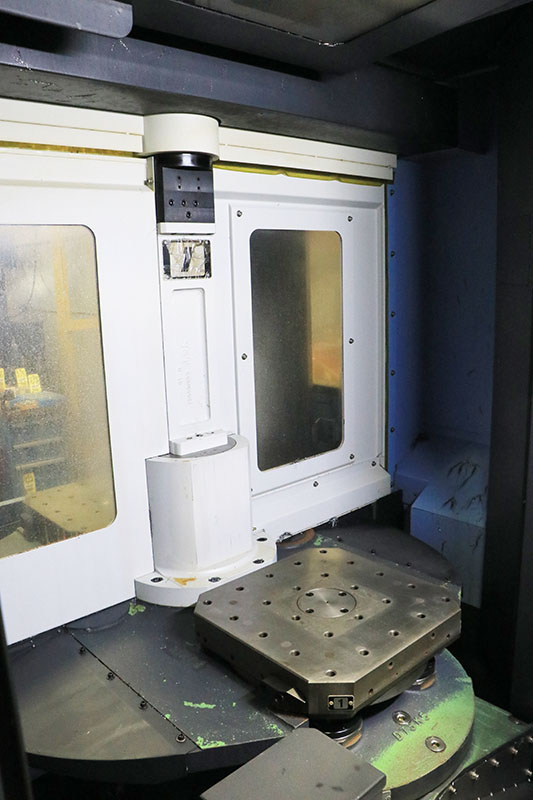

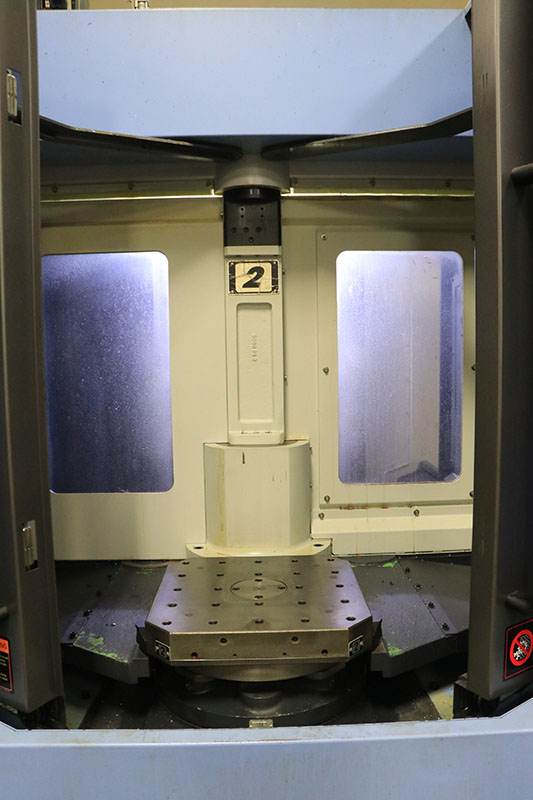

-2 PALLETS
-FULL 360,000 PROGRAMMABLE FOURTH AXIS
-RENISHAW OMP40 PART PROBE
-RENISHAW TOOL SETTING PROBE

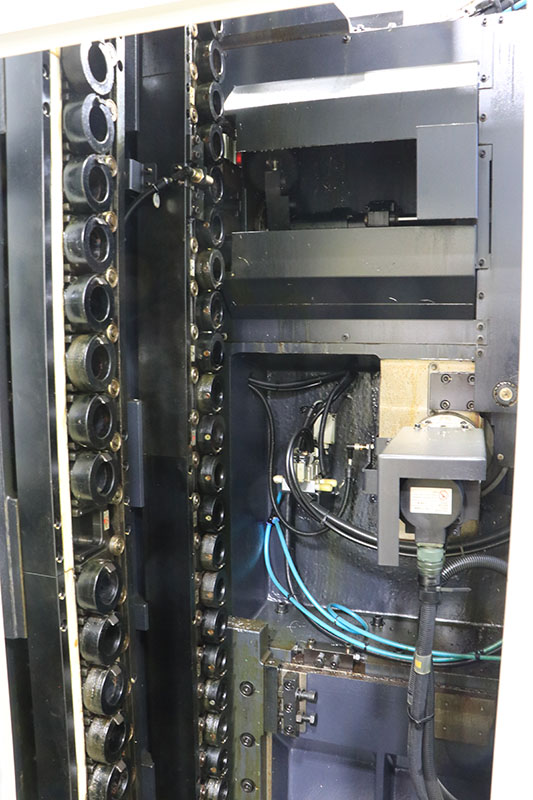

-80 STATION AUTOMATIC TOOL CHANGER

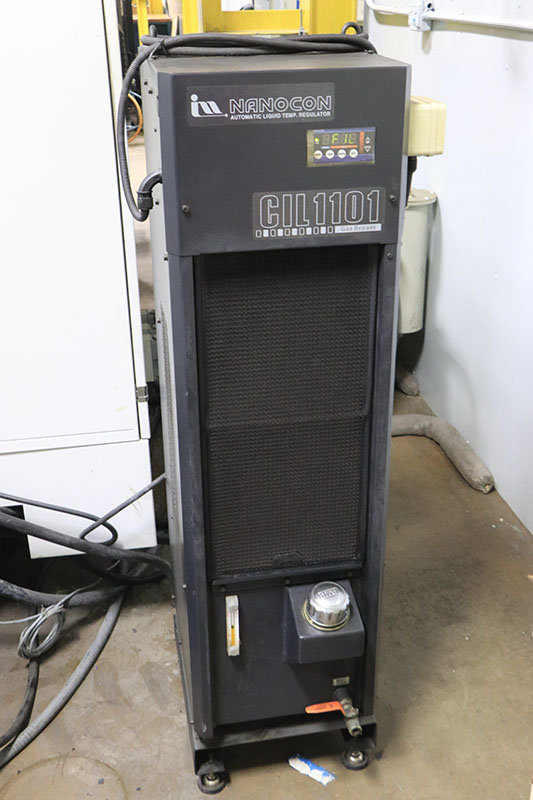

-CHILLER

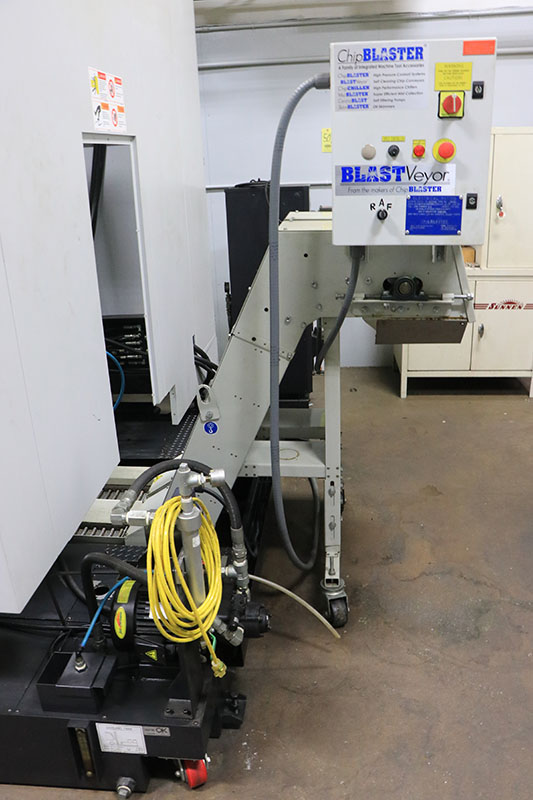

-CHIP BLASTER CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
