Doosan Puma 480 XL CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Doosan

Model:: Puma 480 XL

Year:: 2009

Ref #:: 162047

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

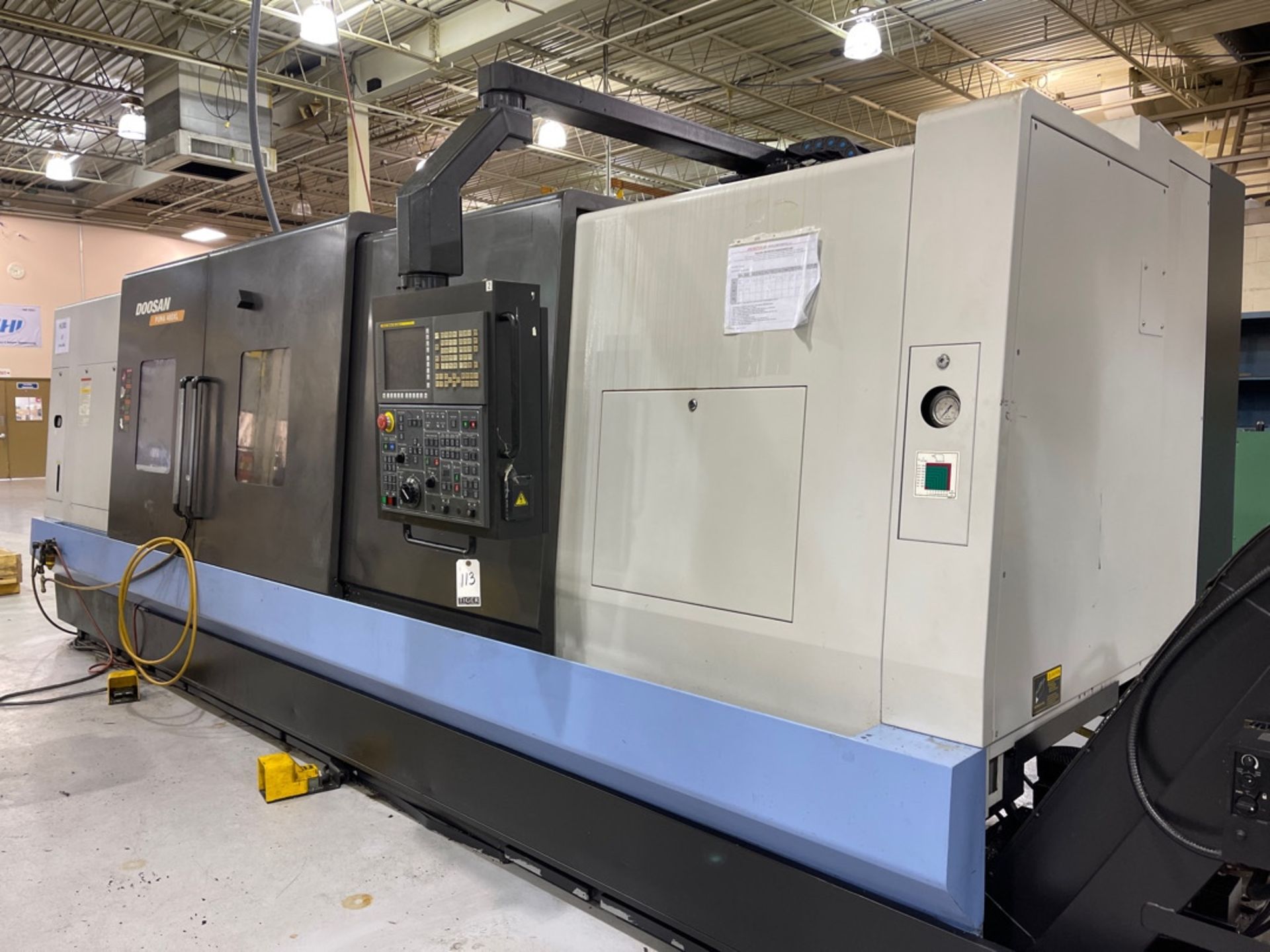

DOOSAN PUMA 480XL CNC TURNING CENTER
Year: 2009

SPECIFICATIONS:
SWING OVER BED ..................... 35.4"
SWING OVER SADDLE .................. 28.3"
MAX. TURNING DIAMETER .............. 25.6"
MACHINING LENGTH ................... 120.7"
CHUCK SIZE ......................... 24"
BAR CAPACITY ....................... 6.5"
X-AXIS TRAVEL ...................... 14.3"
Z-AXIS TRAVEL ...................... 122.0"
MAIN SPINDLE MOTOR ................. 60 HP
MAX. SPINDLE SPEED ................. 1,500 RPM
SPINDLE NOSE ....................... A1-15
SPINDLE THROUGH HOLE ............... 7.1"
NO. OF TOOL STATIONS ............... 12
BORING BAR DIAMETER ................ 3.1"
OD TOOL HEIGHT ..................... 1.3" X 1.3"
TAILSTOCK QUILL DIAMETER ........... 4.7"
TAILSTOCK QUILL TAPER .............. MT#6
TAILSTOCK QUILL TRAVEL ............. 4.7"
DIMENSIONS ......................... 96" H, 275" L, 91" W
WEIGHT ............................. 28,000 lbs

EQUIPPED WITH:

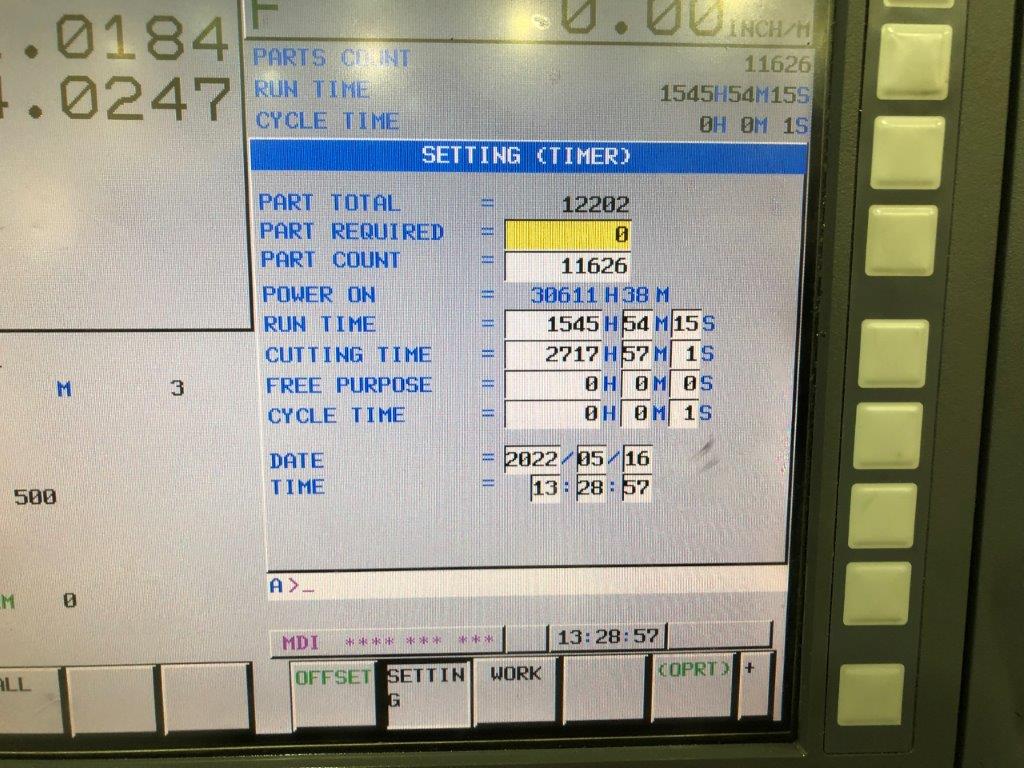

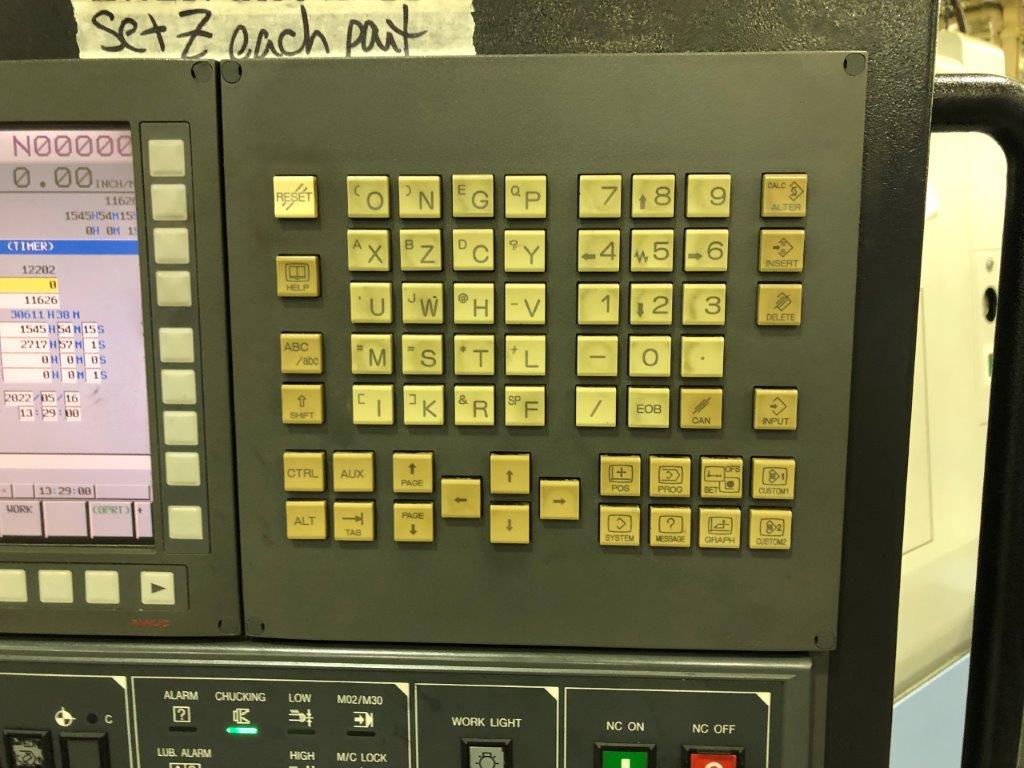

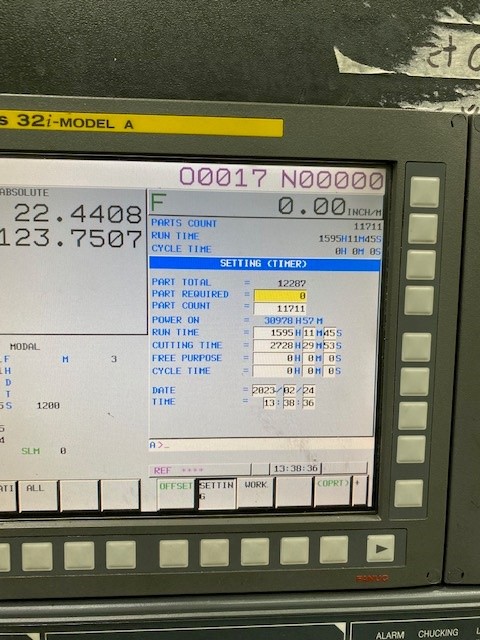

FANUC 32iA CNC CONTROL

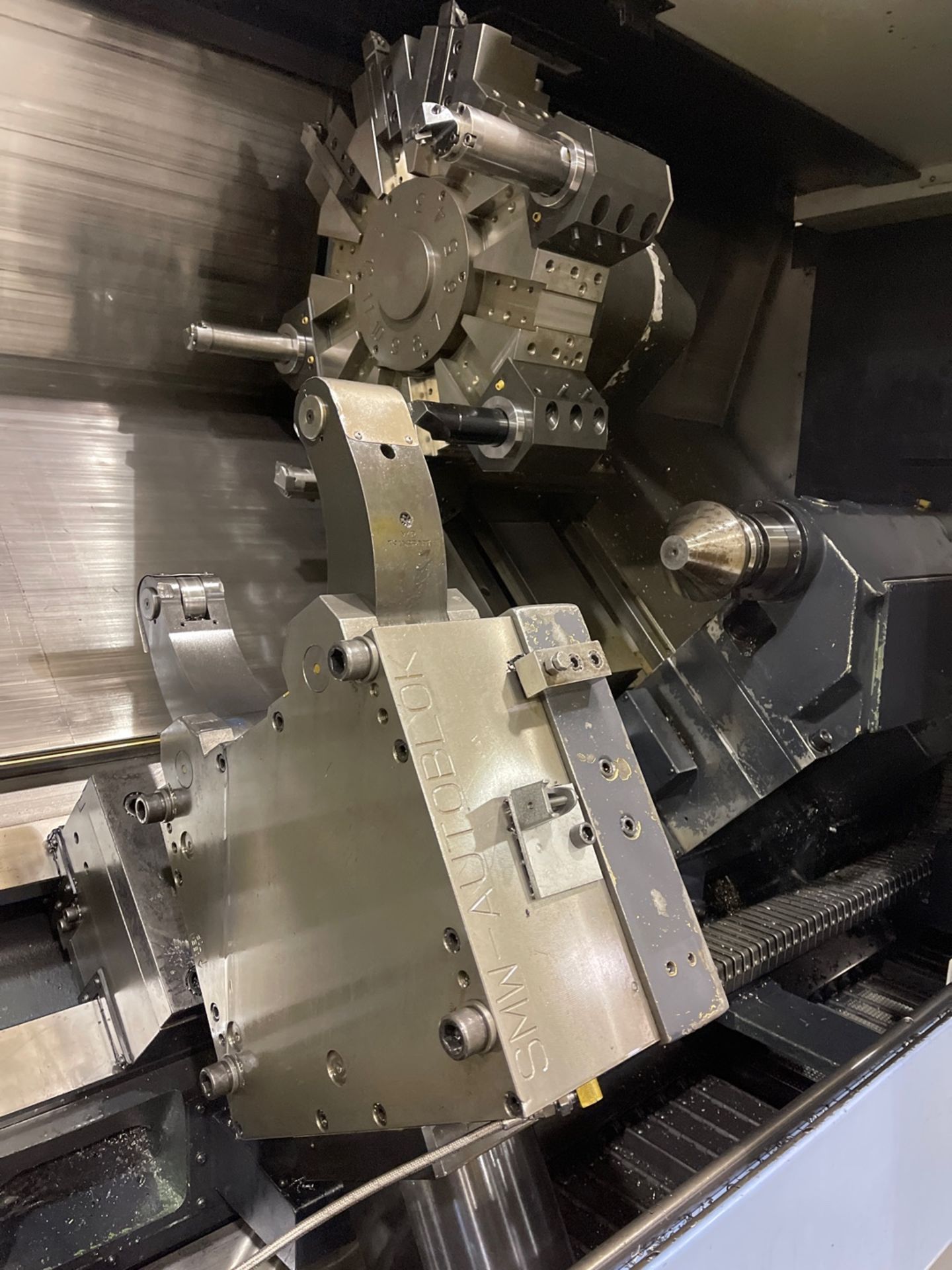

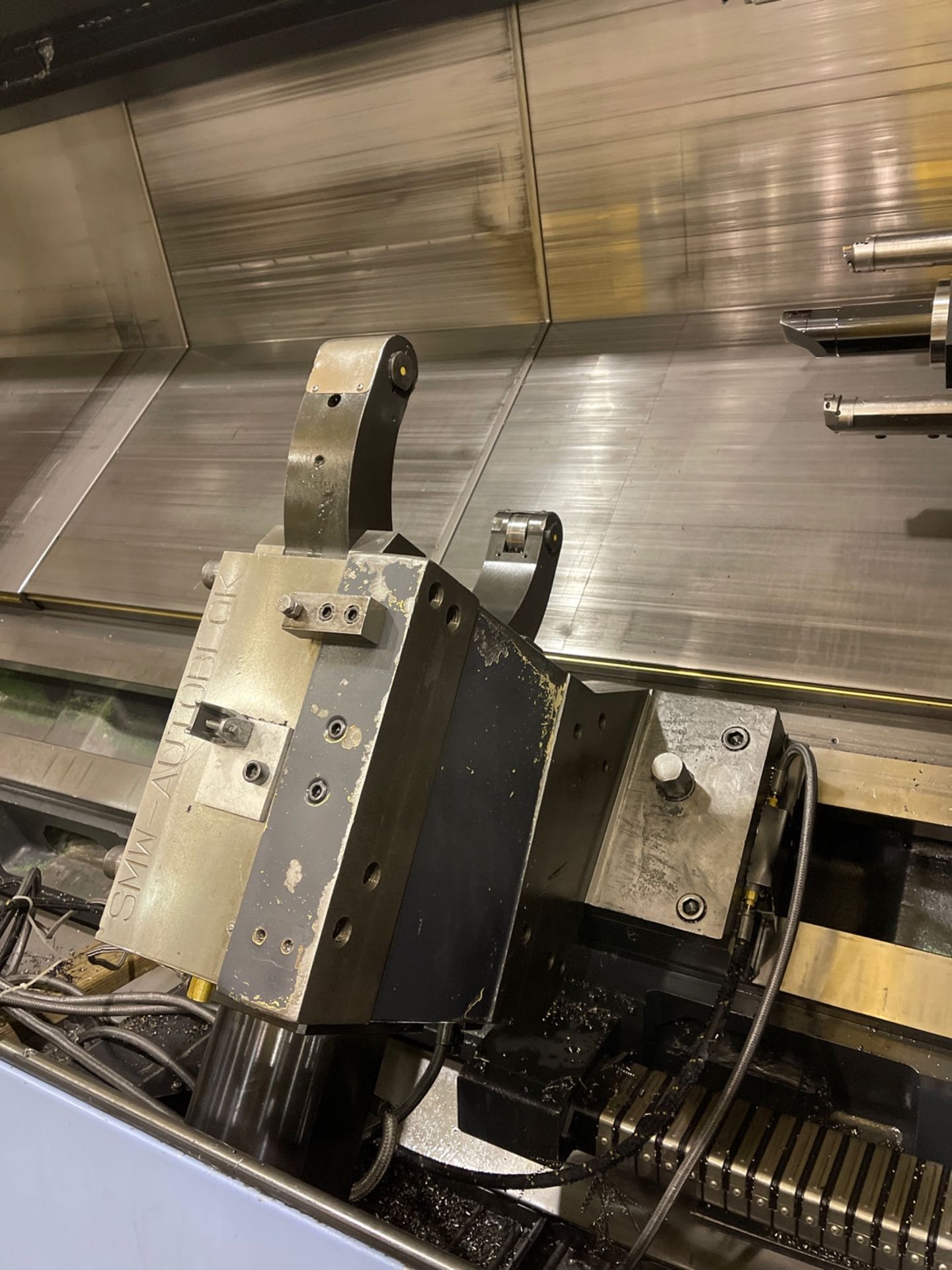

SMW Autoblok Hydraulic Steady Rest

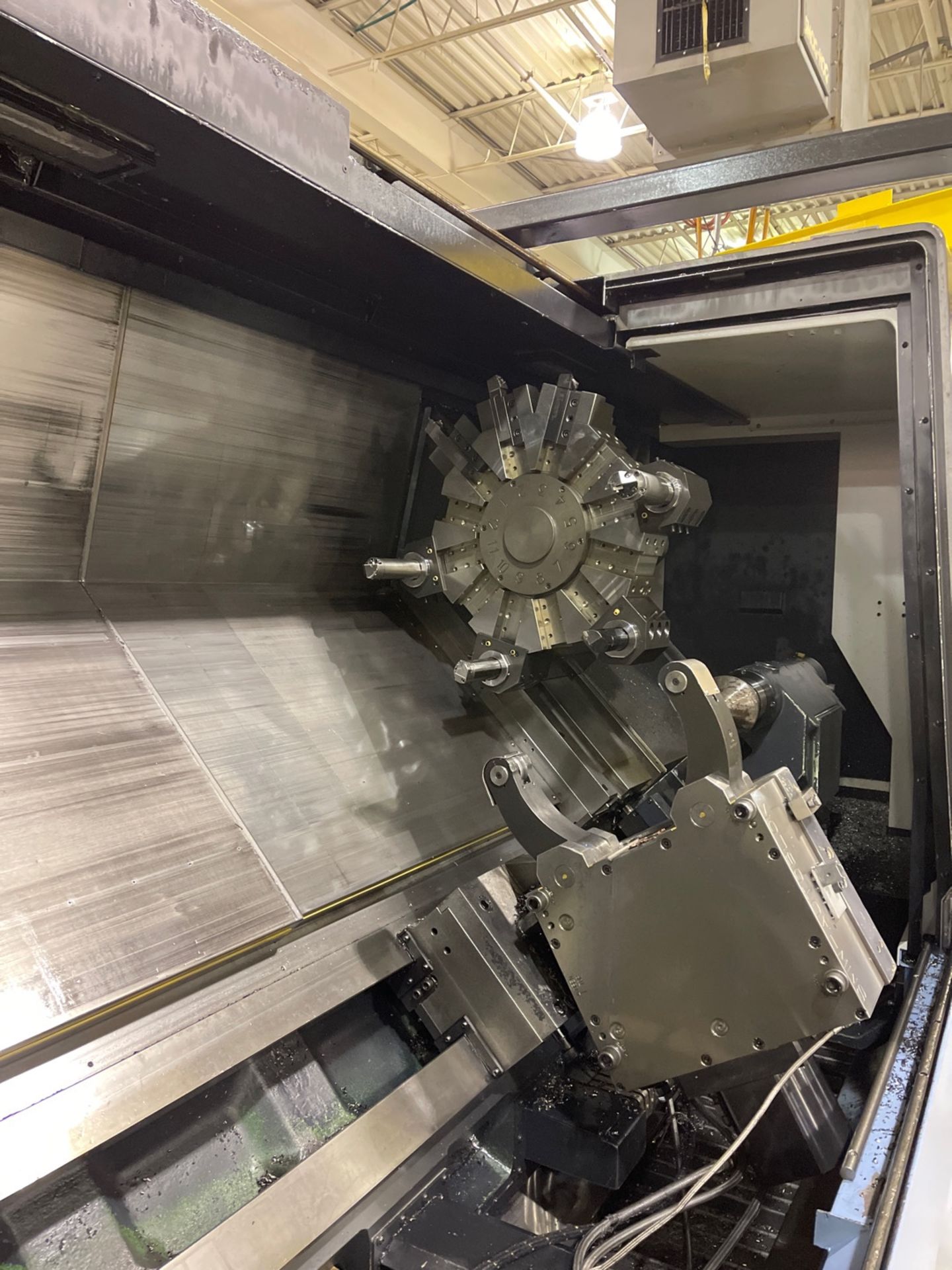

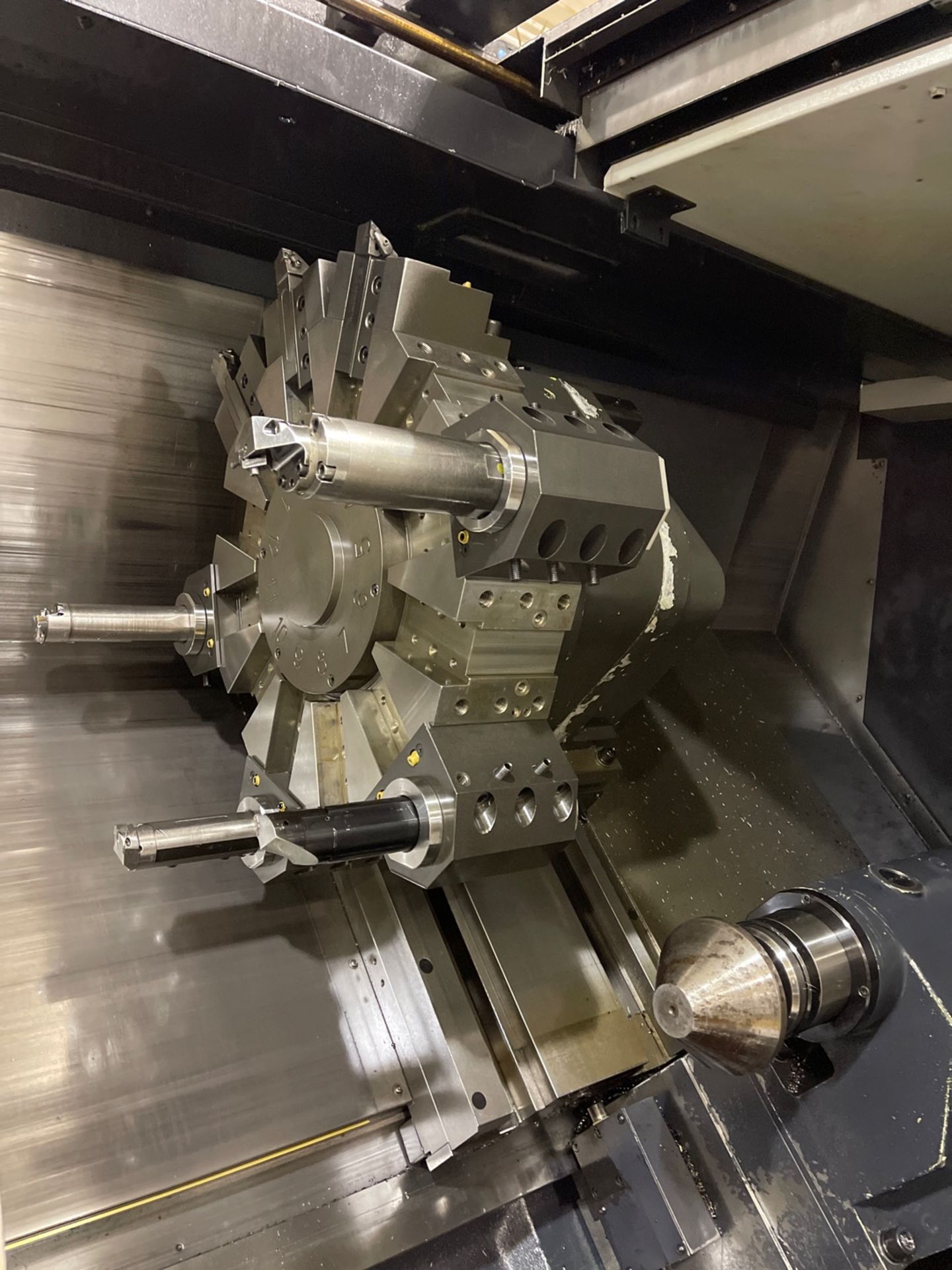

12 Station Turret

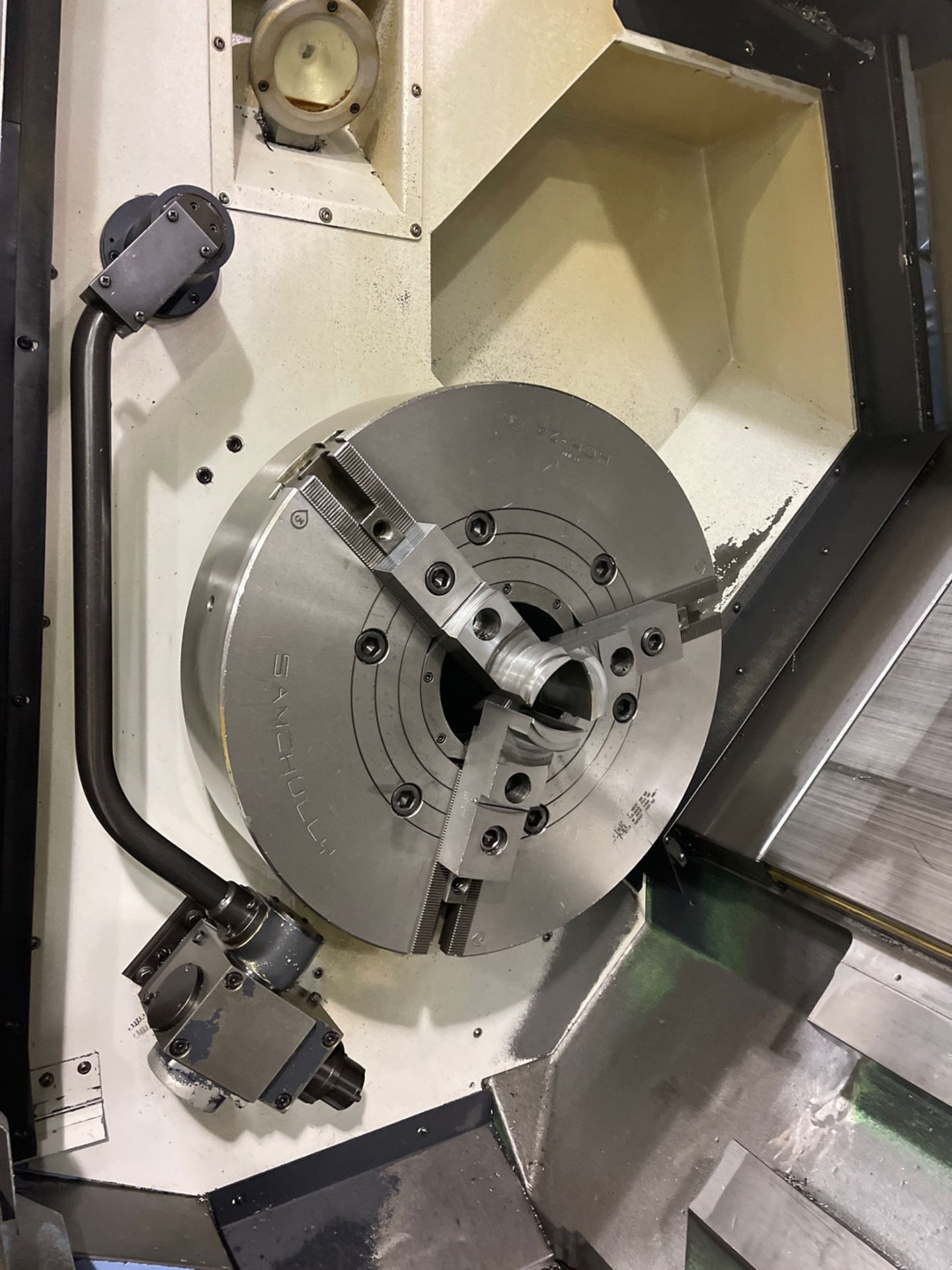

24" 3-jaw Samchully Hydraulic Chuck
Tool Setter

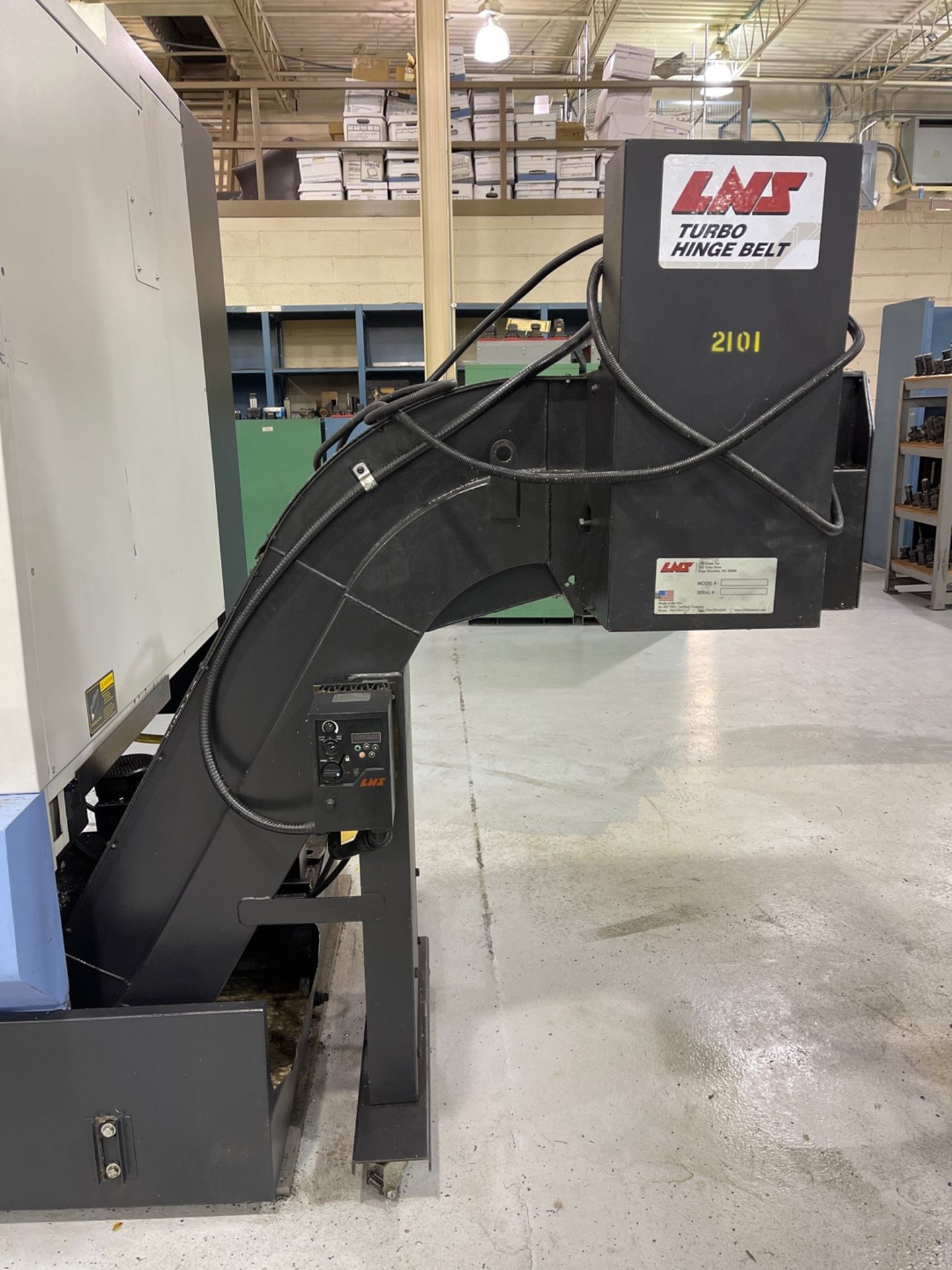

LNS Turbo Chip conveyor
7.1" hole through the spindle, 6.5" Bar Capacity
Two Speed Gearbox
Box ways
Programmable Tailstock
All Available Tool Holders
