Okuma GENOS L300-MYW CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Okuma

Model:: GENOS L300-MYW

Year:: 2014

Ref #:: 169123

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

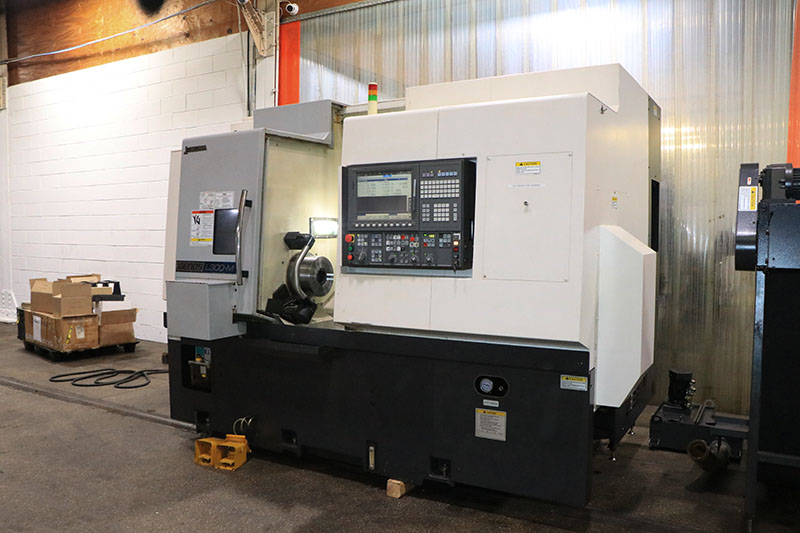

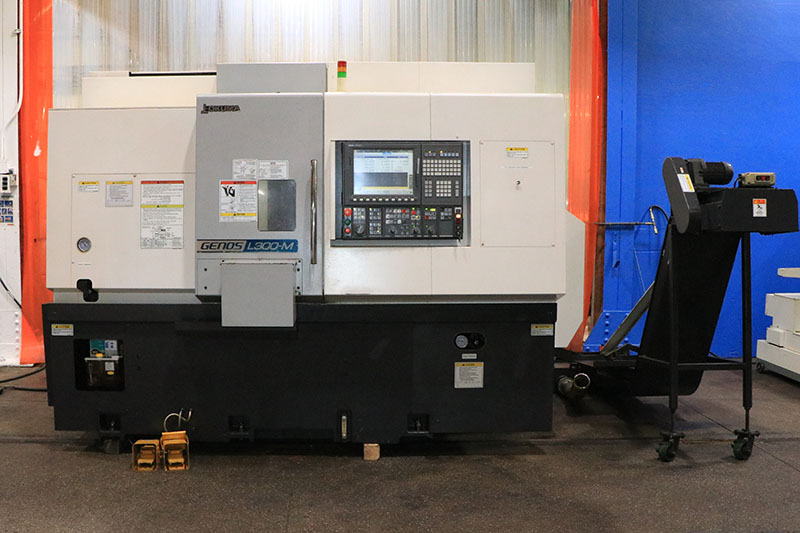

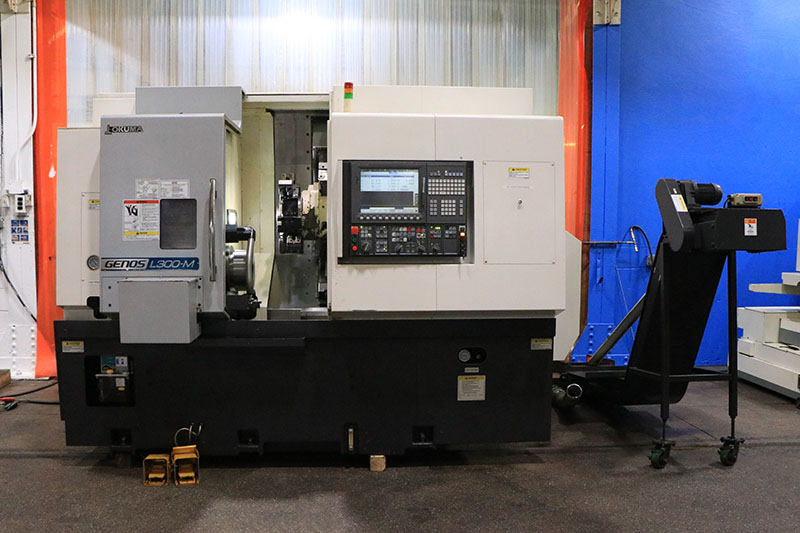

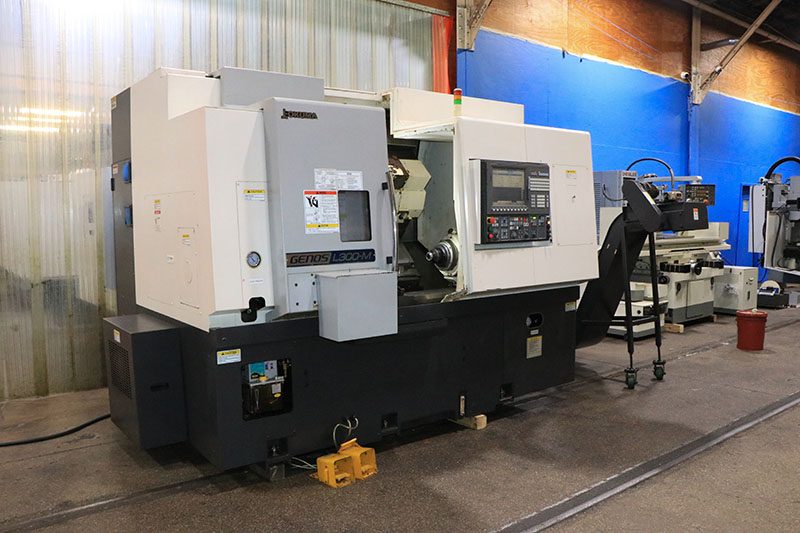

OKUMA GENOS L300-MYW MULTI-AXIS CNC TURNING CENTER
NEW: 2014

Specifications:
Swing Over Bed                         20.47"
Swing Over Carriage                    9.06"
Maximum Turning Diameter               11.81"
X-Axis Travel                          9.25"
Y-Axis Travel                          3.94"
Z-Axis Travel                          20.47"
Spindle Nose / Bore / Bar Capacity     A2-8 / 3.15" / 2.75"
Spindle Speed                          3,000 rpm
Spindle Motor                          20 hp
Number of Turret Positions             12
OD Tool Size                           .98" x .98"
ID Tool Size                           1.57"
Subspindle Speed                       6,000 rpm
Subspindle Nose                        Flat
Subspindle Motor                       10 hp
Rotary Tool Speed / Rotary Motor       6,000 rpm / 7.5 hp
Machine Dimensions LxWxH               131"x95"x87"
Machine Weight                         13,600 lbs

Equipped With:

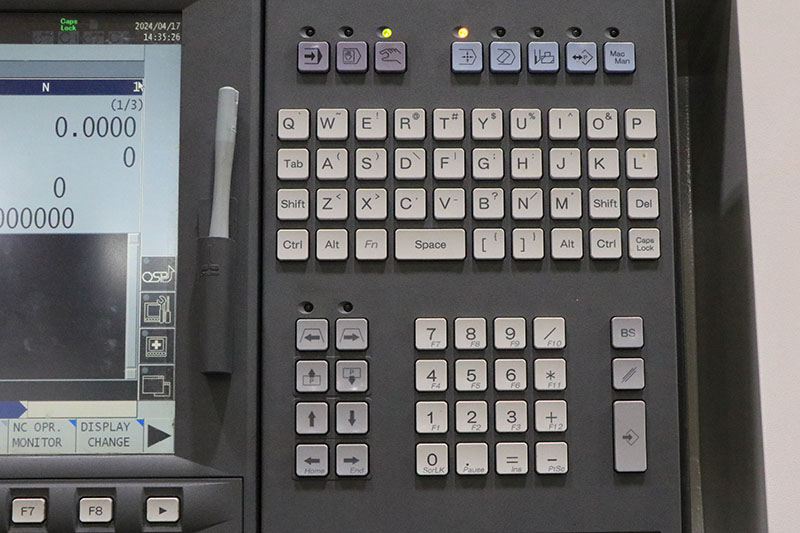

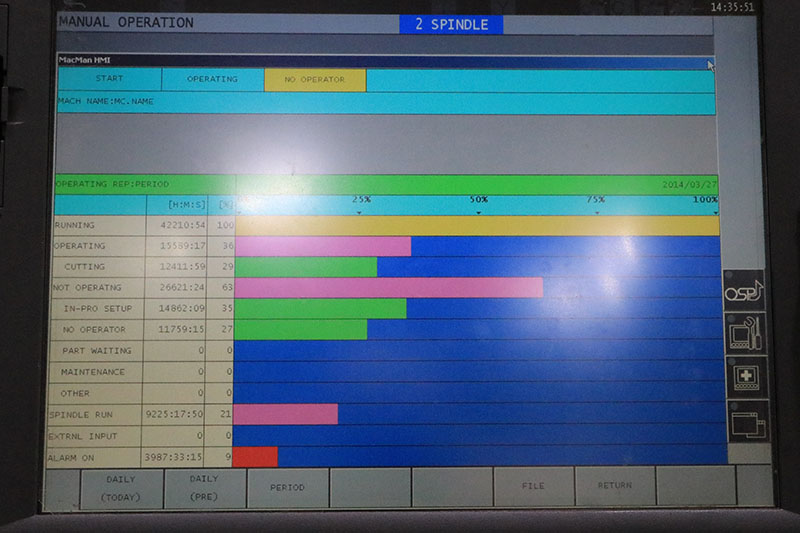

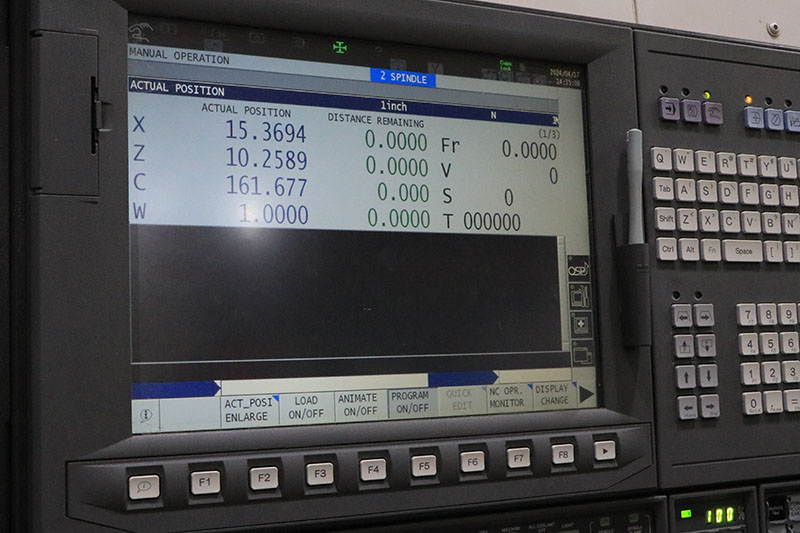

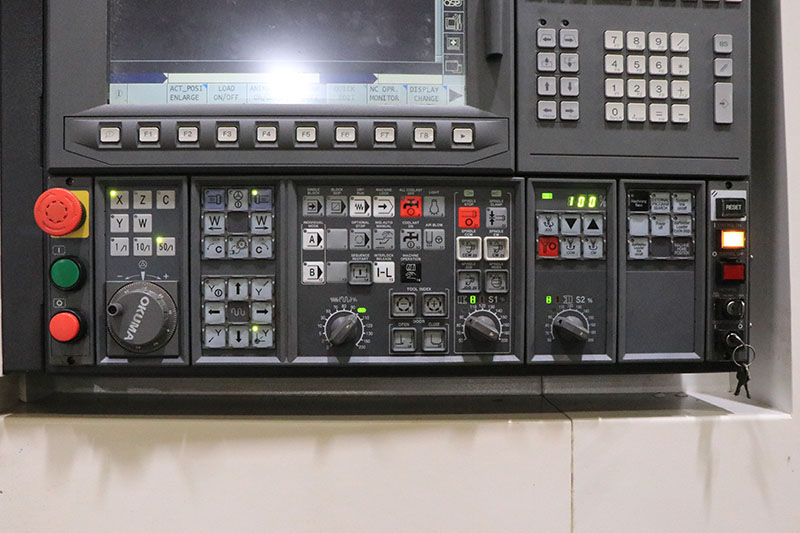

 - OSP-P300L-R CNC Control

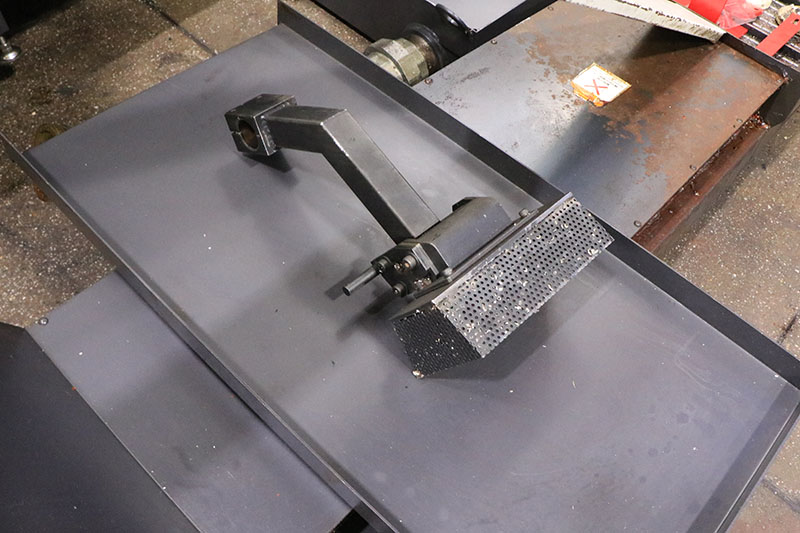

 - Toolsetter

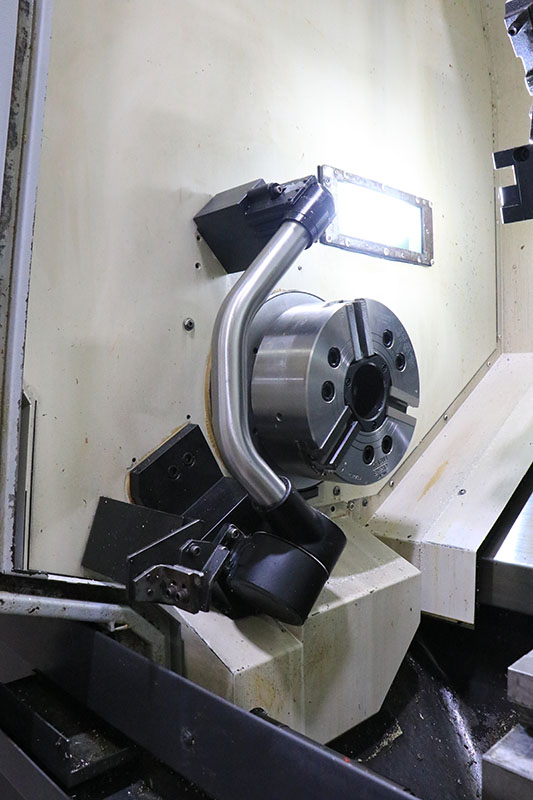

 - 10" Kitagawa B210 3-Jaw Hydraulic Chuck on Mainspindle

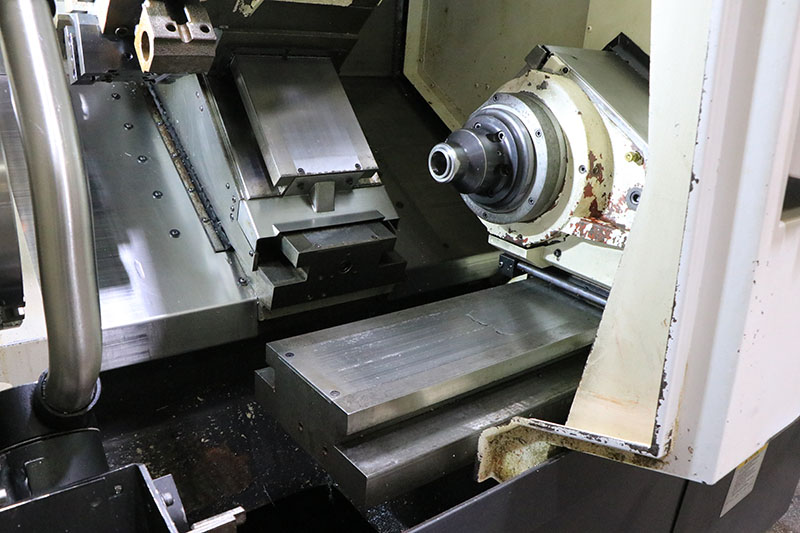

 - Royal 5C Collet Chuck on Subspindle

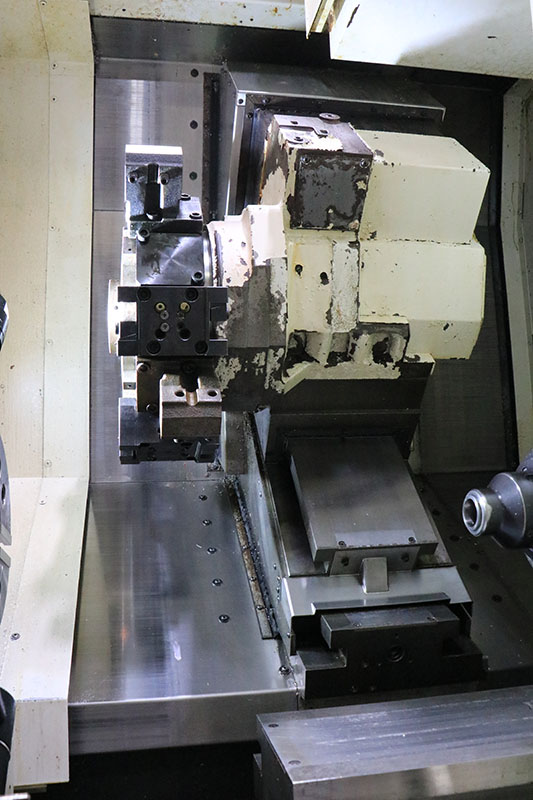

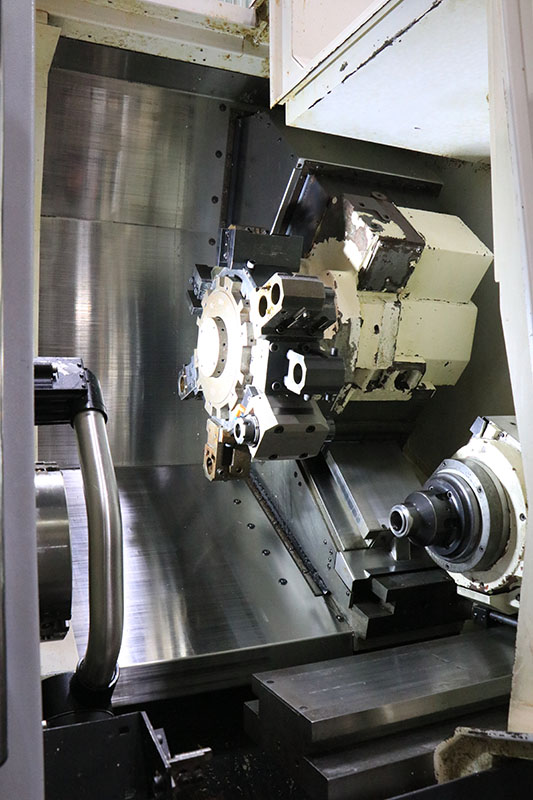

 - 12 Position Turret
 - Full C-Axis on Main & Subspindles
 - (2) Live Toolholders
 - All Available Static Toolholders
 - All Available Manuals
