Nakamura-Tome WTS-150, 11 axis, CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Nakamura-Tome

Model:: WTS-150, 11 axis,

Year:: 2004

Ref #:: 158707

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

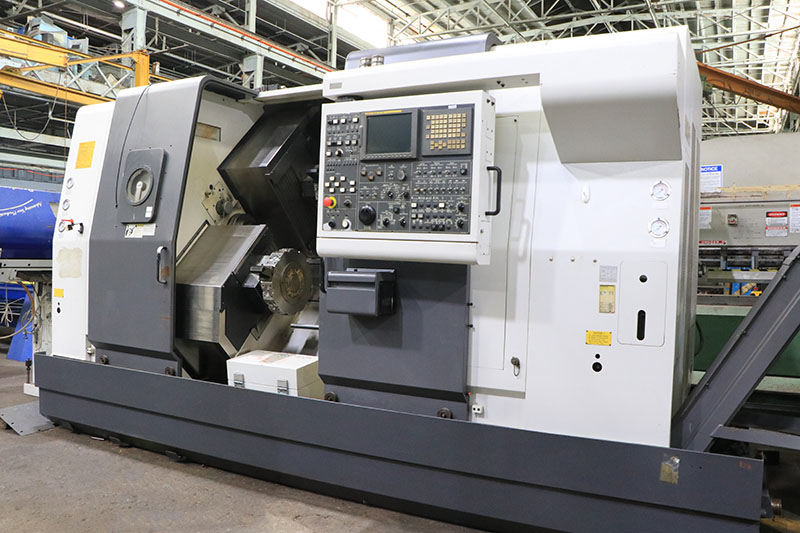

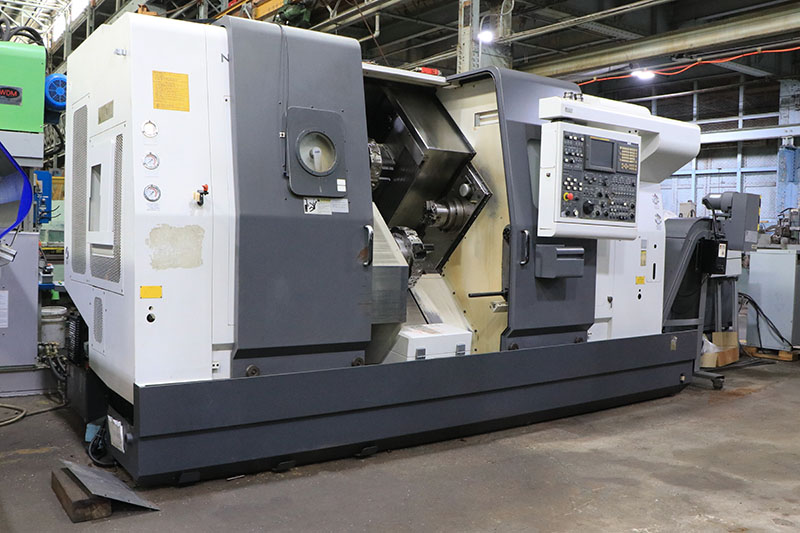

NAKAMURA-TOME WTS-150 11-AXIS CNC TURNING/MILLING CENTER
NEW: 2004

SPECIFICATIONS:
MAX. TURNING DIAMETER ........... 12.20"
MAX. TURNING LENGTH ............. 10.03"
BAR CAPACITY L/R SPINDLES ....... 1.65"/1.25"
CHUCK SIZE ...................... 6"
SPINDLE SPEED, LEFT SPINDLE ..... 6000 RPM
SPINDLE SPEED, RIGHT SPINDLE .... 8000 RPM
LEFT SPINDLE MOTOR .............. 15/11kW
RIGHT SPINDLE MOTOR ............. 15/11kW
NUMBER OF TURRETS, UPPER ......... 2
DRIVEN MOTOR POWER .............. 3.7/2.2kW
DRIVEN TOOL SPEED ............... 6000 RPM
NUMBER OF TURRETS, LOWER ........ 1
DRIVEN MOTOR POWER .............. 3.7/2.2kW
DRIVEN TOOL SPEED ............... 6000 RPM
UPPER AXES TRAVEL, X/Z/B2 ....... 8.16"/11.81"/34.4"
UPPER Y-AXIS TRAVEL ............. 60mm (+/-30) X 2
LOWER AXES TRAVEL, X/Z .......... 8.16"/31.49"
APPROX. WEIGHT .................. 22,000 LBS

EQUIPPED WITH:

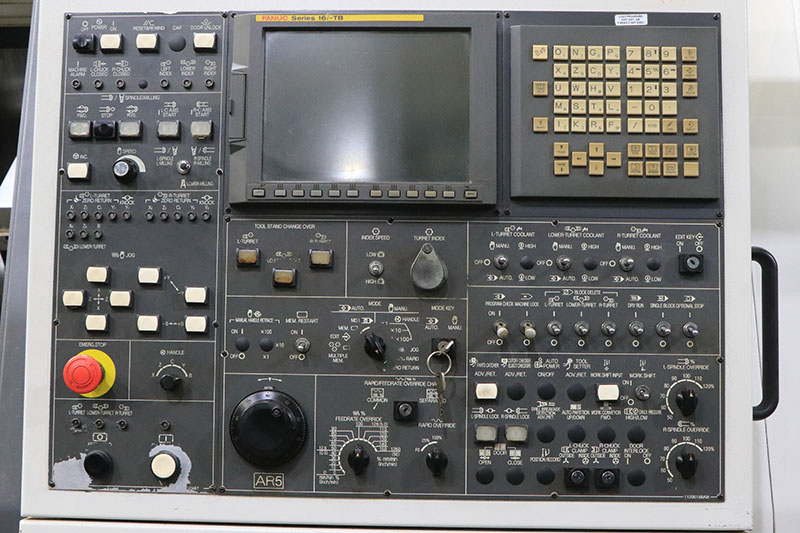

 - FANUC 16iTB CNC CONTROL

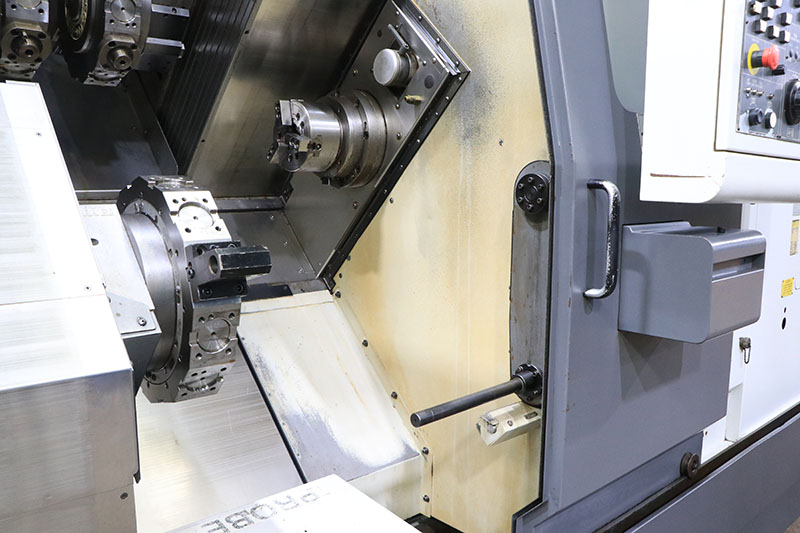

 - COLLET CHUCK ON LEFT SPINDLE
 - 6" 3-JAW HYD. CHUCK ON RIGHT SPINDLE

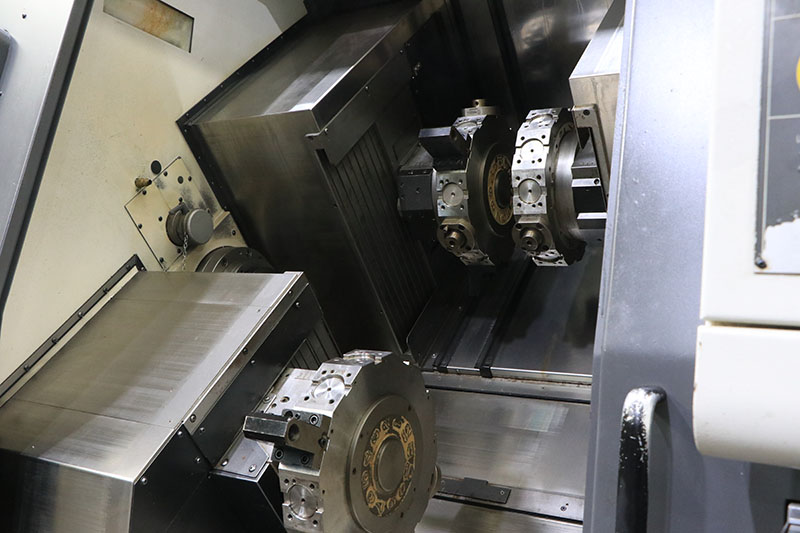

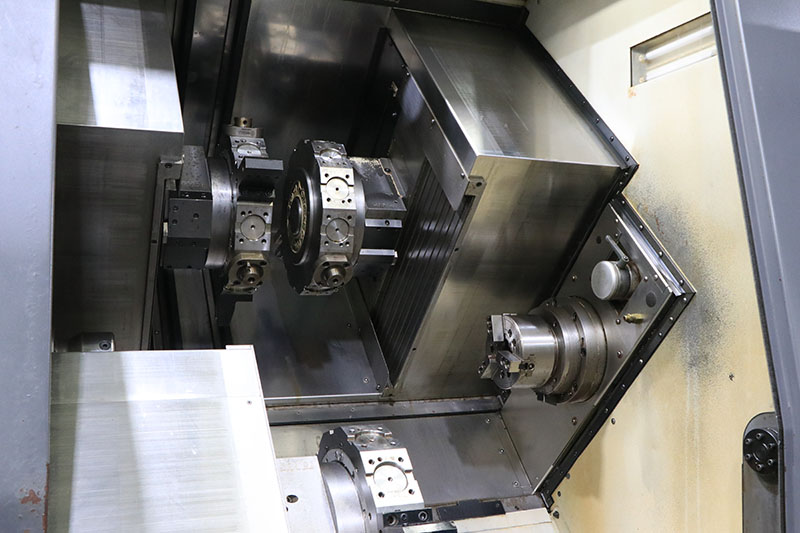

 - (2)12 POSITION UPPER TURRETS W/ Y-AXIS (ALL STATIONS LIVE)

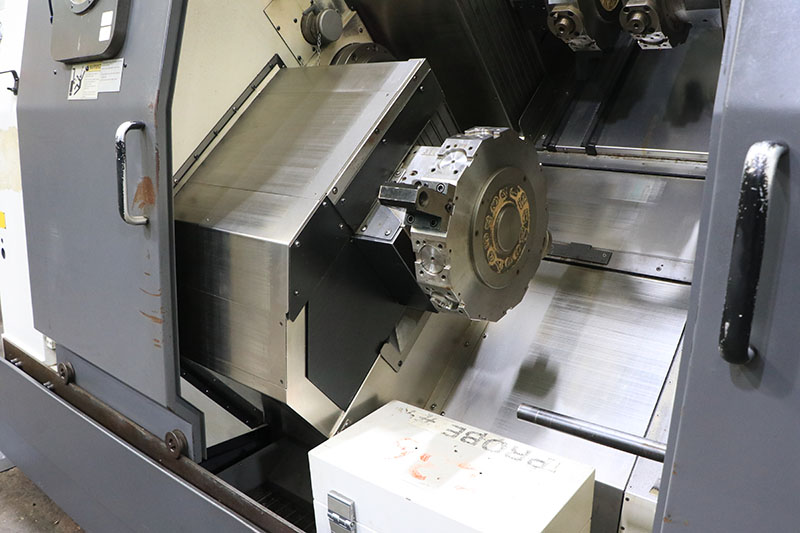

 - (1) 12 POSITION LOWER TURRET W/ LIVE MILLING (ALL STATIONS LIVE)
 - CHIP CONVEYOR
 - IEMCA BOSS 545/21 MAGAZINE BAR FEED

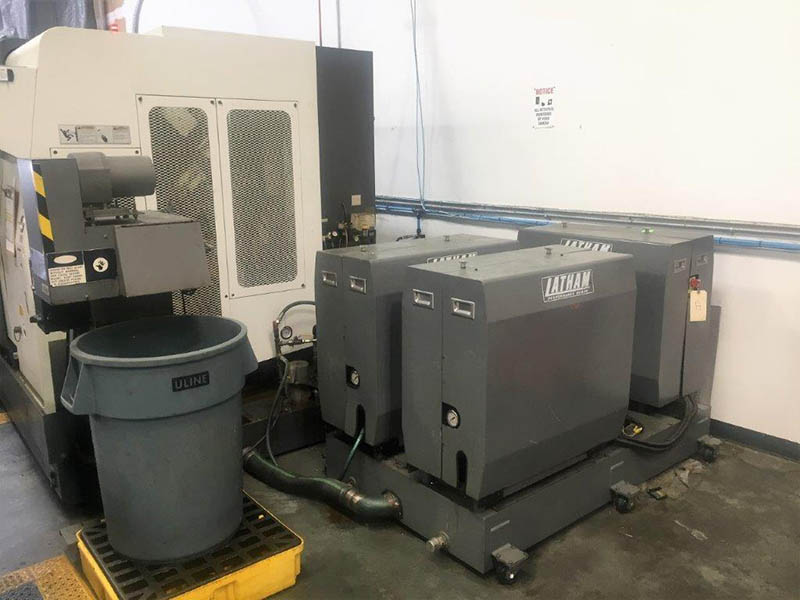

 - HIGH PRESSURE COOLANT
 - ALL AVAILABLE STATIC AND LIVE TOOL HOLDERS
 - ALL AVAILABLE MANUALS

IN PLANT UNDER POWER
