Fadal VMC 4020HT VERTICAL MACHINING CENTERS. VMC's

$24,500

Make:: Fadal

Model:: VMC 4020HT

Year:: 2004

Ref #:: 168977

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

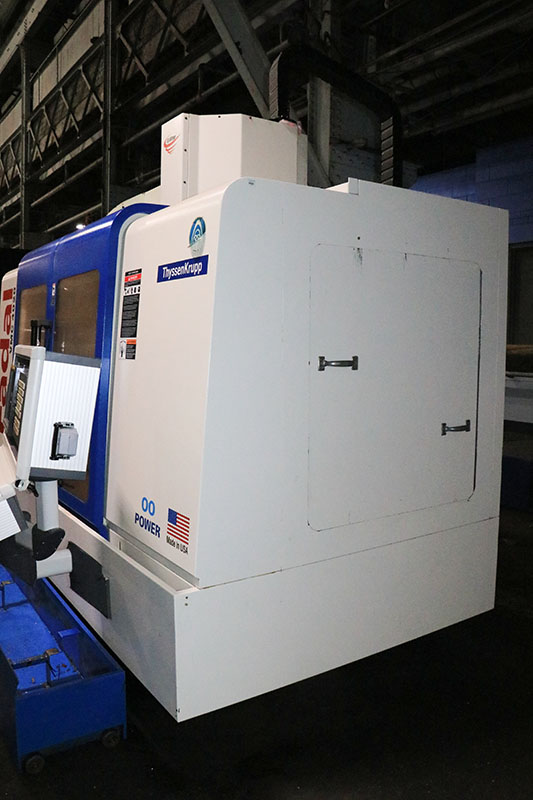

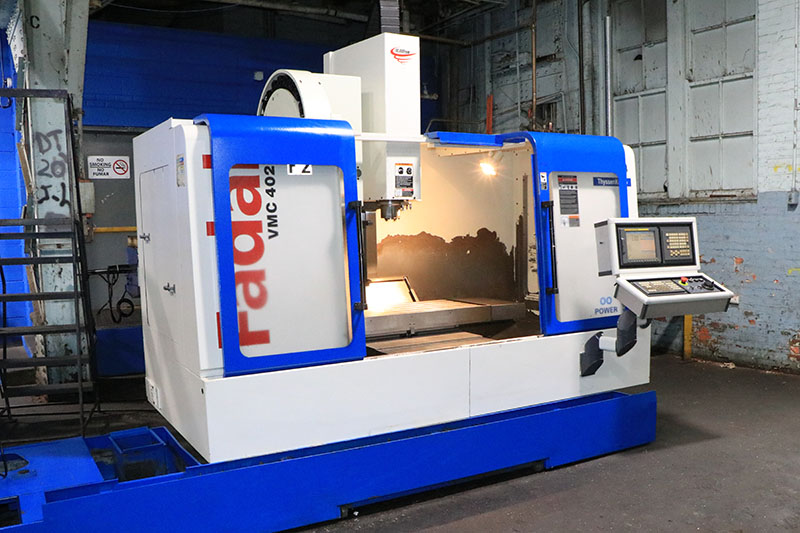

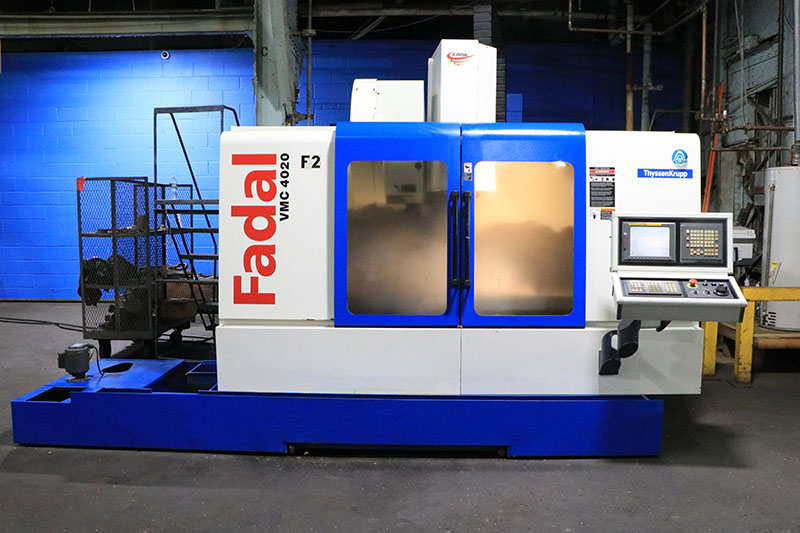

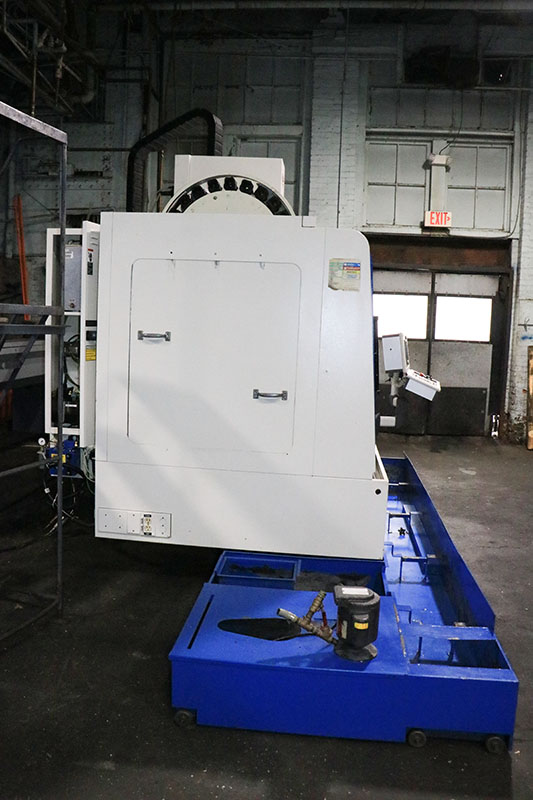

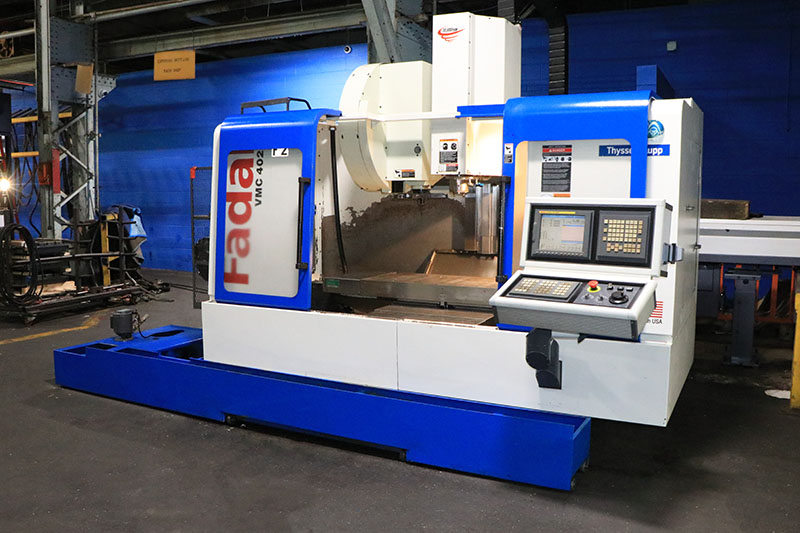

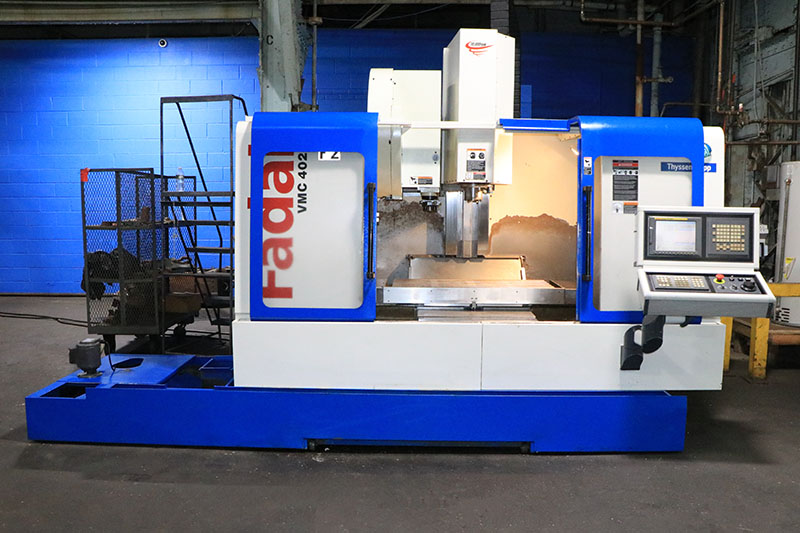

FADAL VERTICAL MACHINING CENTER

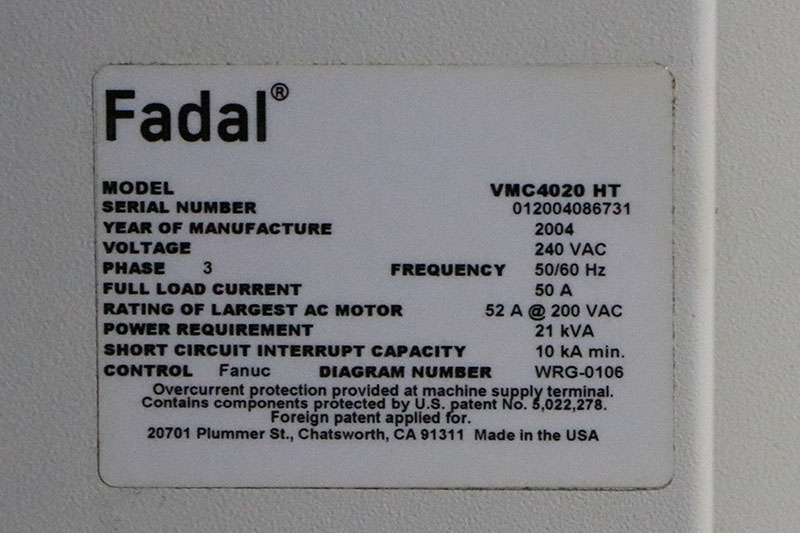

MODEL: VMC 4020 HT, S/N: 012004086731, NEW: 2004

SPECIFICATIONS:

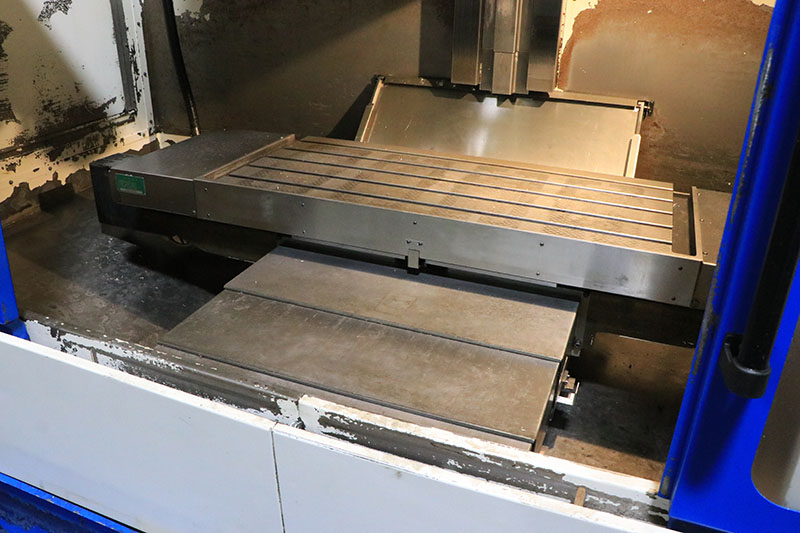

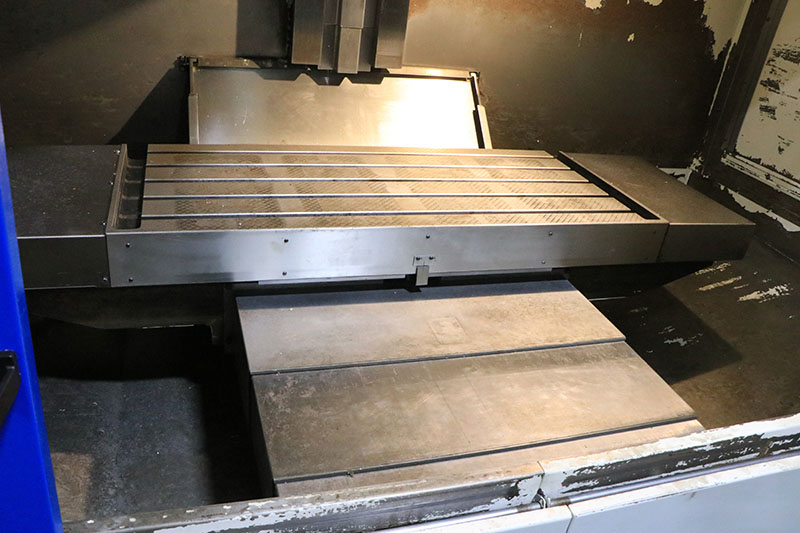

TABLE WORKING SURFACE ................. 20" X 48"
FLOOR TO TABLE SURFACE ................ 32"
T-SLOTS (# X WIDTH X SPAN) ............ 5 X .709" X 3.75"
MAXIMUM WEIGHT ON TABLE ............... 3,641 LBS.
TABLE TRAVEL, X-AXIS (LONGITUDINAL) ... 40"
TABLE TRAVEL, Y-AXIS (CROSS) .......... 20"
VERTICAL COLUMN TRAVEL (Z-AXIS) ....... 20"
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 4"/24"
SPINDLE TAPER ......................... CAT 40
NUMBER OF TOOLS ....................... 30
SPINDLE SPEEDS, TWO GEARED RANGES ..... 10 TO 10,000 R.P.M.
SPINDLE CENTER TO COLUMN WAYS ......... 20"
SPINDLE TORQUE ........................ 220 FT./LBS.
CUTTING FEED RATES, (X,Y, & Z AXES) ... 0.01 TO 400 I.P.M.
RAPID FEED RATE, (X & Y AXES) ......... 900 I.P.M.
RAPID FEED RATE (Z-AXIS) .............. 600 I.P.M.
MAXIMUM TOOL DIAMETER ................. 3"
...W/O ADJACENT TOOLS ................. 6"
MAXIMUM TOOL LENGTH ................... 15"
MAXIMUM TOOL WEIGHT ................... 15 LBS.
APPROX DIMS ........................... 117" x 94" x 100"
APPROX WEIGHT ......................... 11,000 Lbs.

EQUIPPED WITH:

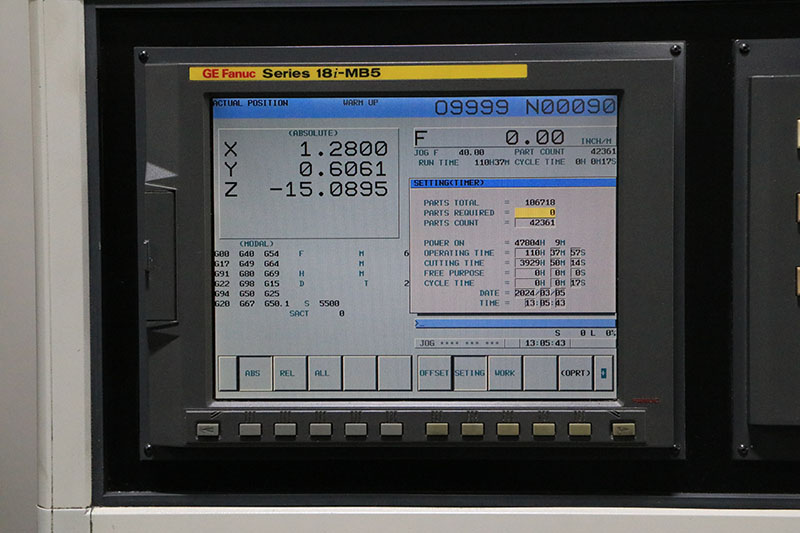

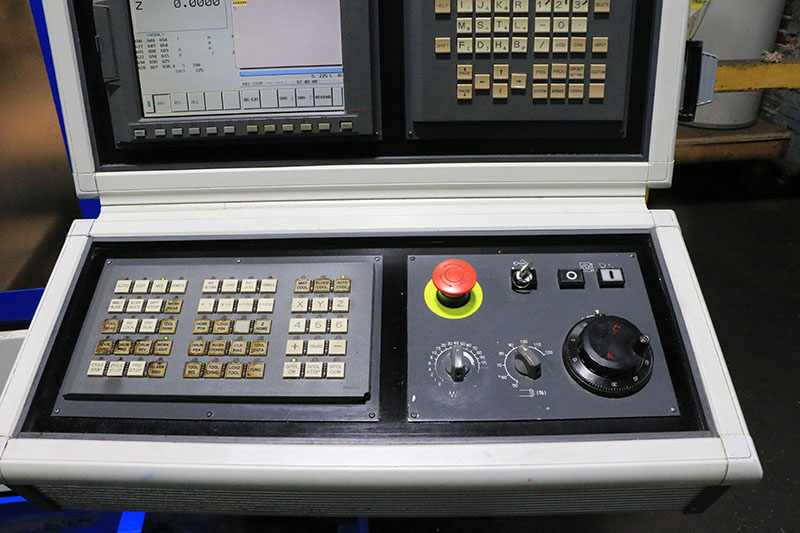

- FANUC MODEL: 18i-MB5 CNC CONTROL
    HIGH SPEED CPU
- 10,000 R.P.M. HIGH TORQUE SPINDLE OPTION

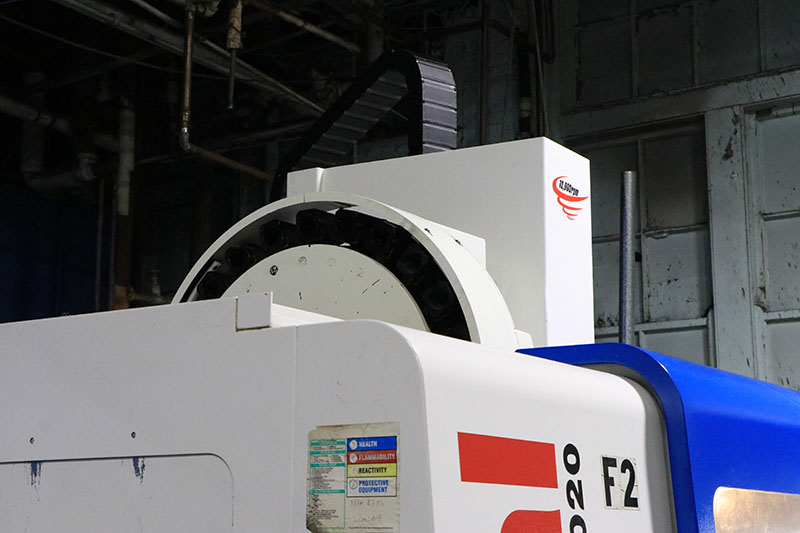

- AUTOMATIC TOOL CHANGER (24) STATIONS
- RIGID TAPPING
- BOX WAYS ON ALL AXES
- AC SERVO MOTORS ON ALL AXES

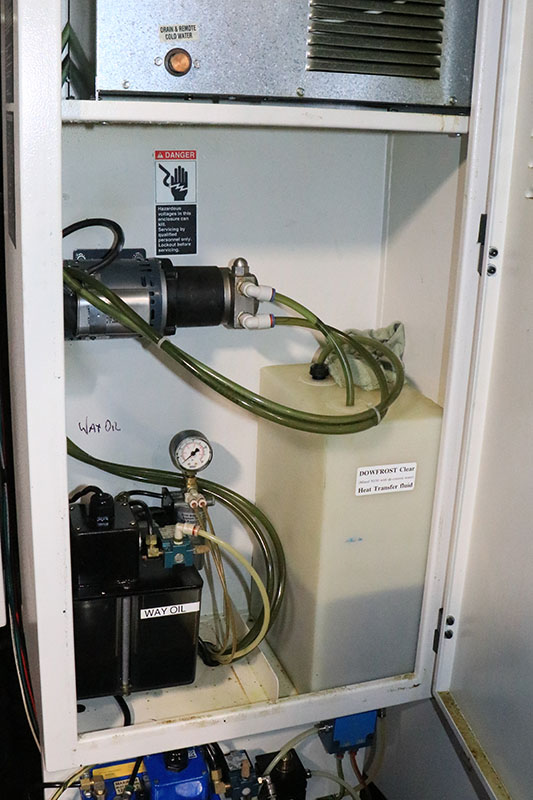

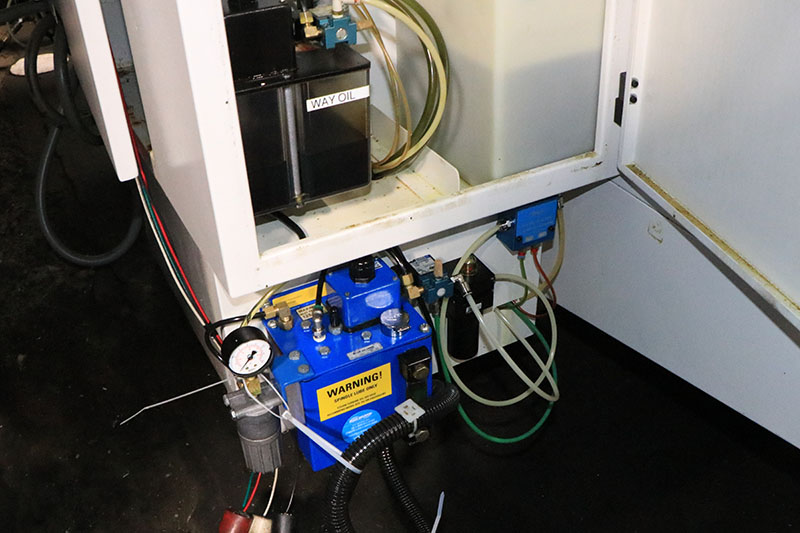

- BIJUR AUTOMATIC LUBRICATION SYSTEM
- EXTERNAL COOLANT PUMP AND TANK
- 24 HORSE POWER AC DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
