Fanuc Robodrill 5X a-D21MiB5 UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:
Fanuc
Model:
Robodrill 5X a-D21MiB5
Year:
2019
Ref #:
163955

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


FANUC ROBODRILL 5-AXIS MACHINING CENTER
MODEL: a-D21MiB5,   MFG: 2019

SPECIFICATIONS:
PALLET DIMENSIONS ........................ 25.6" x 15.74"
X - AXIS TRAVEL .......................... 19.68" - 500mm
Y - AXIS TRAVEL .......................... 15.74" - 400mm
Z - AXIS TRAVEL .......................... 12.9" - 330mm
SPINDLE TAPER ............................ BIG-PLUS 30
SPINDLE SPEED ............................ 24,000 RPM
MAXIMUM RIGID TAPPING SPEED .............. 8,000 RPM
TOOL STORAGE CAPACITY .................... 21 ATC
TOOL CHANGE TIME ......................... .9 SECS
RAPID TRAVERSE X,Y,Z ..................... 2125 IPM -
MACHINE WEIGHT ........................... 4750 LBS.

EQUIPPED WITH:
FANUC MODEL: 31iB PLUS A-CABINET 5-AXIS SIMULTANEOUS CONTROL
SOFTWARE PACKAGE B
RIGID TAPPING, HIGH SPEED TAPPING, QUICK TAP RECOVERY,
  HIGH SPEED REVERSE TAPPING,
  HELICAL & LINEAR INTERPOLATION, THREAD MILLING, MULTI-STEP SKIP
  MANUAL GUIDE FOR MILLING, CUSTOM MACROS, AI CONTOUR CONTROL,
   BLOCK LOOK AHEAD, JERK CONTROL, HIGH SPEED PROCESS, 3D CUTTTER COMP

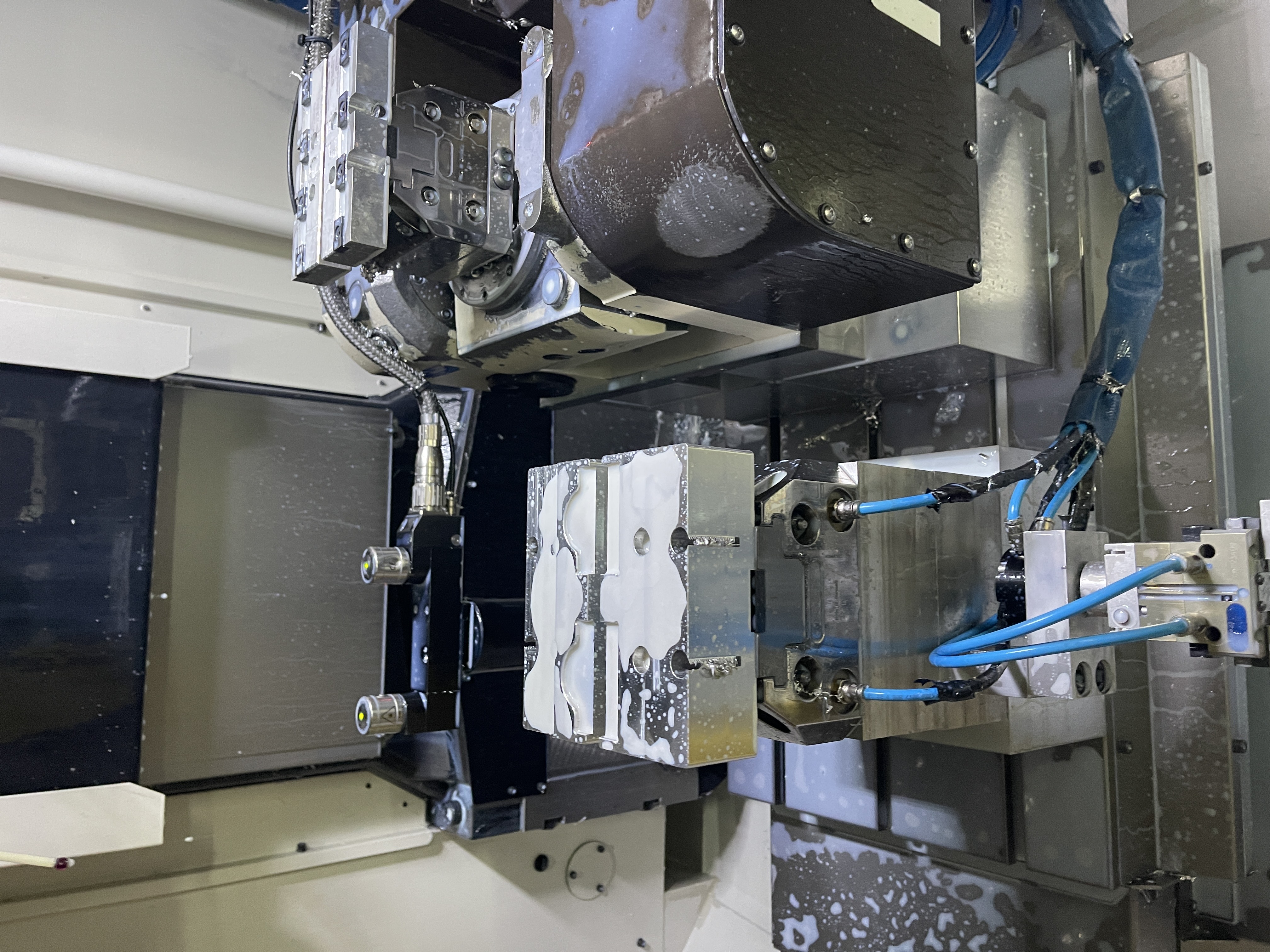

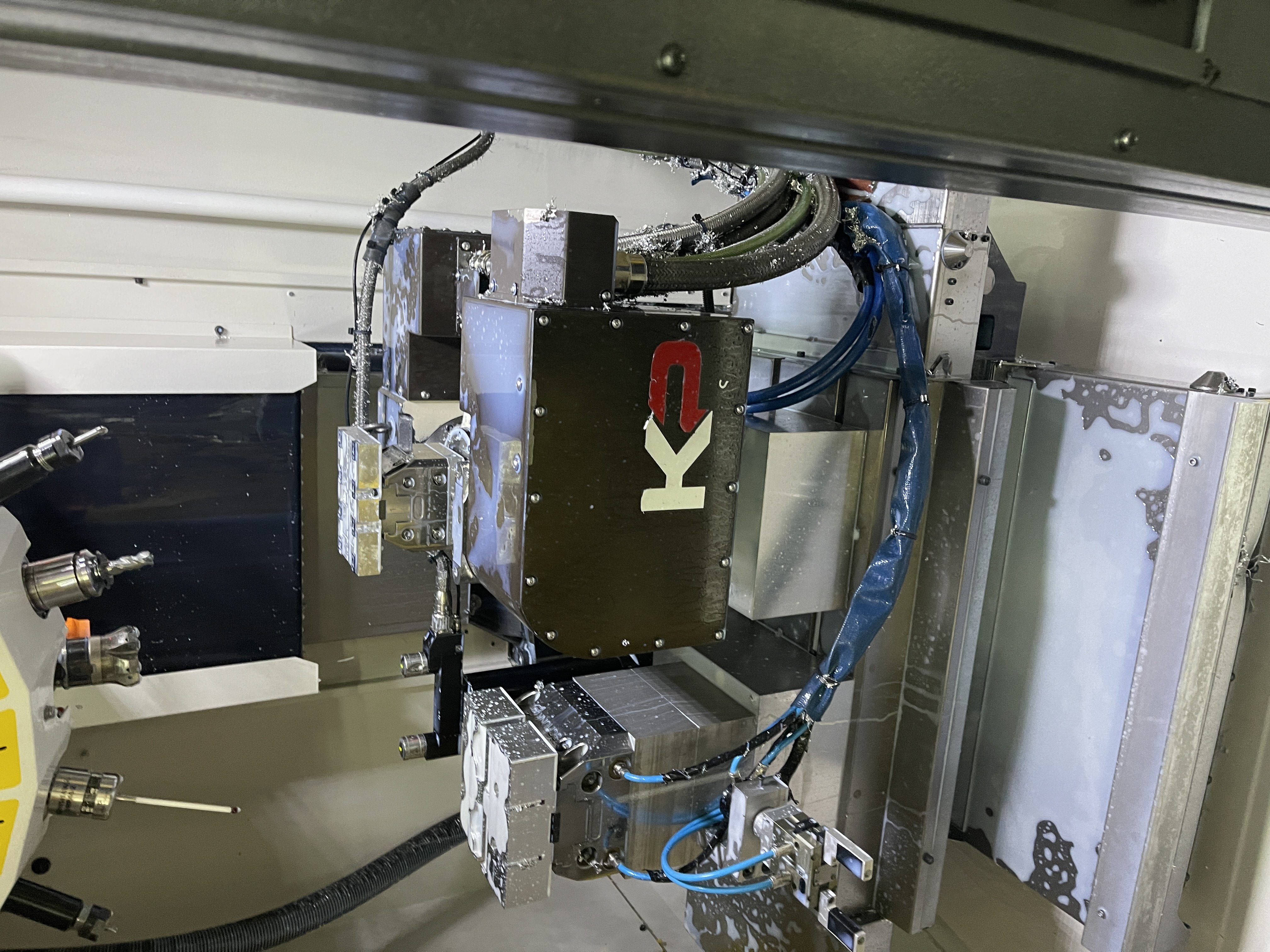

TSUDAKOMA MODEL: TWA-130 4TH & 5 TH AXIS TABLE
COLUMN RISER

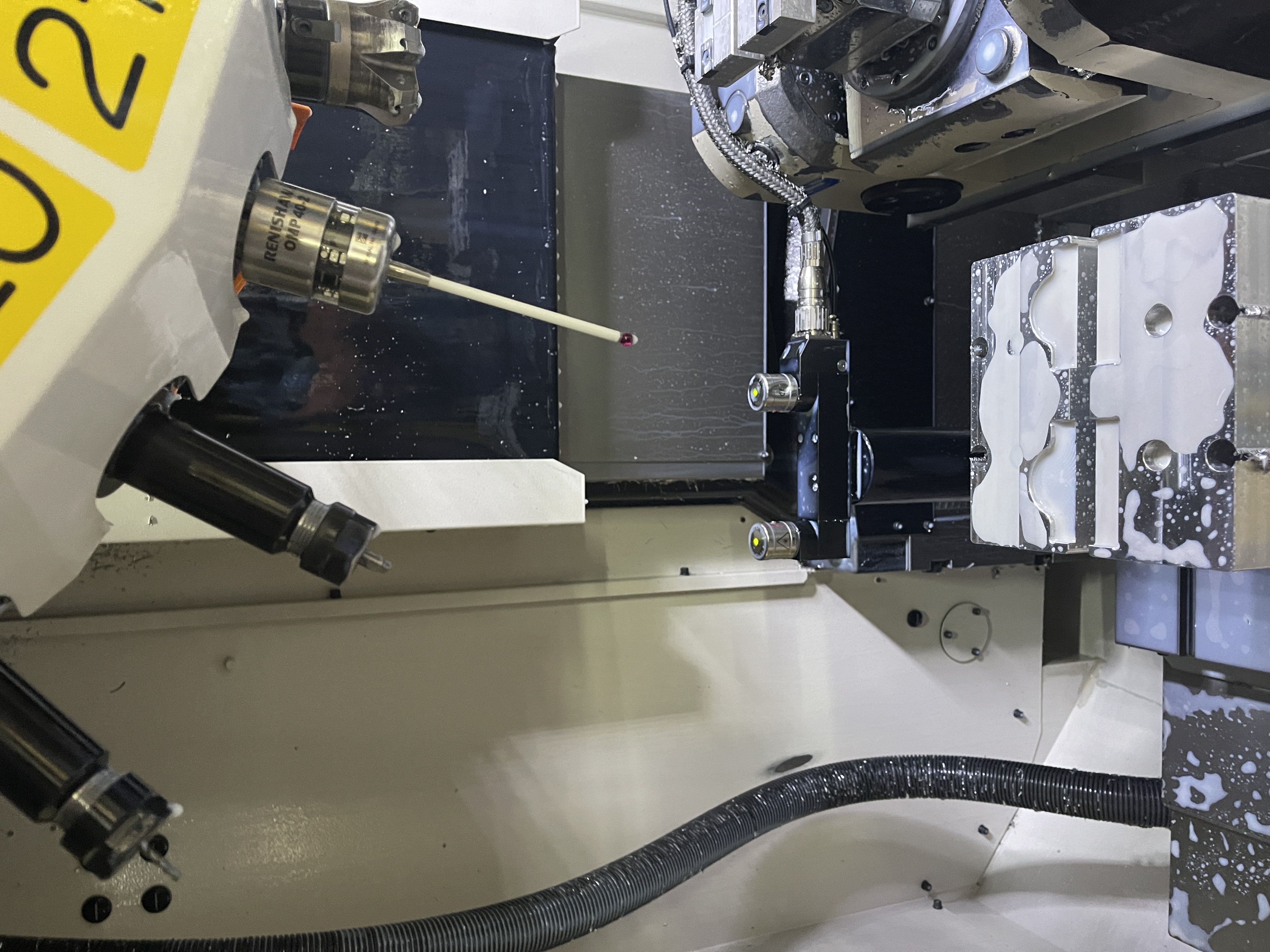

RENISHAW MODEL: OMP40 OPTICAL PART PROBE
RENISHAW MODEL: NC4 LASER TOOL SETTER
HIGH PRESSURE COOLANT THROUGH SPINDLE SYSTEM
LNS - TURBO CHIP CONVEYOR MICRO-HINGE 500
AVAILABLE MANUALS

LIST PRICE OVER $200,000

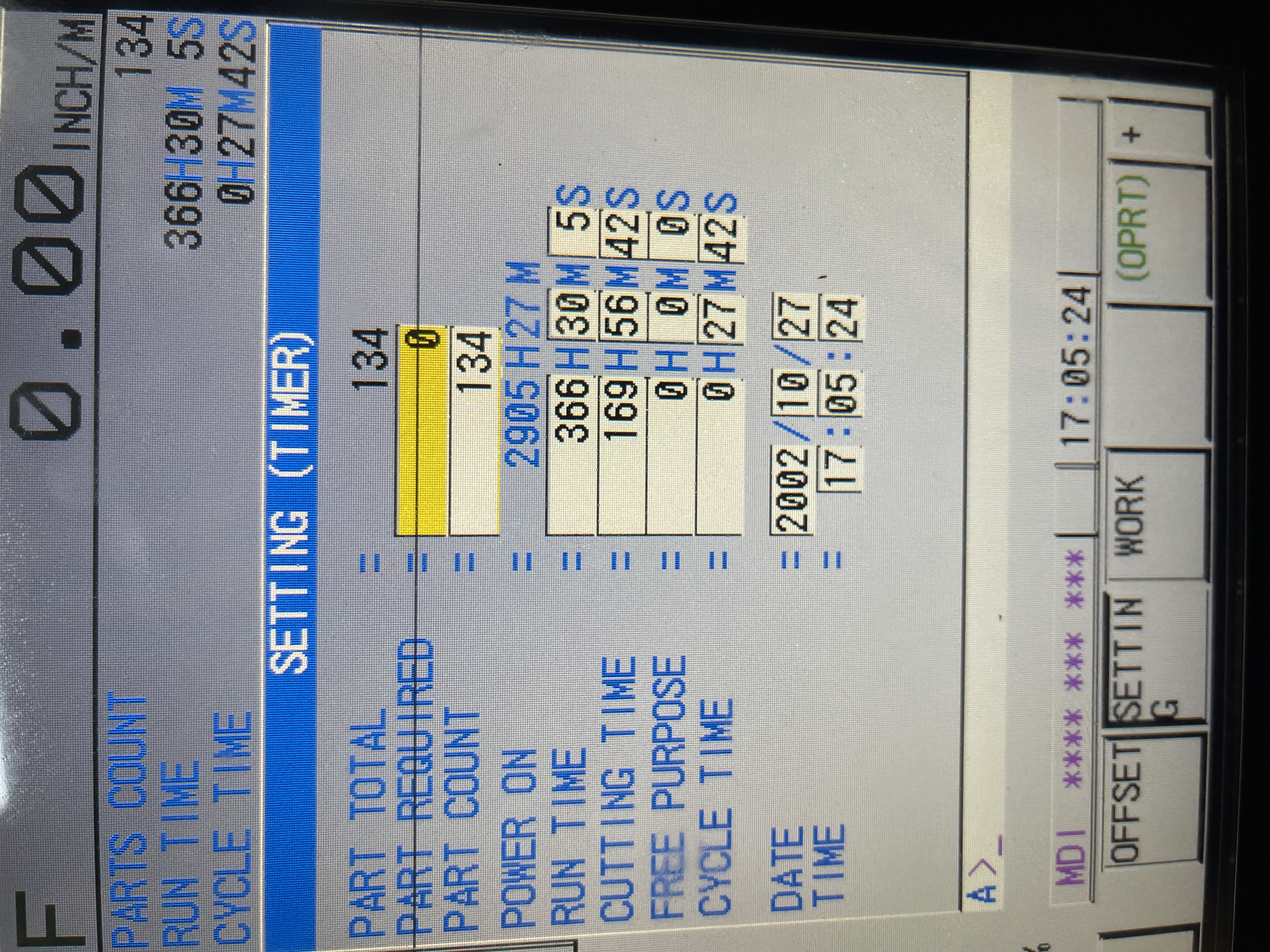

LOW HOUR MACHINE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
