Fortune S20100G ENGINE LATHES

$14,950

Make:: Fortune

Model:: S20100G

Year:: 1993

Ref #:: 179125

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

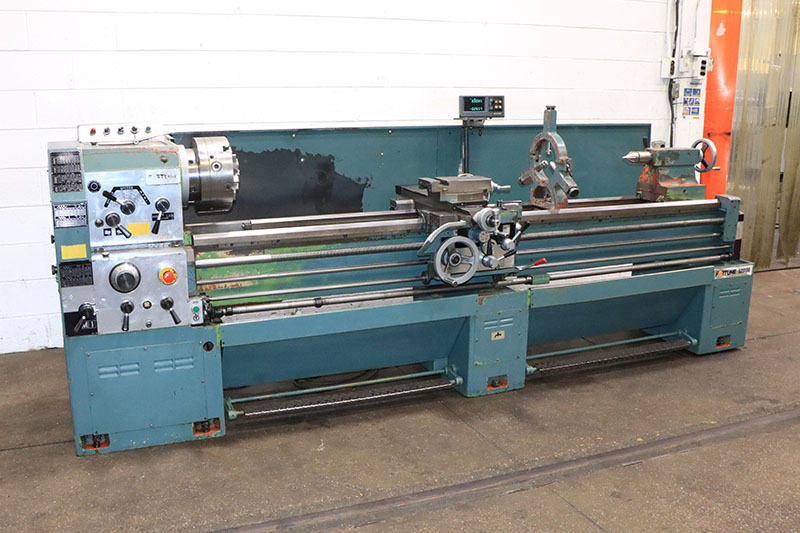

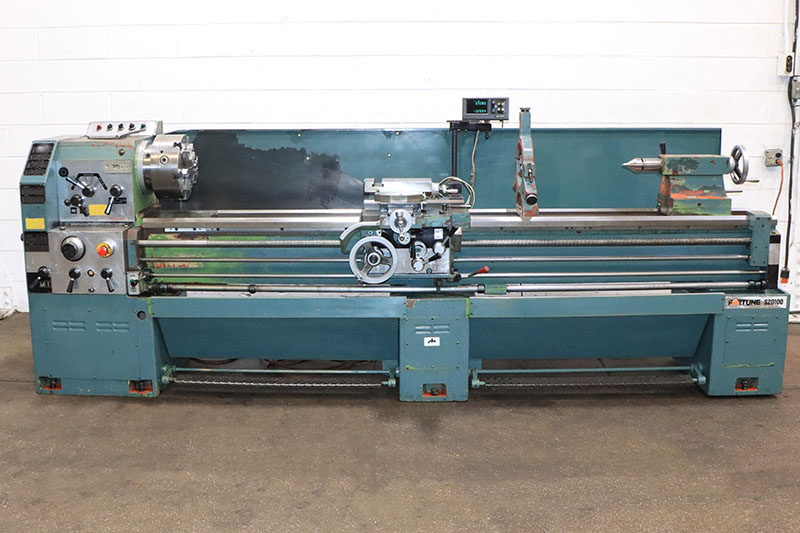

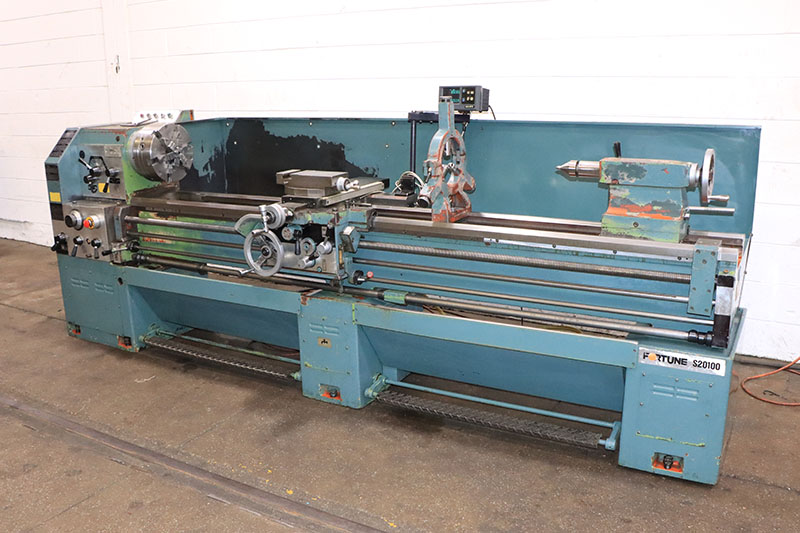

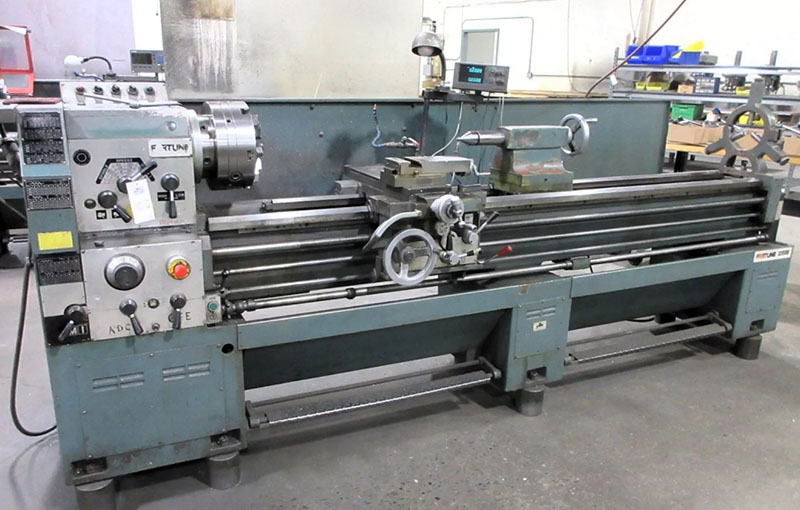

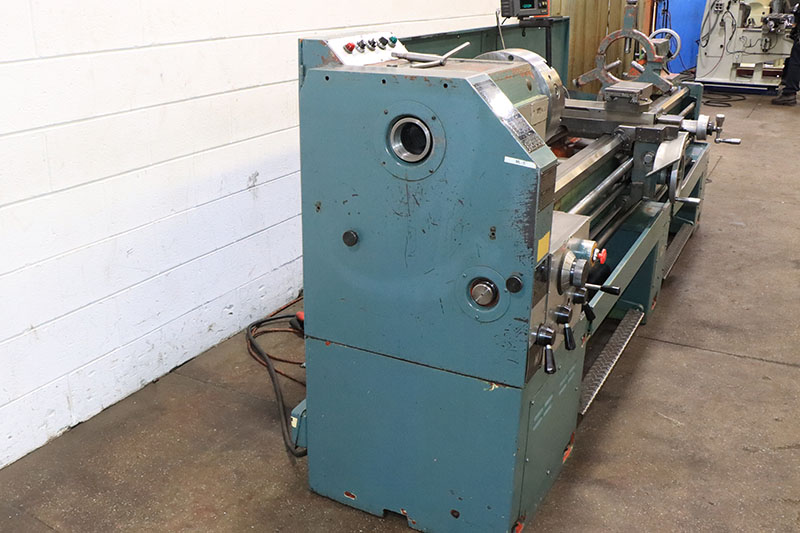

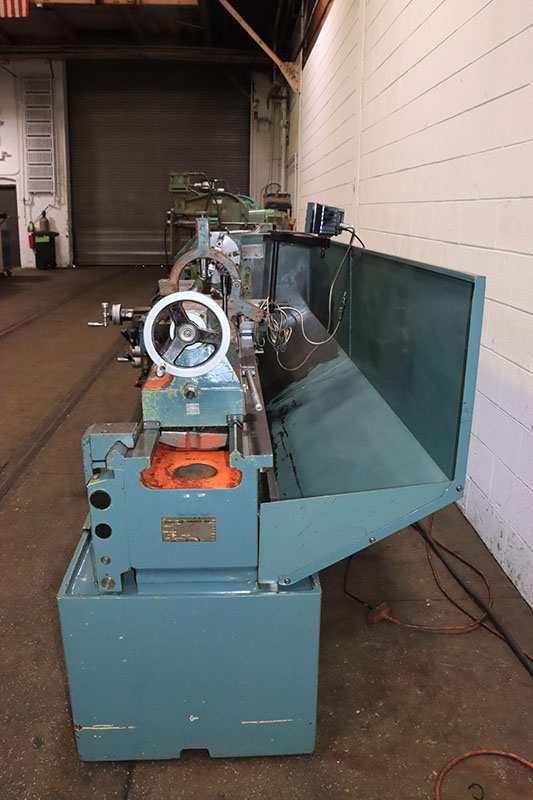

20"/27" x 100" FORTUNE GAP BED LATHE
MODEL: S20100, S/N: 712256, NEW: 1993

SPECIFICATIONS:
SWING OVER BED WAYS ................. 20"
SWING IN REMOVABLE GAP .............. 27"
SWING OVER CROSS SLIDE .............. 11-1/4"
DISTANCE BETWEEN CENTERS ............ 100"
WIDTH OF BED ........................ 14-1/8"

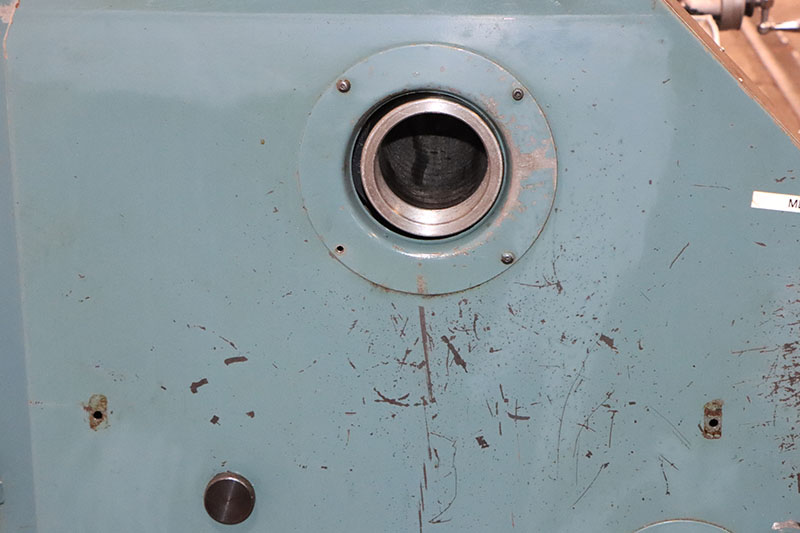

HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK

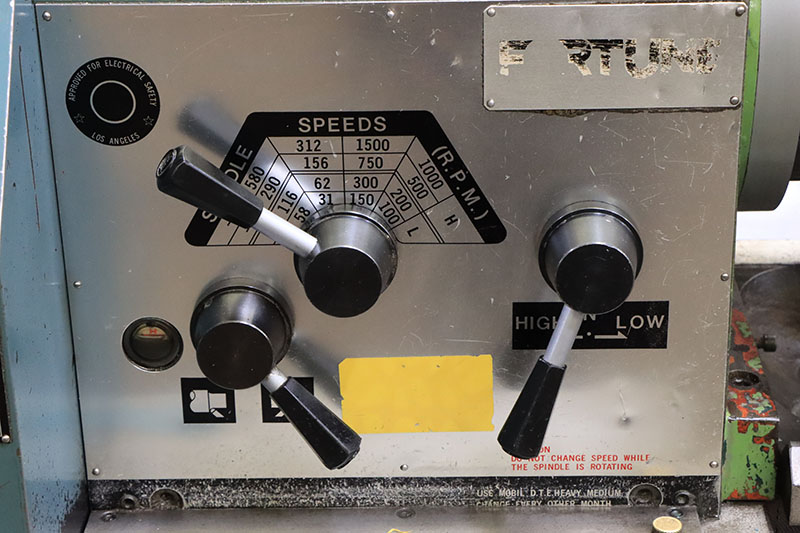

SPINDLE SPEED RANGE (16) ............ 31 - 1500 RPM
LONGITUDINAL FEED RANGE ............. .0033" - .0233"
CROSS FEED RANGE .................... .0016" - .0108"
INCH THREADING RANGE ................ 4 - 56 TPI
METRIC THREADING RANGE .............. 0.5 - 7mm
TAILSTOCK SPINDLE TRAVEL ............ 6"
TAILSTOCK SPINDLE TAPER ............. #4MT
APPROXIMATE FLOOR SPACE ............. 145"L x 36"W x 50"H
APPROX WEIGHT ....................... 6,000 LBS

EQUIPPED WITH:

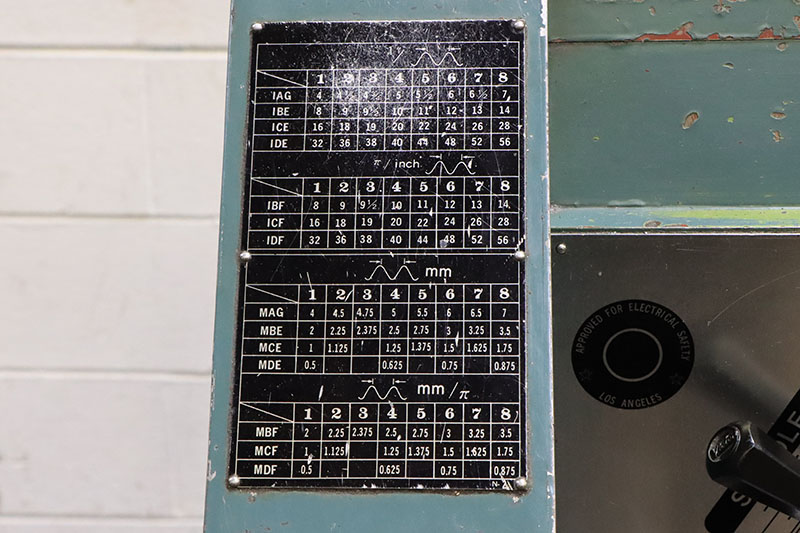

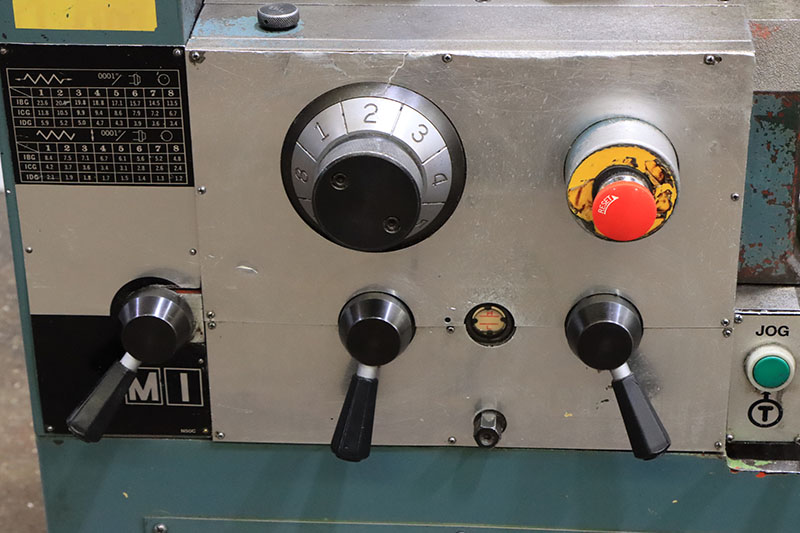

INCH & METRIC THREADING CAPABILITY
REMOVEABLE GAP

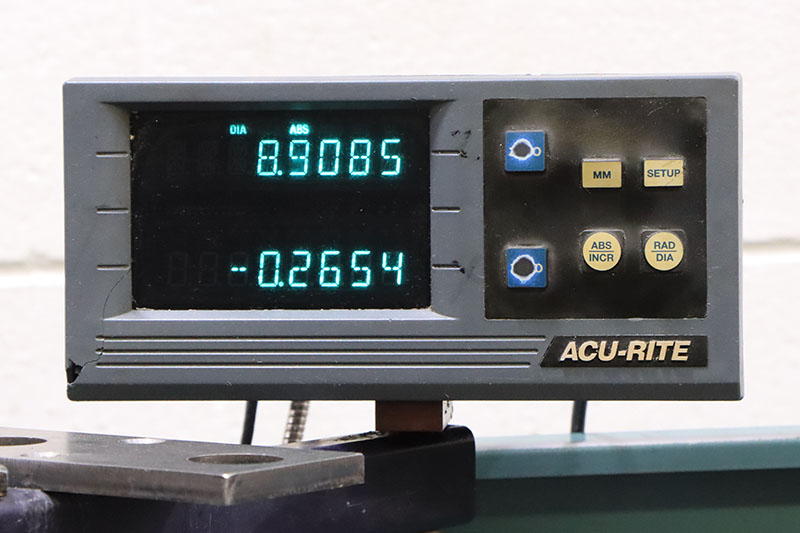

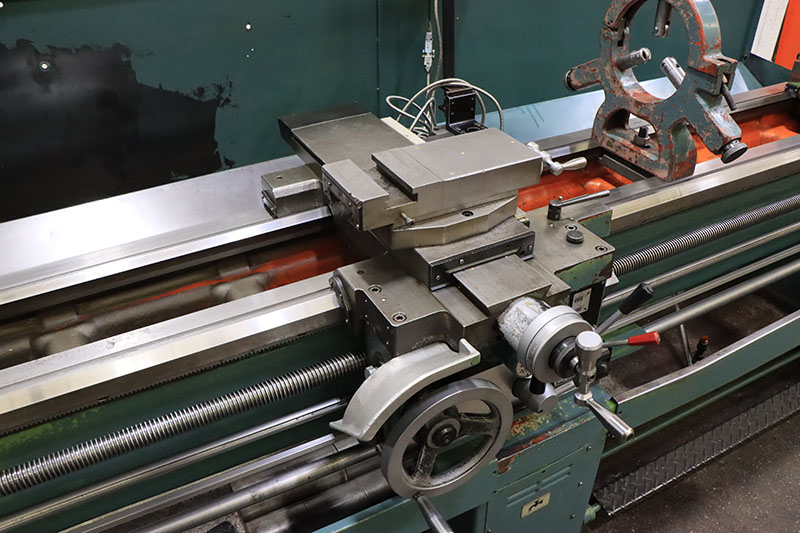

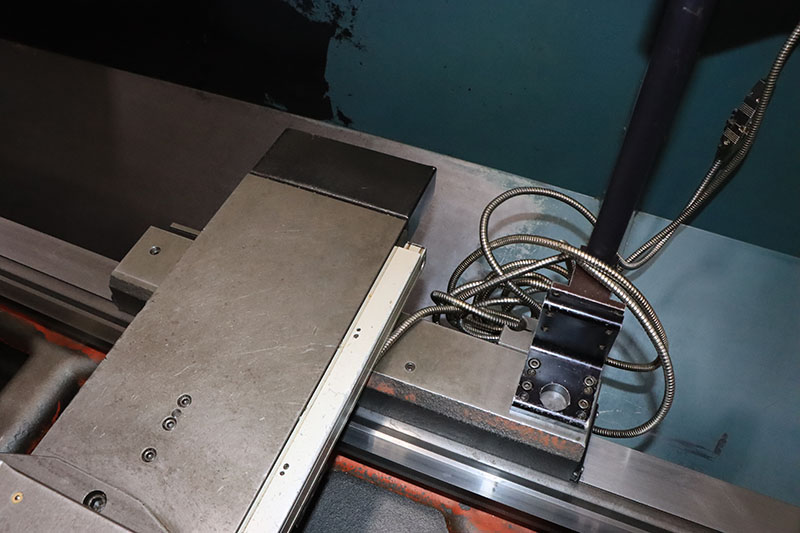

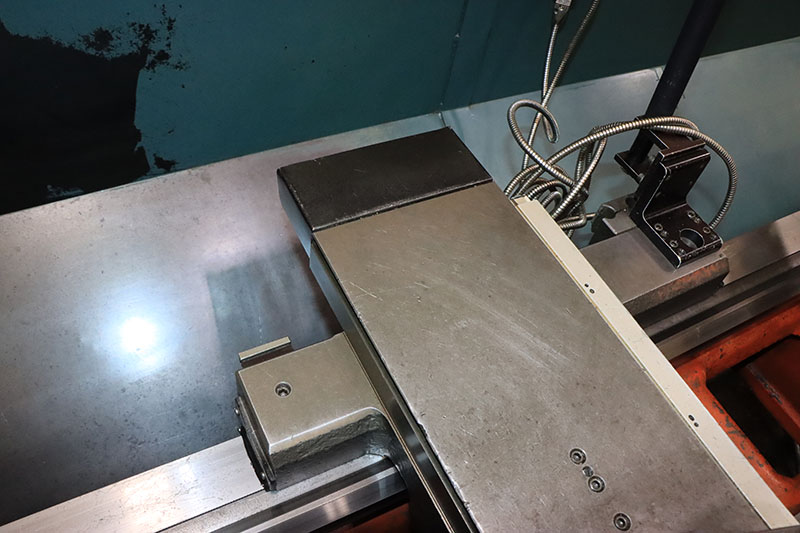

TWO AXIS DIGITAL READOUT

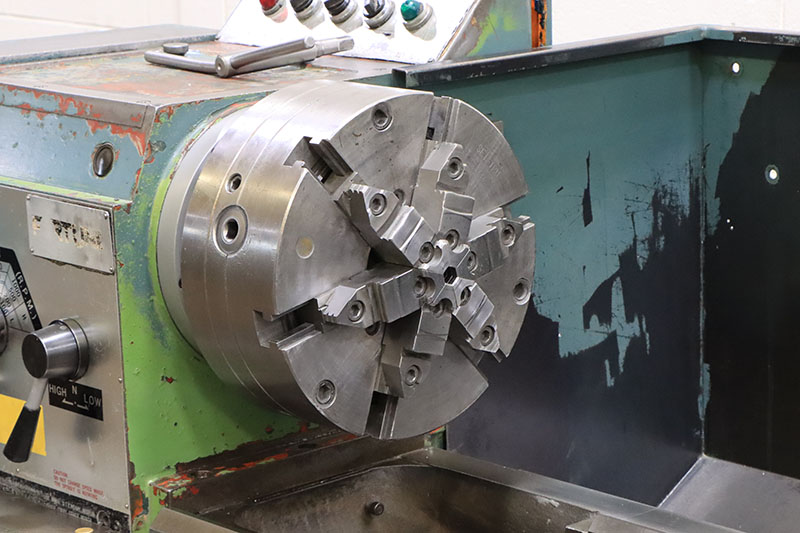

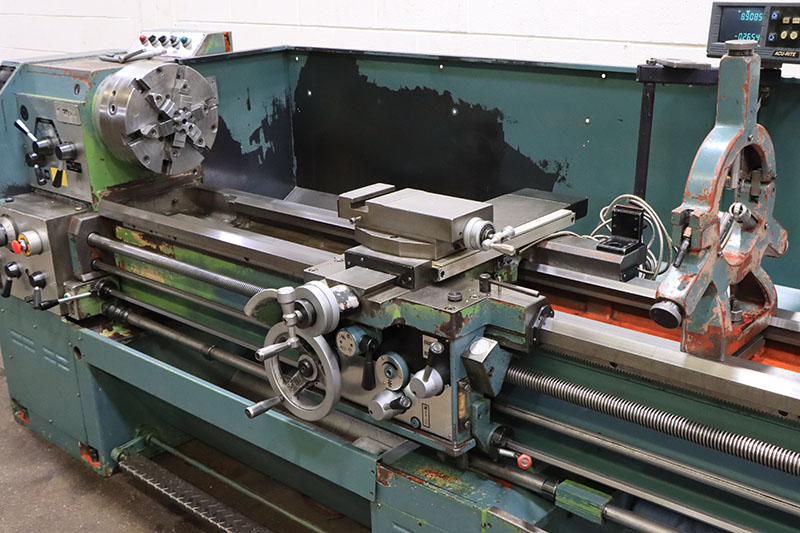

12" 6-JAW CHUCK

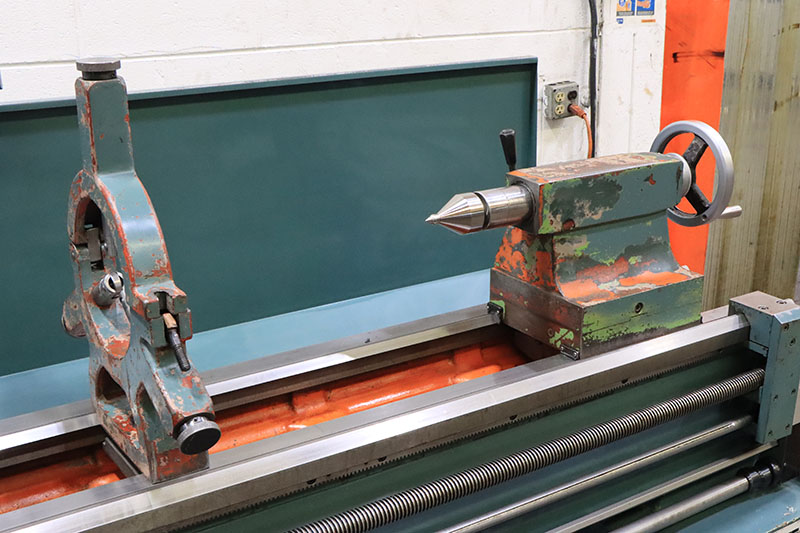

8" CAPACITY ROLLER TYPE STEADY REST
THREAD DIAL INDICATOR
THREAD DIAL INDICATOR
FOOT BRAKE

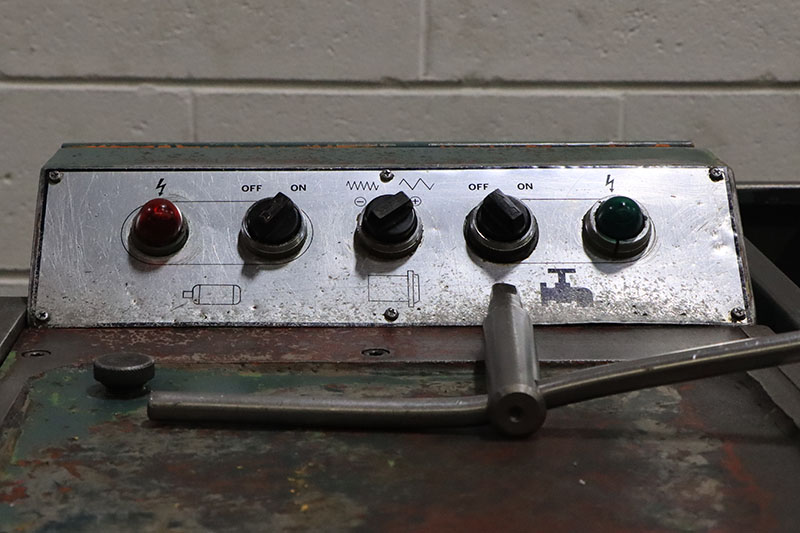

COOLANT SYSTEM WITH REMOVABLE CHIP PANS

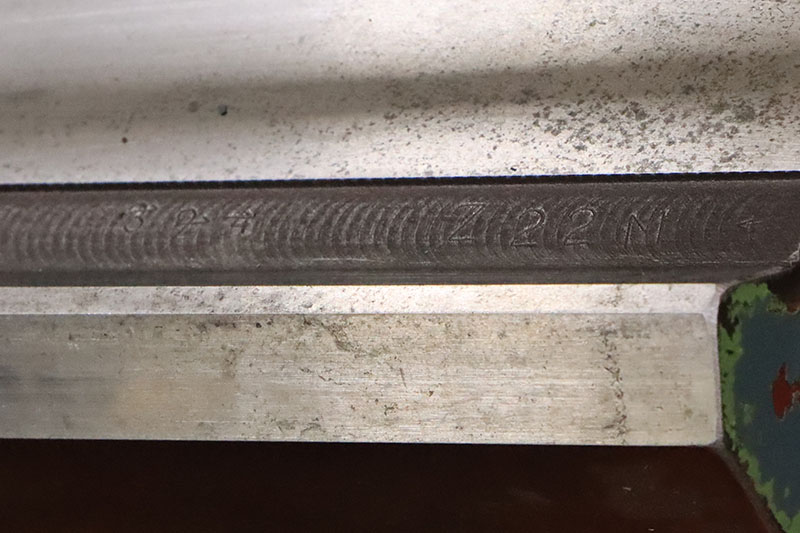

HARDENED & GROUND BED WAYS
10 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
