GMC GML-1660HD NEW LATHES

Price on Request

Make:: GMC

Model:: GML-1660HD

Year:: NEW

Ref #:: 146533

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

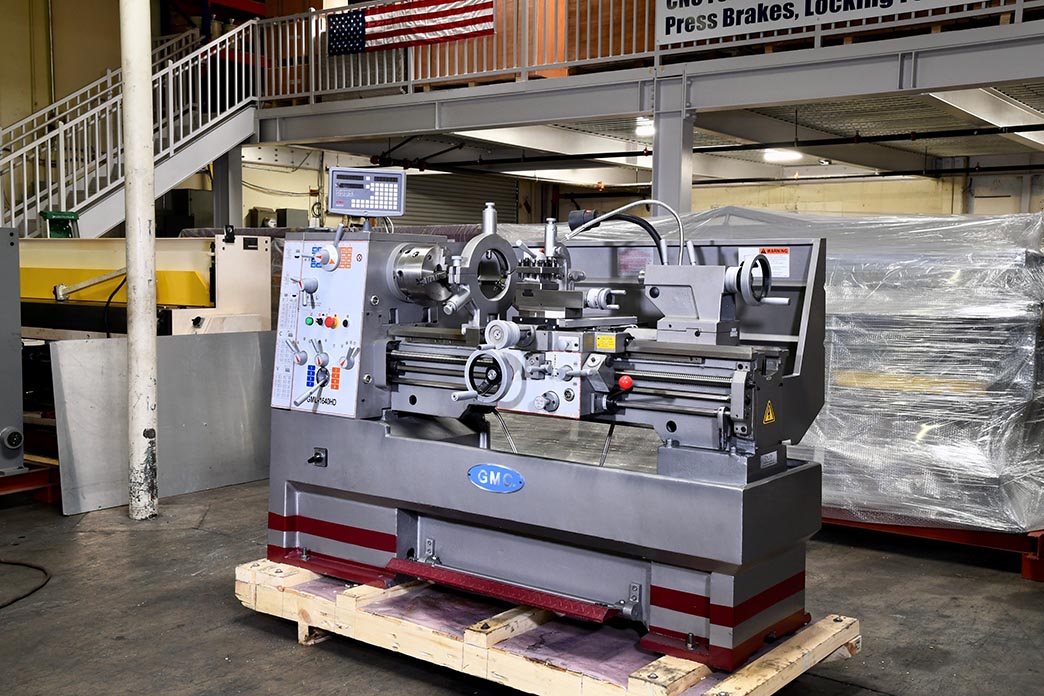

NEW "GMC" HEAVY DUTY PRECISION GAP BED LATHE
MODEL: GML-1660HD
With Free Taper Attachment & Sino DRO


FEATURES:
ISO 9001 certified
Large spindle bore 2-1/16"
Heavy duty spindle D1-6
One-piece solid cast iron machine base
Heavy duty guideway width 10-1/4"
Heavy duty main motor 6 HP
16 spindle speeds from 45-1,800 rpm,
 speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened, and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty for parts

SPECIFICATIONS:
Max. swing over bed ......................... 16-1/16"
Max. length of workpiece .................... 60"
Max. swing over cross slide ................. 10-1/4"
max. swing in gap ........................... 23-1/4"
Width of bed ................................ 10-1/4"
Effective length in gap to spindle .......... 8-1/2"
Effective length in gap to chuck jaws ....... 3-1/2"
Spindle bore ................................ 2-1/16", D1-6
Taper of spindle center ..................... M.T.#6
Spindle speeds .............................. 45-1,800 rpm, 16 steps
Longitudinal feeds .......................... 0.0018-0.07 IPR, 42 kinds
Cross feeds ................................. 0.0009-0.03 IPR, 42 kinds
Inch threads ................................ 70-2 TPI, 45 kinds
Metric threads .............................. 0.2-14 mm, 39 kinds
Module threads .............................. 0.3-3.6 mm, 18 kinds
Diametral pitch threads ..................... 8-40 DP, 21 kinds
Max. travel of top slide .................... 4-1/4"
Max. travel of cross slide .................. 8-1/2"
Spindle length without chuck ................ 20-1/2"
Leadscrew length x TPI ...................... 1-1/4" x 4 TPI
Diameter of tailstock quill ................. 2-1/16"
Max. travel of tailstock quill .............. 5"
Taper of tailstock quill center ............. M.T.#4
Main motor .................................. 6HP, 220V, 3 phase
Coolant pump ................................ 1/8HP, 220V, 3 phase
Net weight, approx. ......................... 4,850 lbs.
Overall dimensions .......................... 100"L x 38"W x 56"H

STANDARD EQUIPMENT:
FREE SINO DRO INSTALLED
FREE TAPER TURNING ATTACHMENT, , INSTALLED
8” 3-JAW CHUCK WITH ONE SET OF REVERSIBLE JAWS
10” 4-JAW CHUCK
12” FACE PLATE
5 1/2” LARGE STEADY REST WITH ROLLER JAWS
OIL PUMP ON APRON FOR ALL GUIDEWAYS AND LEADSCREWS
2” FOLLOW REST
REMOVEABLE GAP
4-WAY TOOLS POST
FOOT BRAKE
HALOGEN WORK LIGHT AND COOLANT SYSTEM
FULL LENGTH SPLASH GUARD
(2) DEAD CENTERS AND (1) REDUCING SLEEVE MT6/MT4
THREAD CHASING DIAL
TOOL BOX AND LEVELING PADS

OPTIONAL EQUIPMENT (CALL FOR PRICING):
MICRO CARRIAGE STOP # MCS-GML-1660HD
DRO # SINO # SINO 840 FOR GML-1640HD, FREE INSTALL
DRO # SINO # SINO 860 FOR GML-1660HD, FREE INSTALL
 5-C HAND LEVER TYPE COLLET CLOSER# 5C-1660HD
 33 PC 5C COLLET SET, FROM 1/16 TO 1-1/16” BY 32NDTH, # 900-0014
ALORIS TYPE QC TOOL POST SET # 3900-5230, 6 PCS
LIVE CENTER # 3900-5004
5PC INDEXABLE CARBIDE TURNING SET # 2003-0004
3/8” CARBIDE INSERT # 2003-0014
LATHE PACKAGE 1 # GMCLSUP101, INCL 5PC INDEXABLE CARBIDE
TURNING SET # 2003-0004, ½ DRILL CHUCK # 3700-0102, CHUCK ARBOR #3700-0157,
AND 29PC TITANIUM DRILL BIT SET #5000-0001T
