Haas DS-30SSY CNC TURNING CENTERS - CNC LATHES

$99,500

Make:: Haas

Model:: DS-30SSY

Year:: 2011

Ref #:: 167516

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

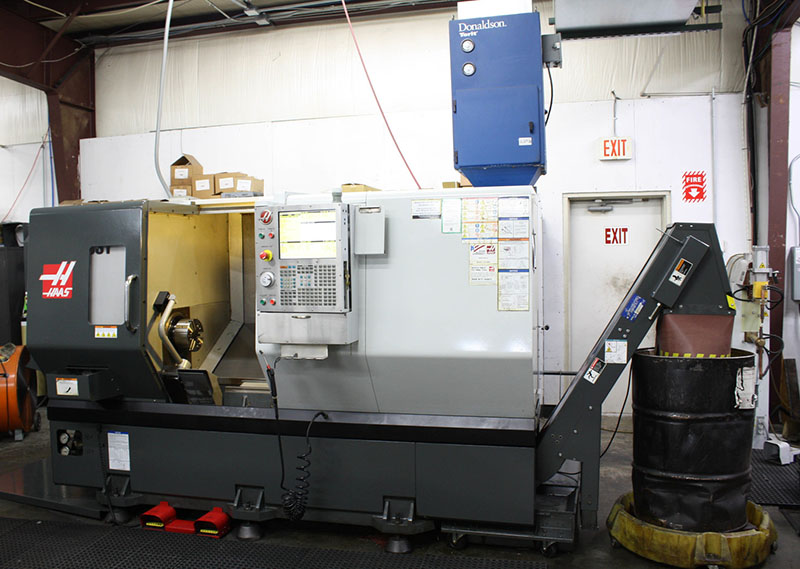

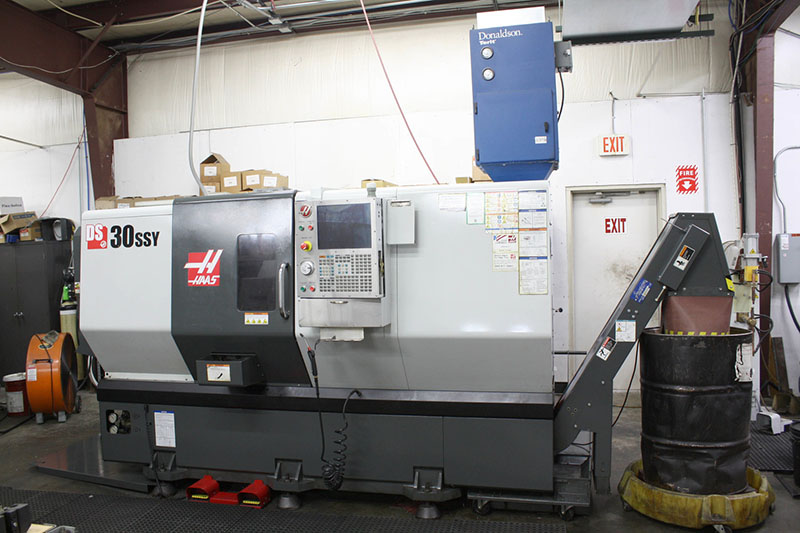

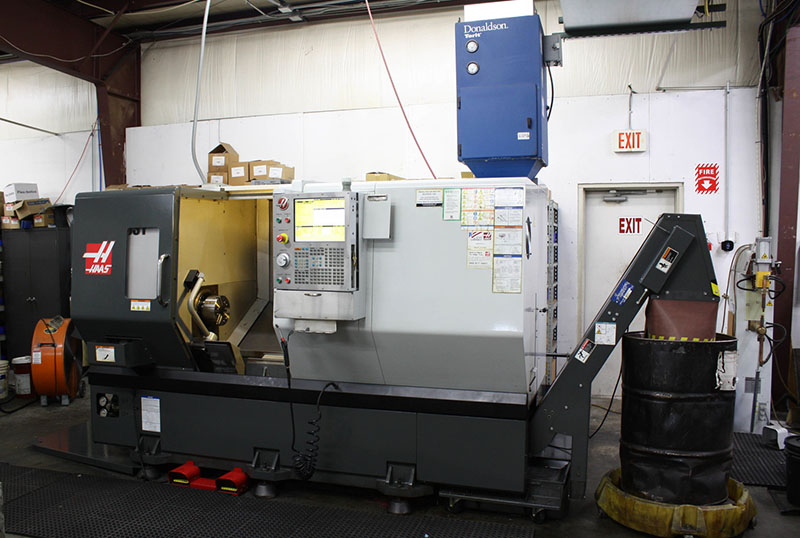

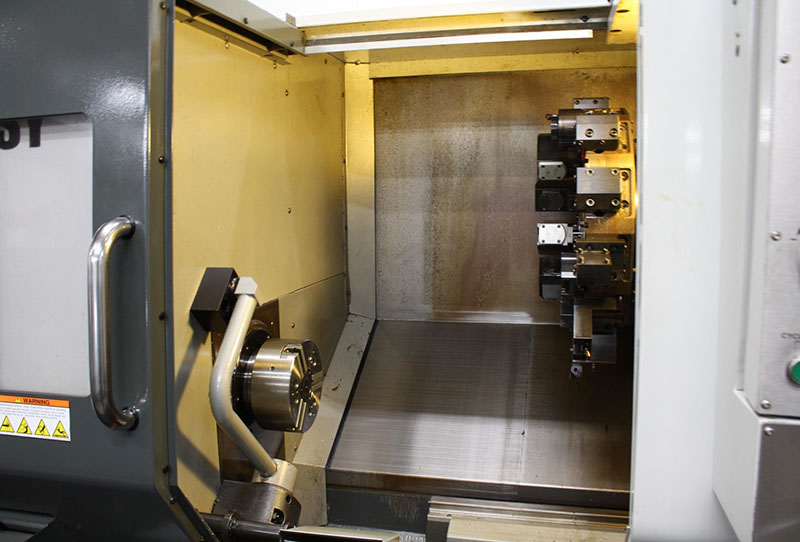

Haas CNC Turning Center
Model: DS-30SSY, New: 2011


Specifications:

Swing    ………………………………………….  31.75"
Machining Length   …………………………..  23"
Chuck Size ……………………………………..  8.3"
Bar Capacity  …………………………………..  2"
Power …………………………………………….  30 hp
Max RPM ……………………………………….  4,800 RPM
Turning Dia …………………………………….  16"
Tailstock …………………………………………  No
Live Tooling …………………………………….  Yes
Sub Spindle   ……………………………………. Yes

Main Spindle
- Speed 4,800 RPM
- Motor 30 HP
- Spindle Nose A2-6
- Bar Capacity 2.0"

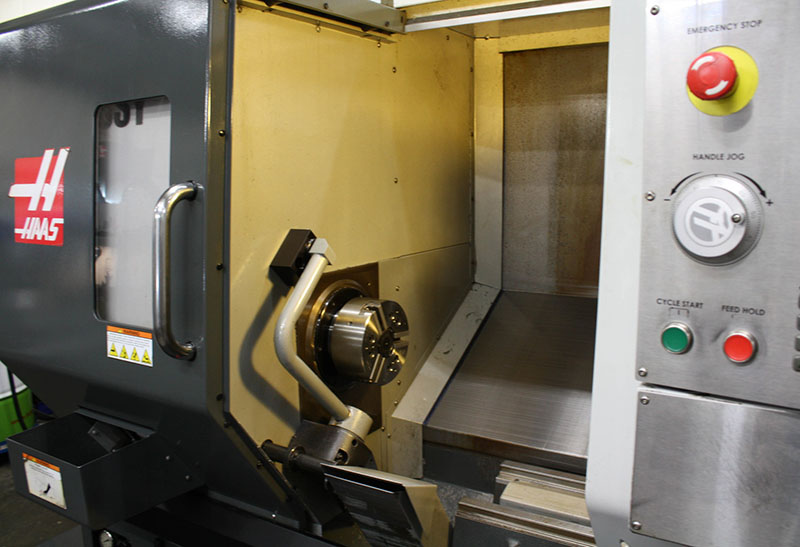

- 8.3" 3-Jaw Hydraulic chuck

Sub Spindle
- Speed 4,800 RPM
-  Motor 20 HP
- Spindle Nose A2-5
- 8.3" 3-Jaw Hydraulic Chuck

Live Tooling:
- Spindle Speed 6,000 RPM

C1-Axis Travel Std. 360.000 deg.
X1-Axis Travel Std. 12.5″
Y1-Axis Travel Std. 4″
Z1-Axis Travel Std. 23″
X1-Axis Rapid Rate 472 ipm
Y1-Axis Rapid Rate 472 ipm
Z1-Axis Rapid Rate 1,200 ipm

Equipped With:

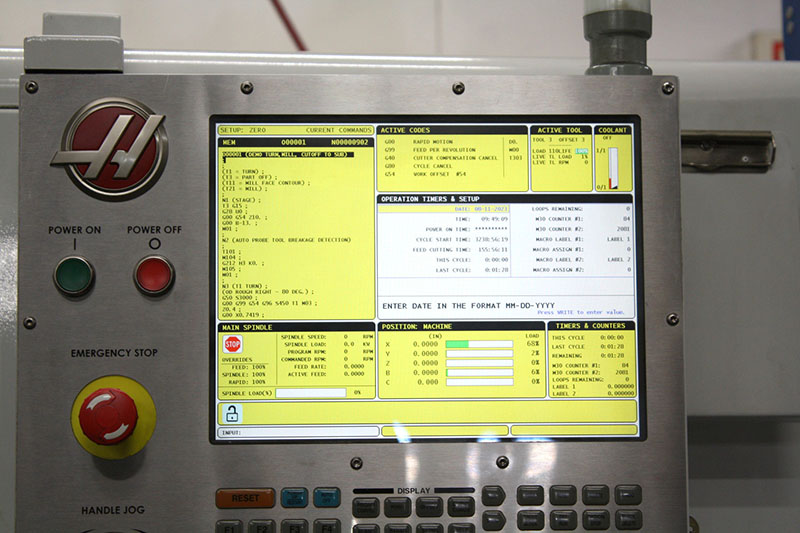

   Haas CNC Control

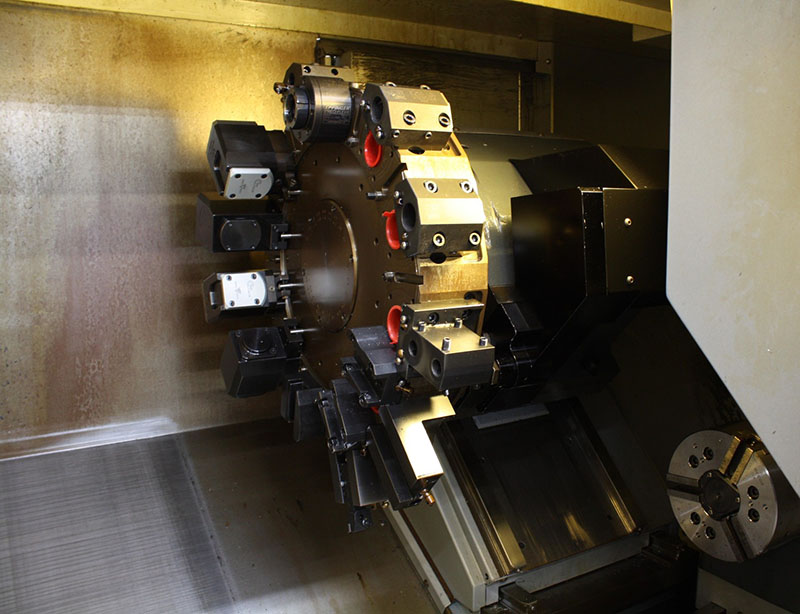

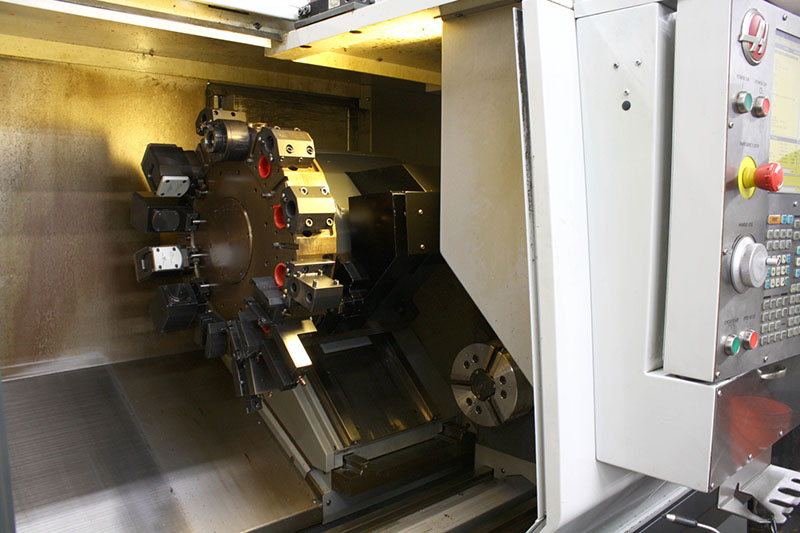

   24 Station VDI/BOT Turret
   Automatic Tool Presetter
   HT Live Tools with C Axis

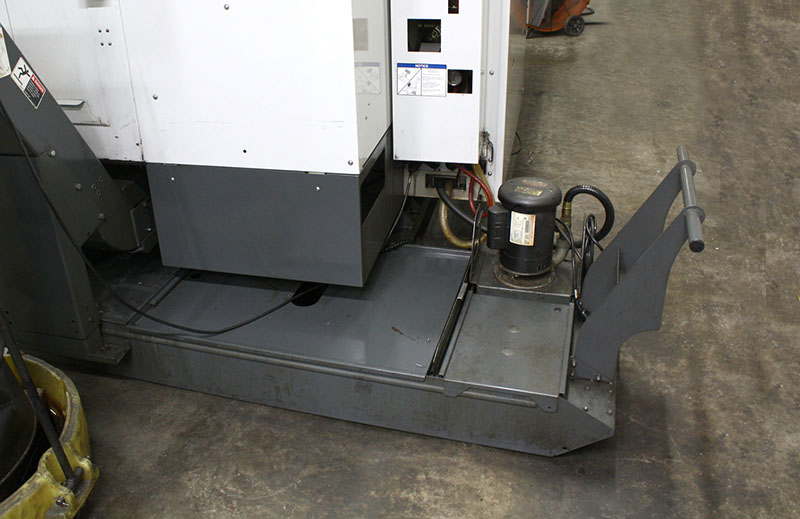

   Belt Type chip conveyor
   Parts Catcher
   Haas Servo Load 300 Bar Feeder
   8.3" hydraulic Chucks for Main Spindle and Sub spindle

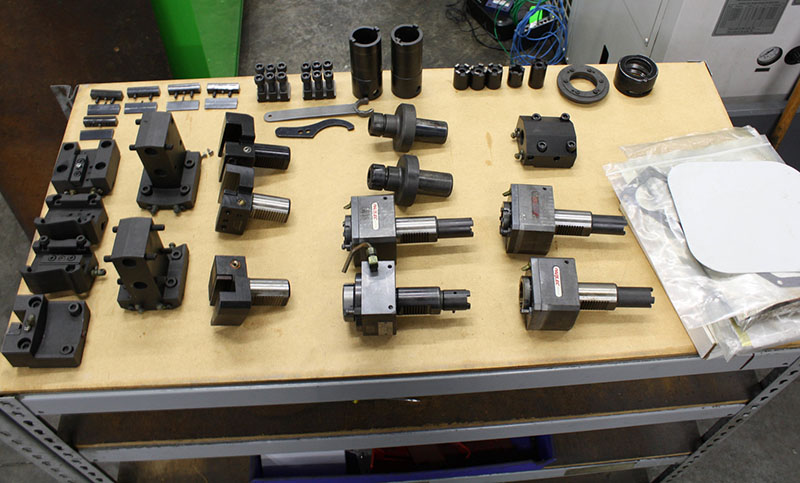

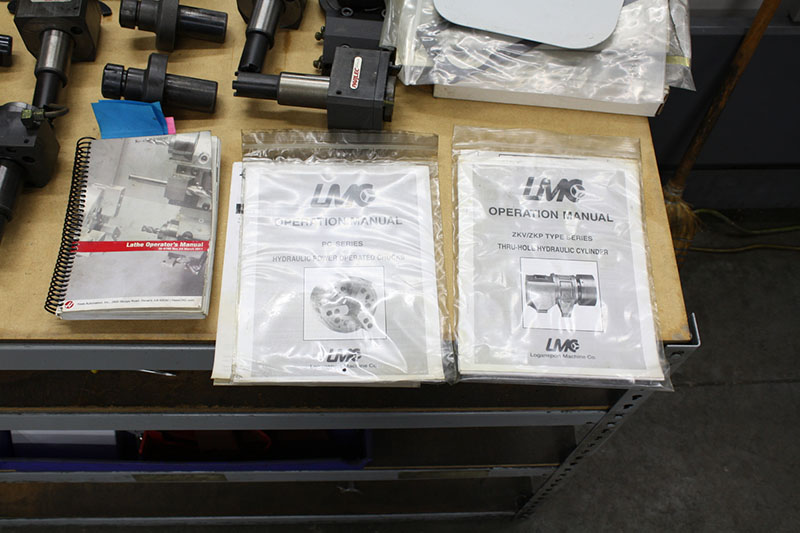

   Good assortment of tooling including Live holders
   C-Axis for Main and Sub Spindle
