Haas SL-10 New: 2010 CNC TURNING CENTERS - CNC LATHES

$18,500

Make:: Haas

Model:: SL-10 New: 2010

Year:: 2010

Ref #:: 178748

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

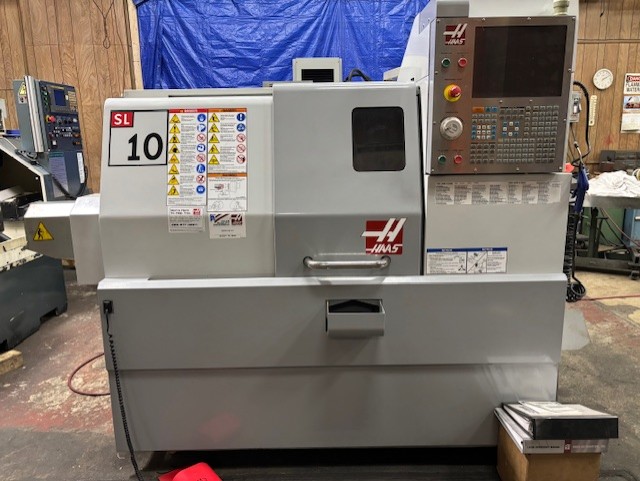

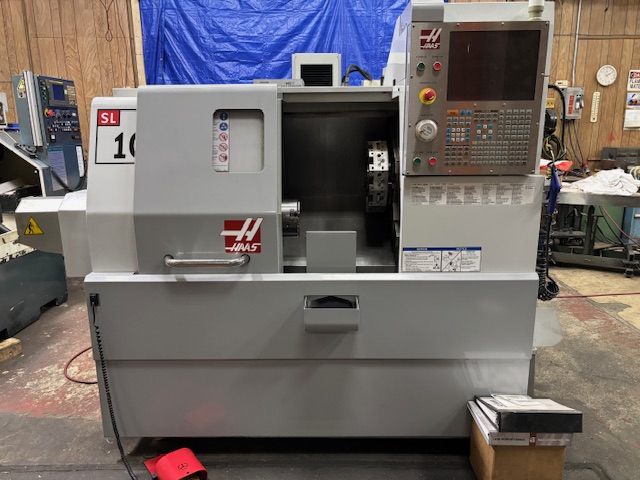

HAAS MODEL: SL-10 CNC LATHE
NEW: 2010

SPECIFICATIONS:
SWING OVER FRONT APRON ............ 16.25"
SWING OVER CROSS SLIDE ............ 8"
STANDARD BAR CAPACITY ............. 1.75"
MAX. CUTTING DIAMETER ............. 11"
MAX. CUTTING LENGTH ............... 13"
SPINDLE SPEED ..................... 6000 RPM
PEAK SPINDLE HORSEPOWER ........... 15HP
SPINDLE NOSE ...................... A2-5
SPINDLE BORE ...................... 2.31"
X-AXIS TRAVEL ..................... 6.25"
Z-AXIS TRAVEL ..................... 14"
RAPID TRAVERSE RATE ............... 710 IPM
NUMBER OF TURRET TOOLS ............ 12
TOOL SIZE, OD ..................... 0.75"
APPROX. WEIGHT .................... 5,500 LBS

EQUIPPED WITH:
 - HAAS CNC CONTROL

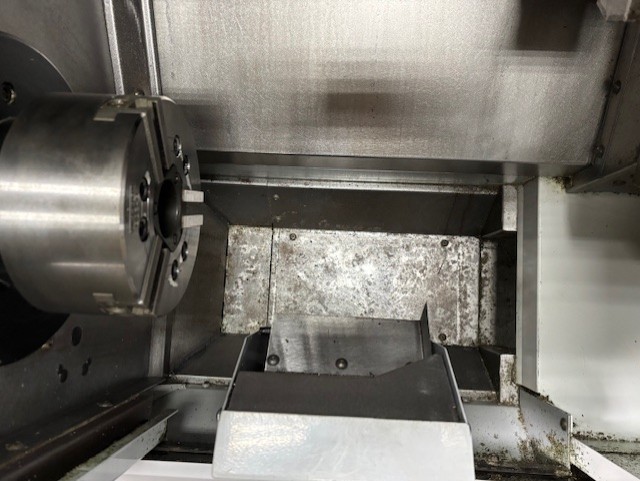

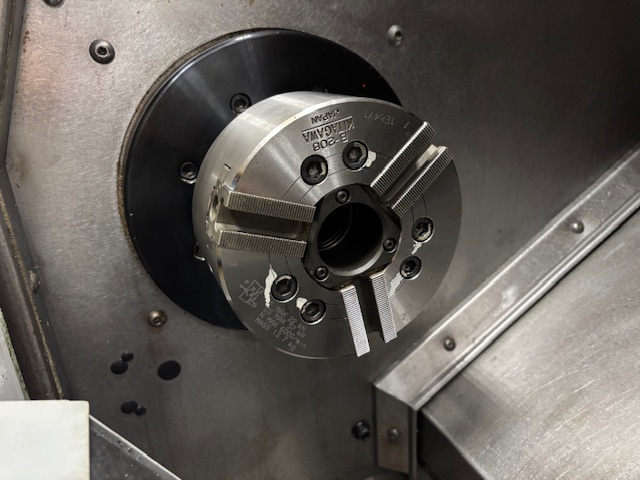

 - 6" KITAGAWA B206 3-JAW HYD. CHUCK
 - PARTS CATCHER

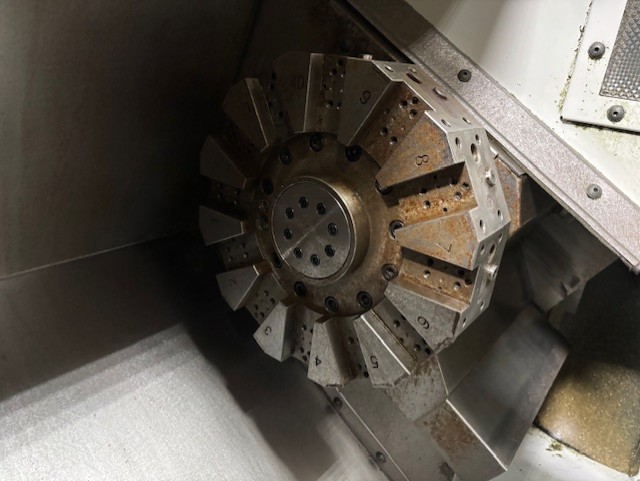

 - 12 STATION TURRET
 - ALL AVAILABLE MANUALS
