Watch Video:

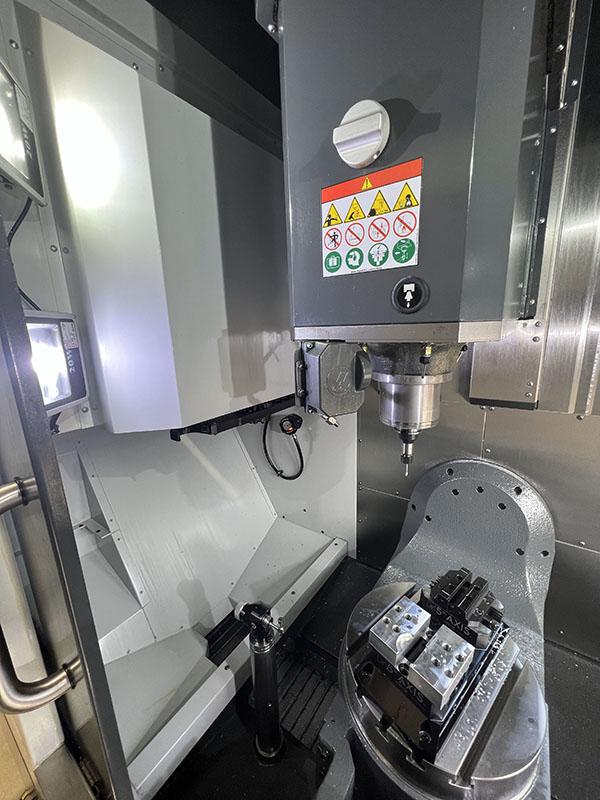

Haas UMC500SS UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:
Haas
Model:
UMC500SS
Year:
2020
Ref #:
164289

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


HAAS 5-AXIS MACHINING CENTER
MODEL: UMC-500SS, NEW: 2020

SPECIFICATIONS:
TRAVELS:
   X .......................... 24" - 610mm
   Y .......................... 16" - 406mm
   Z .......................... 16" - 406mm
SPINDLE TO PLATTER MIN/MAX .... 4" - 20" - 102mm - 508mm
# AXIS ........................ 5
SPINDLE SPEEDS ................ 12,000 RPM
SPINDLE TAPER ................. CAT 40
TOOLCHANGER CAPACITY .......... 50+1 TOOLS

FULL SIMULTANEOUS 5-AXIS MOTION WITH DUAL AXIS TRUNNION TABLE
B AXIS TILT: =120 DEG, - 35 DEG
C AXIS ROTATION: 360 DEG
PLATTER DIAMETER: 15.7"
MAX WEIGHT ON PLATTER: 500 LBS
RAPID RATES: (X,Y,Z) 1,200 IPM

EQUIPPED WITH:
HAAS NEXT GENERATION 5-AXIS CONTROL
   HIGH SPEED MACHINING, 1GB MEMORY, ETHERNT INTERFACE,
   DYNAMIC WORK OFFSETS & TOOL CENTER POINT, RIGID TAPPING,
PRECISION SCALE FEEDBACK ON B & C ROTARY AXES
REMOTE JOG HANDLE
THRU SPINDLE COOLANT, 300 PSI
RENISHAW WIRELESS INTUITIVE TOOL AND PART PROBE (WIPS)
CHIP CONVEYOR
HIGH SPEED SIDE MOUNTED AUTOMATIC TOOL CHANGER
30 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN A NEW JERSEY FACILITY


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
