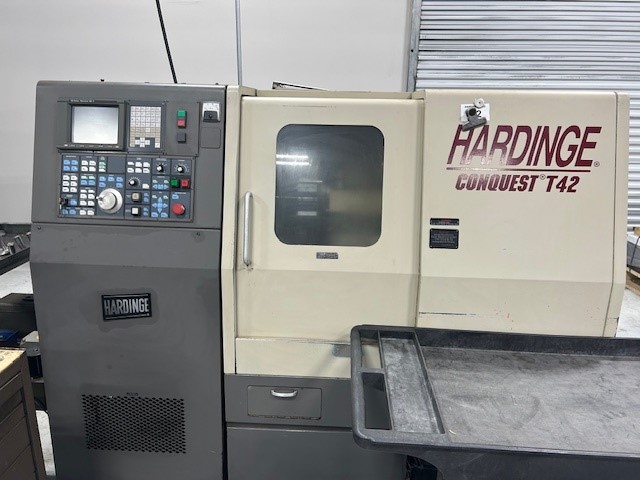

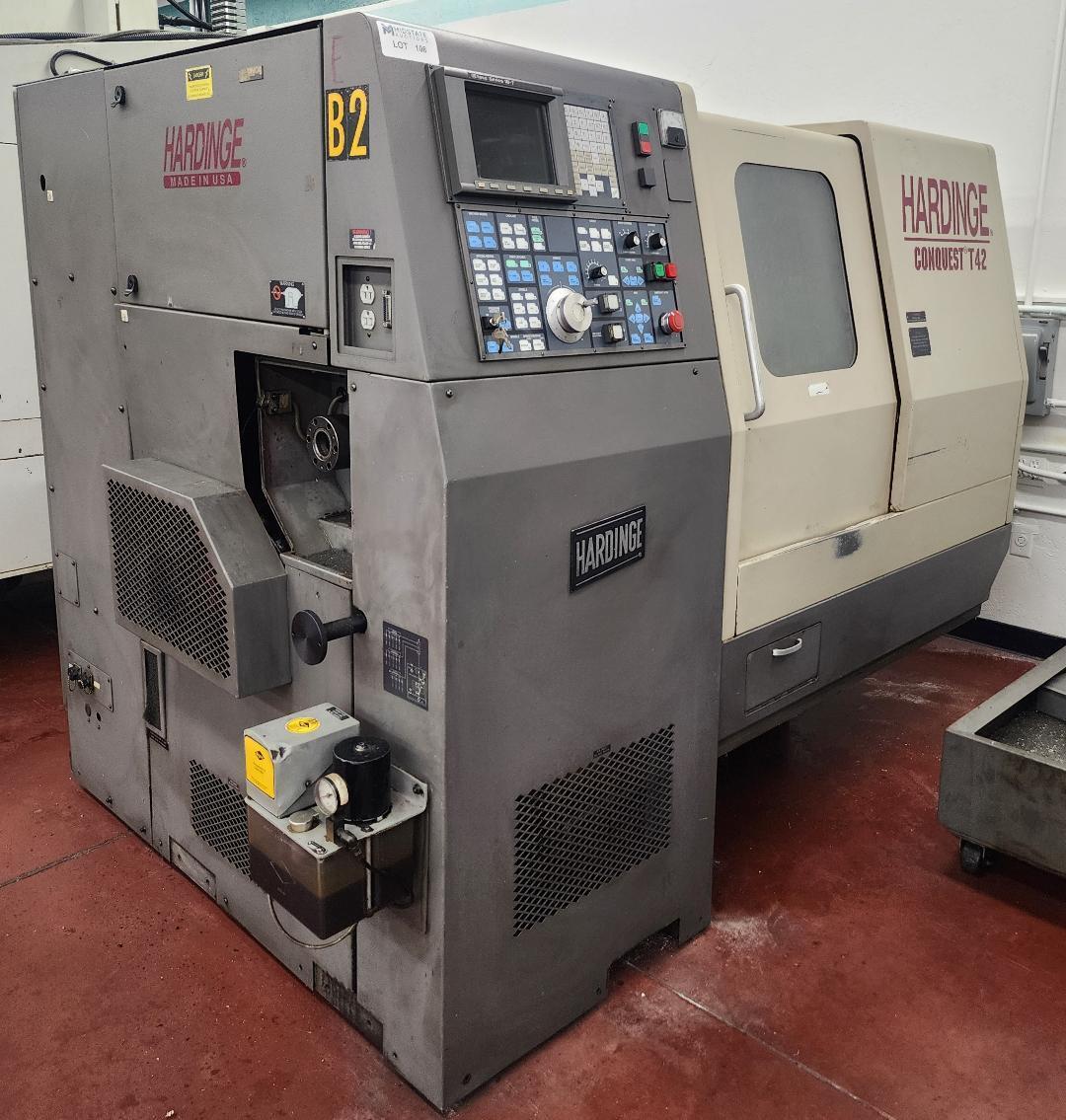

Hardinge CONQUEST T42 CNC TURNING CENTERS - CNC LATHES

$9,500

Make:: Hardinge

Model:: CONQUEST T42

Year:: 1995

Ref #:: 178209

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

(1) USED HARDINGE CONQUEST T42 CNC LATHE

NEW: 1995

SPECIFICATIONS:

SPINDLE
SPINDLE CONFIGURATION (ANSI):    A2-5", 16C
ROUND COLLET (THROUGH CAPACITY): 1.625"

AC DIGITAL DRIVE SYSTEM
STANDARD:    10 HP
TORQUE RATING:    42 FT-LB
SPEED RANGE (1-RPM STEPS):    50 TO 5000

CARRIAGE AND CROSS SLIDE
SWING DIAMETER OVER UPPER WAY COVER:    21.2"
PRELOADED BALL SCREW DIAMETER:    1.259"
X-AXIS TRAVEL (MAX.):    5.5"
X-AXIS RAPID TRAVERSE RATE:    472 IPM
Z-AXIS RAPID TRAVERSE RATE:    630 IPM
Z-AXIS (DRILLING) THRUST (MAX.):    1,500 LBS

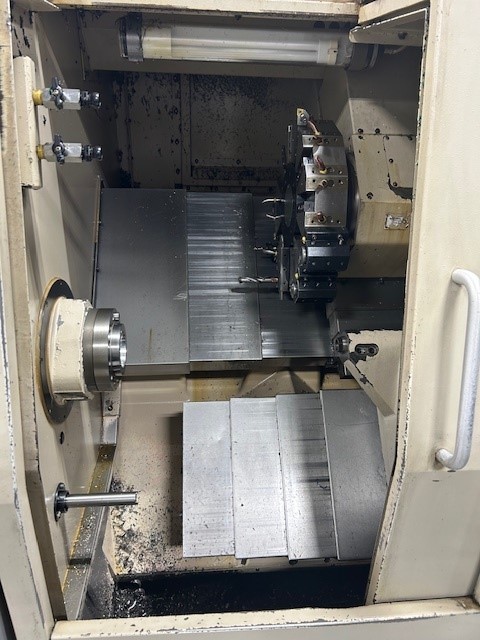

BI-DIRECTIONAL VERTICAL TURRET
NO. OF STATIONS:    12
SQUARE SHANK TOOL SIZE (MAX.):    3/4"
ROUND SHANK TOOL SIZE (MAX.):    1-1/4"
DISTANCE FROM SPINDLE FACE TO TURRET (MAX.):    14"
TURNING DISTANCE (MAX.):    13.8"

SPECIFICATIONS(CONT):

TAILSTOCK
CENTER TAPER:    MT NO. 3
TRAVEL (MAXIMUM):    11.5"
RAPID TRAVERSE AND RETURN RATE:    300 IPM
THRUST (MAXIMUM):    700 LBS

MISCELLANEOUS
COMPRESSED AIR REQUIREMENT:    70 TO 90 PSI
5 TO 6 SCFM

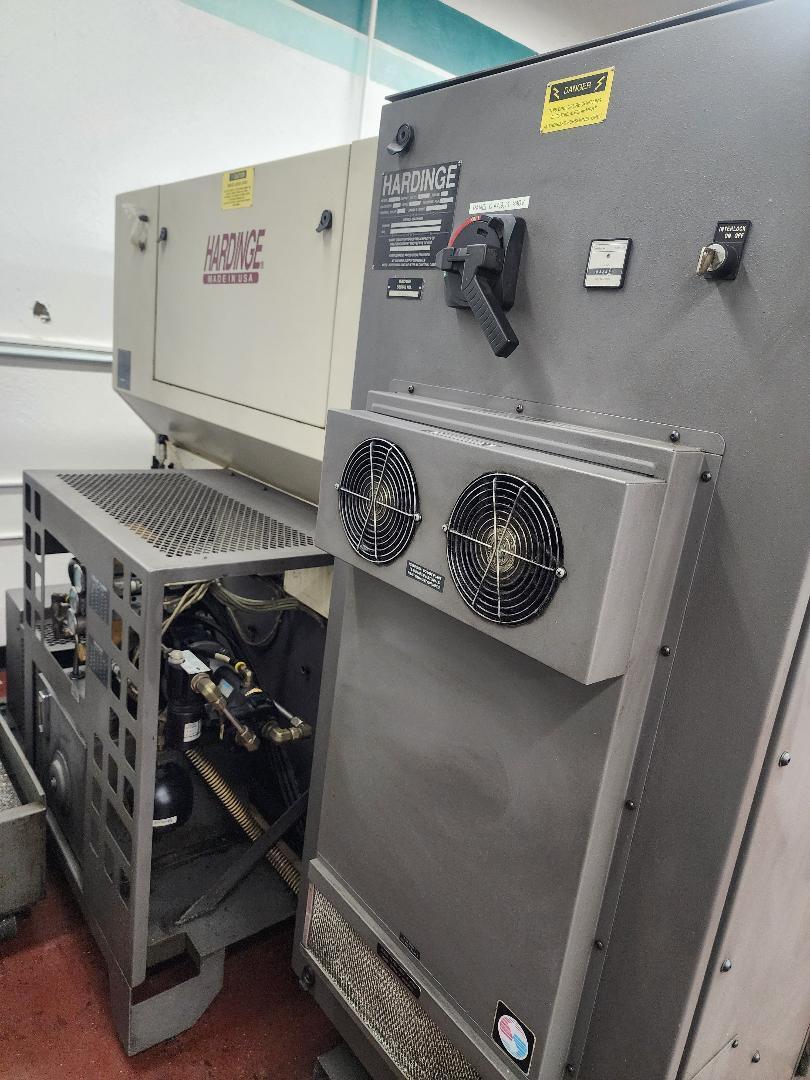

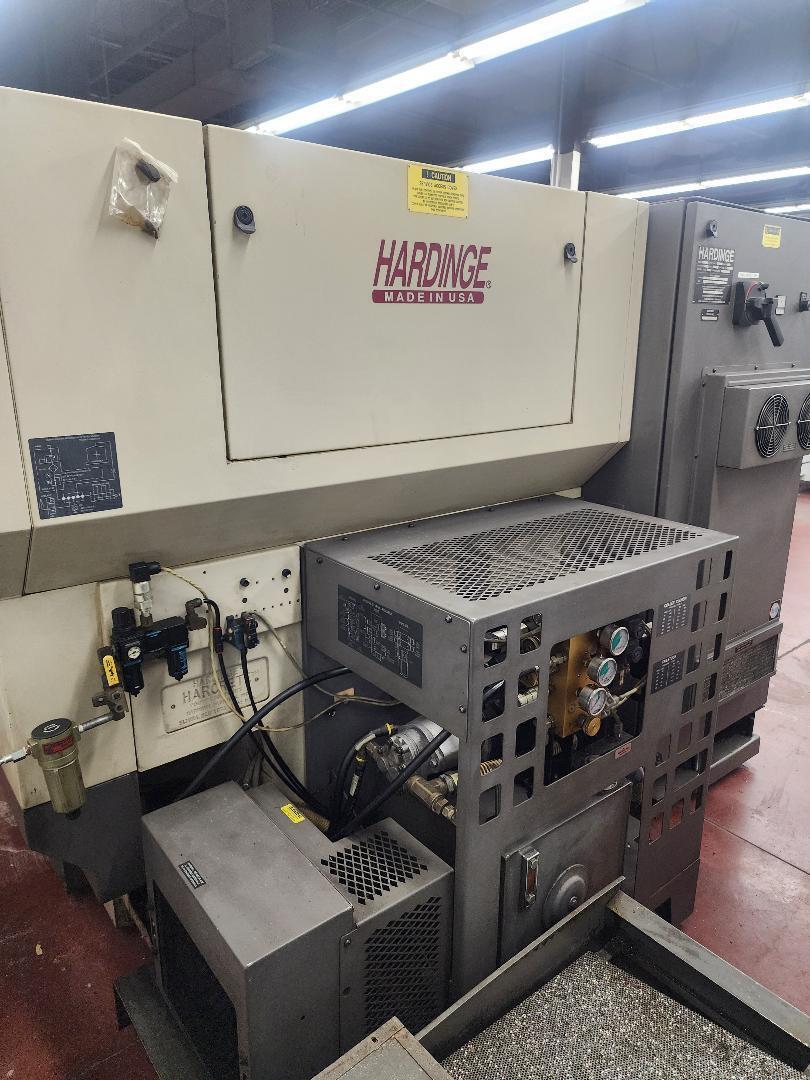

HYDRAULIC TANK CAPACITY:    10 U.S. GAL
COOLANT TANK CAPACITY:    26 U.S. GAL

SHIPPING WEIGHT, BASE MACHINE (APPROX.):    9,800 LBS

MACHINE DIMENSIONS
LENGTH:    93"
DEPTH:    70"
HEIGHT:    67"

ELECTRICS:    230V, 3 PH, 60 CYC

EQUIPPED WITH:

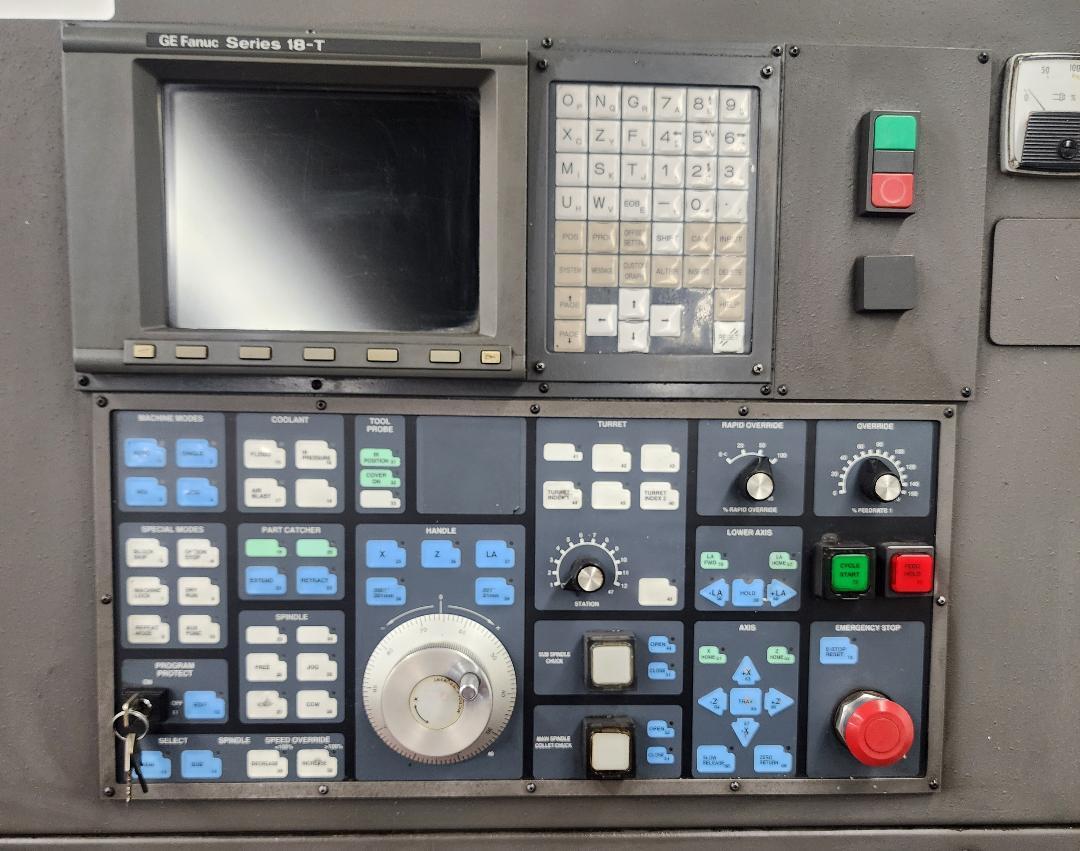

FANUC 18T  CNC CONTROL

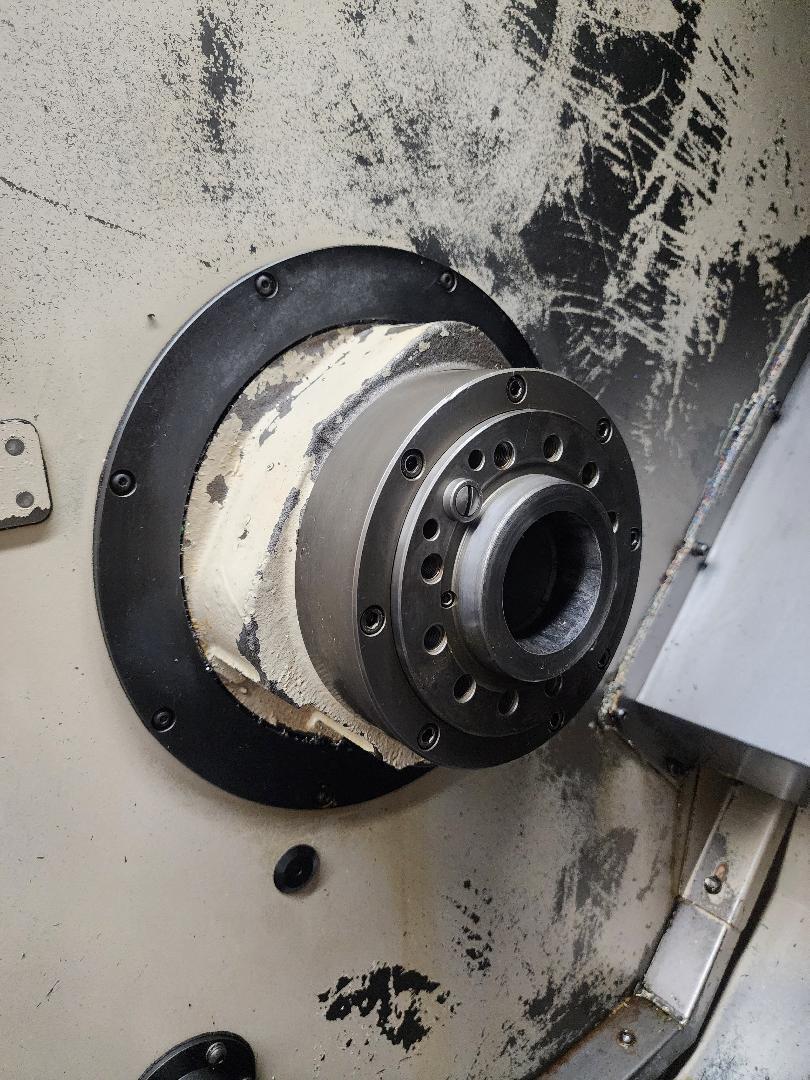

16CCOLLET CHUCK
12 POSITION TURRET
TAILSTOCK
ALL AVAILABLE TOOLHOLDERS AND MANUALS
