Harig 612, 2003, 2X DRO, EMC, CABLE DRIVE FOR TABLE SURFACE GRINDERS, HAND FEED

Price on Request

Make:: Harig

Model:: 612, 2003, 2X DRO, EMC, CABLE DRIVE FOR TABLE

Year:: 2003

Ref #:: 179356

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

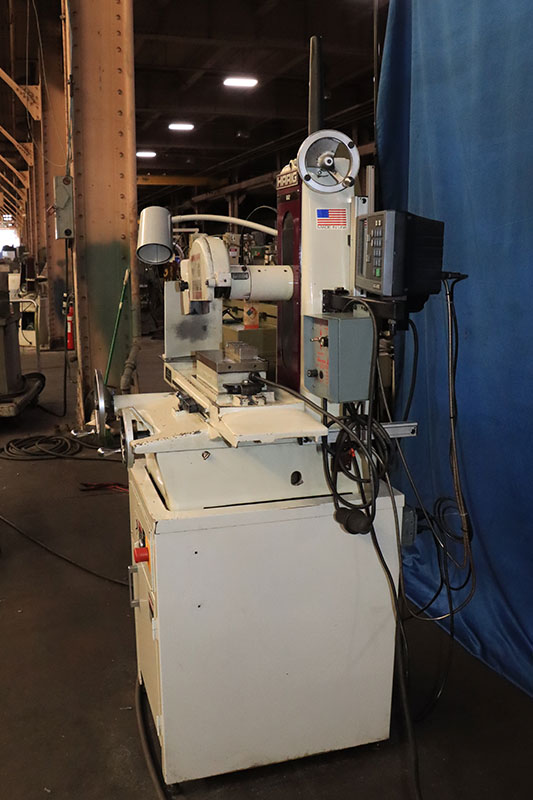

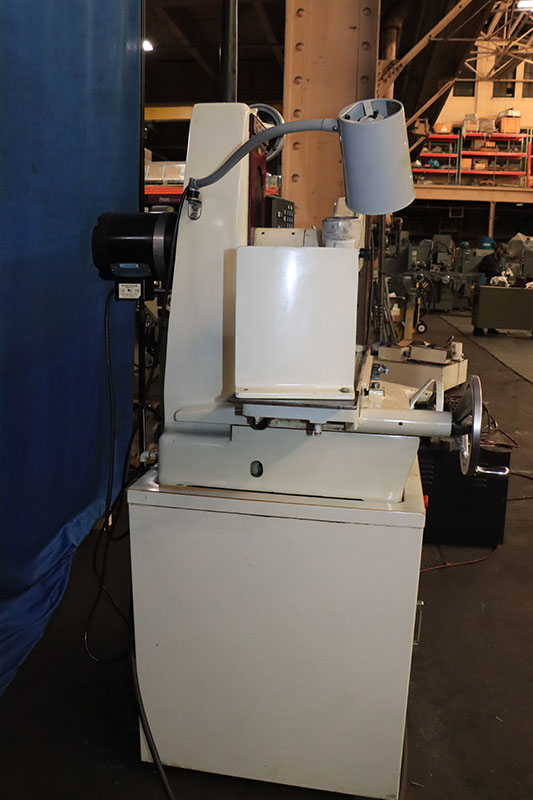

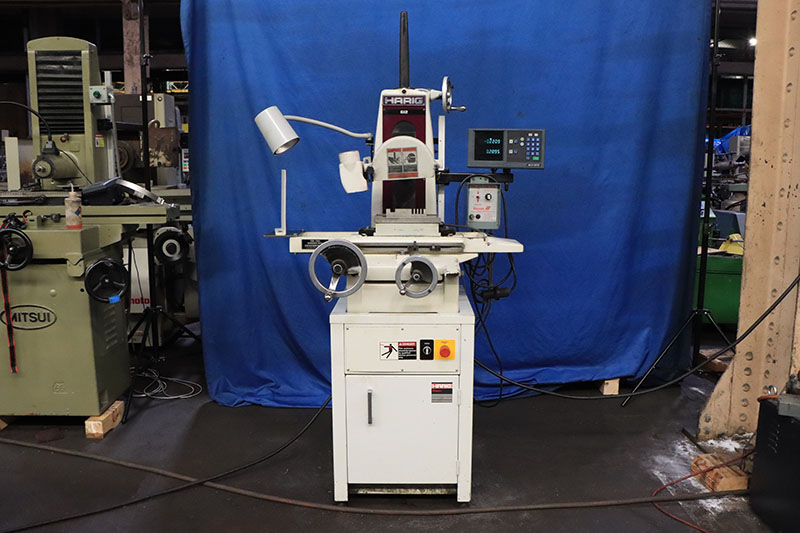

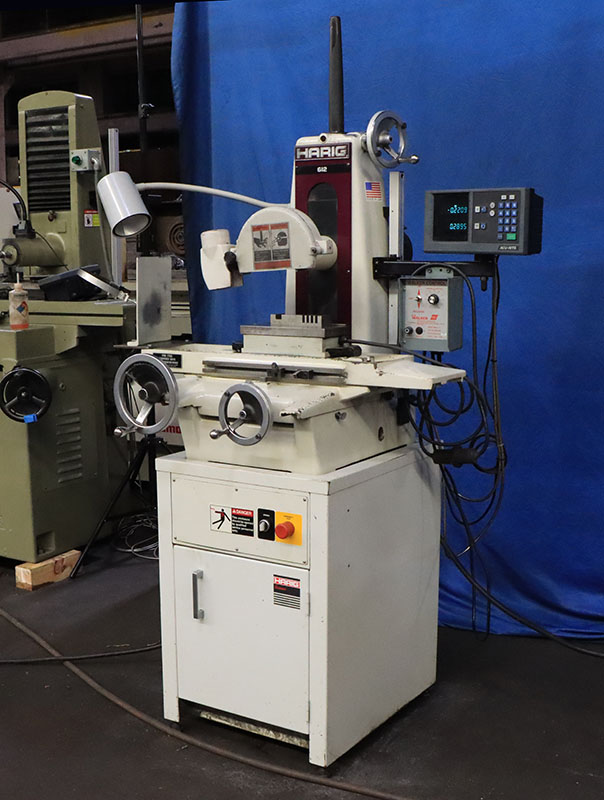

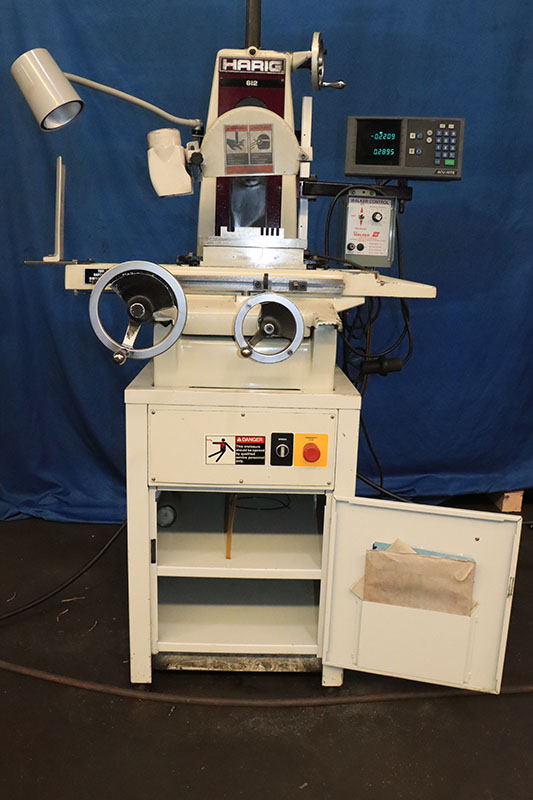

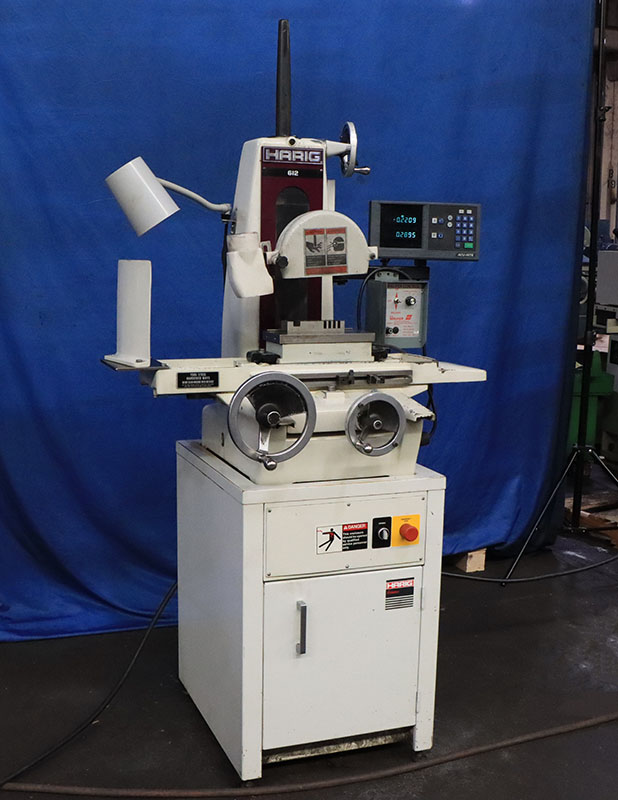

  6" X 12" HARIG (MADE IN USA)
"PRECISION" HAND FEED SURFACE GRINDER

"ACU-RITE" 2-AXIS DIGITAL READOUT DISPLAY

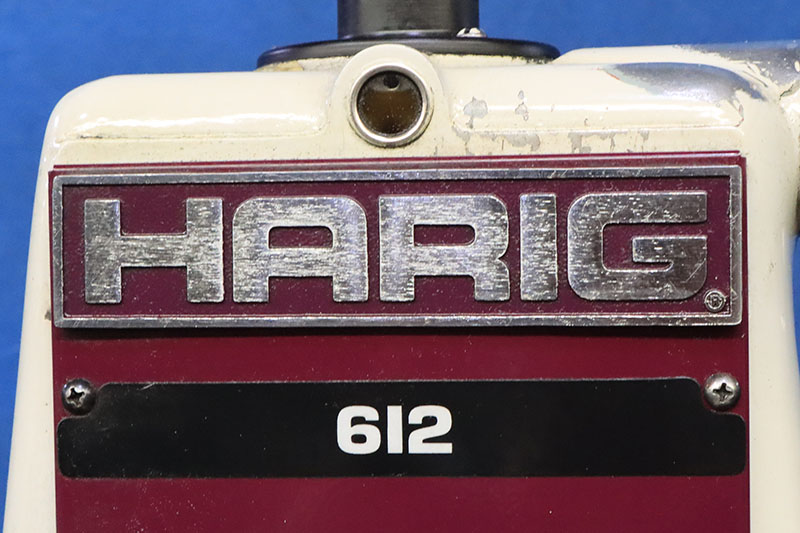

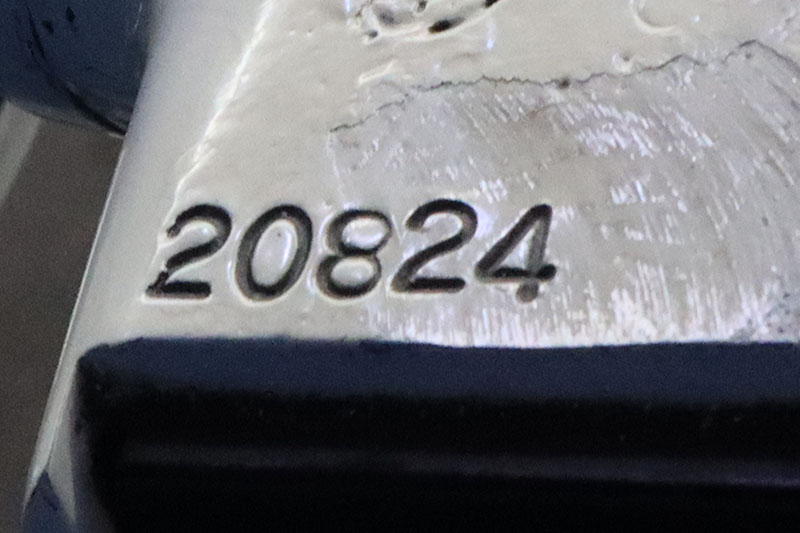

MODEL: 612    S/N: 20824    NEW: 2003

WIDTH AND LENGTH GROUND ................. 6" X 12"
LONGITUDINAL TRAVEL ..................... 12-3/4"
CROSS FEED TRAVEL ....................... 6-3/4"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL .. 12"
MAXIMUM GRINDING WHEEL DIAMETER ......... 8"

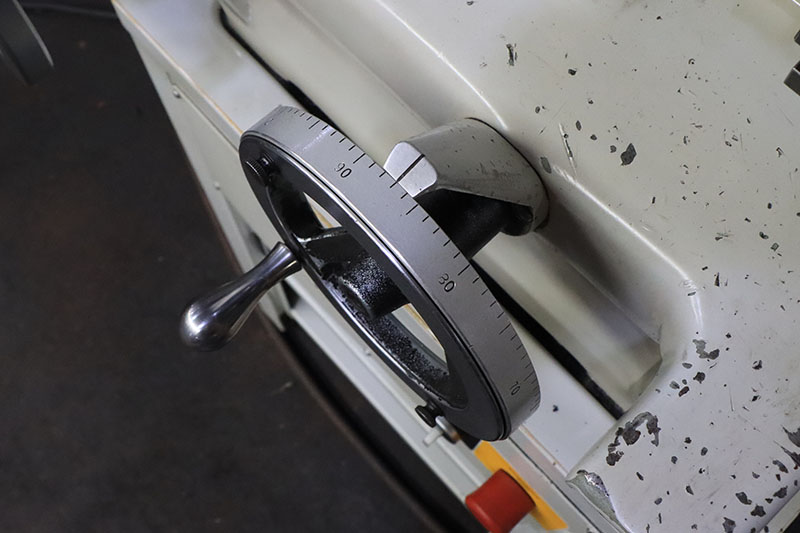

ELEVATING HANDWHEEL GRAD. ............... 0.0005"
CROSS FEED HANDWHEEL GRAD. .............. 0.001"
SPINDLE SPEED ........................... 3,450 RPM

FLOOR AREA CABINET ...................... 21" X 25"
FLOOR AREA OPERATING SPACE .............. 48" X 45"
APPROXIMATE MACHINE WEIGHT .............. 900 LBS

  EQUIPPED WITH:

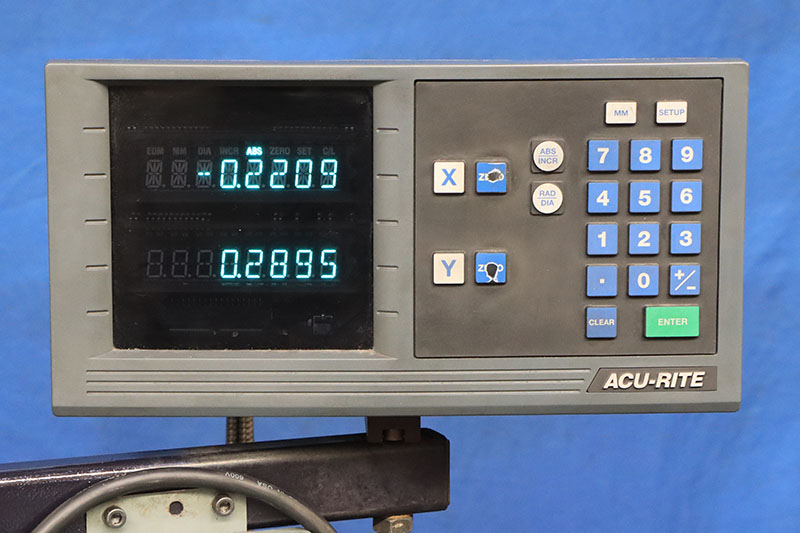

"ACU-RITE" FLAT PANEL 2-AXIS DIGITAL READOUT DISPLAY

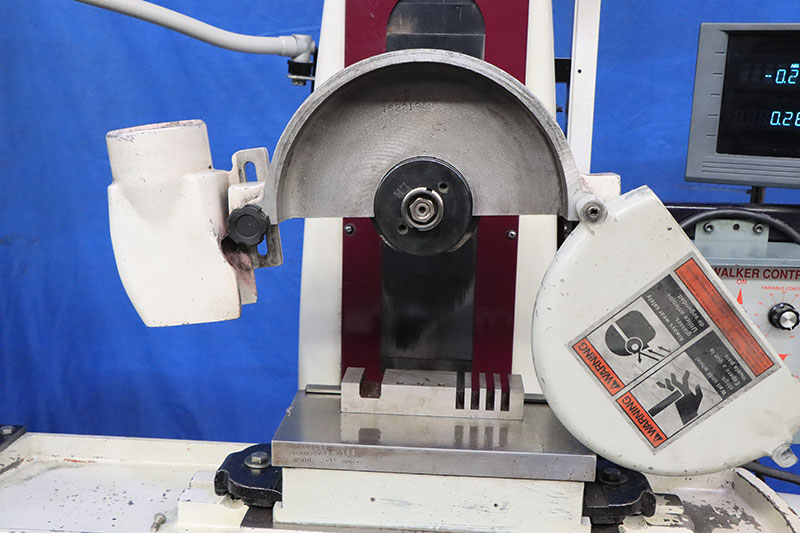

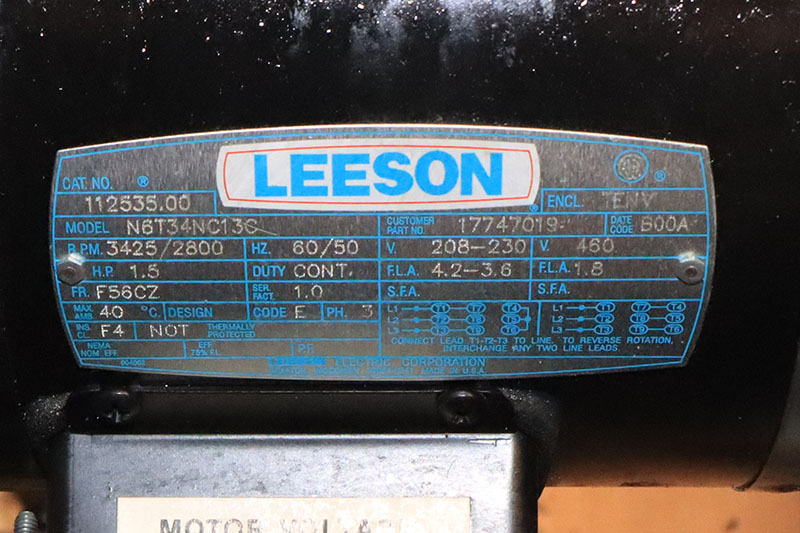

HARIG 1.5 HP DIRECT DRIVE "CARTRIDGE TYPE" SPINDLE,
  3/60/208-230-460 VOLTS
V AND FLAT WAY CONSTRUCTION
“TOOL STEEL HARDENED WAYS” OPTION
HARIG "FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM

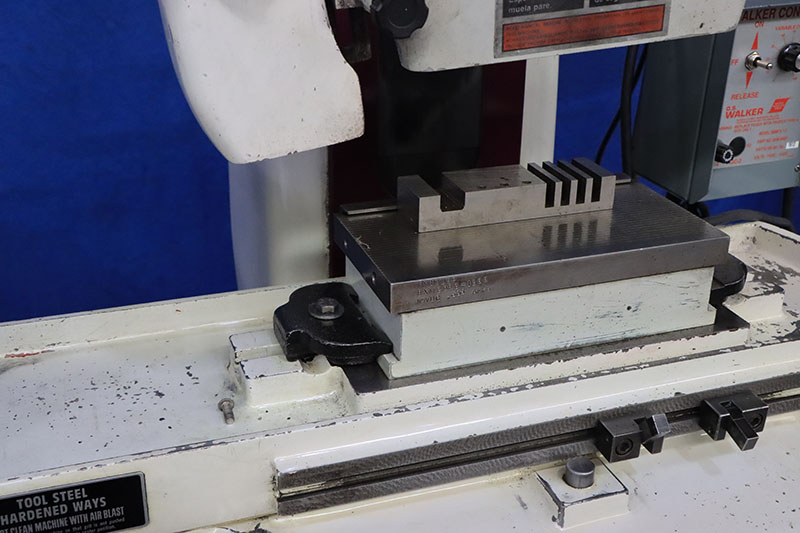

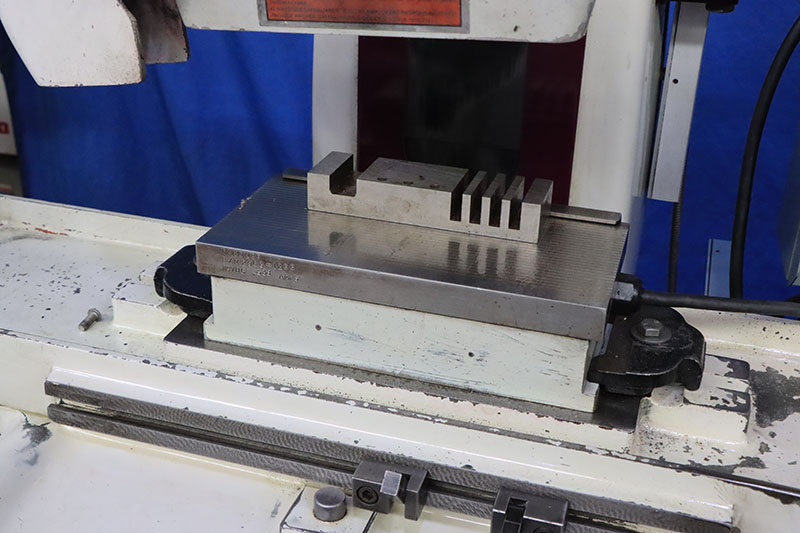

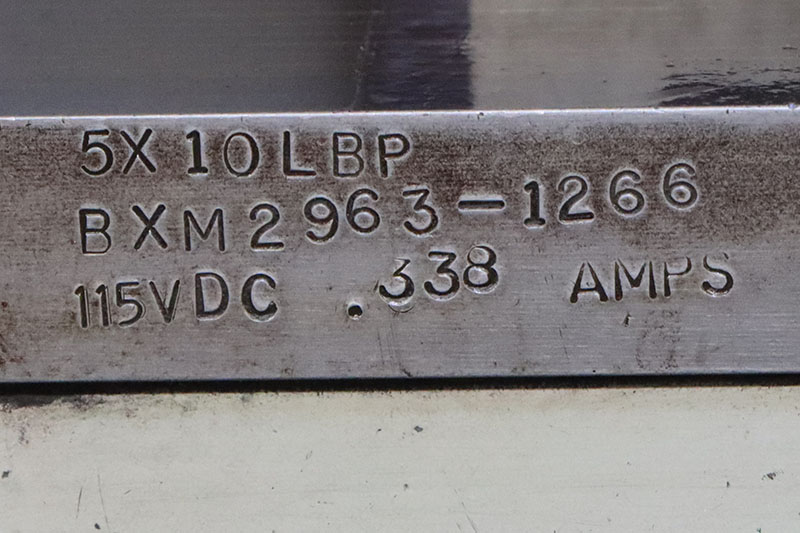

5" X 10" "O.S. WALKER" FINE-DIVISION "LBP"
 ELECTRO-MAGNETIC CHUCK

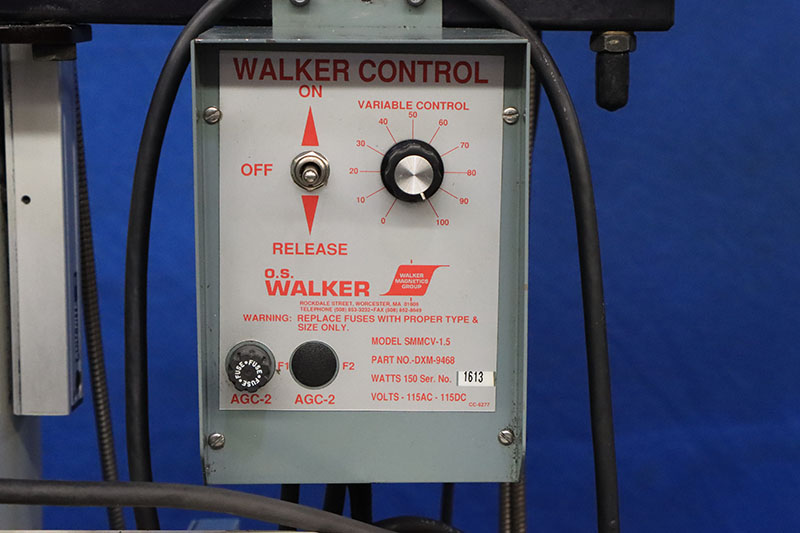

O.S. WALKER "SMART SERIES", NEUTROFIER CONTROL,
 WITH VARIABLE HOLD POWER
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS


* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
** SUPERB CONDITION & APPEARANCE – ORIGINAL PAINT **
