Heald 172-GAP, MANY UPDATES, FROM AERSOPACE, ID / INTERNAL GRINDERS

Price on Request

Make:: Heald

Model:: 172-GAP, MANY UPDATES, FROM AERSOPACE,

Year:

Ref #:: 159877

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

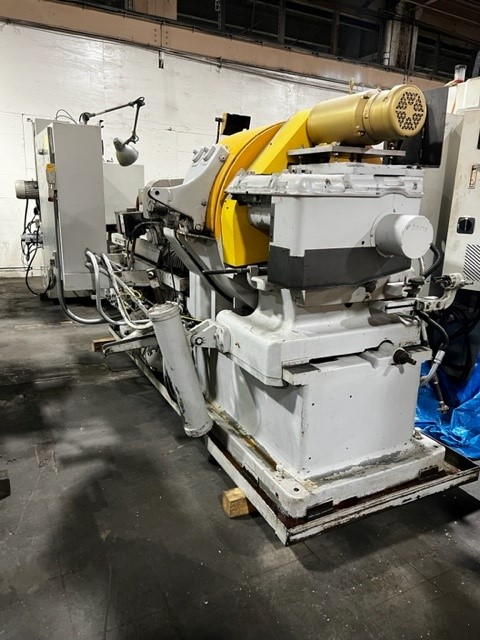

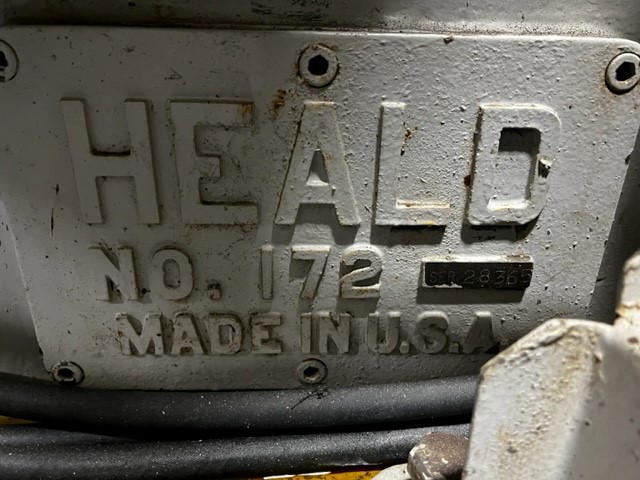

HEALD MODEL #172 LARGE CAPACITY I.D. GRINDER
 WITH GAP FOR LARGE SWING PARTS

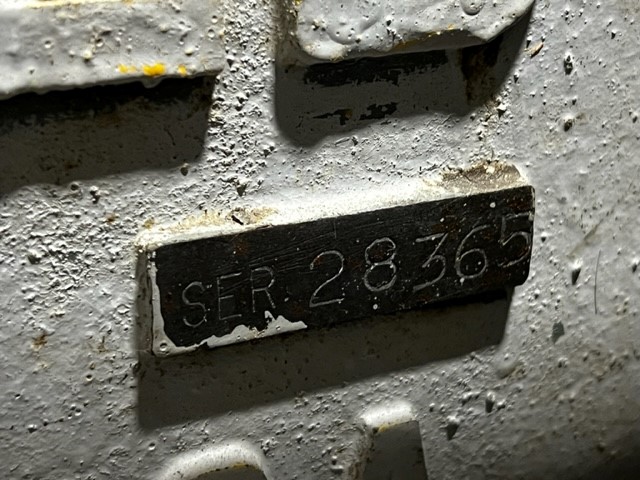

S/N: 28365

MAXIMUM SWING INSIDE CHUCK GUARDS: 40"
TABLE SPEEDS: 0 TO 18 FPM
WORKHEAD SPEEDS: 70 TO 210 RPM
46" SWING INSIDE GAP
18" HYDRAULIC TABLE TRAVEL, STROKE
CROSS FEED DIAL GRADUATION: 0.001"
POWER FEED GRADUATION: 1 TO 4 TEETH

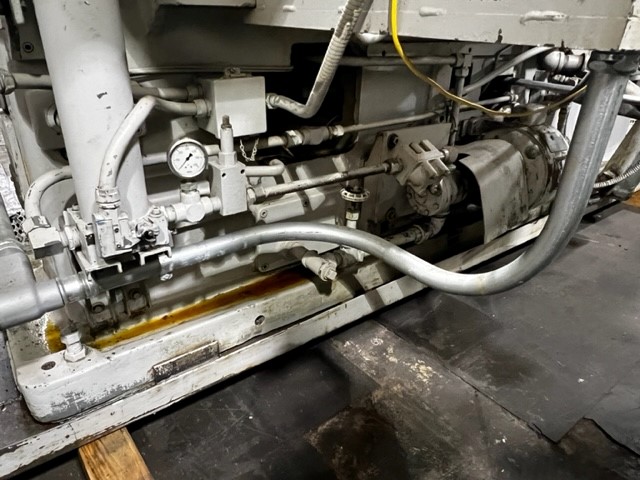

OIL RESERVOIR CAPACITY: 35 GALLONS


EQUIPPED WITH:

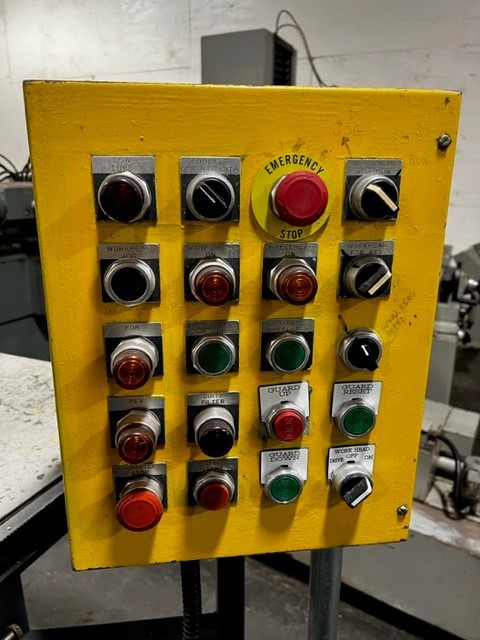

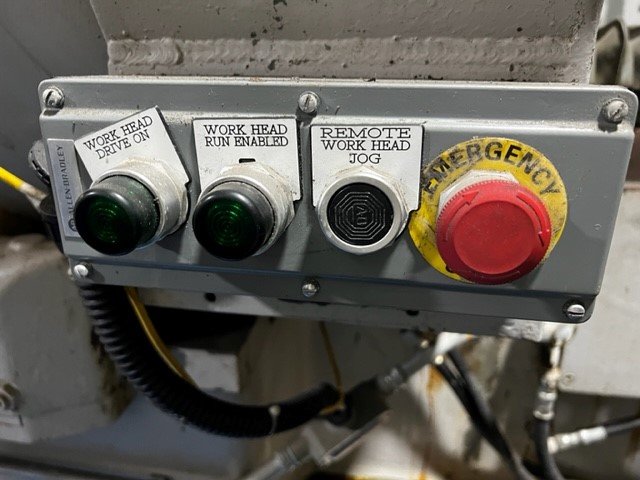

PUSH BUTTON CONSOLE UPDATE, YELLOW ON RIGHT SIDE OF MACHINE

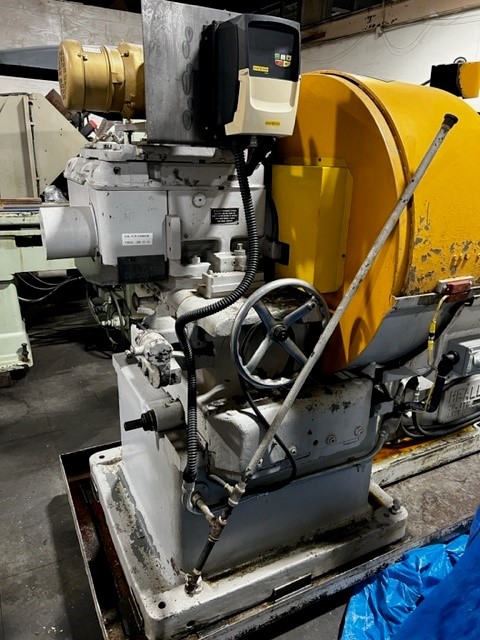

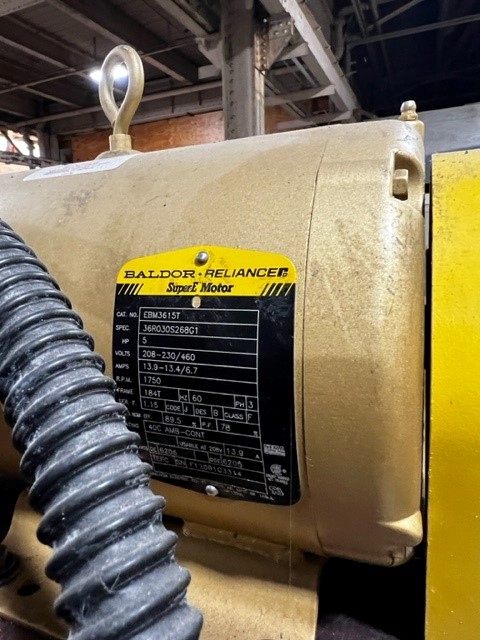

VERY RECENT "BALDOR" CAT. NO. EBM3615T
 5 H.P. MOTOR FOR WORKHEAD, 3/60/208-230-460 VOLTS.

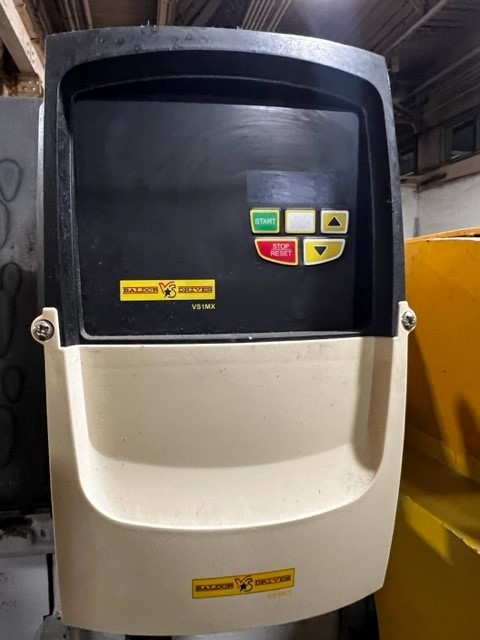

BALDOR MODEL VS1MX AC ELECTRONIC VARIABLE SPEED

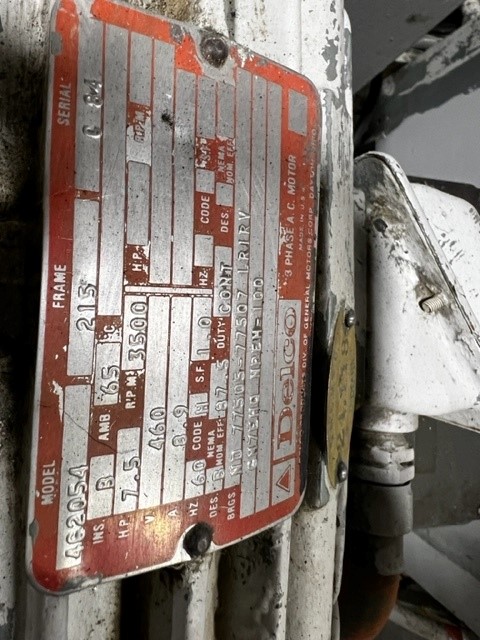

WHEELHEAD SPINDLE- 7.5 HP "DELCO" TEFC MOTOR

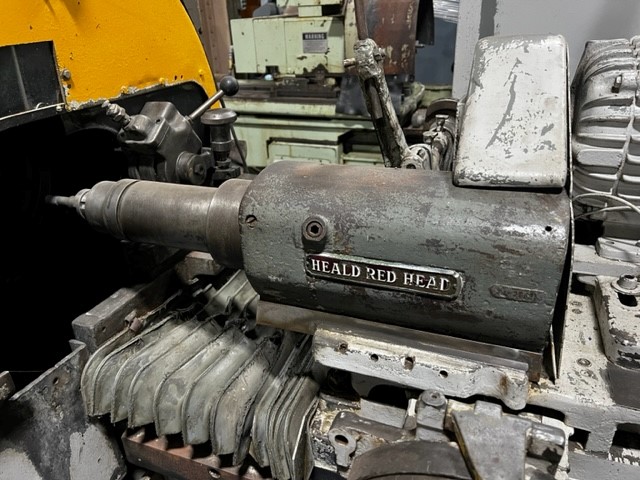

HEALD "RED HEAD" I.D. SPINDLE, LARGER TYPE

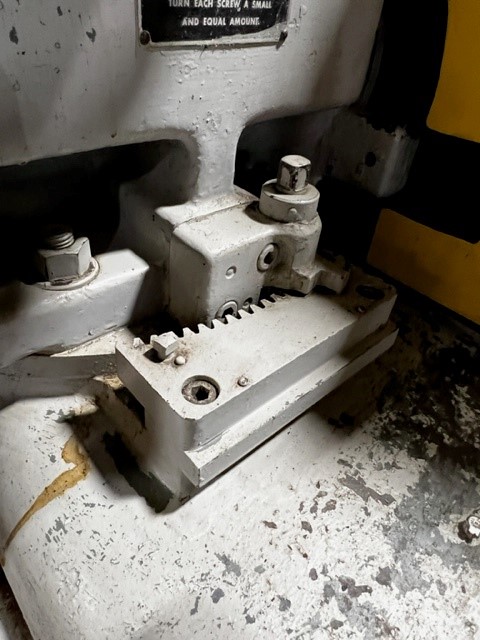

WORKHEAD SWIVELS
WORKHEAD HAS SLIDES FOR IN & OUT POSITIONING,
 AS WELL AS FRONT & BACK

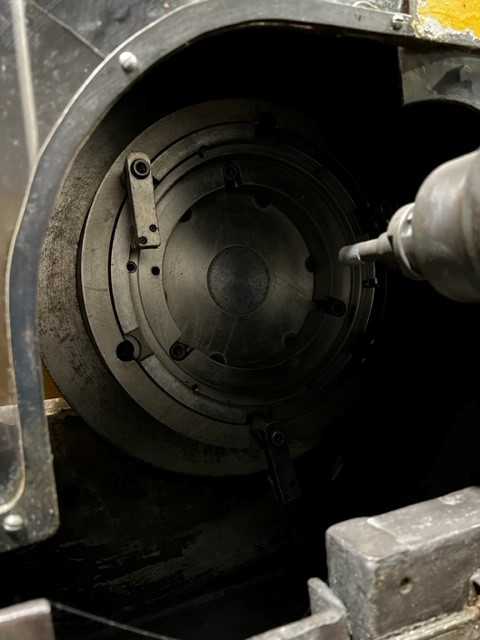

SET-UP ON WORKHEAD FOR HOLDING PARTS

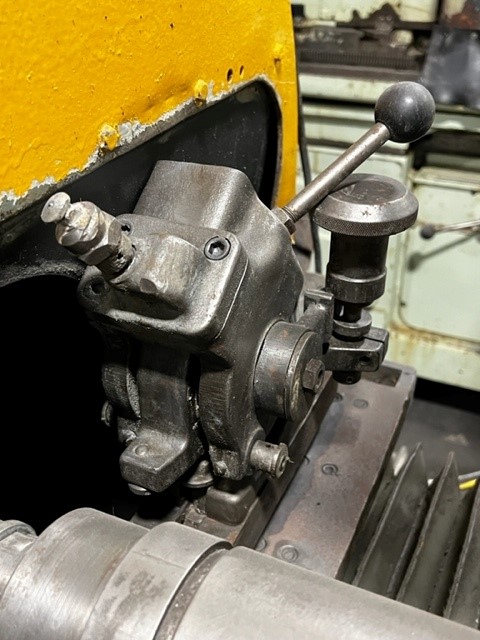

DRESSER
CHUCK GUARDS RAISE & LOWER BY HYDRAULIC MECHANISM

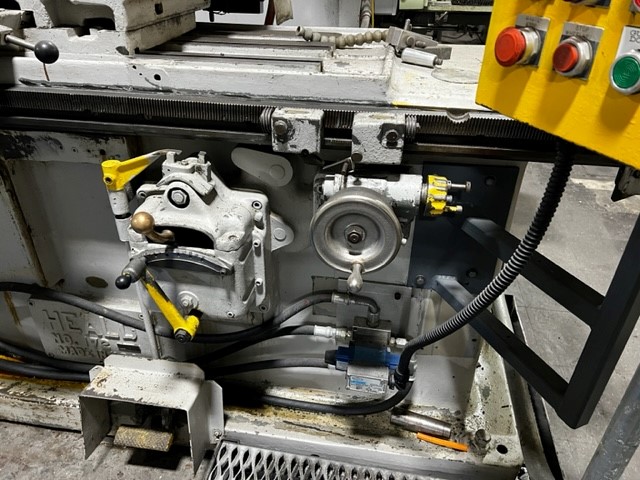

MULTI-POSITION TABLE STOP
DOES NOT COME WITH A COOLANT SYSTEM
3/60/460 VOLT ELECTRICS

DIMENSIONS:
138” X 78” X 72” 14,0000 LBS


** FROM AEROSPACE - MACHINE HAS NICE UPDATES **
** F.O.B. HARRISON, NJ WAREHOUSE **

SPECIAL NOTE:
CAN BE OFFERED "AS-IS" FOR A LOWER PRICE OR FULLY SERVICED BY OUR
 STAFF, AND OFFERED WITH A 30 DAY MDNA RETURN PRIVILEGE.
