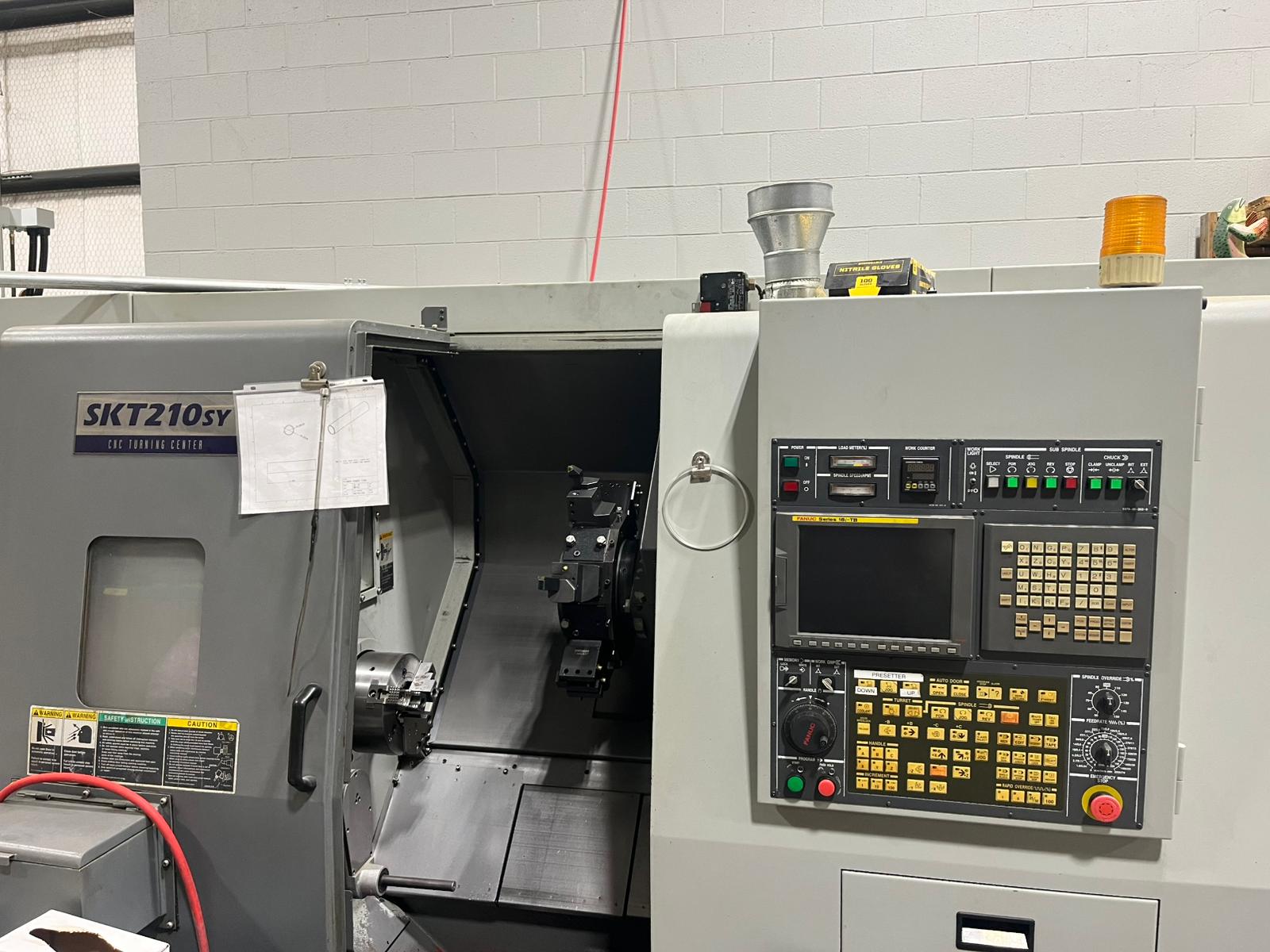

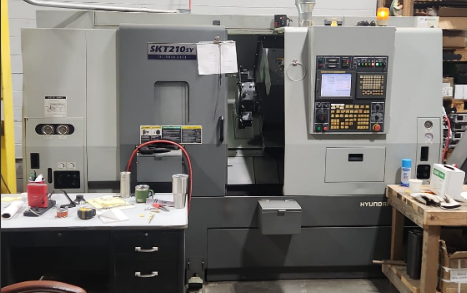

Hyundai-Kia SKT-210SY CNC TURNING CENTERS - CNC LATHES

Price on Request

Make:: Hyundai-Kia

Model:: SKT-210SY

Year:: 2010

Ref #:: 178171

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

HYUNDAI KIA MODEL:SKT-210SY CNC TURNING CENTER
Year:	2010

Capacity:
Max Turning Diameter: 9.5″
Max Turning Length: 20.9″
Max Bar Capacity: 2.5″
Max Swing Over Bed: 21.7″

Travels:
X Axis Travel: 8.7″
Y Axis Travel: 3.1″ (+/- 1.55″)
Z Axis Travel: 21.7″
B Axis Travel (Sub Spindle): 28.3″
C Axis Indexing: 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1417 IPM
Rapid Traverse Rate Y Axis: 394 IPM

Main Spindle:
Main Spindle Bar Capacity: 2.5″
Main Spindle Speed: 4000 RPM
Man Spindle Motor: 20 HP

Sub Spindle:
Sub Spindle Bar Capacity: 1.7″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 5 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Rotary Tool Speed: 4,000 RPM
Rotary Tool Motor: 7.5 HP


General:
Power Source: AC 220 V /  Three Phase / 60 Hz
Overall Dimensions: 180″ x 84″ x 84″ High Approx.
Weight : 12,000 bs Approx.

Equipped With:

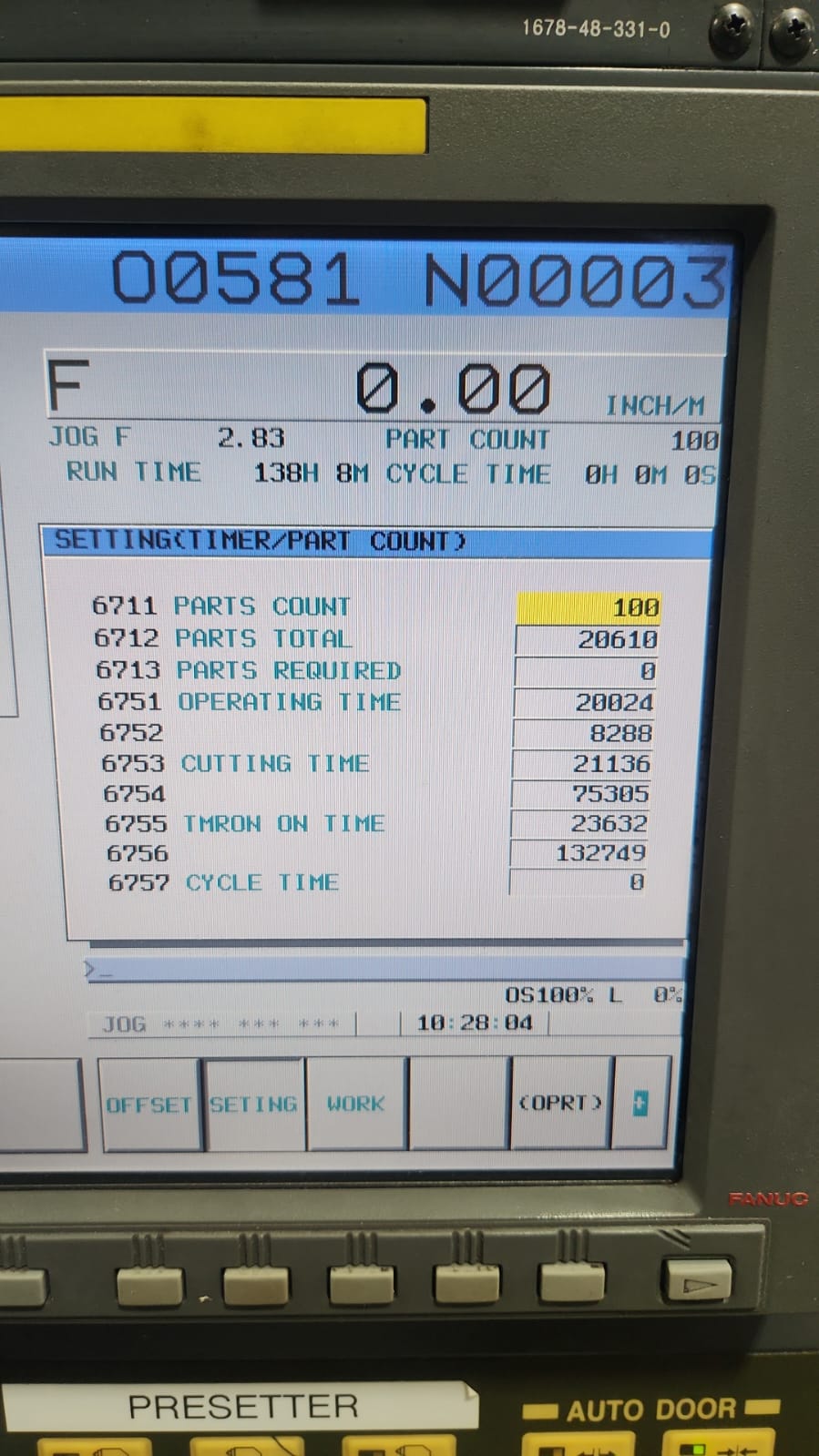

Fanuc 18i-TB CNC Control

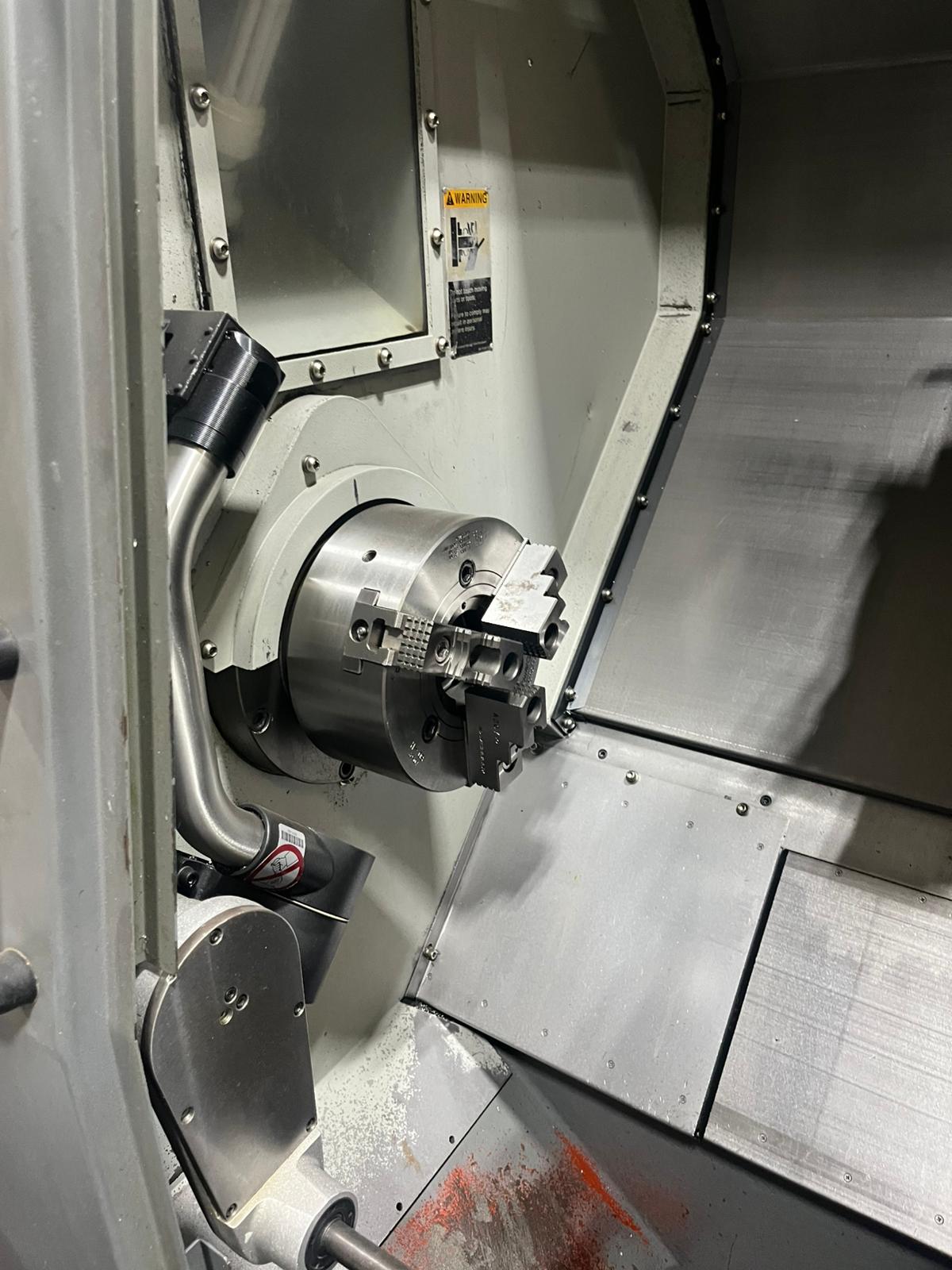

8″ 3-Jaw Chuck on Main Spindle

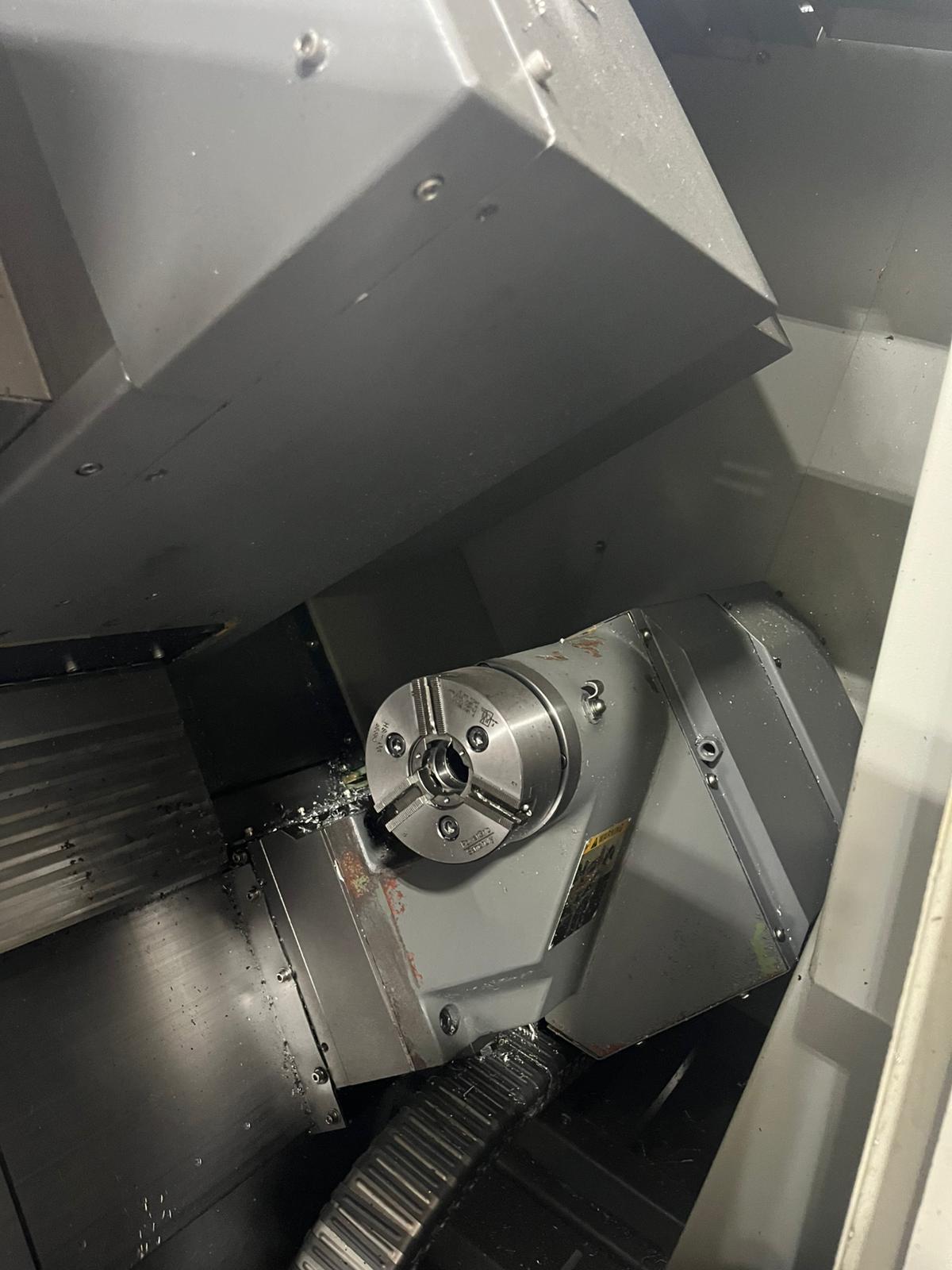

6″ 3-Jaw  Chuck on Sub Spindle
Servo Controlled C Axis on Both Spindles
Sub Spindle

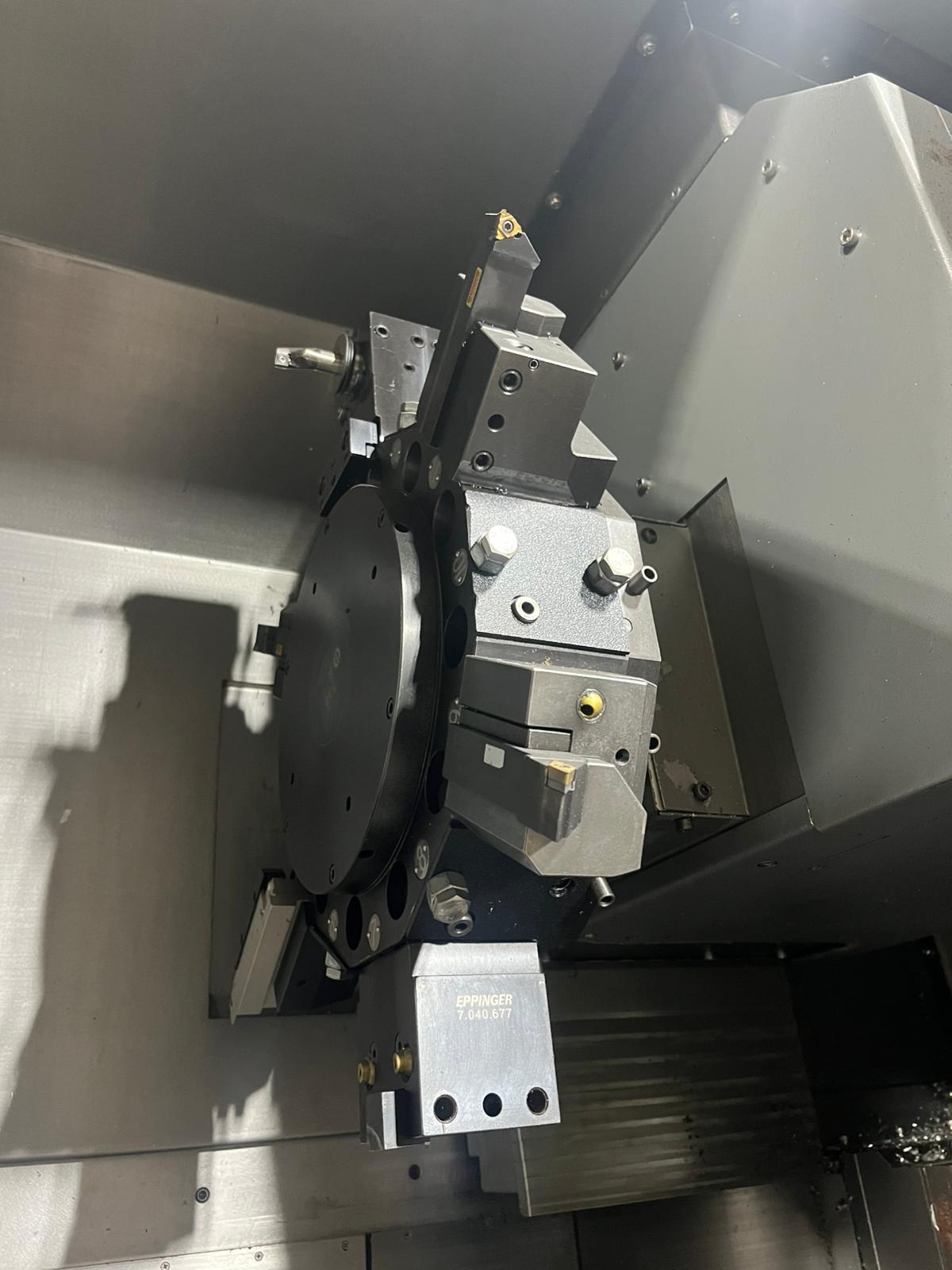

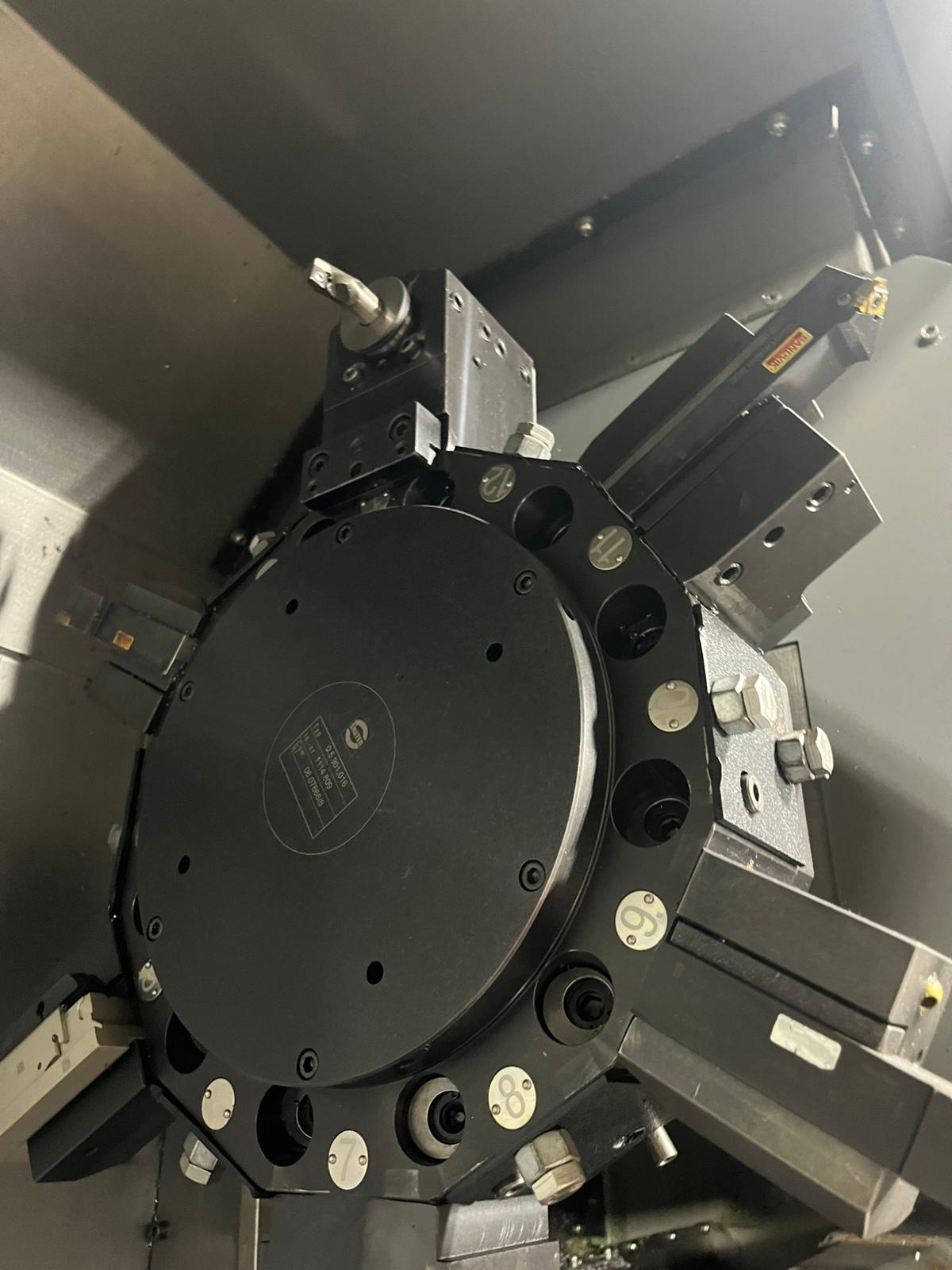

12 Station Automatic Turret – Live Tool
Y Axis on Turret
Tool Presetter
Bar Feeder
Coolant System
Chip Conveyor
Misc. Tooling & Live Tooling
