Jet GH2680ZH ENGINE LATHES

$24,500

Make:

Jet

Model:

GH2680ZH

Year:

2014

Ref #:

178724

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

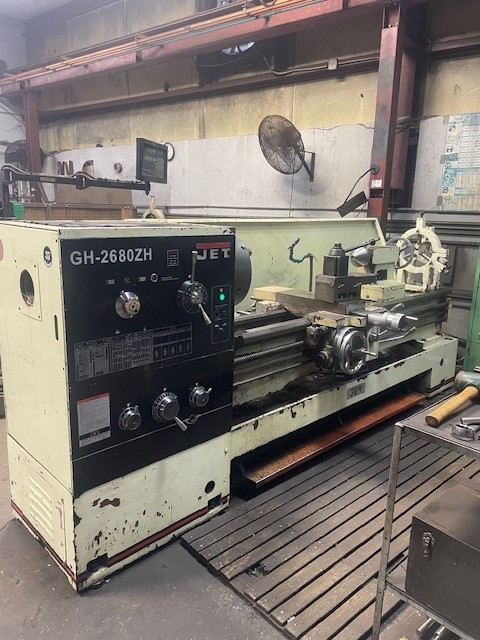

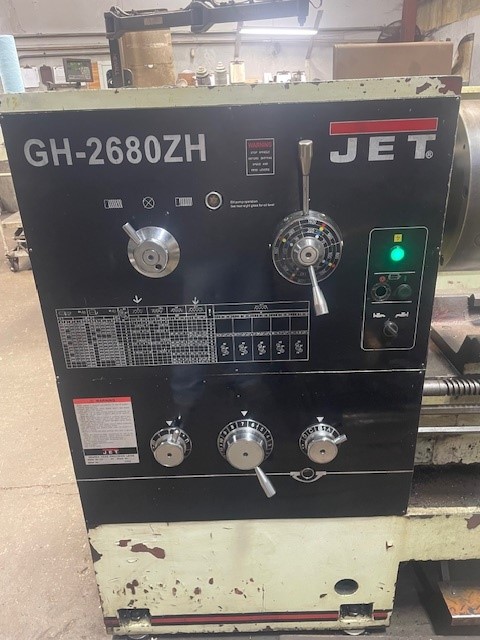

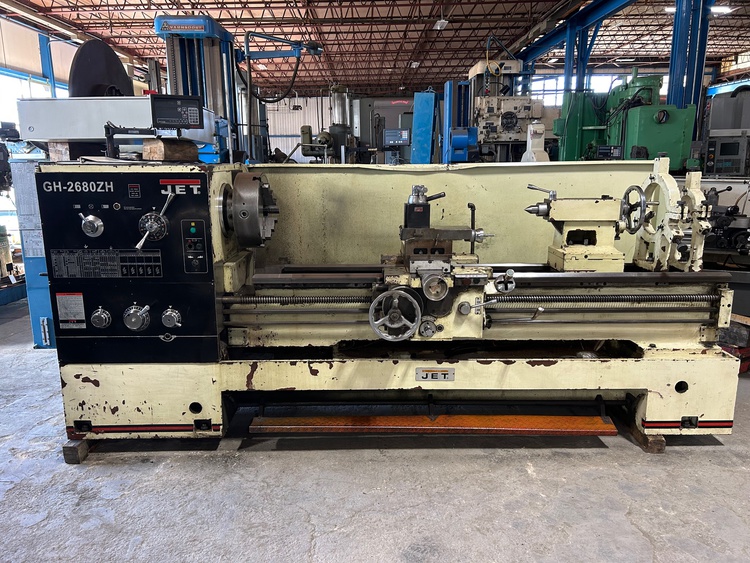

26"/34" X 80" JET GAP BED ENGINE LATHE

MODEL: GH 2680 ZH , S/N: 1305312H0071, MFG: 2014



SPECIFICATIONS:

SWING OVER BED ........................ 26"

SWING IN REMOVABLE GAP ................ 34"

SWING OVER CROSS SLIDE ................ 16-1/2"

DISTANCE BETWEEN CENTERS .............. 80"

SPINDLE HOLE .......................... 4-1/8"

SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"

WIDTH OF BED .......................... 16"

SPINDLE SPEEDS (12) ................... 36 - 1,600 RPM

FEED CHANGES, LONGITUDINAL (65) ....... .0023 - .0937 IPR

FEED CHANGES, CROSS (122) ............. .0010 - .0404 IPR

THREADS, INCH (61) .................... 2 - 30 T.P.I.

METRIC (24) ........................... 1 - 14 MM

TAILSTOCK SPINDLE CENTER .............. #5 MORSE TAPER

TAILSTOCK SPINDLE TRAVEL .............. 6"

APPROXIMATE DIMENSIONS ................ 138" x 43" x 57"

APPROXIMATE WEIGHT .................... 8,500 LBS.





EQUIPPED WITH:

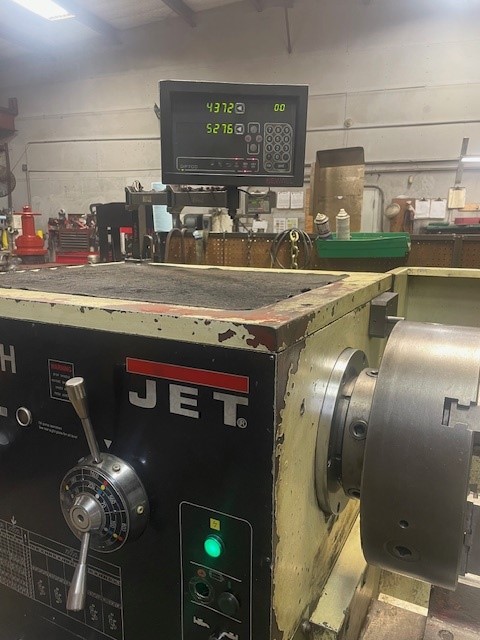

- NEWALL TWO AXIS DIGITAL READOUT

- REMOVABLE GAP BED

- INCH AND METRIC THREADING CAPABILITY

- HARDENED AND GROUND BED WAYS

- TAPER TURNING ATTACHMENT

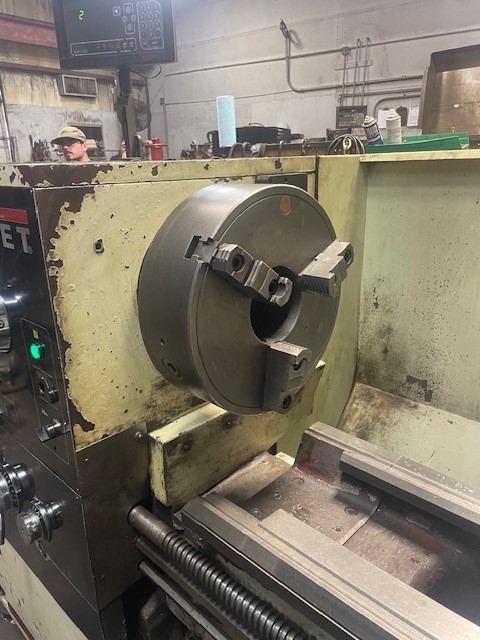

- 3-JAW CHUCK

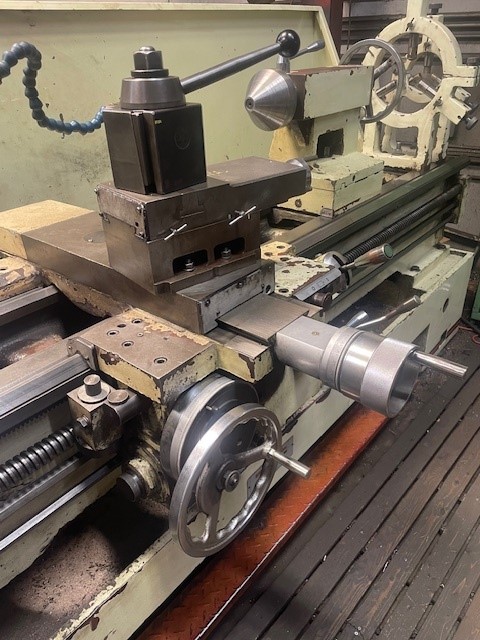

- QUICK CHANGE TOOLPOST WITH HOLDERS

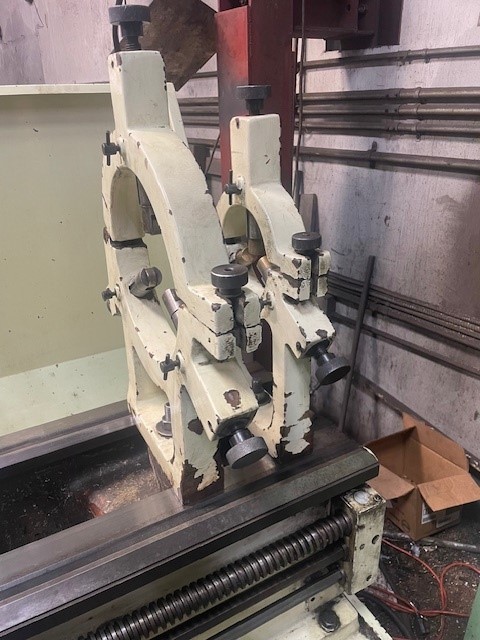

- (2) STEADY RESTS

- THREADING DIAL

- LIVE CENTER FOR TAILSTOCK

- FOOT BRAKE

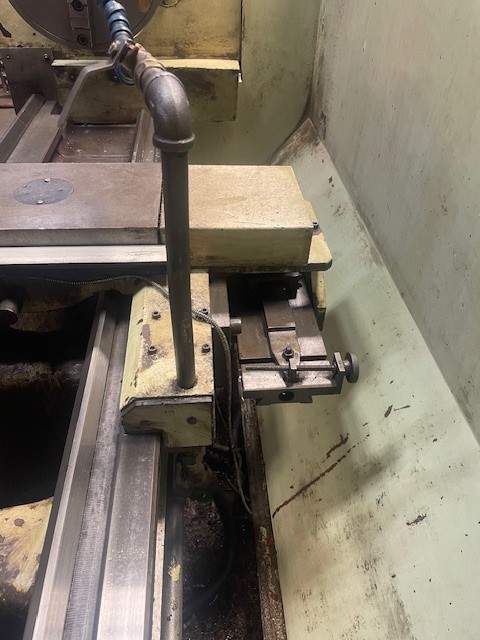

- SELF-CONTAINED COOLANT SYSTEM WITH REAR SPLASH GUARD

- 10 HORSE POWER SPINDLE DRIVE MOTOR
