Kao Ming 40S, UNIVERSAL TCG, TILT WHEELHEAD TOOL & CUTTER GRINDERS

Price on Request

Make:: Kao Ming

Model:: 40S, UNIVERSAL TCG, TILT WHEELHEAD

Year:: 1980

Ref #:: 163561

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


KAO MING  UNIVERSAL TOOL & CUTTER GRINDER WITH
 TILTING WHEELHEAD, FRONT & REAR HANDWEHEELS,
 A ROLLER BEARING TABLE, FULL CAST IRON
 CONSTRUCTION, AND COMES WITH MANY ACCESSORIES,

 VERY SIMILAR/COPY OF A MAKINO #C-40),
 THIS MACHINE IS MADE IN TAIWAN,


SOLD UNDER SEVERAL BRANDS, ACRA, VICTOR, GROMAX, RAMCO,
 AND OTHERS.  PARTS & OTHER ACCESSORIES ARE READILY
 AVAILABLE FROM ONE OR ALL OF THESE BRANDS.

MODEL: KM-40S      S/N: 1858      NEW: 1980

  CAPACITY:
SWING OVER TABLE DIAMETER ....................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD ............ 14"


  RANGE:
TABLE SIZE ........................... 5- 5/16" X 37- 1/2"
LONGITUDINAL TABLE TRAVEL ....................... 16"
CROSS MOVEMENT OF TABLE ......................... 10"
TABLE SWIVEL ............................... 180 DEG.
TABLE TAPER ............................ +/- 10 DEGREES
TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 60 DEG.
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ..... 10"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ....... 12"
SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG.
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG.
SPINDLE SPEEDS (3) ................. 2,600, 3,700 & 6,200 RPM

  APPROXIMATE MACHINE WEIGHT .................. 1,980 LBS.
REQUIRED FLOOR SPACE ................ 61"L-R x 68.5"D x 60"H

  MACHINE FEATURES:
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
 REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
 CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR

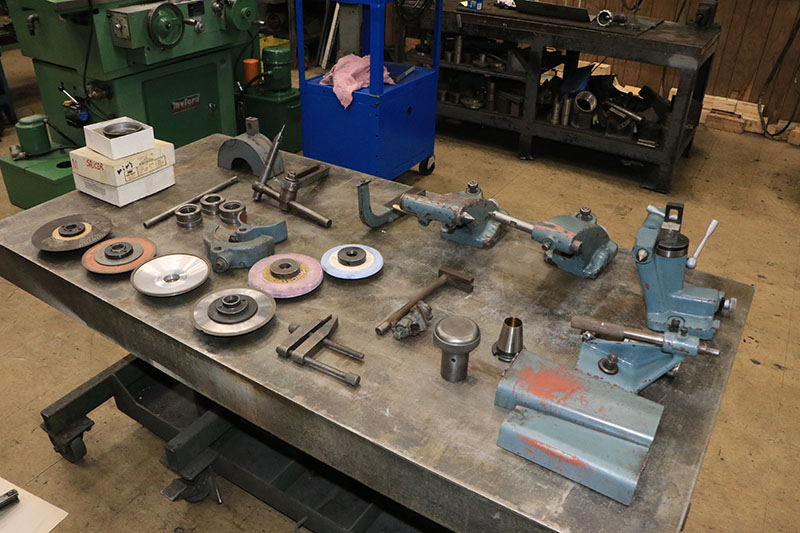

ACCESSORIES WITH THIS MACHINE INCLUDE:
WORKHEAD, SWIVELS IN TWO PLANES
NO. 50 TAPER & No. 5 MT TAPERS
HELICAL GRINDING ATTACHMENT
SET OF MATCHING TAILSTOCKS
LARGE SINGLE INDEPENDENT TAILSTOCK
TABLE MOUNTED WHEEL DRESSER
CAMS FOR HELICAL GRINDING ATTACHMENT
WHEEL GUARDS
WHEEL ARBORS, HUBS & WHEELS
OTHER ACCESSORIES AS SHOWN IN PHOTOS



ITEMS THAT BE GROUND ON THIS MACHINE:
END MILLS
SHELL END MILLS
FACE MILL
KEYWAY OR SLOTTING CUTTER
SIDE MILL CUTTER
STAGGERED TOOTH CUTTER
ANGULAR CUTTER
LONG END MILL
METAL SLITTING SAW
LARGE METAL SAW, UP TO 48" DIAMETER
HELICAL TOOTH CUTTER
TAP
REAMER, CHAMFER

LINK TO VIDEO https://youtu.be/jwfQ02IUjF4

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
