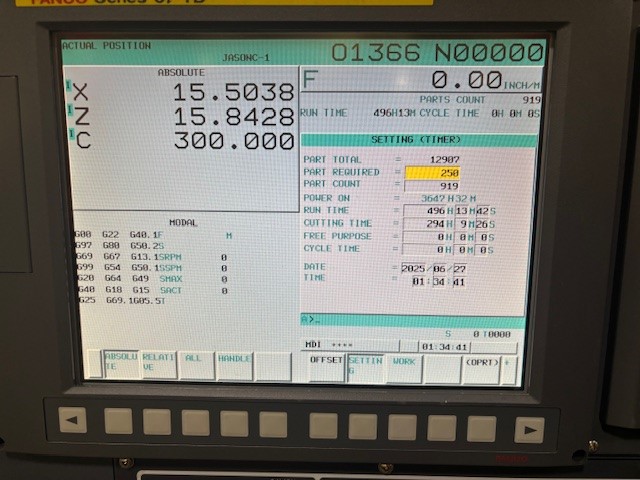

Leadwell LTC-20BM - LIVE TOOLING 294 CUT HOURS CNC TURNING CENTERS - CNC LATHES

$34,500

Make:: Leadwell

Model:: LTC-20BM - LIVE TOOLING 294 CUT HOURS

Year:: 2012

Ref #:: 178419

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

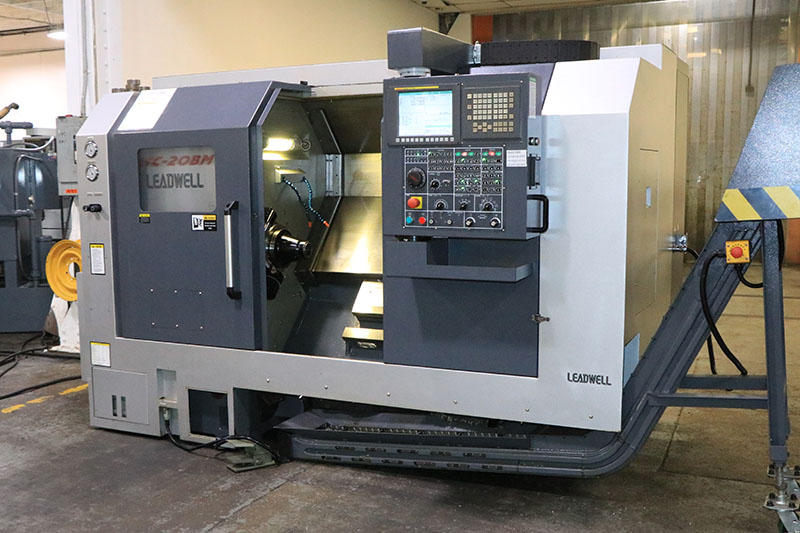

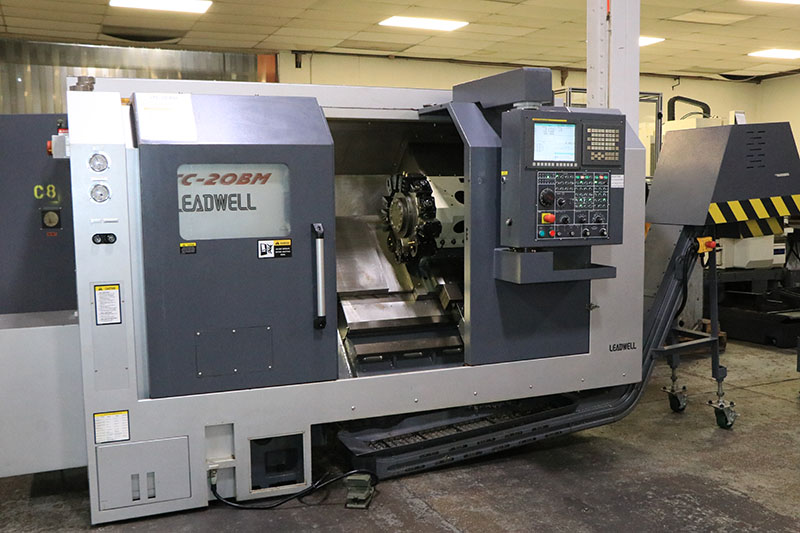

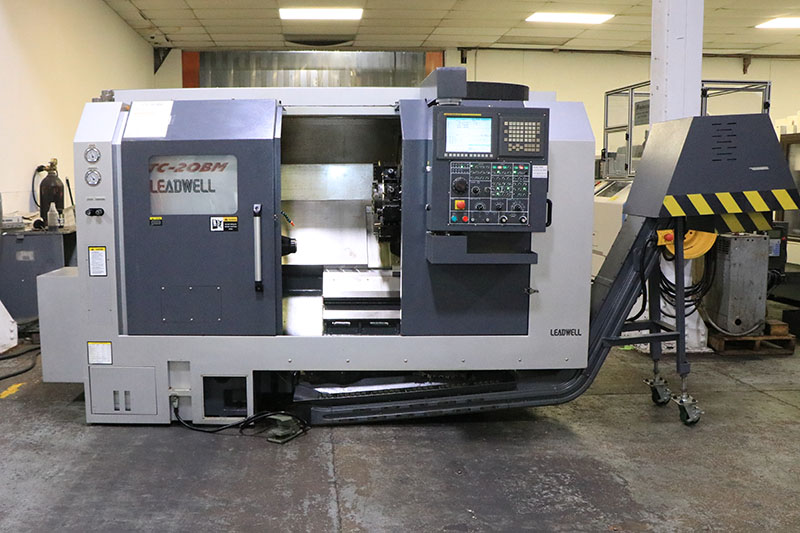

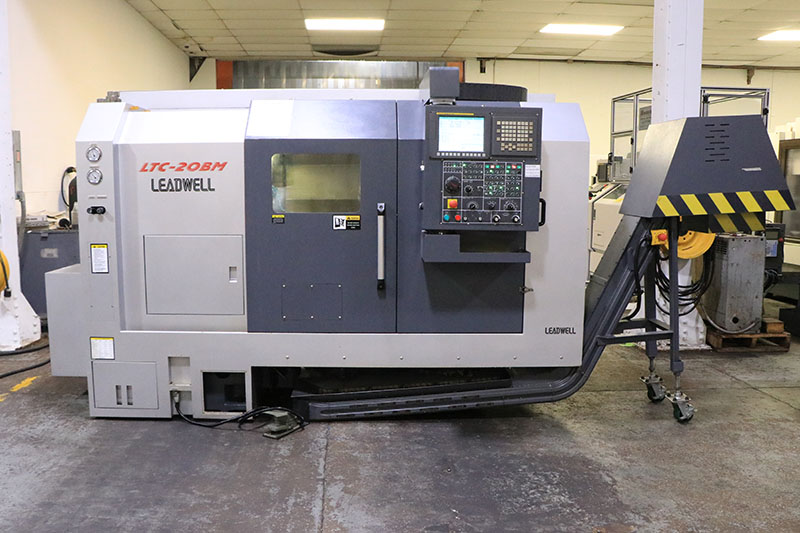

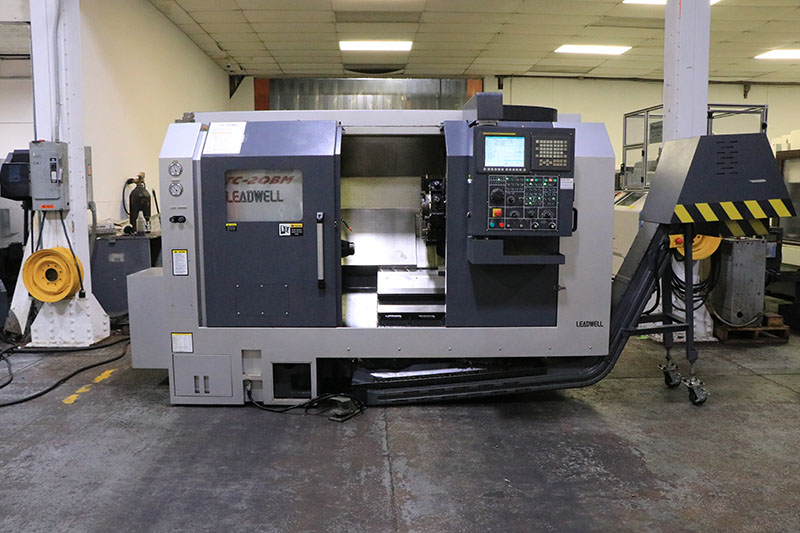

LEADWELL LTC-20BM CNC TURNING/MILLING CENTER
NEW: 2012

VIDEO LINK: https://youtu.be/3AB38tN1wos?si=hS-dUwQXp3TTRPBn

SPECIFICATIONS:
Max. Swing ........................ 22.8"
Swing Over Cross Slide ............ 16.9"
Max. Turning Diameter ............. 14.6"
Max. Turning Length ............... 19.7"
Chuck Size ........................ 8"
Bar Capacity ...................... 2.6"
X Axis Travel ..................... 7.6"
Z Axis Travel ..................... 18.9"
Spindle Nose ...................... A2-6
Spindle Speed ..................... 4500 RPM
Main Motor ........................ 20 hp
Min. Spindle Increment ............ 0.001 Deg.
Number of Tool Stations ........... 12
Rotary Tool Speed ................. 4,000 RPM
Rotary Tool Motor ................. 4 HP
Tailstock Movement ................ 25.2"
Tailstock Taper ................... MT #4
Approx. Machine Dimensions ........ 110" x 75" x 72"
Approx. Machine Weight ............ 8600 lbs.

EQUIPPED WITH:

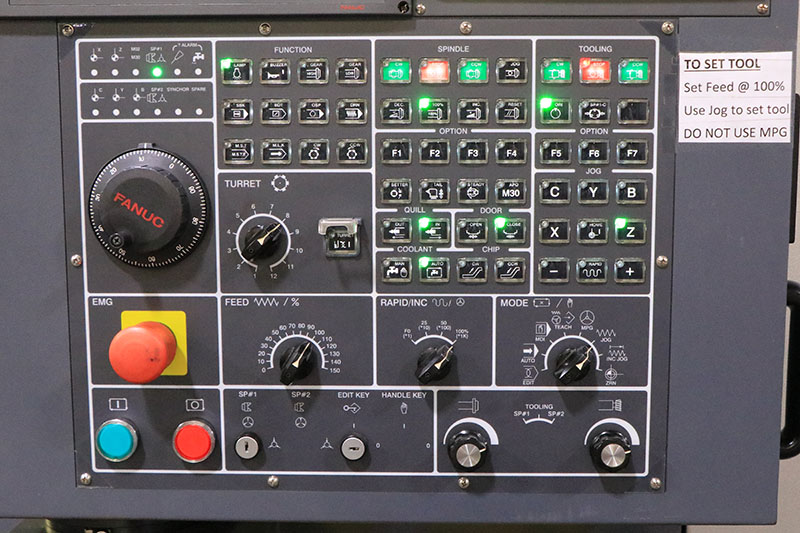

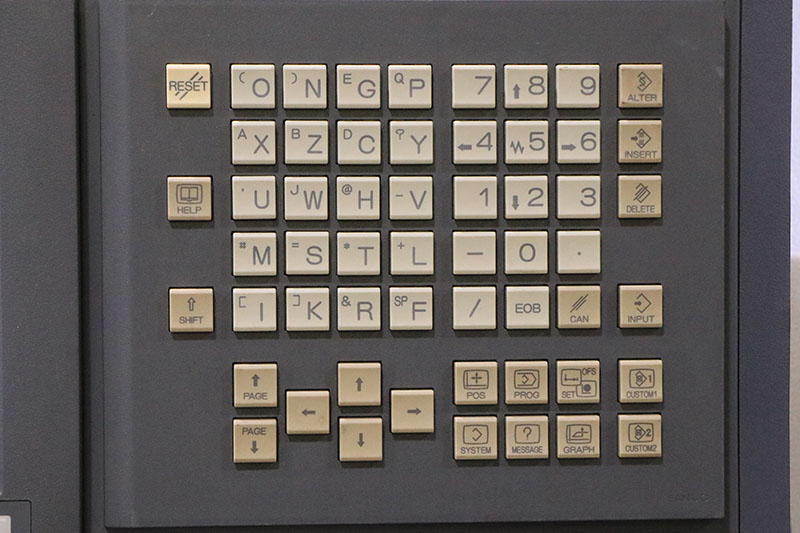

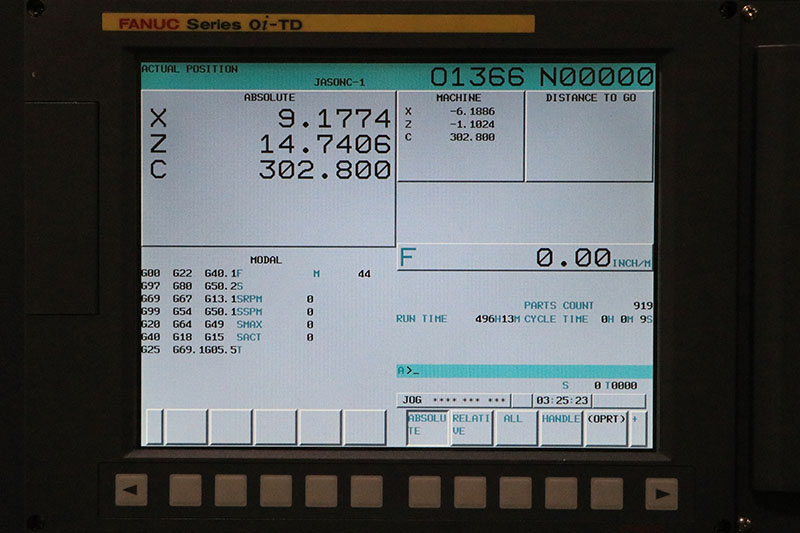

 - FANUC 0i-TD CNC CONTROL
 - TOOLSETTER

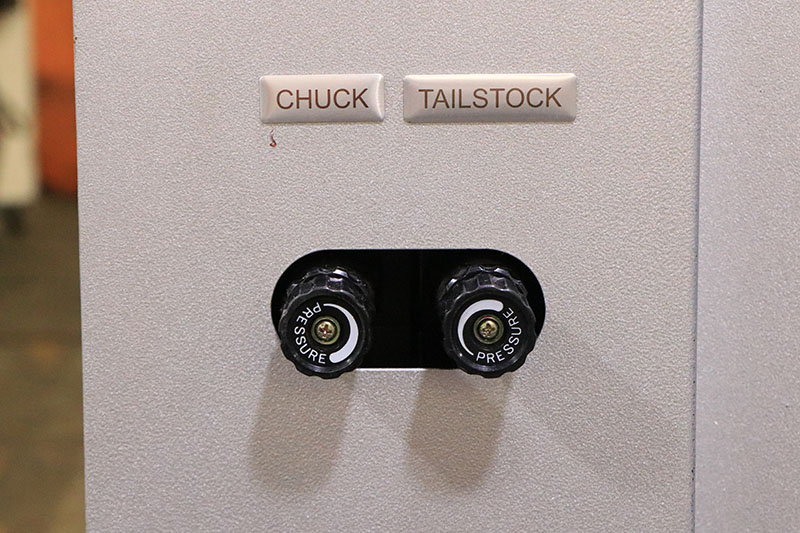

 - 8" 3-JAW HYD. CHUCK
 - ROYAL 16C. A2-6 HYDRAULIC COLLET CHUCK

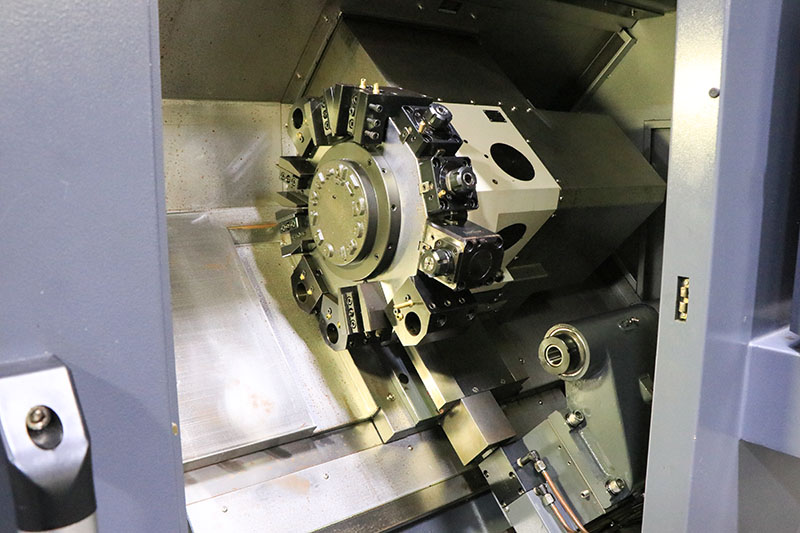

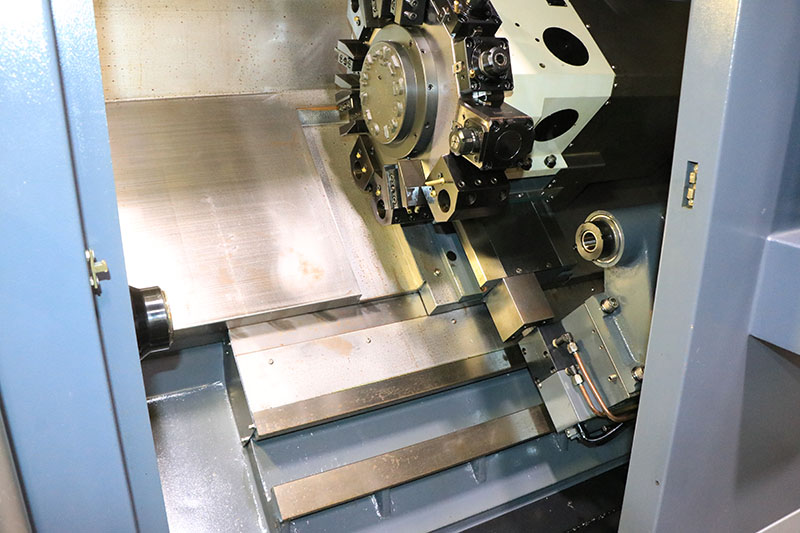

 - 12 POSITION TURRET

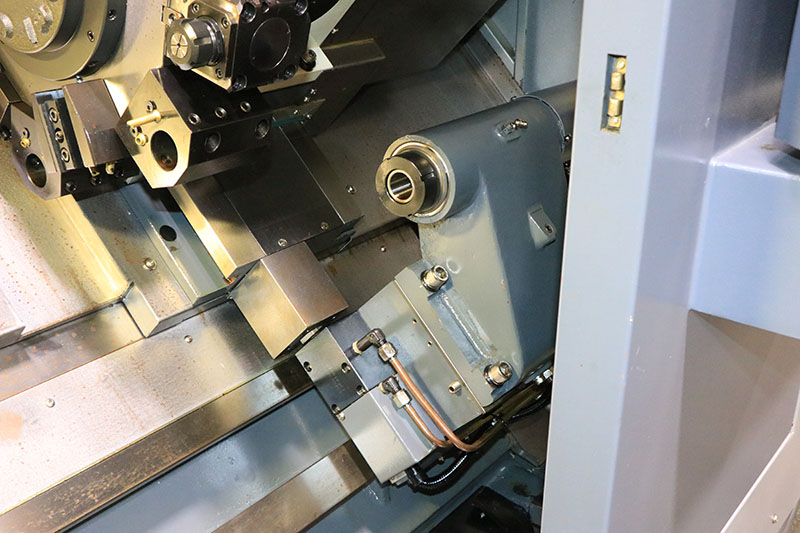

 - TAILSTOCK

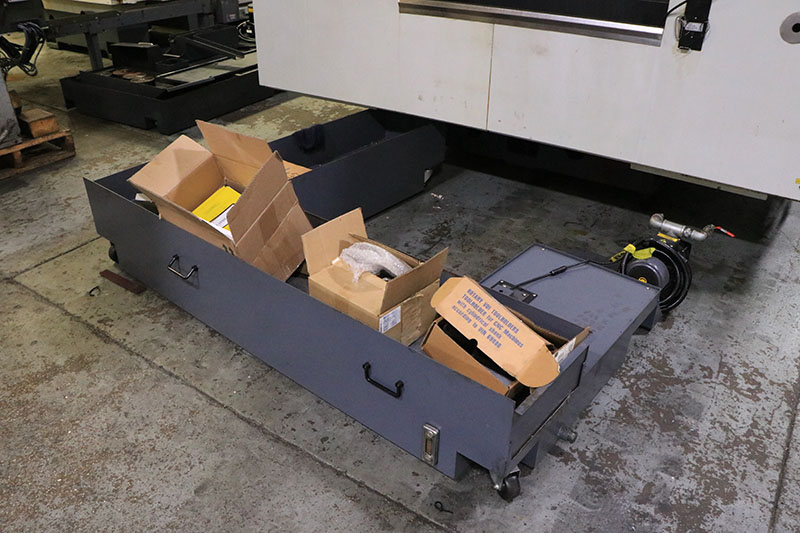

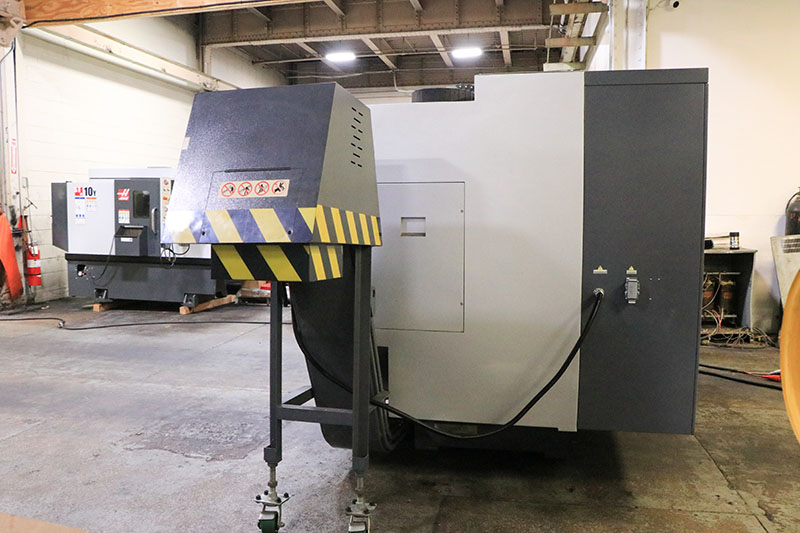

 - CHIP CONVEYOR
 - (3) LIVE TOOLHOLDERS
 - ALL AVAILABLE STATIC TOOLHOLDERS
