LeBlond-Makino C-40, SIMILAR TO A #2 CINCINNATI, MADE IN JAPAN, TOOL & CUTTER GRINDERS

Price on Request

Make:: LeBlond-Makino

Model:: C-40, SIMILAR TO A #2 CINCINNATI, MADE IN JAPAN,

Year:: 1981

Ref #:: 164323

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

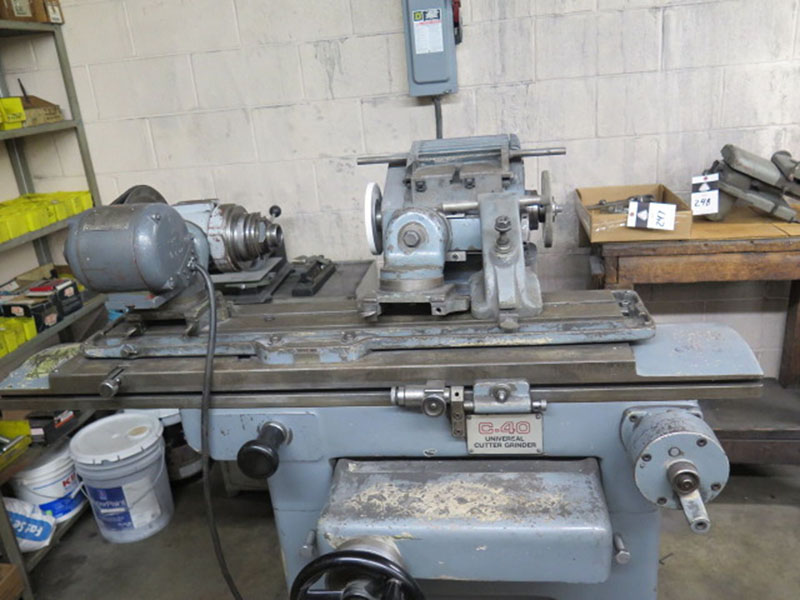

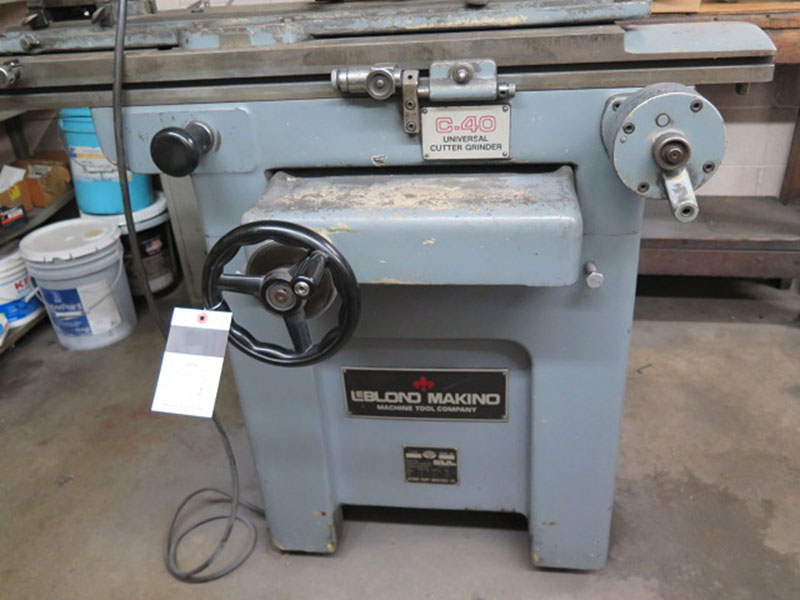

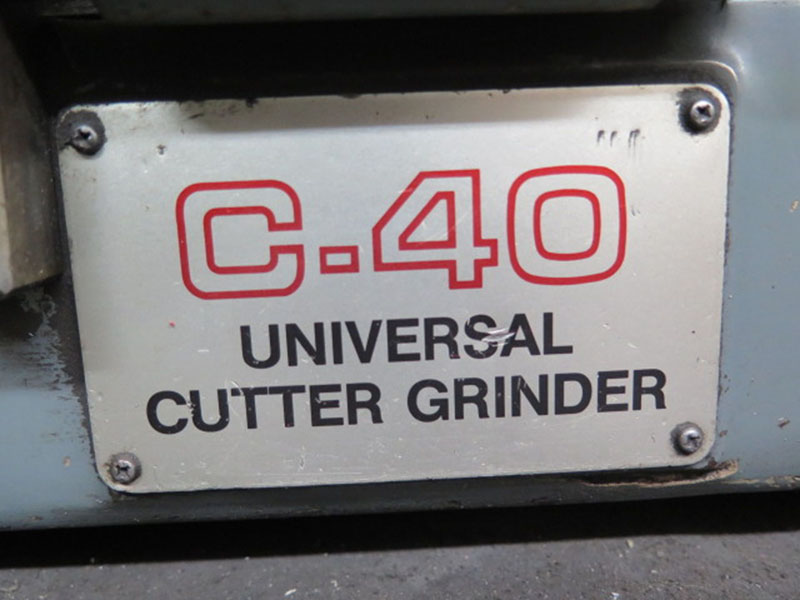

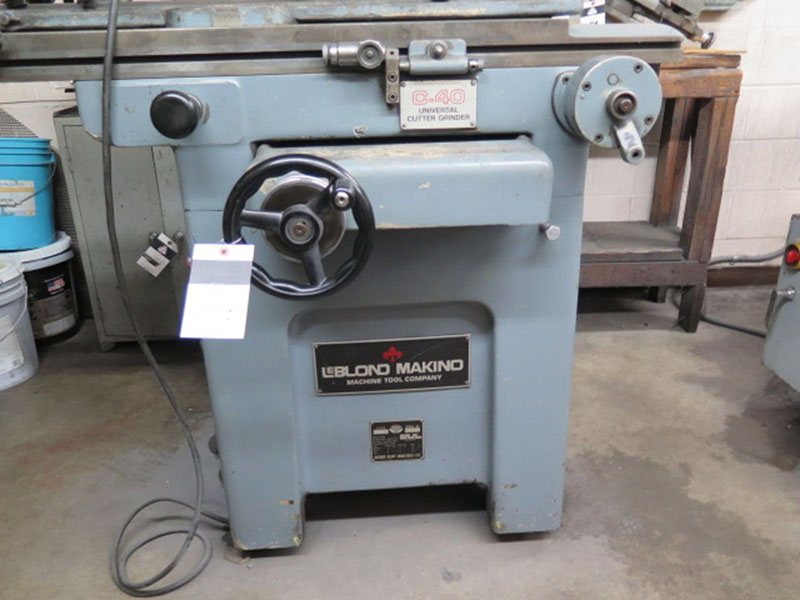

LEBLOND-MAKINO MODEL C-40
"SUPER-PRECISION" & "VERSATILE"
UNIVERSAL TOOL & CUTTER GRINDER
 (MADE IN JAPAN)

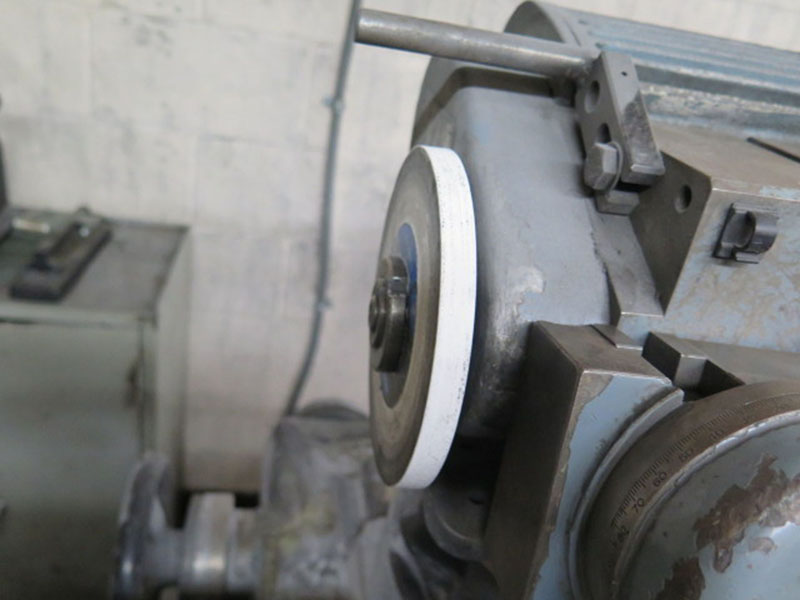

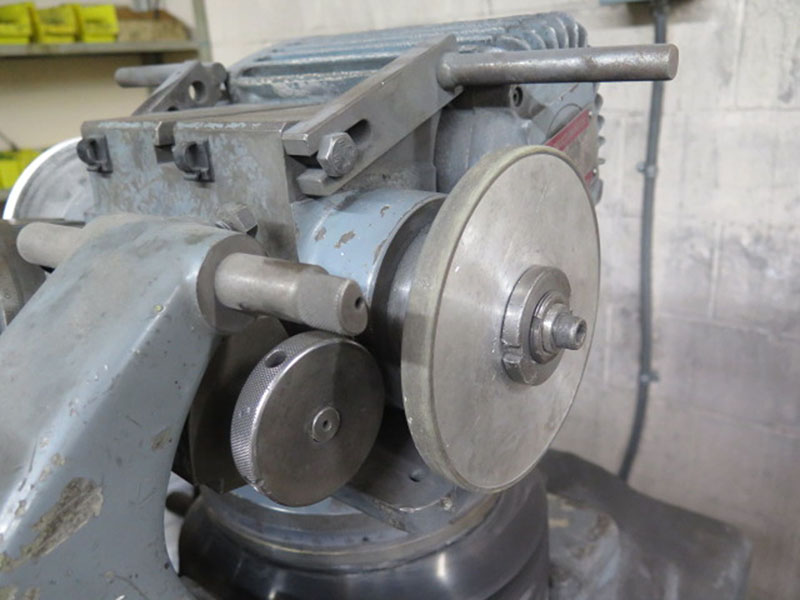

  *** TILTING WHEELHEAD ***


MODEL: C-40         S/N: 81-0027        NEW: 1981


CAPACITY:
SWING OVER TABLE .......................... 10"
DISTANCE BETWEEN CENTERS .................. 27- 1/2"
DISTANCE BETWEEN TAILSTOCK & WORKHEAD ..... 22- 3/4"

RANGE OF MOVEMENT:
TABLE WORKING SURFACE ..................... 5-5/16" X 37"
LONGITUDINAL TRAVEL ....................... 16"
SWIVELING ANGLE ........................... 180 DEGREES
TABLE GRADUATION ON END, FOR TAPER OF ..... +\- 10 DEGREES
GRADUATION FOR TABLE SWIVEL MOVEMENT ...... +\- 60 DEGREES
CROSS MOVEMENT OF WHEELHEAD ............... 10"
VERTICAL MOVEMENT OF WHEELHEAD ............ 10"
WHEELHEAD SWIVELS ......................... 360 DEGREES
WHEELHEAD TILTS ........................... +\- 15 DEGREES
DISTANCE BETWEEN WHEEL SPINDLE CENTER
 TO TOP OF TABLE SURFACE .................. 2" MIN./12" MAX.
DISTANCE BETWEEN WHEEL SPINDLE CENTER
 TO T-SLOT CENTER ......................... 6- 1/2" MIN./16- 1/2" MAX.

GRINDING WHEEL SPINDLE SPEEDS ............. (3) 2600, 3700 & 6200 RPM
GRINDING WHEEL SPINDLE MOTOR ............... 1 H.P.

APPROX. FLOOR SPACE ....................... 61" x 68-1/2"
APPROX. MACHINE WEIGHT .................... 2,000 LBS


EQUIPPPED WITH:
ROLLER BEARING TABLE - ANTI-FRICTION SLIDEWAY WITH
 HARDENED WAYS, CABLE DRIVE
FRONT & REAR DUPLICATE HANDWHEELS
TILTING (+/- 15 DEGREES) & SWIVELLING (360° GRINDING WHEELHEAD)
SWIVEL TABLE THAT CAN SWIVEL 120 DEGREES.  TABLE HAS FINE
 TAPER ADJUSTMENT OF +/- 10 DEGREES.
SPRING CUSHIONED TABLE DOGS - ABSORBS THE SHOCK WHEN TH
 E TABLE IS RETURNED, PERMITS A SMOOTHER CONTROL OF THE TABLE.
CENTRALIZED LUBRICATION SYSTEM
ELECTRICAL CONTROLS & OPERATIONAL PANEL
3/60/220-440 VOLT ELECTRICS

ACCESSORIES:

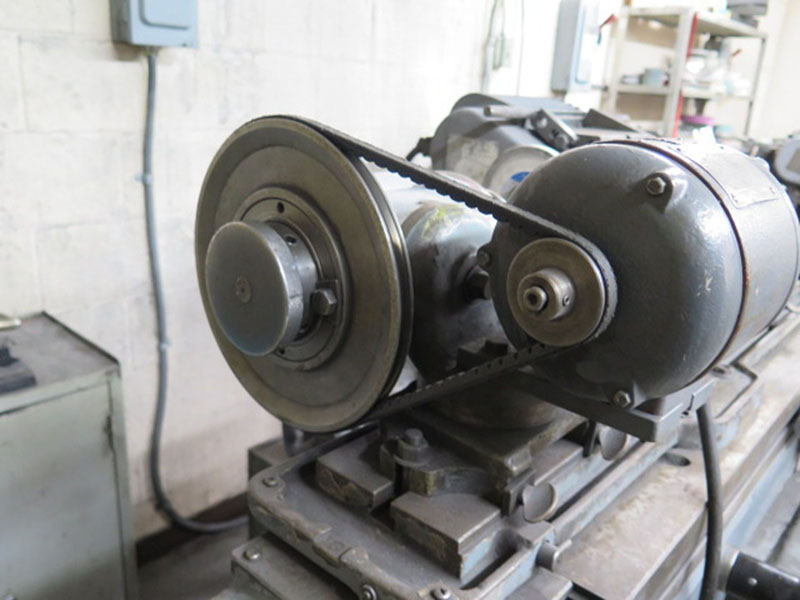

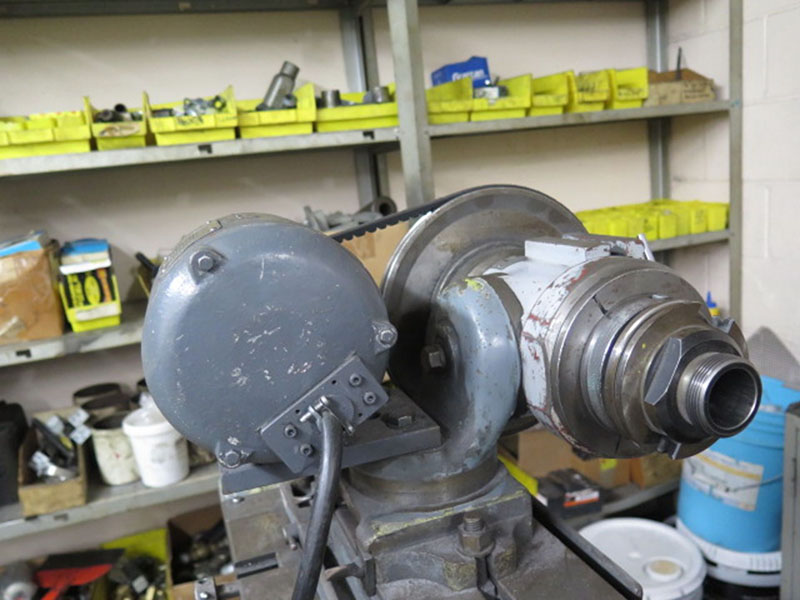

MOTORIZED WORKHEAD

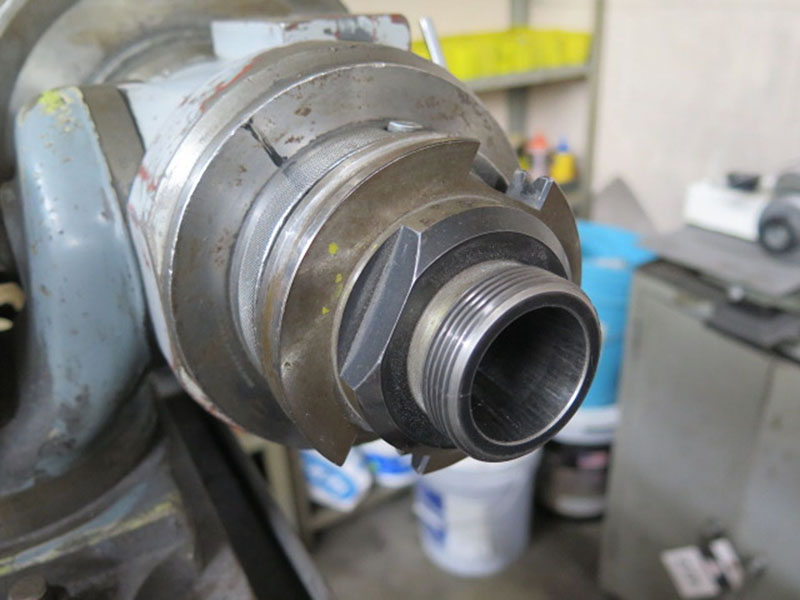

COLLET ATTACHMENT WITH DRAW BAR

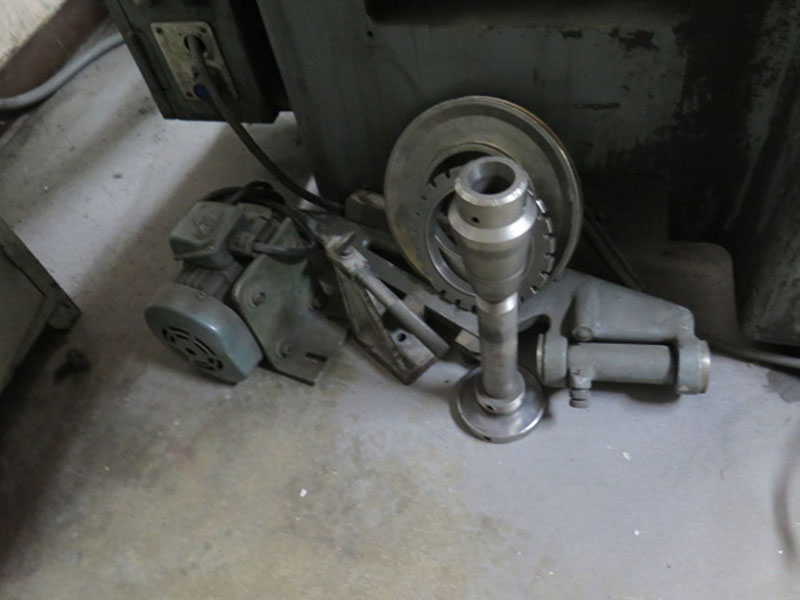

OTHER ACCESSORIES AS SHOWN

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** VERY CLEAN - EXCELLENT CONDITION & APPEARANCE **
