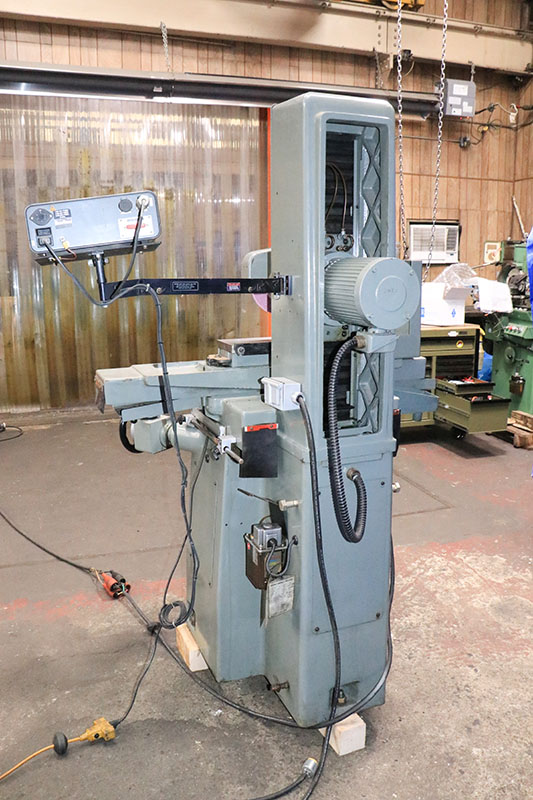

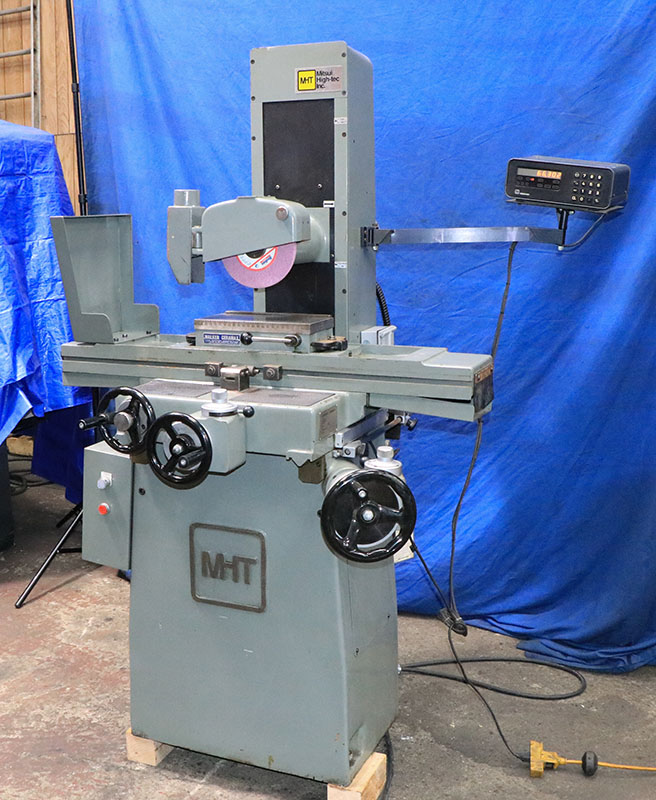

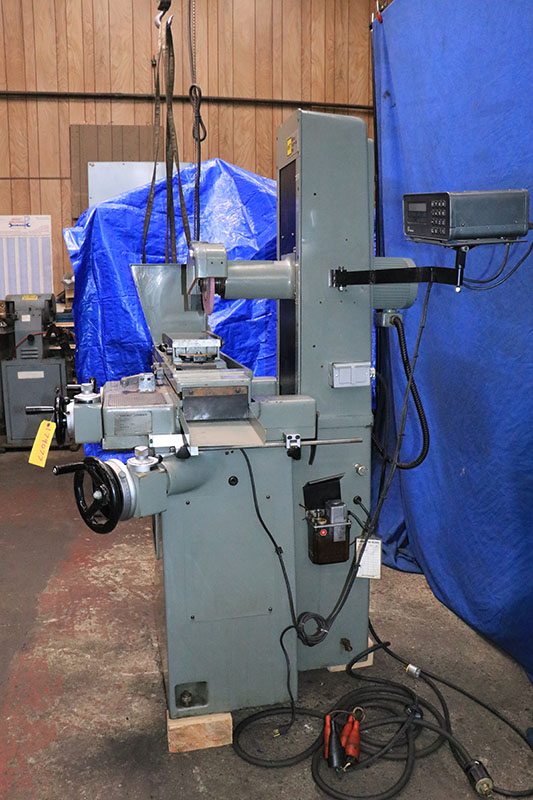

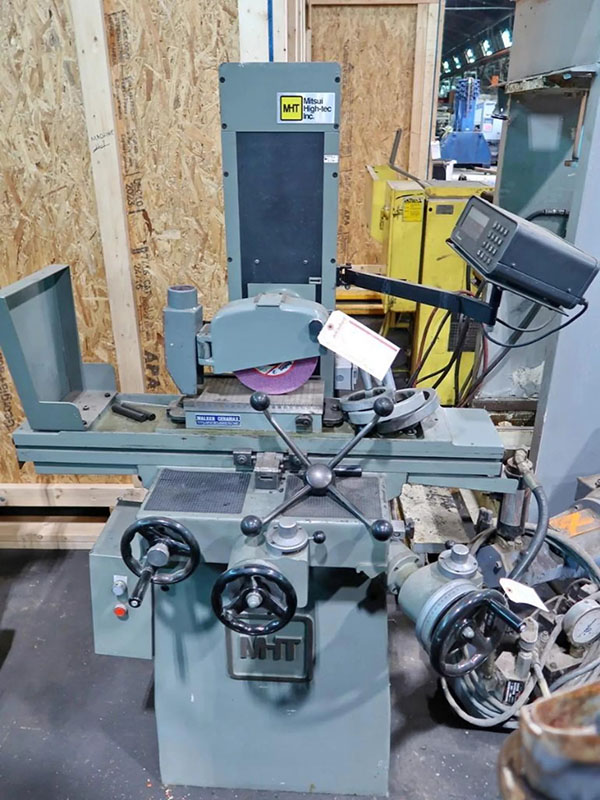

MITSUI MSG-200MH SURFACE GRINDERS, HAND FEED

Price on Request

Make:: MITSUI

Model:: MSG-200MH

Year:

Ref #:: 179077

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

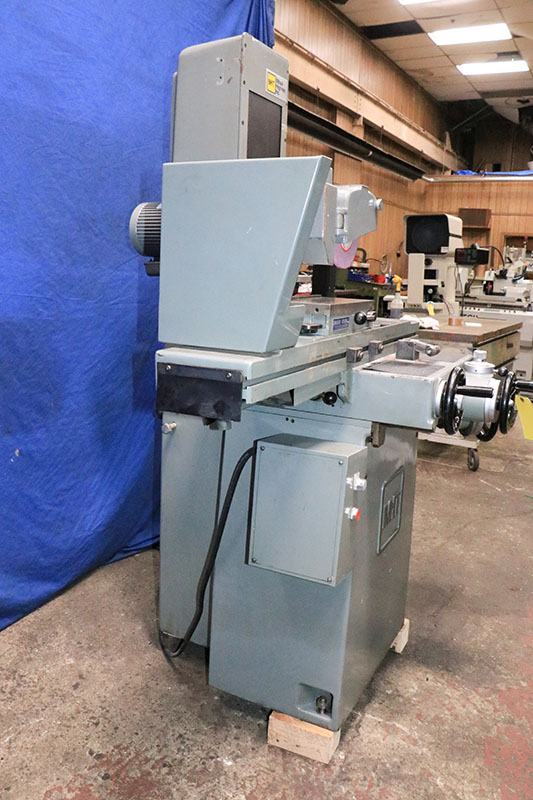

  6" X 12" MITSUI "HIGH-PRECISION"
         (MADE IN JAPAN)
    HAND FEED SURFACE GRINDER
     w/ROLLER BEARING TABLE

** FINE FEEDS FOR CROSS& VERTICAL AXES
          (.000050" GRAD.)

 ** DIGITAL READOUT DISPLAY **

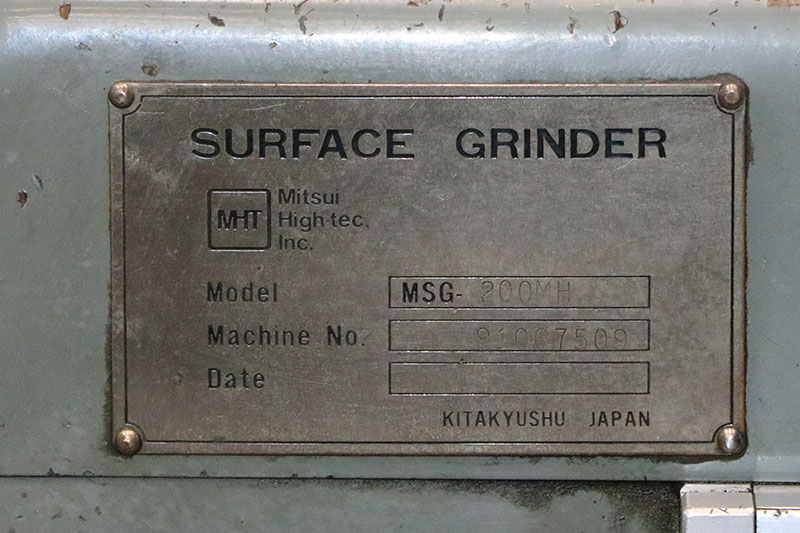

MODEL: MSG-200MH    S/N:     NEW:

WIDTH& LENGTH GROUND ..................... 6" x 12"
TABLE TO SPINDLE CENTER .................. 18"
HEIGHT UNDER 8" WHEEL TO CHUCK SURFACE ... 11"
LONGITUDINAL TABLE TRAVEL ................ 15"
CROSS TRAVEL ............................. 8"
GRINDING WHEEL CAPACITY .......... 8" x 3/4" x 1-1/4"
CROSS FEED PER REV. OF HANDWHEEL
  (.001" GRAD.) .......................... 0.100"
VERTICAL FEED PER REV. OF HANDWHEEL
  (.0001" GRAD.) ......................... 0.0500"

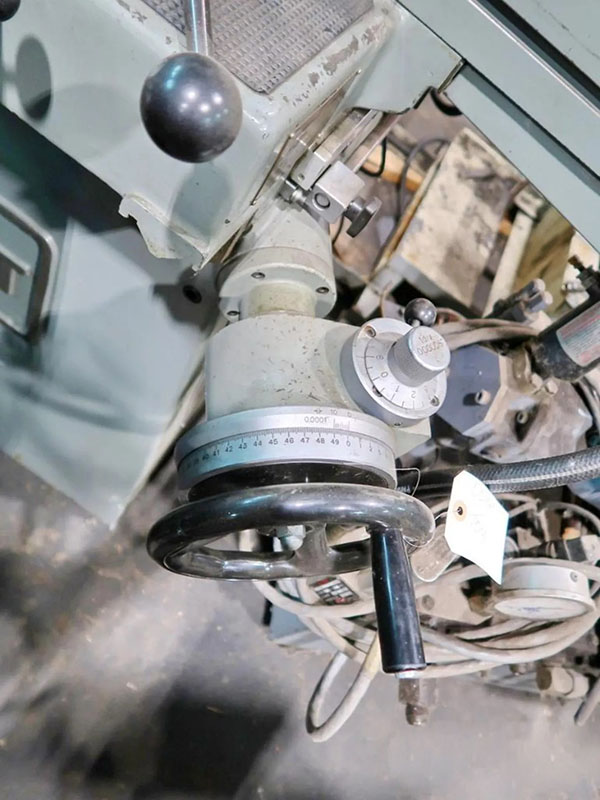

FINE FEED SYSTEM FOR CROSS FEED,
  GRAD. TO ............................... 0.00005"
FINE FEED SYSTEM FOR VERT. FEED,
  GRAD. TO ............................... 0.00005"

APPROX. WEIGHT ........................... 1,500 LBS.
APPROX. DIMENSIONS ................ 58" x 46" x 71"H

EQUIPPED WITH:
"HEIDENHAIN" 1-AXIS DIGITAL READOUT DISPLAY

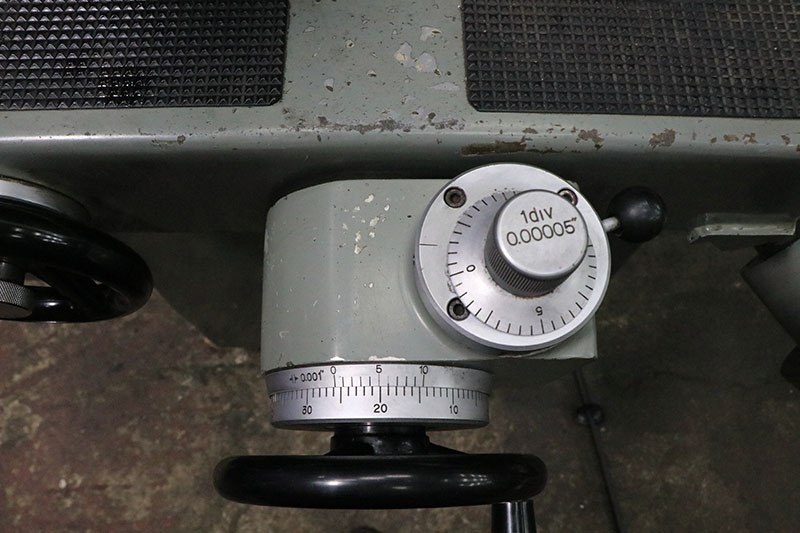

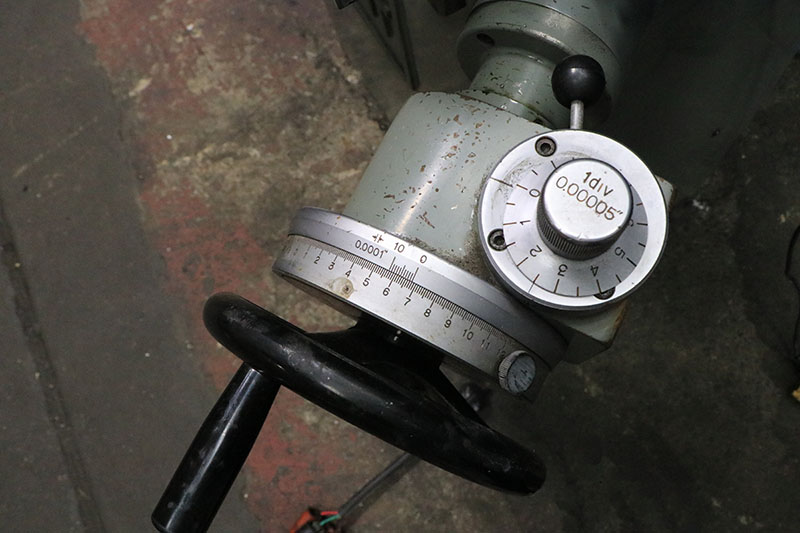

FINE FEED OPTIONS FOR BOTH CROSS& VERTICAL AXES,
  0.000050" GRADUATION ON DIALS
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS& (1) FLAT WAY ...
  DRIVEN BY CABLE SYSTEM
HARDENED & REPLACEABLE STEEL WAYS ON TABLE,
  CARRIAGE/SADDLE & COLUMN

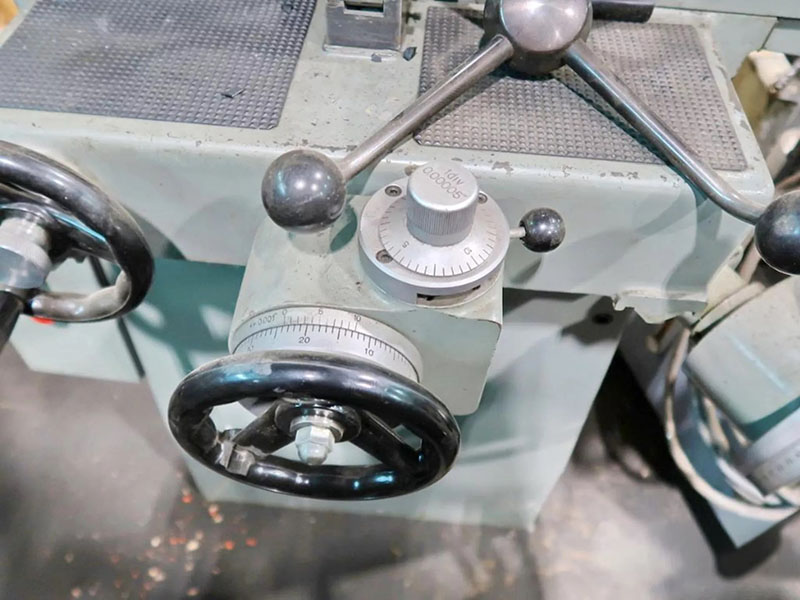

CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN

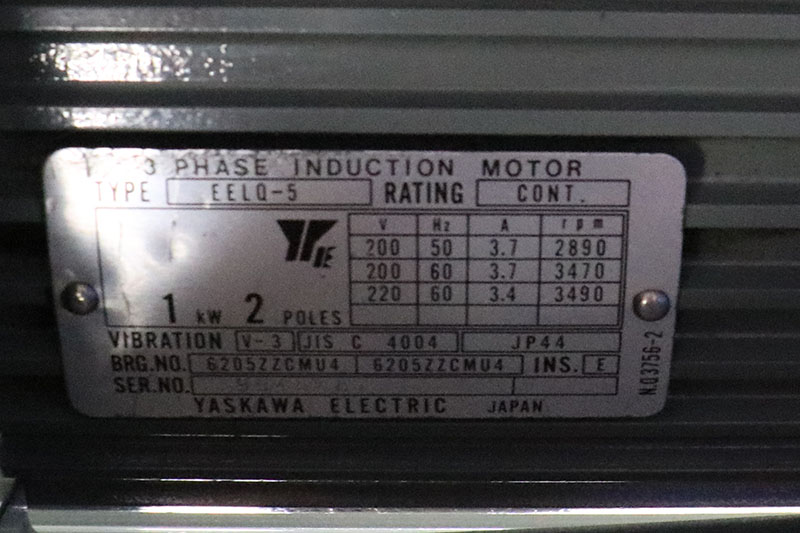

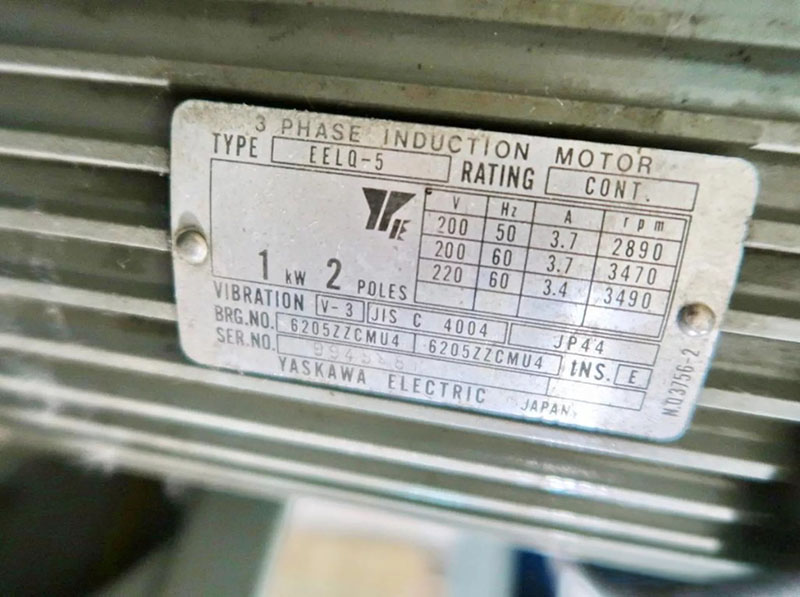

1-1/3 HP SPINDLE MOTOR

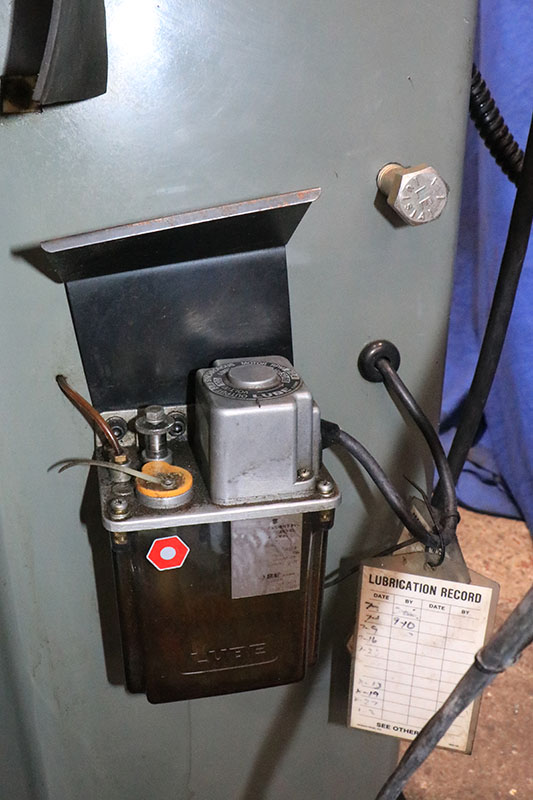

AUTOMATIC LUBRICATION SYSTEM

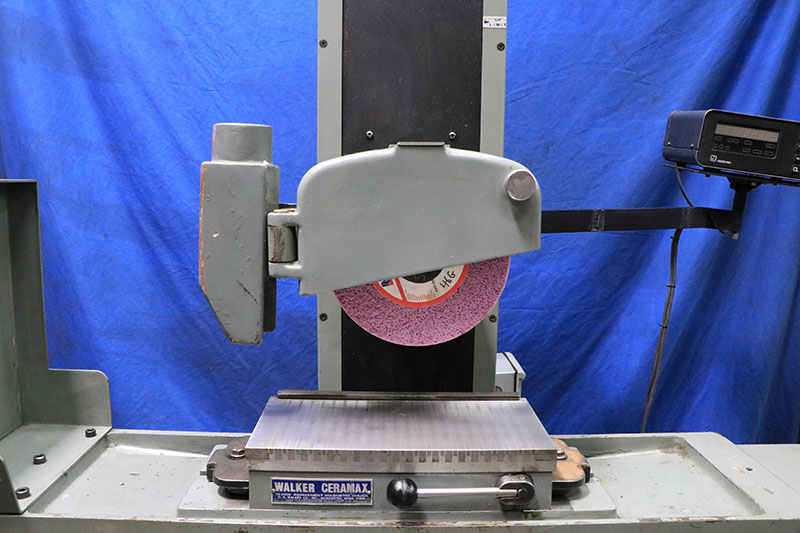

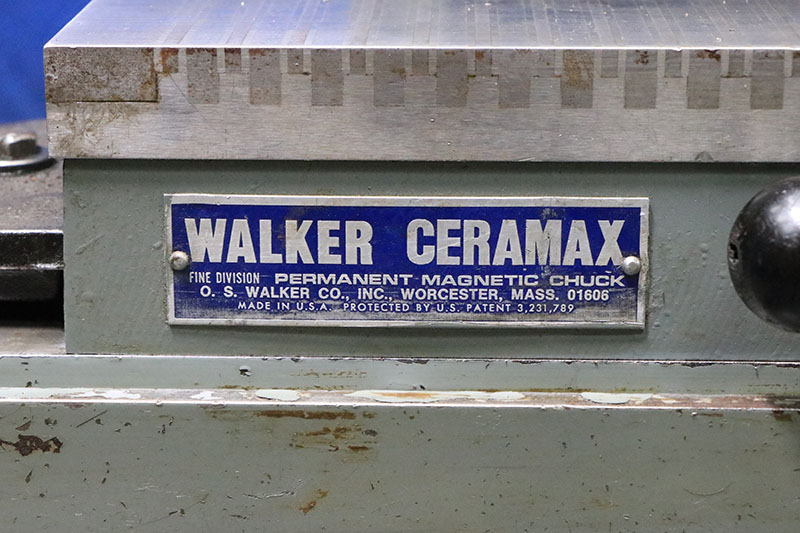

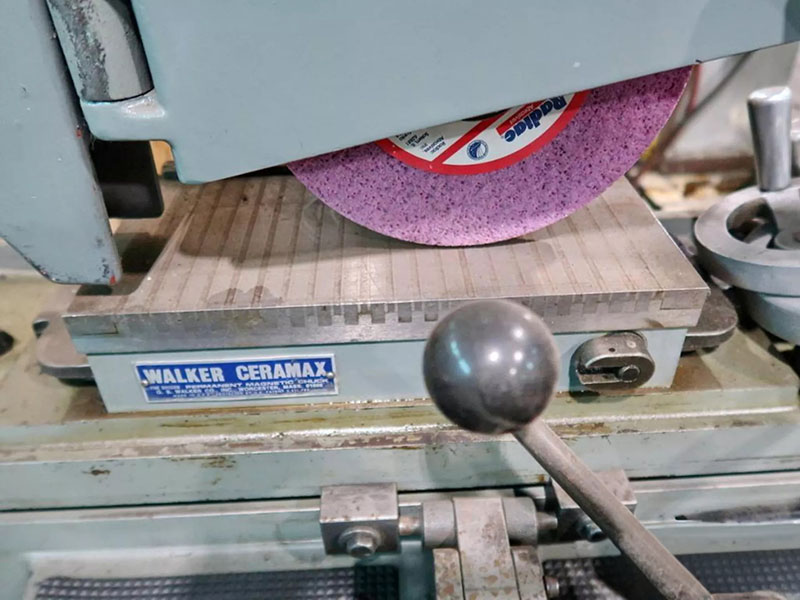

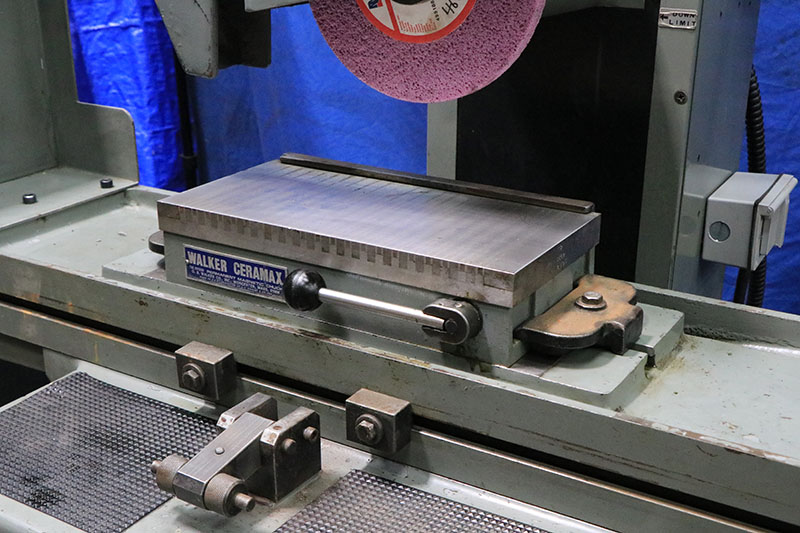

6" X 12" "O.S. WALKER" "CERAMAX" FINE-DIVISION
PERMANENT MAGNETIC CHUCK
MACHINE IS WIRED FOR 3/60/ VOLT ELECTRICS

** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
** JUST BEAUTIFUL - ORIGINAL PAINT **
** EXCELLENT CONDITION& APPEARANCE **
