Mitutoyo PH-A14, 2015, CODE 172-810A, QM-DATA 200 DRO COMPARATORS

Price on Request

Make:: Mitutoyo

Model:: PH-A14, 2015, CODE 172-810A, QM-DATA 200 DRO

Year:: 2015

Ref #:: 178883

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

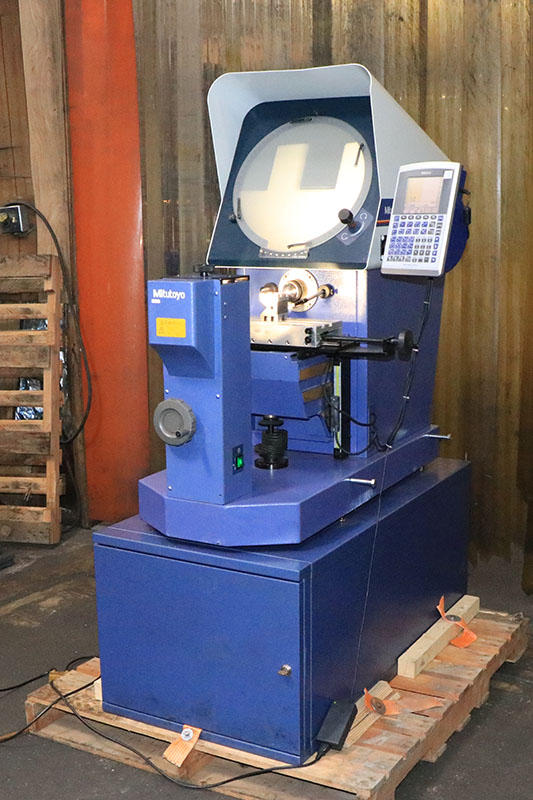

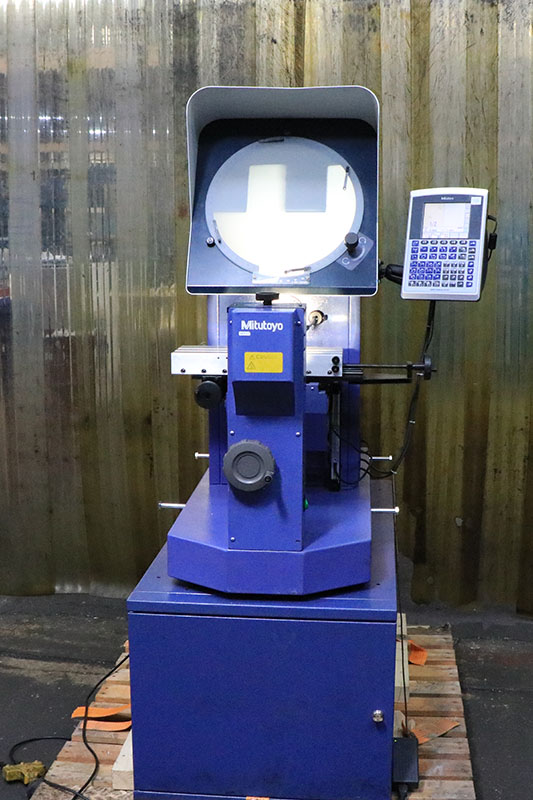

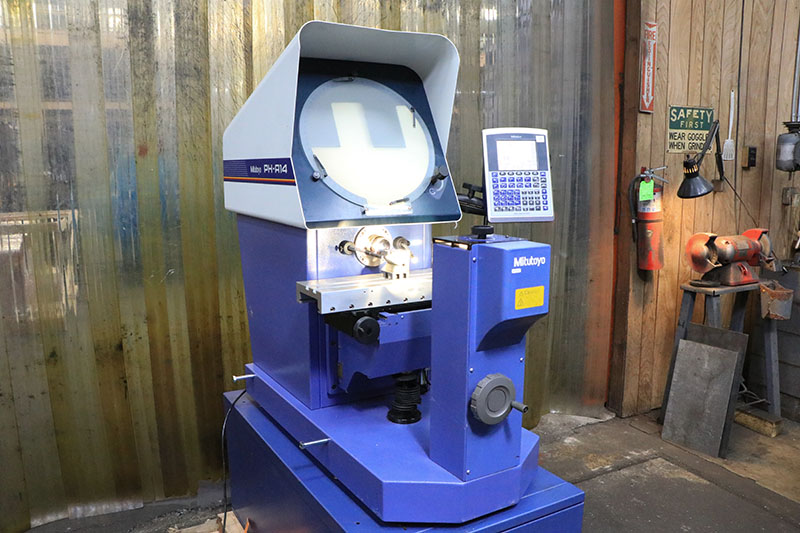

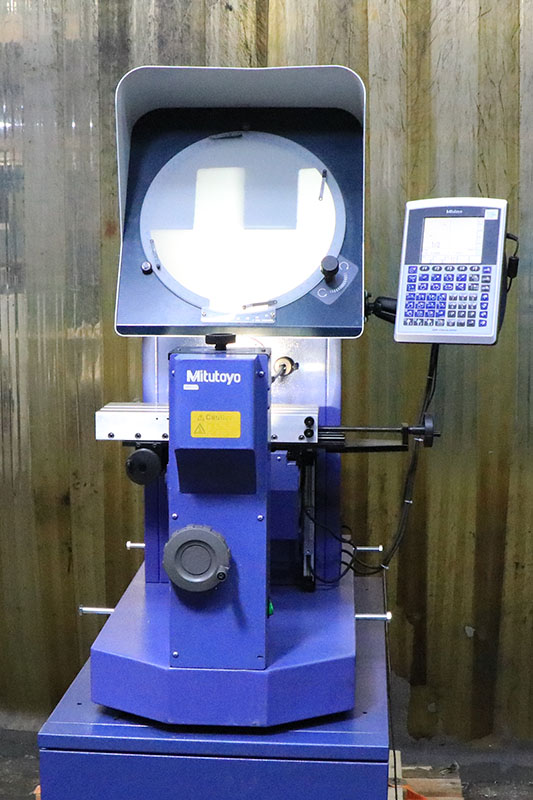

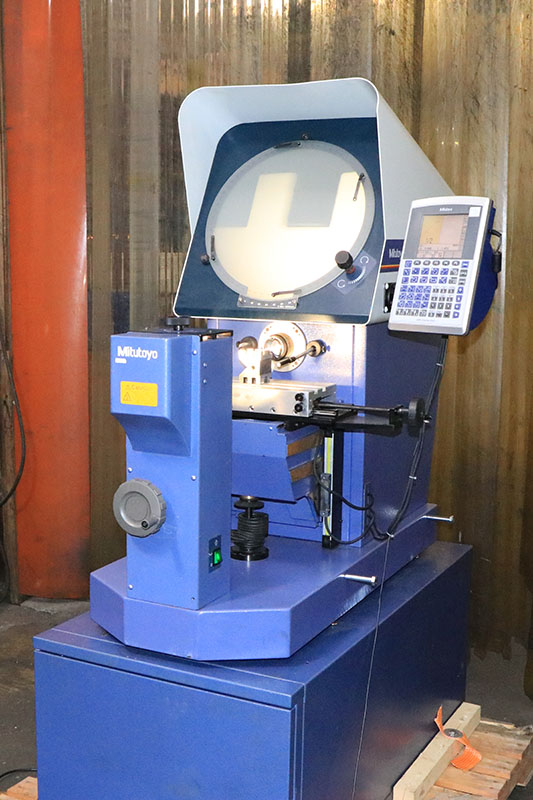

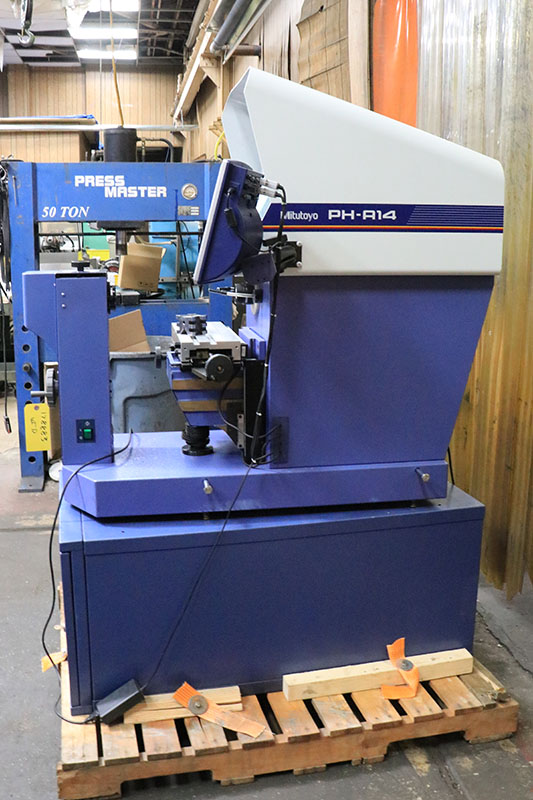

    14" MITUTOYO MODEL PH-A14
  BENCH MODEL HORIZONTAL PROJECTION
        OPTICAL COMPARATOR

** MITUTOYO "QM-DATA 200"
   2-AXIS DIGITAL READOUT DISPLAY,
   0.00005" RESOLUTION, FEATURING
   PROGRAMMABLE GEOMETRIC FUNCTIONS **

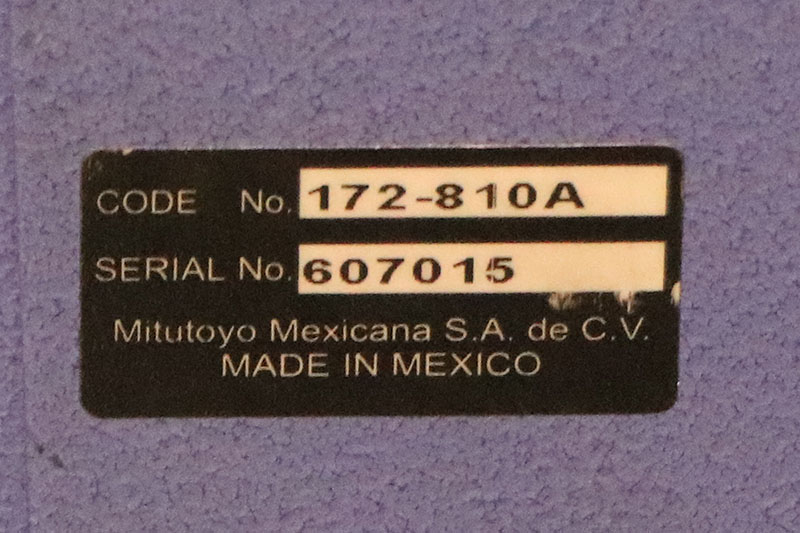

MITUTOYO CODE No.: 172-810A
S/N: 607015
NEW: 2015


SCREEN DIAMETER .............. 14"
TABLE SIZE ................... 16" X 6"
WEIGHT CAPACITY ON TABLE ..... 100 LBS.
HORIZONTAL TRAVEL ............ 8"
VERTICAL TRAVEL .............. 4"
FOCUS ........................ 2"
HELIX ANGLE .................. +/- 10°
SCREEN ROTATION .............. 360°

MACHINE WEIGHT ............... 308 LBS.

DIMS. OF MACHINE,
 ...................... 24.10"W x 48.8"D x 45.6"H
DIMS. OF FACTORY CABINET,
 ...................... 23"W x 45"D x 20"H

EQUIPPED WITH:
"MITUTOYO "QM-DATA 200" DIGITAL READOUT
  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

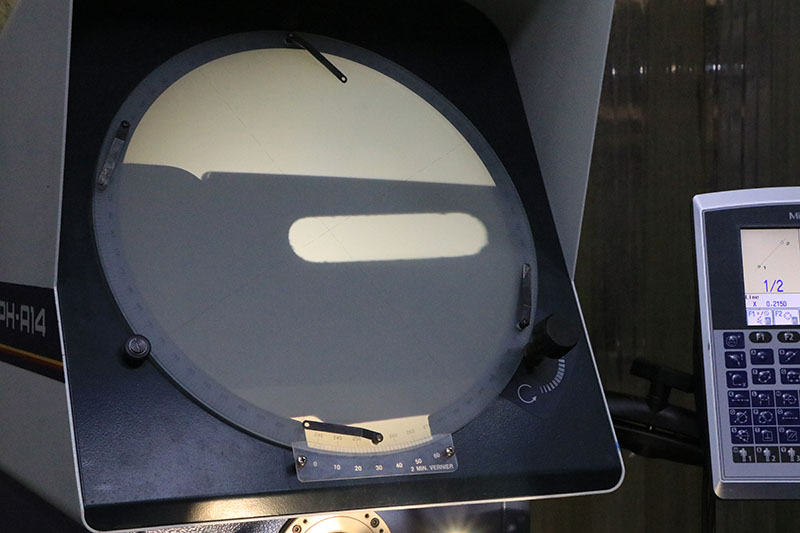

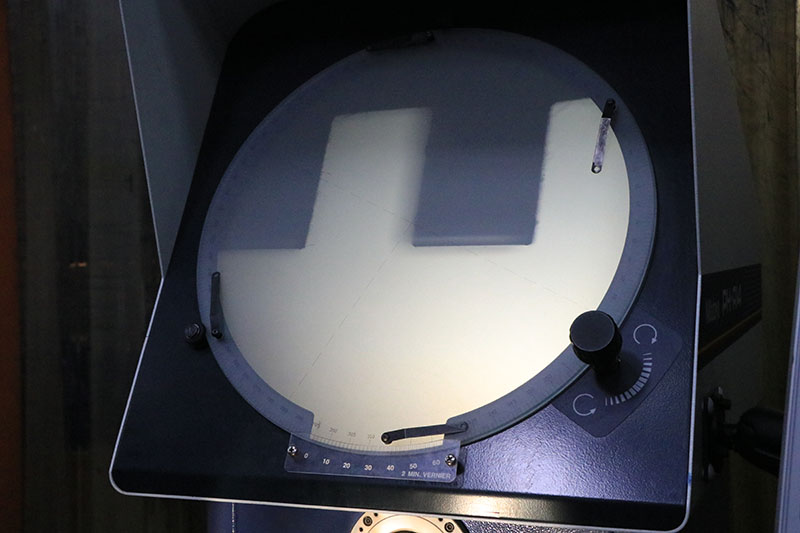

INVERTED IMAGE ON THE DAY-BRIGHT SCREEN

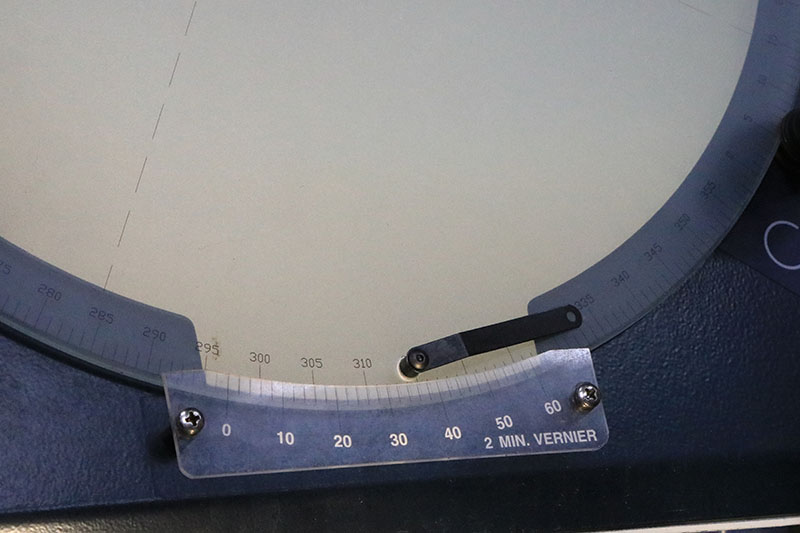

360 DEGREES SCREEN ROTATION,
  WITH FINE FEED & CLAMP
HALOGEN BULB
TELECENTRIC LENS SYSTEM
INVERTED IMAGE ON THE DAY-BRIGHT SCREEN

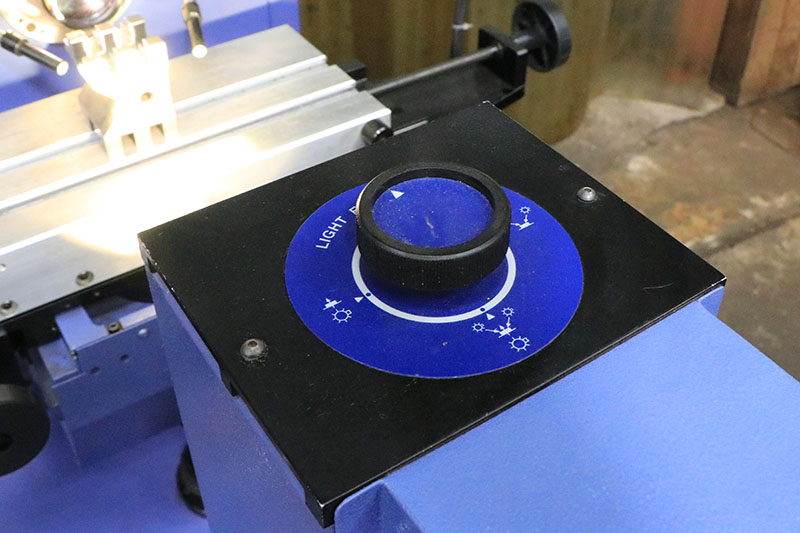

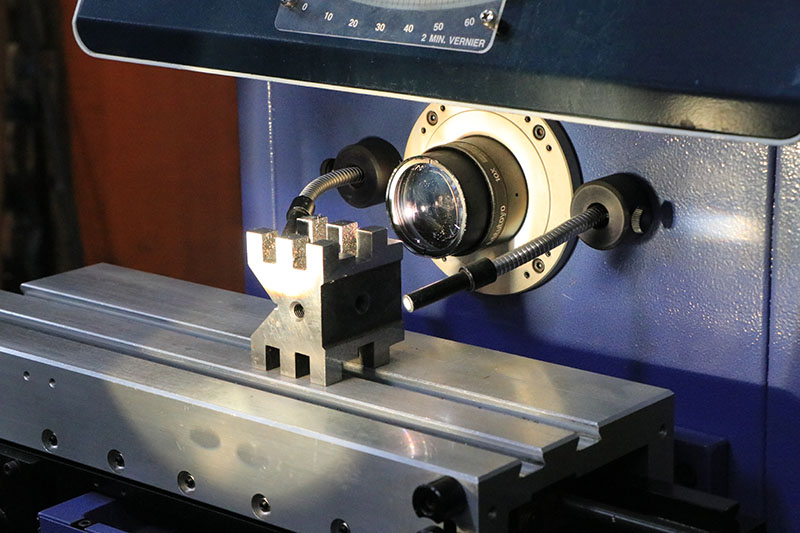

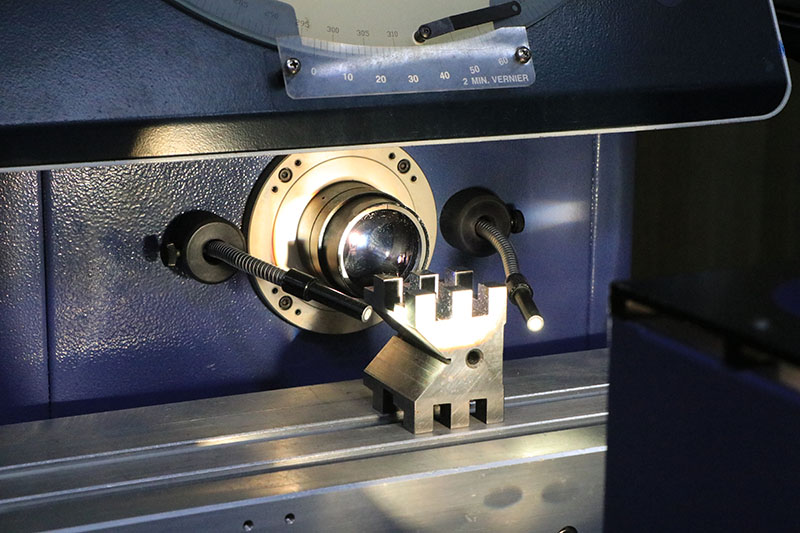

TWIN FIBER OPTIC SURFACE ILLUMINATION
HALOGEN BULB, 24V, 150 W, (500 HOURS)

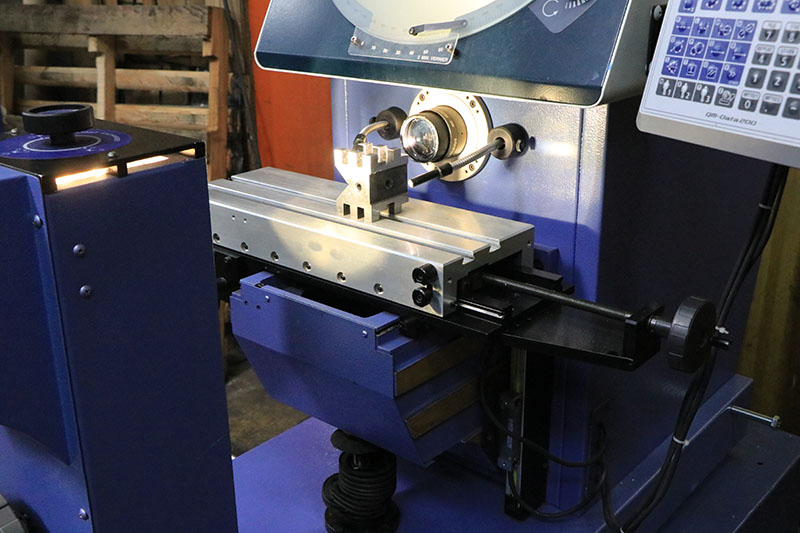

HEAVY DUTY WORK TABLE, 100 LBS. CAPACITY
10X  LENS
120 VOLT/1 PHASE ELECTRICS/50-60 Hz/6 AMPS SERVICE

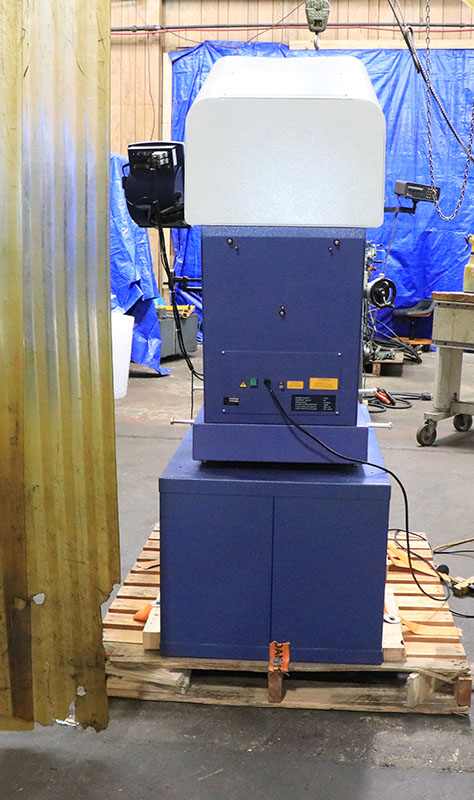

MITUTOYO FACTORY CABINET

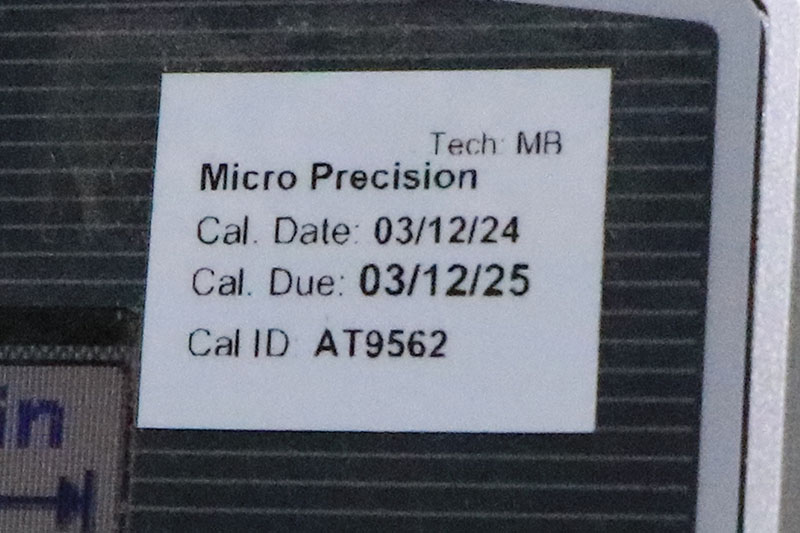

CALIBRATED LAST BY:
MICRO PRECISION
TECH:  MR
03/12/2024
CAL I.D.:  AT9562



      Features

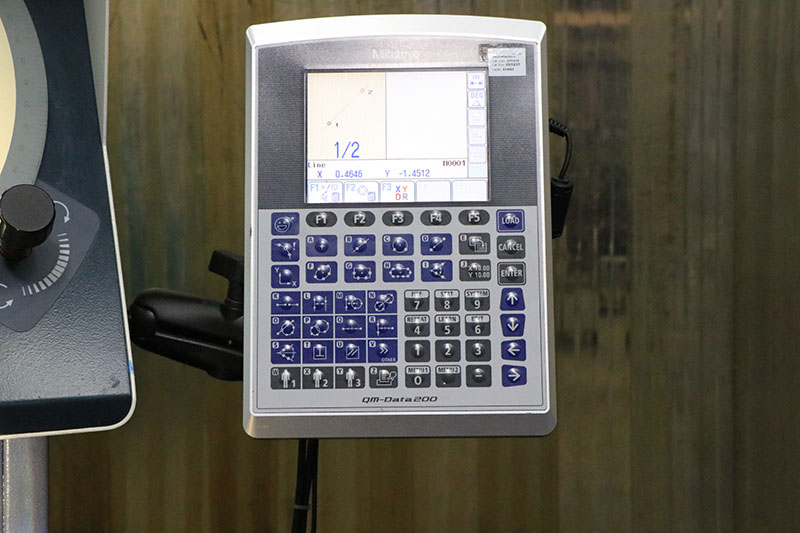

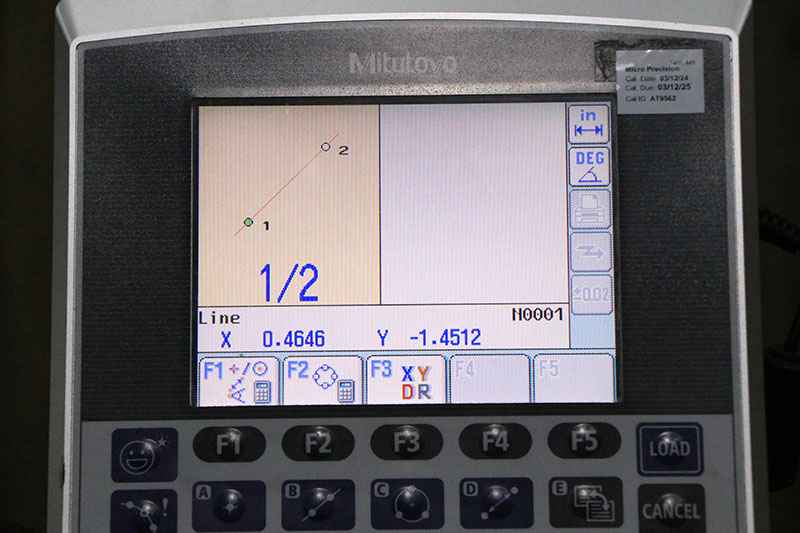

The QM-Data200 is a geometric readouts/analysis
  unit for optical instruments like a profile projector.
   This features powerful 2-D coordinate measurement
   capabilities with unmatched simple key operation.
   The QM-Data200 improves operator productivity,
   minimizes errors and save a total measurement time
   and production cost.    Various graphic displays on
   the large colored LCD screen for easy measurement
   operations.  One-key operation for combined
   measurements that are often used
   (circle-circle distance, etc.)
 The AI measurement function
  (automatic identification  of measuring item)
  eliminates switching between the
  measurement command keys.
Equipped with the measurement procedure teaching
  function and the measuring position navigation in
  Repeat mode.The user menu function allows user to
  register measurement commands or part programs
  to create his/her own menu.
Tolerance zone measurement of data processing result
  and various statistical processing for each item are
  available.
Measurement result output to "MS-Excel" in
  spreadsheet (CSV) format.
The measurement procedure and measurement result
  can be saved, using the USB drive.



** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** LIKE NEW CONDITION & APPEARANCE **
